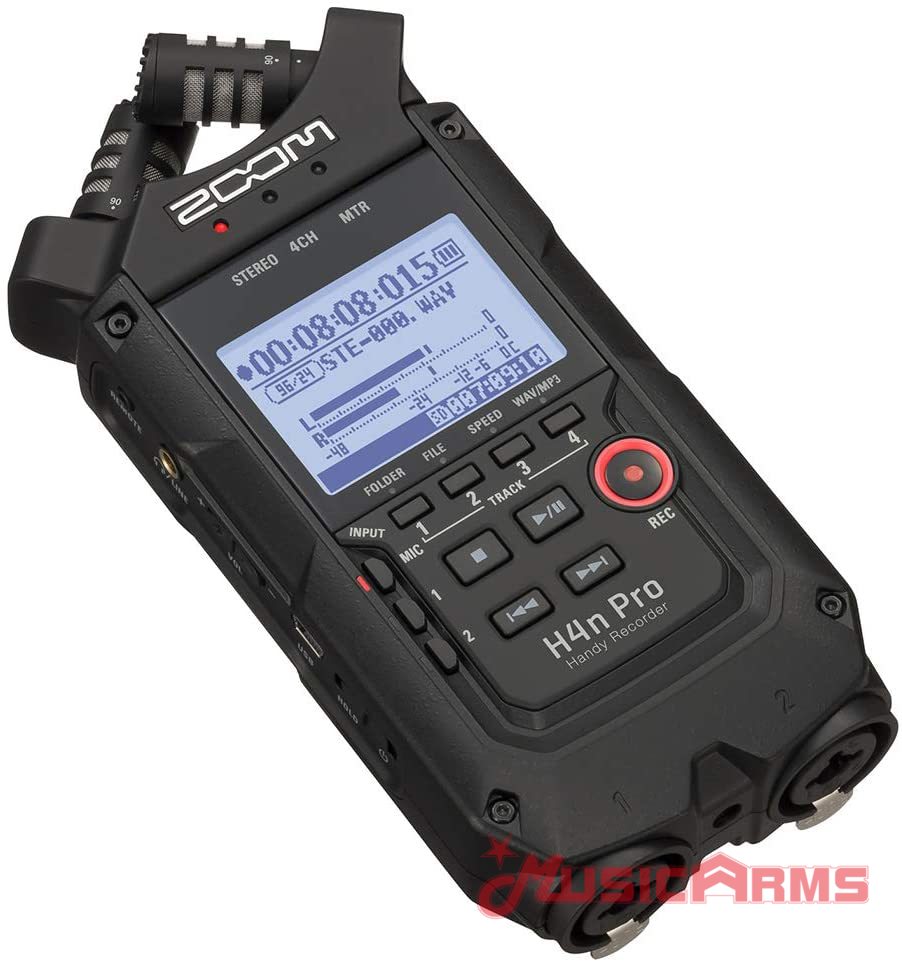

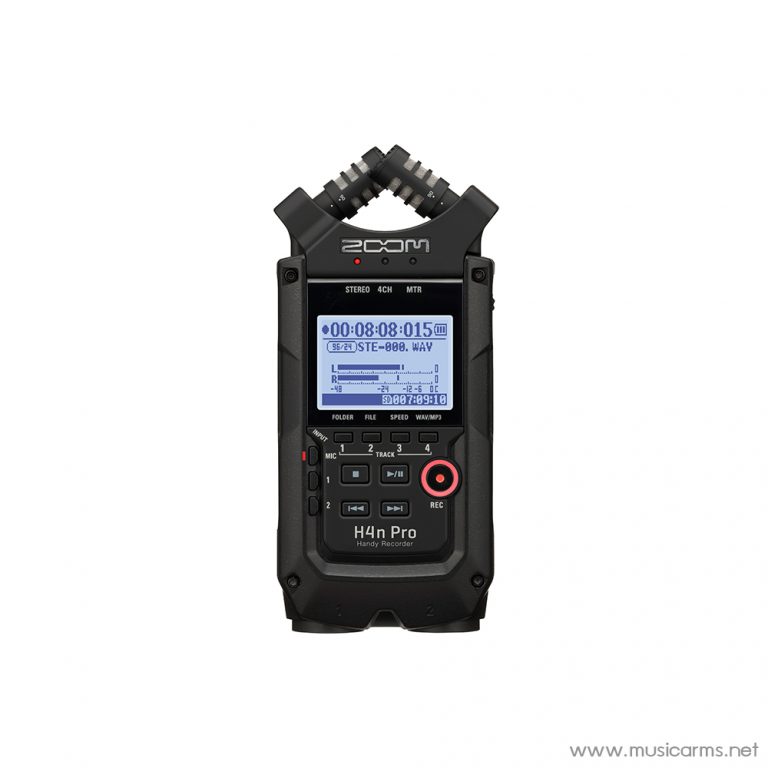

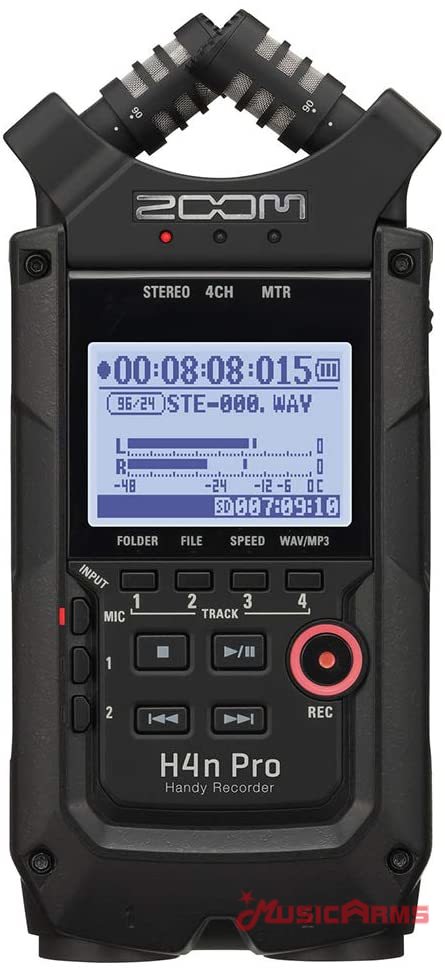

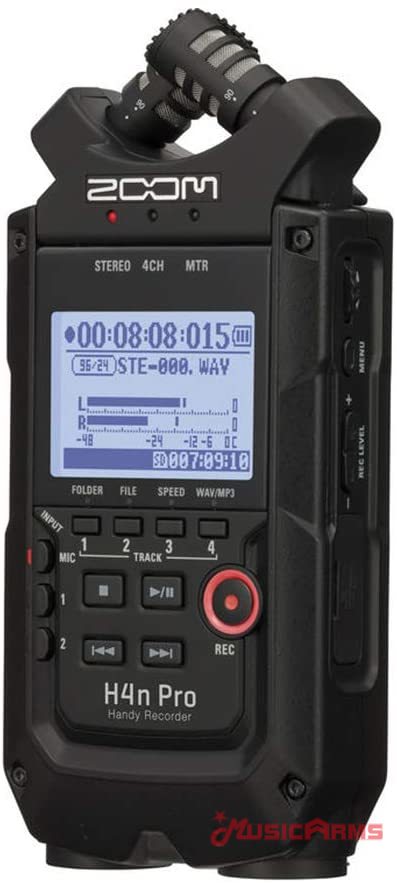

Zoom H4n Pro Handy Recorder เครื่องบันทึกเสียง

Capture Location Sound Like a Pro

Zoom’s Handy Recorders set the standard for portable field recording devices. Now Zoom raises the bar again with the H4n Pro. The H4n Pro’s state-of-the-art XY mics, natural-sounding preamps, and ultra-low noise floor let you record everything with stunning realism, from the roar of a rocket to the drop of a pin. With its locking XLR/TRS connectors, the H4n Pro is ideal for recording film location sound, podcasts, and concerts. Flip from stereo to 4-channel mode, and you can sweeten a board feed with live room ambience in real time. And its punch-in and overdubbing capabilities and studio-grade effects turn the Zoom H4n Pro into a veritable handheld multitrack studio.

Sonic performance for your high-profile projects

Zoom spec’d the H4n Pro for high-resolution sonic performance. The H4n Pro sports the same low-noise, high-performance mic preamplifiers as in the company’s renowned H5 and H6 Handy Recorders, both of which have found much use here at Sweetwater. It records and plays back at resolutions up to 24-bit/96kHz and boasts an improved noise floor that captures low-volume audio with few artifacts and vanishingly low noise.

Field recording for film and video

Zoom loaded the H4n Pro with features that make it ideal for recording film production sound and sound effects. The onboard XY microphones capture a stunning stereo image, and two combo input jacks let you use your favorite mics as well. The H4n Pro also has a headphone/line-out jack you can use to send a high-definition stereo audio signal directly to your camera.

Stereo, M-S, and 4-channel modes

The H4n Pro can handle up to 140dB SPL, which makes it perfect for recording concerts, from a quiet chamber quartet to an ear-bludgeoning metal band. Using the H4n Pro’s built-in XY mics (or external ones), Stereo mode is great for capturing acoustic instruments, dialogue, live performances, and more — covering a broad stereo spectrum while capturing clear, defined sound sources in the center. You can change the angle of the two unidirectional condenser mics from 120 to 90 degrees for a wider or more tightly focused image. Plus, Zoom has included an onboard M-S decoder for mid-side recording with external mics, which lets you adjust the width of the stereo image in post production. In 4-channel mode, you can record with the built-in mics and two external inputs simultaneously, adding lively room ambience to a stereo board mix.

For journalism and podcasting, the Zoom H4n Pro can’t be beat, giving you the portability, miking versatility, and professional audio quality you need for impactful storytelling. The H4n Pro’s support for plug-in power lets you easily mic the talent with a lavalier. Record time-stamped WAV files and sync the audio with video footage in post production, or embed hi-fi audio directly in your video in real time, via an 1/8″ stereo feed.

Handheld multitrack studio and interface

Produce songs from start to finish with the H4n Pro, using its punch-in and overdubbing features, studio-grade effects, and instrument emulators. The H4n Pro also functions as a 2-in/2-out USB audio interface for Mac and PC, so you can launch your favorite music software (or the included Cubase LE) and start creating right out of the box. The Pro’s Multitrack Mode turns it into a four-track studio, complete with overdubbing, onboard effects, and the capability of working with previously recorded sound files. The built-in studio-grade effects include dynamics processing, reverb and delay, a highpass filter, and more. You’ll find dozens of killer amp models and effects for guitar and bass. You can loop playback and independently adjust speed and pitch, making the H4n Pro an effective tool for phrase training. There’s even an onboard tuner and metronome, so you’ll always be in tune, and in time.

Zoom H4n Pro Features:

• Simultaneous 4-track recording
• High-fidelity microphone preamps
• Onboard XY stereo microphones, adjustable between 90 and 120 degrees
• Record up to 140dB SPL with the built-in microphones
• 2 Mic/Line inputs with XLR/TRS combo connectors
• Stereo 1/8″ Mic in 1/8″ phone jack
• Main inputs support +24 or +48V phantom power
• Plug-in power (2.5V) via Mic/Line in 1/8″ jack
• Output/headphone jack with dedicated volume control
• 1.9″ backlit LCD display
• Built-in speaker for instant playback
• Records directly to SD and SDHC cards (up to 32GB)
• Supports up to 24-bit/96kHz in BWF-compliant WAV or a variety of MP3 formats
• Onboard mid-side decoding lets you adjust stereo width in post production
• 4-track to stereo, stereo to dual mono internal mixdown
• Accommodates up to 99 markers per recording
• Onboard FX include compressor/limiter, highpass filter, reverb/delay, and amp models
• Normalize (maximum gain) and Divide (file splitting) functions
• Built-in metronome and chromatic tuner
• Playback looping with user-defined start and stop points
• Variable playback speed without affecting pitch (50% to 150%)
• Variable pitch without affecting playback speed
• USB port for file transfer to and from your computer
• 2-in/2-out USB audio interface for Mac/PC
• Mounts to tripod or mic stand, or directly to DSLR with optional hot-shoe adapter
• Remote operation with optional Zoom RC4
• Runs on 2 standard AA alkaline or NiMH rechargeable batteries
• Up to 6 hours of operation (up to 10 hours in Stamina mode)
• Includes Cubase LE8 and Wavelab LE8 software for Mac/PC

Portable MP3 / Wave Recorder

• Up to 24 Bit / 96 kHz
• Recording in WAV, MP3 and BWF format possible
• Built-in stereo microphones can be positioned between 90 and 120 degrees
• Peak SPL: 140 dB
• Optimised noise floor (-120 dBu ON) for improved low-volume recording
• 2 XLR microphone inputs with +24 V and +48 V phantom power
• Microphone inputs can be used parallel to the integrated stereo microphone
• Integrated multi-effects – with the Zoom G5n as its model: re-tuned effects, guitar amp simulation, phrase trainer and tuner
• Variable playback speed from 50% to 150% with pitch correction
• USB port
• New rubberised and ergonomic case with improved LCD display
• Supports SD or SDHC cards up to 32 GB
• Integrated speaker
• Limiter
• Dimensions (W x H x D): 73 x 157.2 x 37 mm
• Weight: 294 g
• Colour: Black
• Includes USB cable and protective cover made of plastic
• Includes a manual

• เครื่องบันทึก MP3 / คลื่นแบบพกพา
•  24 บิต / 96 กิโลเฮิรตซ์
• บันทึกในรูปแบบ WAV, MP3 และ BWF ได้
• ไมโครโฟนสเตอริโอในตัวสามารถวางตำแหน่งได้ระหว่าง 90 ถึง 120 องศา
• SPL สูงสุด: 140 เดซิเบล
• พื้นเสียงที่ปรับให้เหมาะสม (-120 dBu ON) เพื่อการปรับปรุงการบันทึกเสียงระดับต่ำ
• อินพุตไมโครโฟน XLR 2 ช่องพร้อมไฟ Phantom +24 V และ +48 V
• สามารถใช้อินพุตไมโครโฟนขนานกับไมโครโฟนสเตอริโอในตัวได้
• มัลติเอฟเฟคในตัว – โดยมี Zoom G5n เป็นโมเดล: เอฟเฟคที่ปรับแต่งใหม่, การจำลองแอมป์กีตาร์, โปรแกรม phrase  และจูนเนอร์
• ความเร็วในการเล่นแปรผันจาก 50% ถึง 150% พร้อมการแก้ไขระดับเสียง
• ช่องเสียบ USB
• เคสยางแบบใหม่ที่ออกแบบตามหลักสรีรศาสตร์พร้อมจอ LCD ที่ปรับปรุงใหม่
• รองรับการ์ด SD หรือ SDHC สูงสุด 32 GB
• ลำโพงในตัว
• Limiter
• ขนาด (กว้าง x สูง x ลึก): 73 x 157.2 x 37 มม.
• น้ำหนัก : 294 ก.
• สี: ดำ
• รวมสาย USB และฝาครอบป้องกันที่ทำจากพลาสติก
