Yamaha YC61 คีย์บอร์ดไฟฟ้า

Dynamite Drawbar Organ Sounds and So Much More

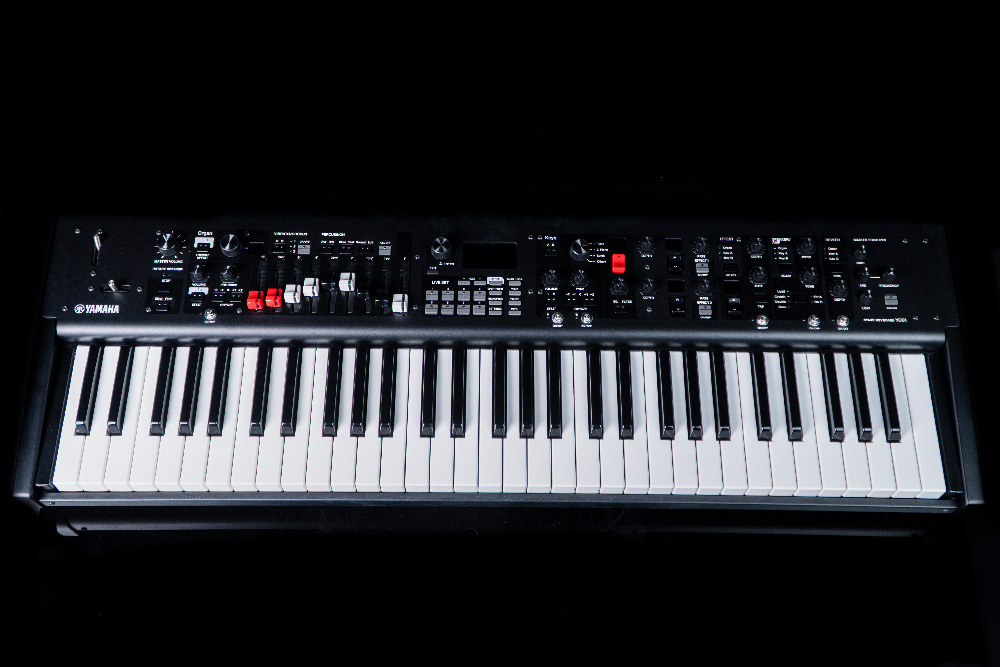

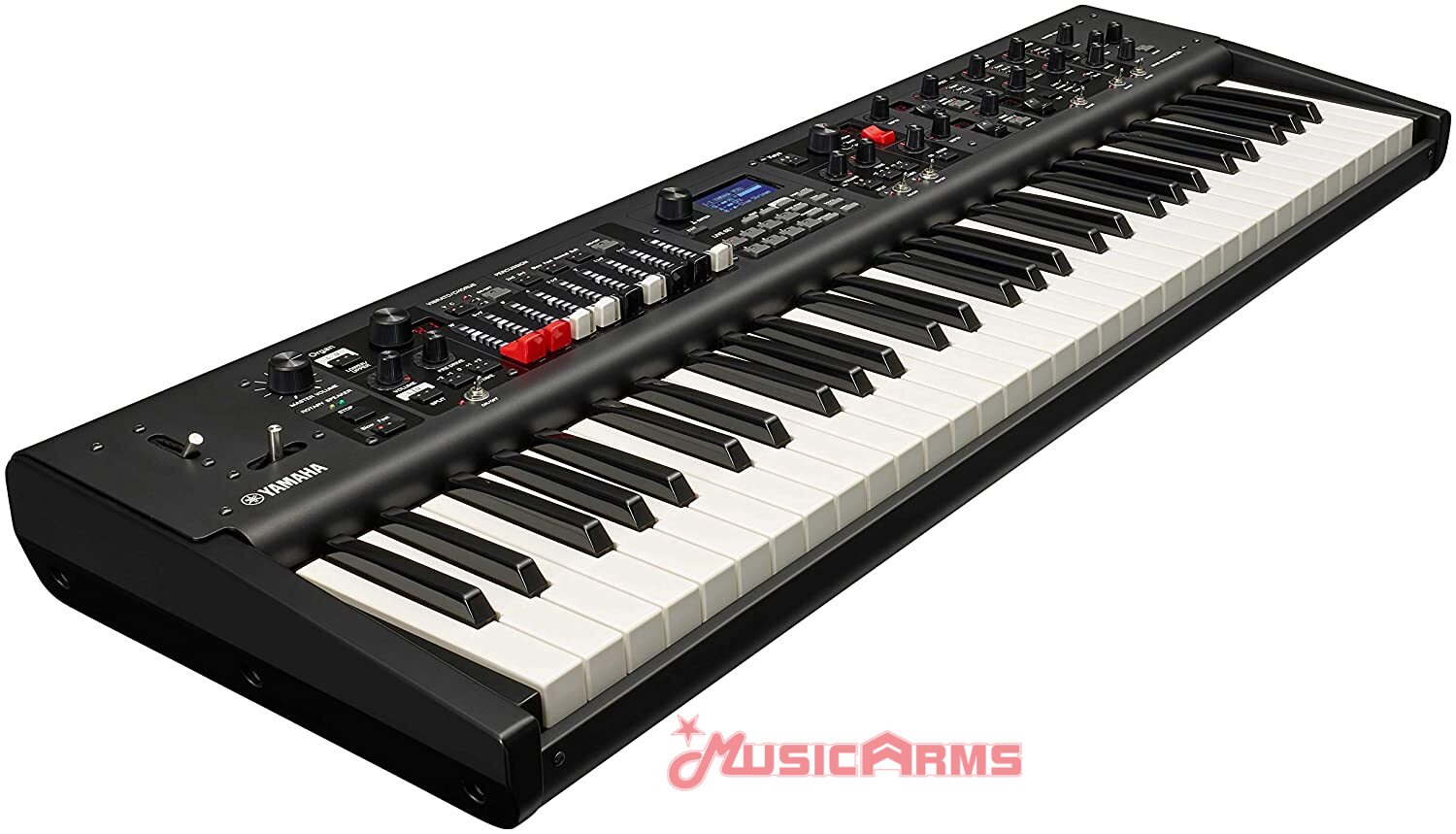

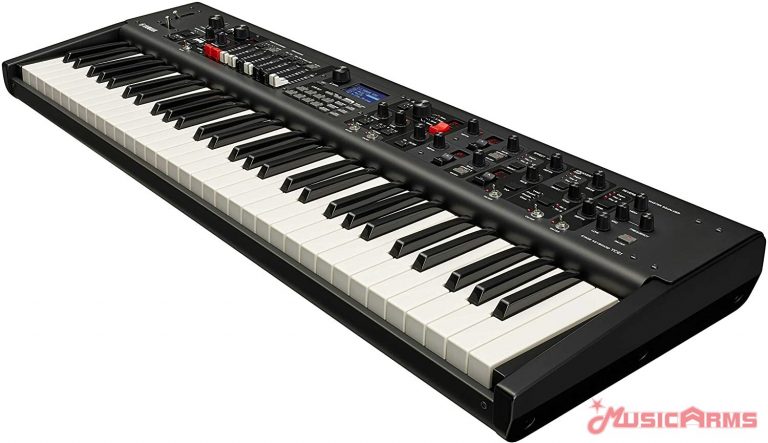

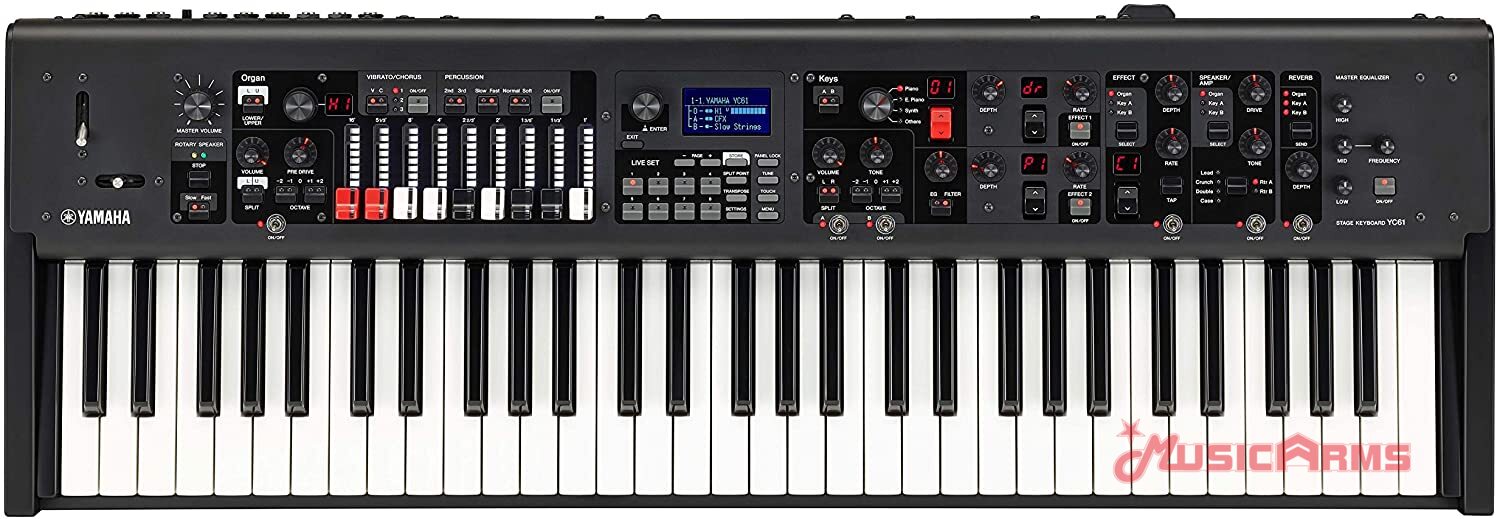

The Yamaha YC61 packs all the character of vintage combo organs and more into a gig-friendly, compact 61-key stage piano. Using Yamaha’s proprietary Virtual Circuit Modeling, the YC61 is one of the most lifelike sounding analog organ emulations on the market, and it comes stocked with a great selection of additional instrument voices and killer onboard effects. The YC61 is designed around performance, and its waterfall-style keys and physical drawbars are super responsive and a ton of fun to play and manipulate. While the YC61 is vintage in character, it boasts all the functionality and reliability of a digital instrument, with vast customization options and computer audio integration for audio recording, playback, and MIDI control. Keyboardists at Sweetwater agree—the YC61 is a dynamite drawbar organ with enough features to be the top tier keyboard in your live and studio rigs.

Endless sonic possibilities

The YC61 is brimming with the signature tones of Yamaha’s classic line of combo organs—super-fat low end, thick organ swells, mellow emanations, and biting leads, along with the inimitable sound of a rotary speaker. With its drawbar controls, the YC61 presents a sizeable sonic palette with tons of tweakability. Layer up a fat organ pad. Pull back the bars for a focused sound. Dial up the percussiveness. Beyond the incredible organ sound, Yamaha’s updated Stage OS and the YC61’s Dual Keys section, give you have control over a slew of instrument voices, including acoustic and electric pianos, FM synth, strings, and brass. And, the YC61’s nine onboard effects, such as vibrato/chorus, reverb, delay, and drive, make for endless musical possibilities.

Stellar feel and playability

The experience of playing a drawbar organ is visceral and interactive, and the YC61 provides a great feel to inspire lively performances. The physical drawbars and intuitive control surface make it easy to shape sounds on the fly without getting bogged down in programming patches. The YC61 features a waterfall-style keyboard with a rounded front edge for digging into techniques like squabbling and palm glissandos without wrecking your hands. And, the YC61 is incredibly responsive—perfect for smashing out big chords or for dancing around the keys with a light touch.

Proprietary Virtual Circuit Modeling

The foundation of the YC61’s rich and detailed sound is Yamaha’s proprietary Virtual Circuit Modeling. Developed by Yamaha originally for the “Add-on Effects” series for their digital mixing console, VCM digitally emulates analog gear down to the individual component level. The YC61’s VCM organ engine mimics the analog topology of Yamaha’s classic organs for astonishingly accurate tone, vibe, behavior, and realistic rotary speaker sounds that will transport you to a blissful vintage dreamland with all the benefits of digital sound processing.

Yamaha YC61 Stage Keyboard Features:

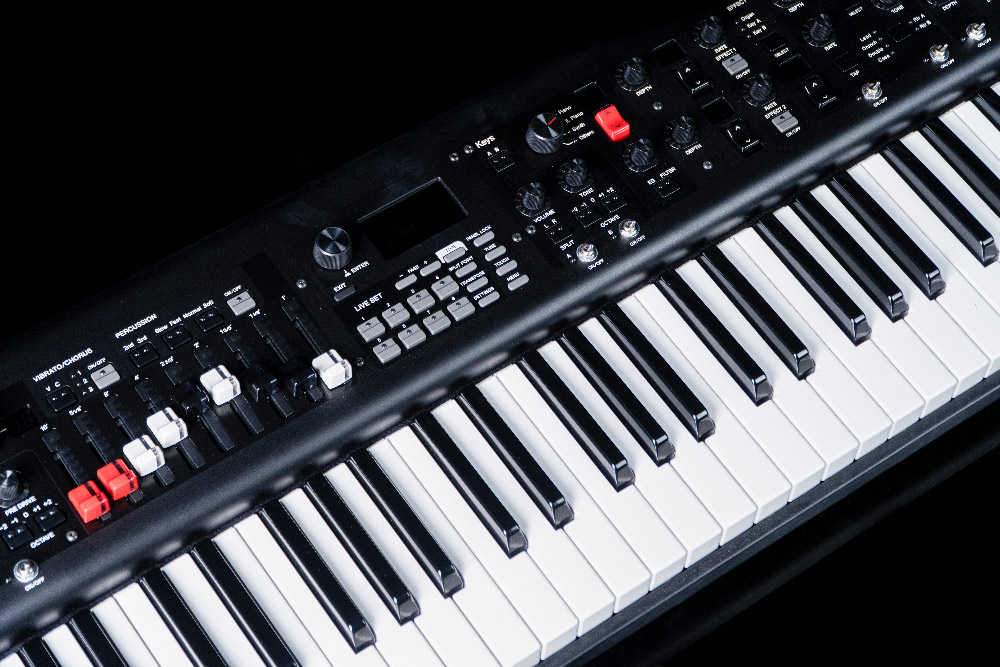

• 61-key drawbar organ and stage piano
• Proprietary Virtual Circuit Modeling delivers authentic vintage organ character

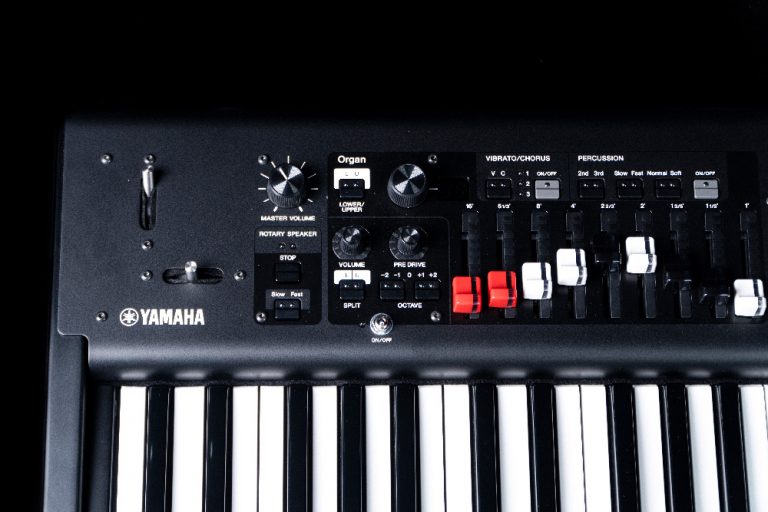

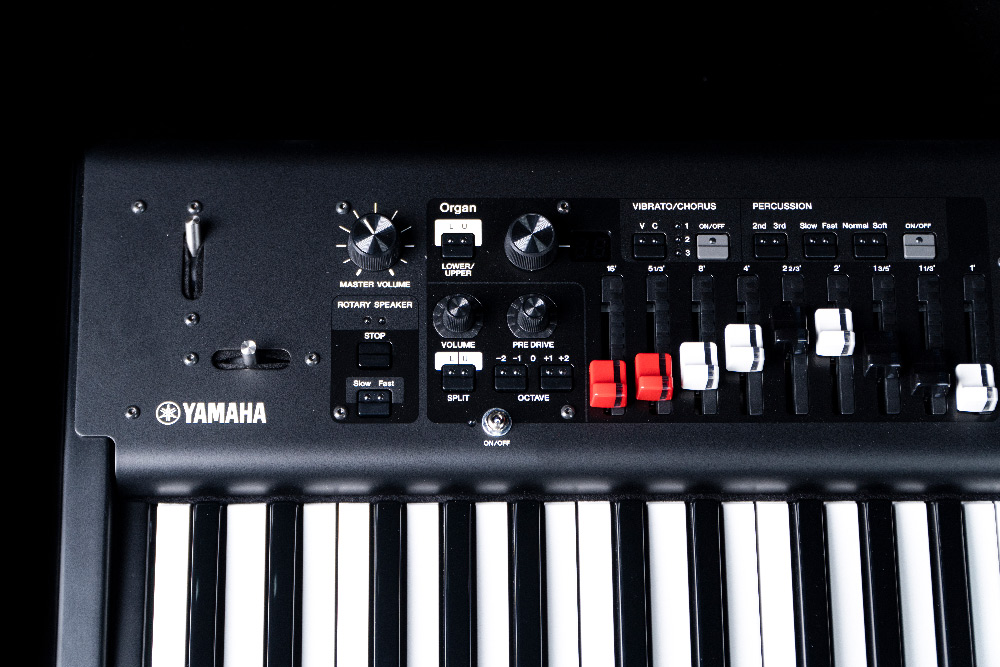

• Sculpt your sound with intuitive drawbar controls

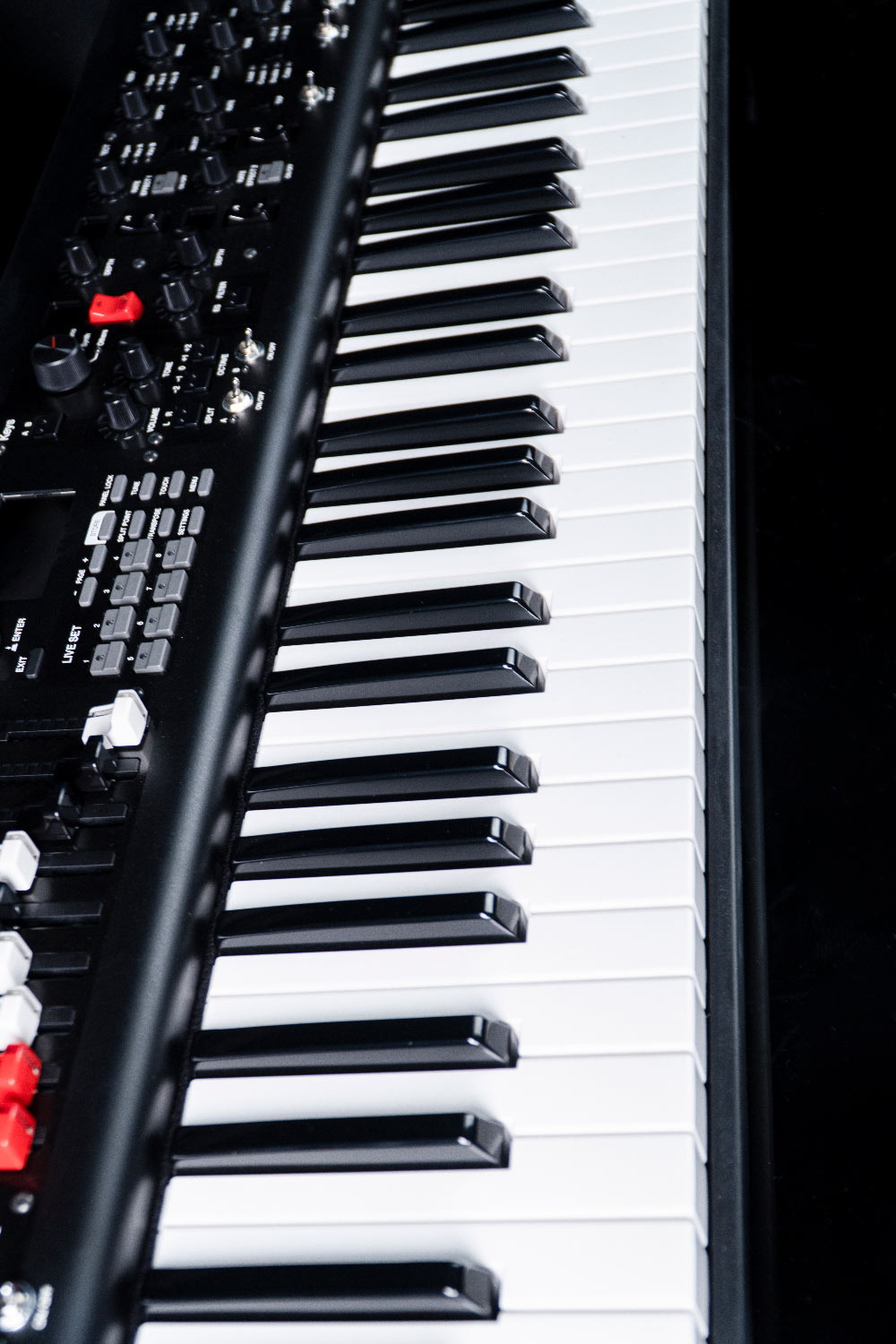

• Waterfall-style keys provide authentic organ playability
• Two ultra-realistic rotary speaker models
• Great selection of additional instrument voices, including acoustic and electric pianos, DX-style FM synth sounds, strings, and brass
• Layer sounds with the Dual Keys section
• Nine onboard effects processors, such as vibrato/chorus, reverb, delay, and drive
• 2-channel USB audio/MIDI interface for DAW and computer audio integration
• Dual 1/4” lines for connecting secondary keyboards, mobile devices, and more

Tech Specs

• Type: Stage Organ Keyboard
• Sound Engine: Virtual Circuitry Modeling, 8 Operator FM Synthesis, AWM2
• Number of Keys: 61
• Type of Keys: Semi-weighted, Waterfall Keys
• Touch Sensitivity: Initial Touch
• Other Controllers: Pitchbend Lever, Modulation Lever, 9 x Drawbars
• Polyphony: 128 Notes
• Presets: 80 x User Presets, 80 x Factory Presets ; 6 x Organ Voices, 139 x Keyboard Voices ; VCM/FM Organ, Grand Pianos, Electric Pianos

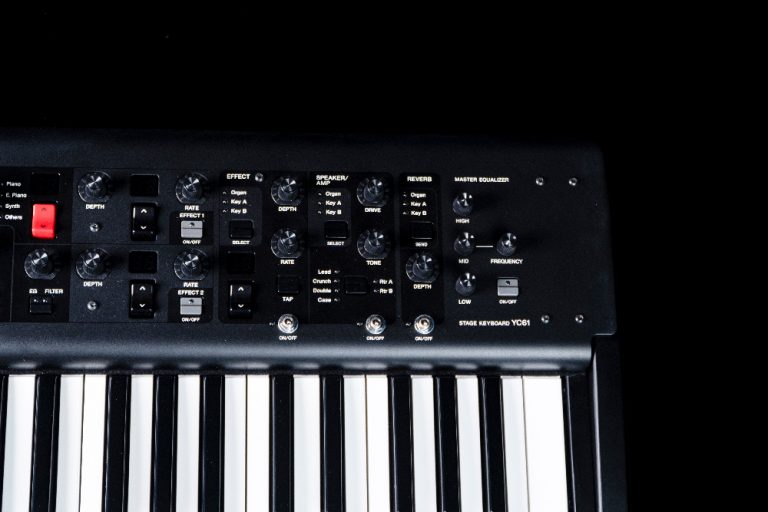

• Effects: 9 x FX Processors: Rotary Speaker, Vibrato/Chorus, Delay, Guitar Amp, Reverb, Drive

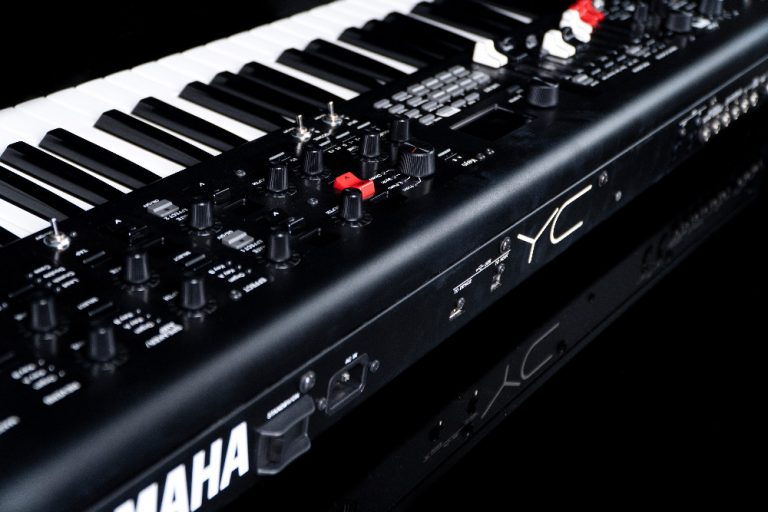

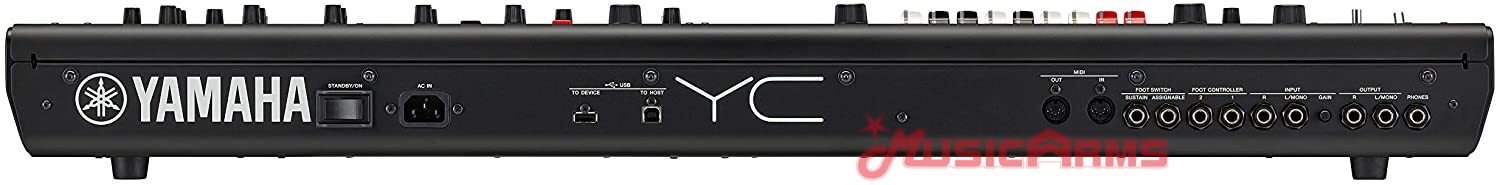

• Audio Inputs: 2 x 1/4″ (L/mono,R)
• Audio Outputs: 2 x 1/4″ (L/mono,R)
• Headphones: 1 x 1/4″
• USB: 1 x Type B, 1 x Type A
• MIDI I/O: In/Out/USB
• Pedal Inputs: 1 x 1/4″ (sustain), 1 x 1/4″ (assignable), 2 x 1/4″ (foot controller)
• Pedal Included: No
• Display: LCD

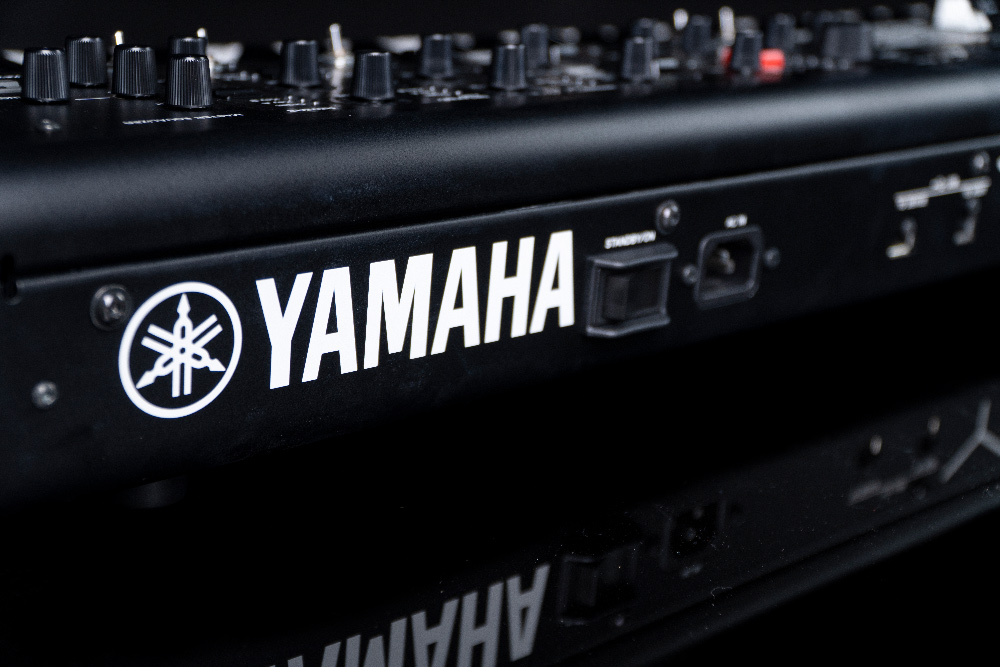

• Power Supply: Standard IEC AC cable
• Height: 4.25″
• Width: 35.25″
• Depth: 12.18″
• Weight: 15.6 lbs.
• Manufacturer Part Number: YC61

รายละเอียด Yamaha YC61

• ประเภท Stage Organ Keyboard
• ระบบเสียง Virtual Circuitry Modeling, 8 Operator FM Synthesis, AWM2
• 61 คีย์ แบบ Semi-weighted
• มีตัวควบคุม Pitchbend Lever, Modulation Lever, 9 x Drawbars
• โพลีโฟนี 128 โน้ต
• Preset 80 แบบ
• User Preset 80 แบบ และ Preset จากโรงงาน 8 แบบ
• เสียงในตัว 139 แบบ
• เอฟเฟคโปรเซสเซอร์ FX 9 ตัว Vibrato / Chorus, Delay, Guitar Amp, Reverb, Drive
• ช่องต่อ Audio แบบ Mono ขนาด 1/4 นิ้ว
• ช่องต่อ หูฟังแบบ 1/4 นิ้ว
• USB แบบ A/B
• มี MIDI
• ช่องต่อแป้นเหยียบแบบ 1/4 นิ้ว 3 ช่อง
• จอแสดงผล LCD
