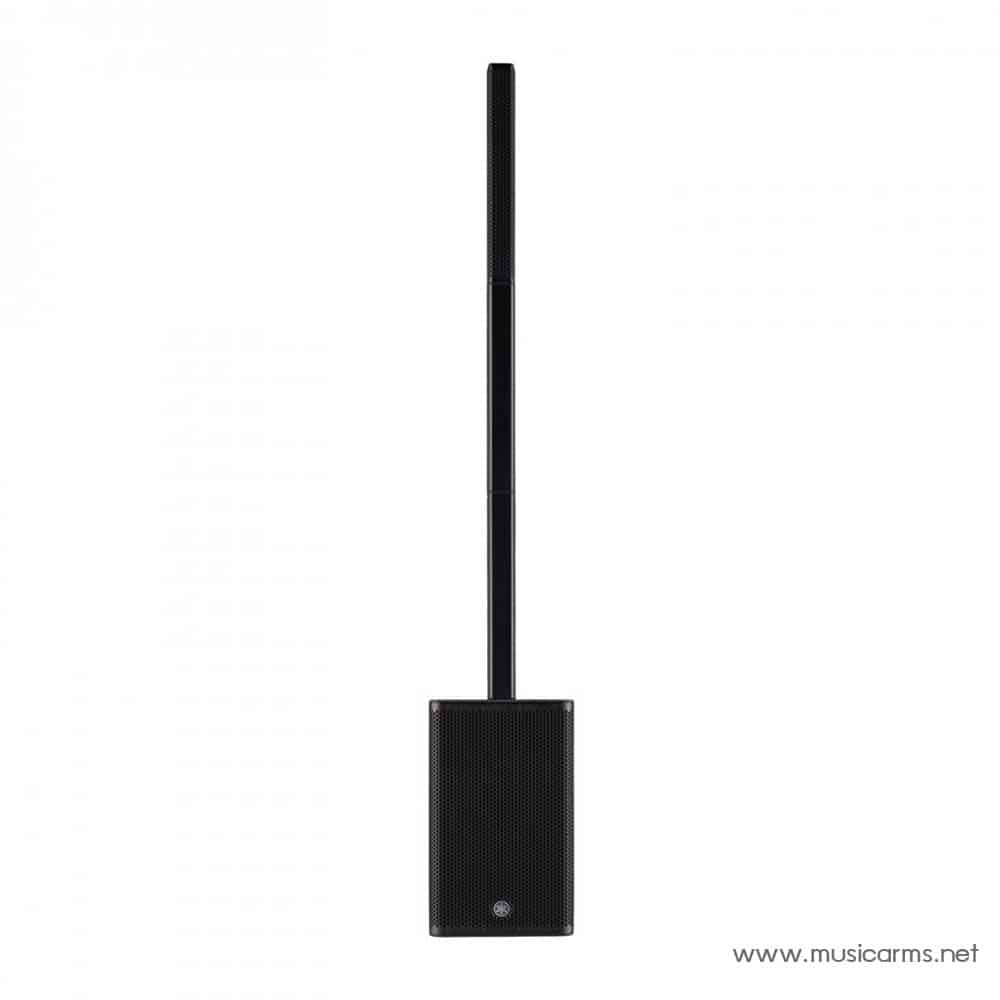

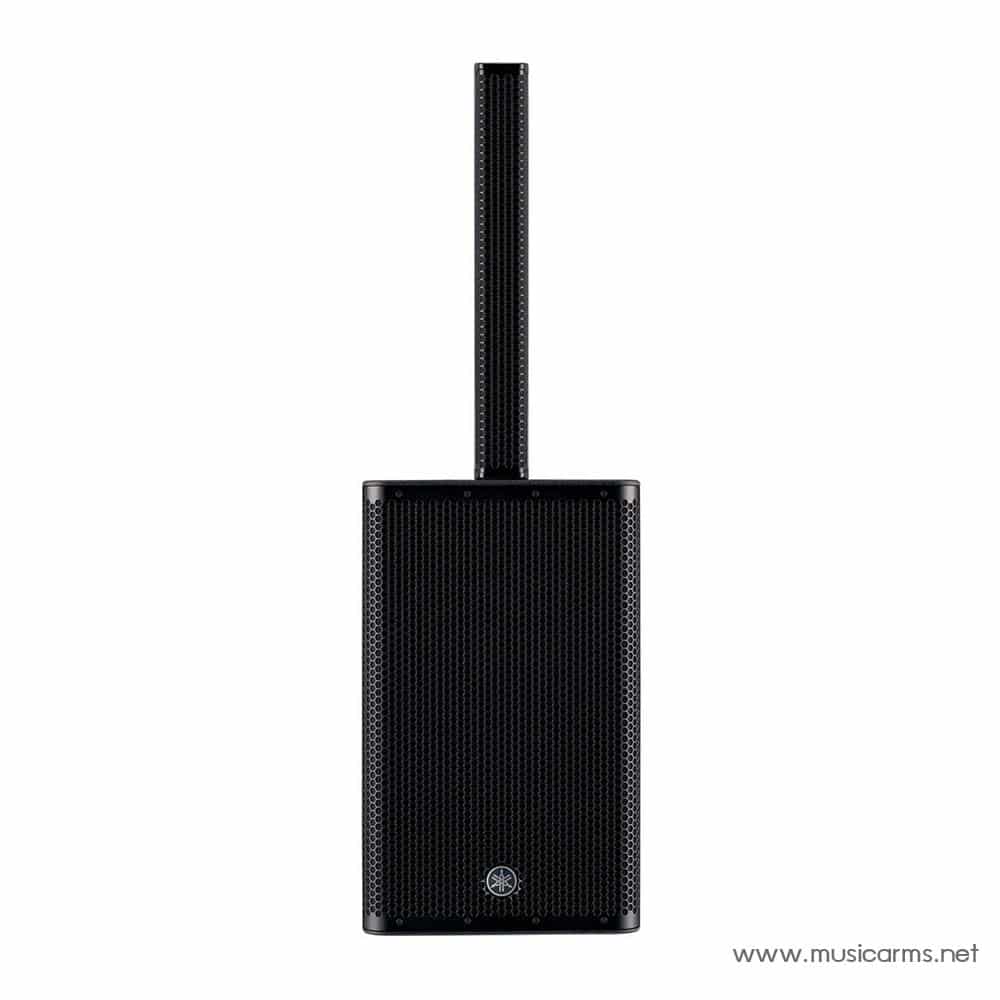

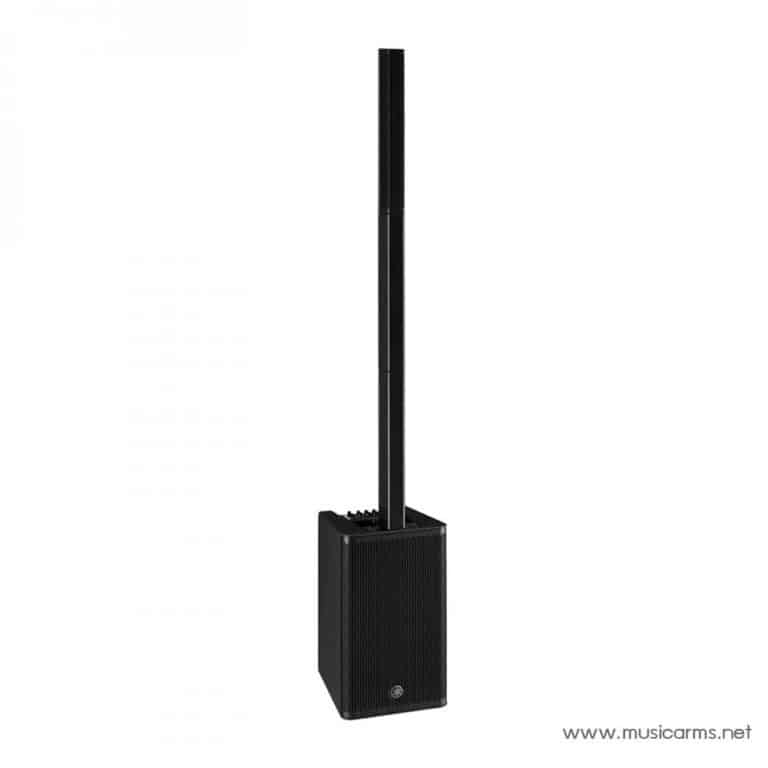

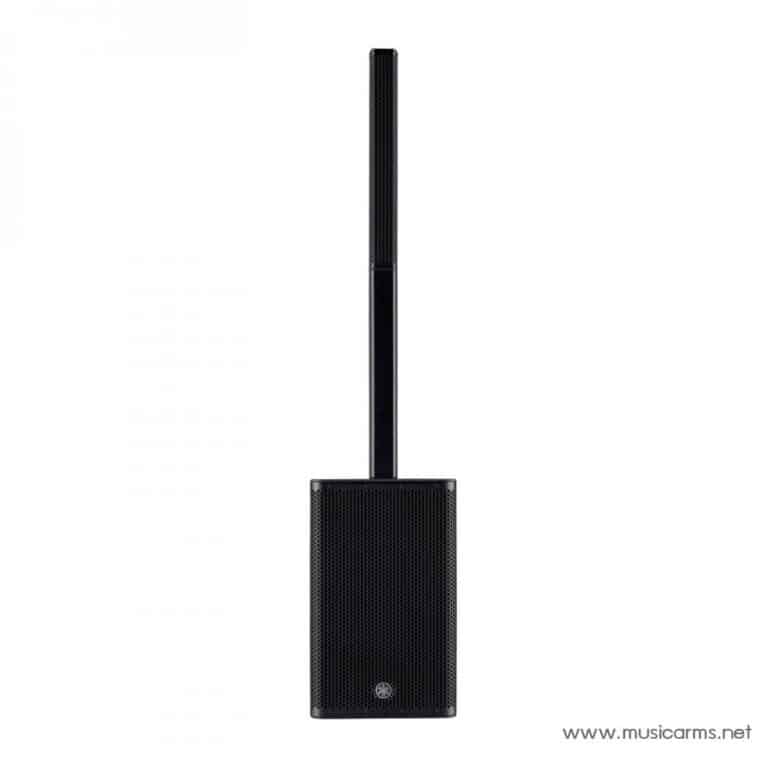

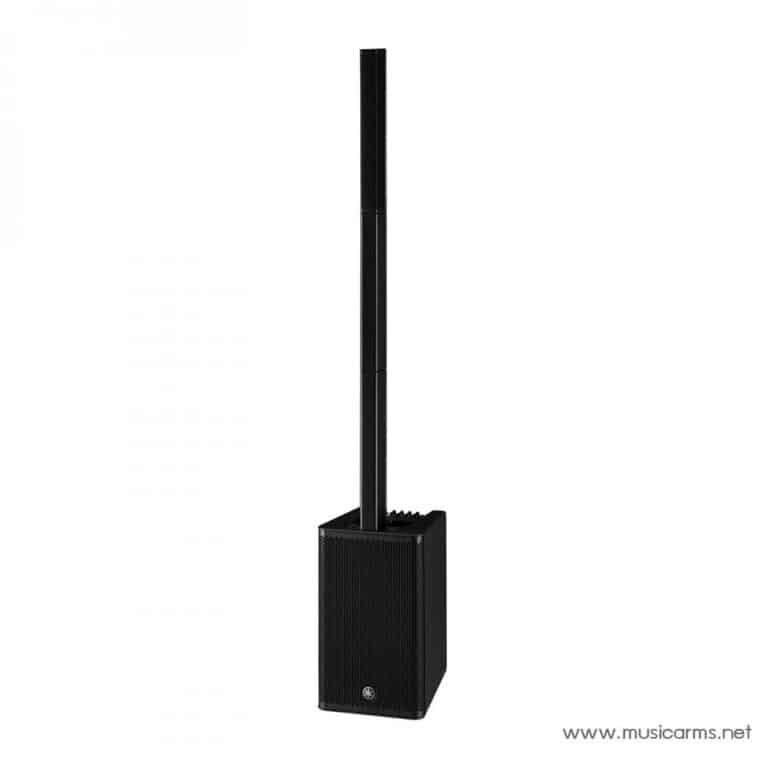

Yamaha Stagepas 1K MKII Column PA System

Class-leading amplification

The new and improved Stagepas 1K model provides top-of-the-range Class D amplification, for a lightweight and portable yet efficient and powerful unit. It gives an incredible output power of 1100 watts, and a maximum sound output of 125 dB SPL for huge venue-filling sound. Ideal for conferences, live music, touring DJs, and outdoor performances, the Stagepas 1K MK2 is built for travelling professionals.

Comprehensive control

The Stagepas 1K MK2 includes remote control via an application for smartphones and tablets, so you can connect via Bluetooth and control parameters, adjust the one-knob EQ, a unique and customisable four-band parametric EQ, volume, and the Priority Ducker feature. This app also includes a recall function for storing and loading settings for individual songs, or alternative applications.

Flexible sound customisation

This revised Stagepas PA system also includes a wide range of sound shaping possibilities for creating a well-rounded and balanced live mix. Versatile inputs on the five-channel mixer, with one-knob EQ, and a reverb taken from Yamaha’s beloved SPX effects units let you add character and space to your sounds. Priority Ducking will dim the volume of a channel when inputs from another source are noticed. Finally, master output compression with custom speech, music, and DJ modes will add punch and consistency to your mix.

Mobile Active PA System

• With 1,100 W Class-D amplifier (HF: 600 W + LF: 500 W)
• 12-inch subwoofer
• Slim 10 x 1.5-inch line array loudspeaker
• Frequency range (-10 dB): 37 – 20,000 Hz
• Max. peak SPL: 125 dB

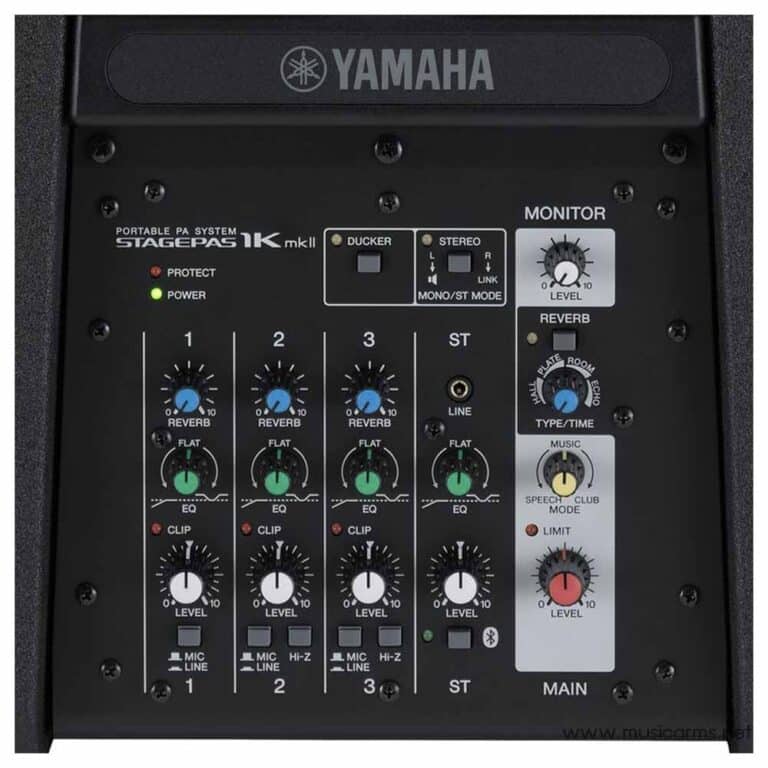

• Digital mixer (3 mono mic/line inputs + 1 stereo line input)
• Multiband compressor mode for master output
• Coverage pattern (VxH): 30° x 170°
• 1-Pot EQ per channel
• High-resolution SPX digital reverbs (4 types, parameters adjustable)
• 2 Hi-Z inputs with high impedance

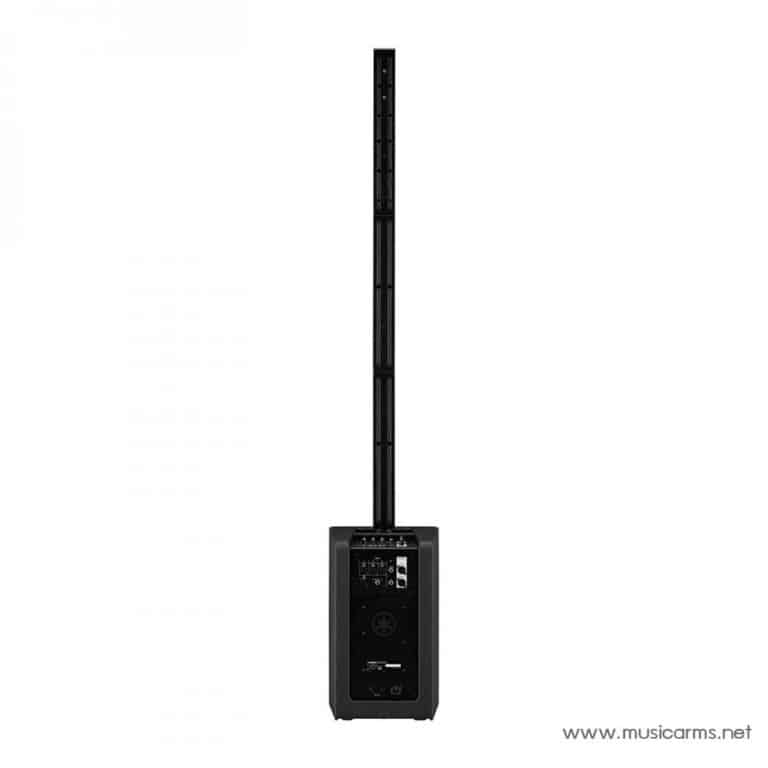

• Link out and monitor out
• STAGEPAS Editor (iOS/Android remote control app)
• Remote control of all parameters (EQ, effects, levels)
• Fader, knob view and mixer overview selectable
• Connection via Bluetooth
• Colour: Black

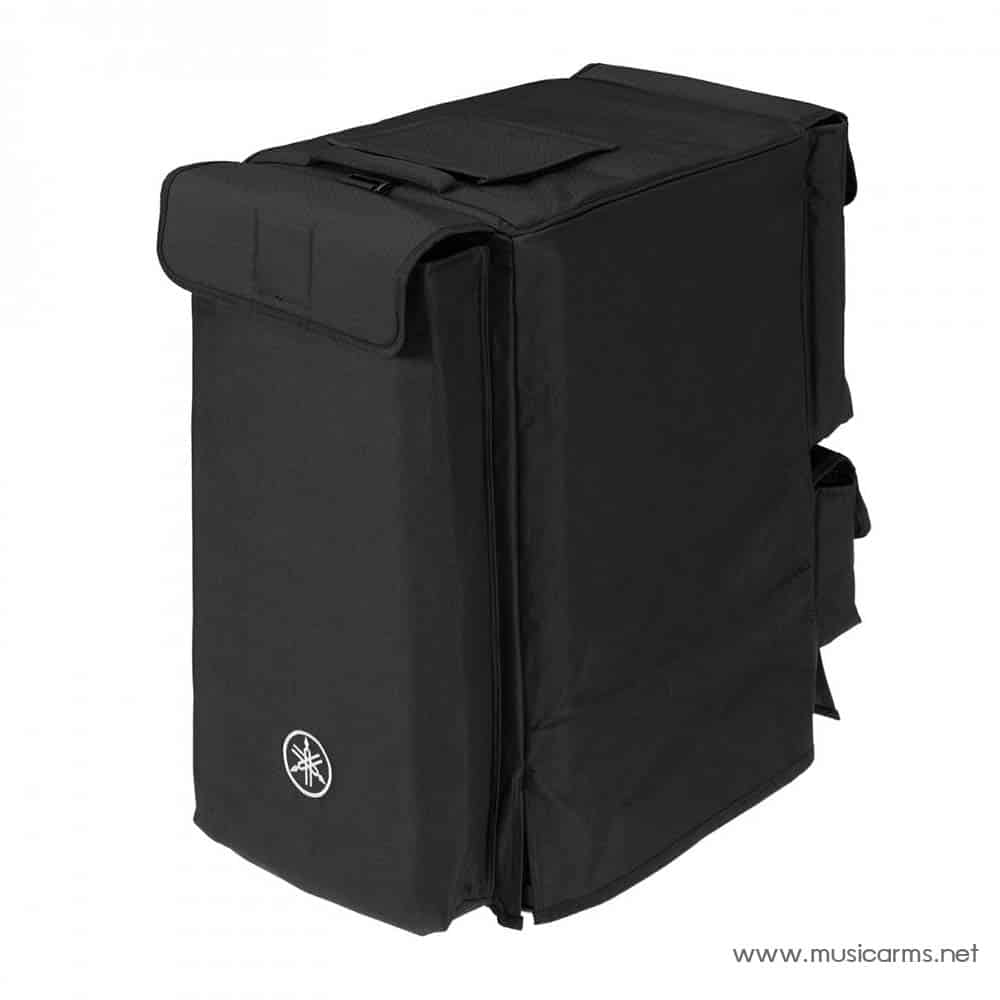

• Includes protective cover

Dimensions (W x D x H):

• Speaker: 67 x 86 x 582 mm
• Spacer: 67 x 86 x 555 mm
• Subwoofer: 334 x 418 x 550 mm
• Speaker weight: 1.8 kg
• Spacer weight: 0.6 kg
• Subwoofer weight: 20 kg
