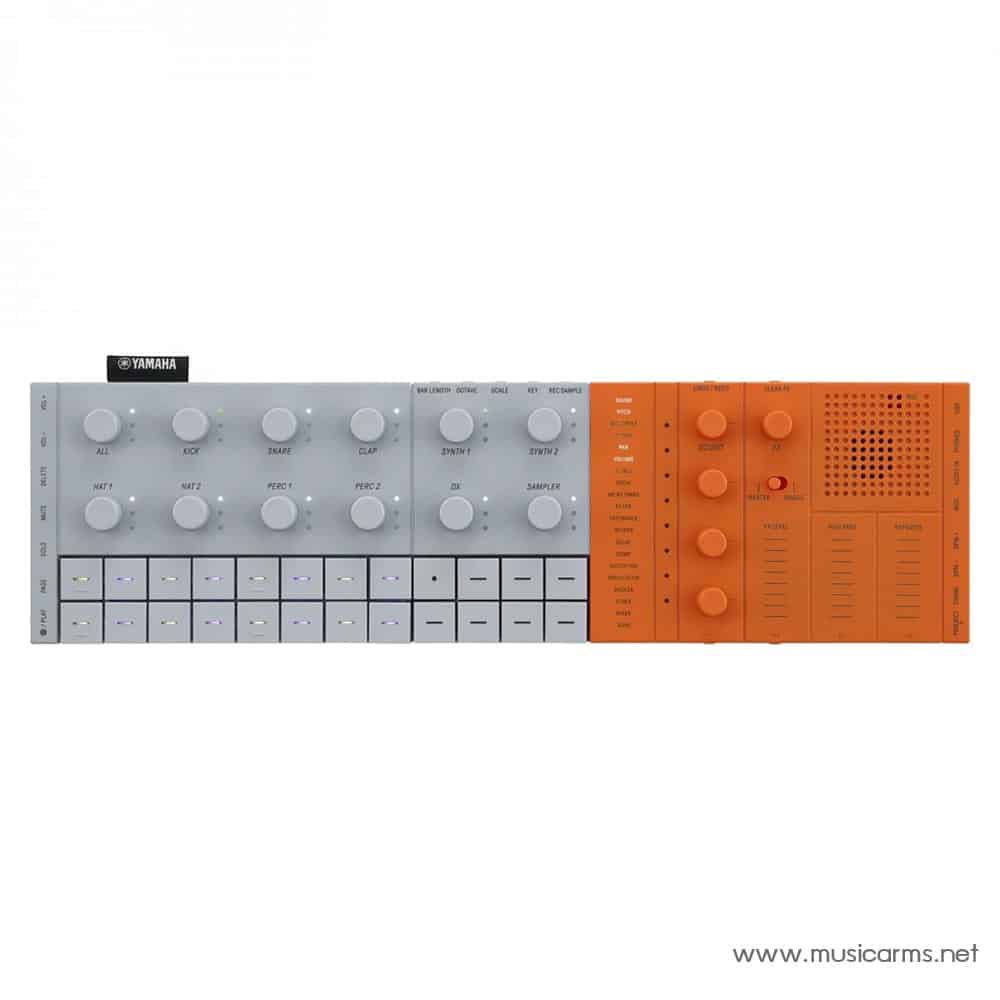

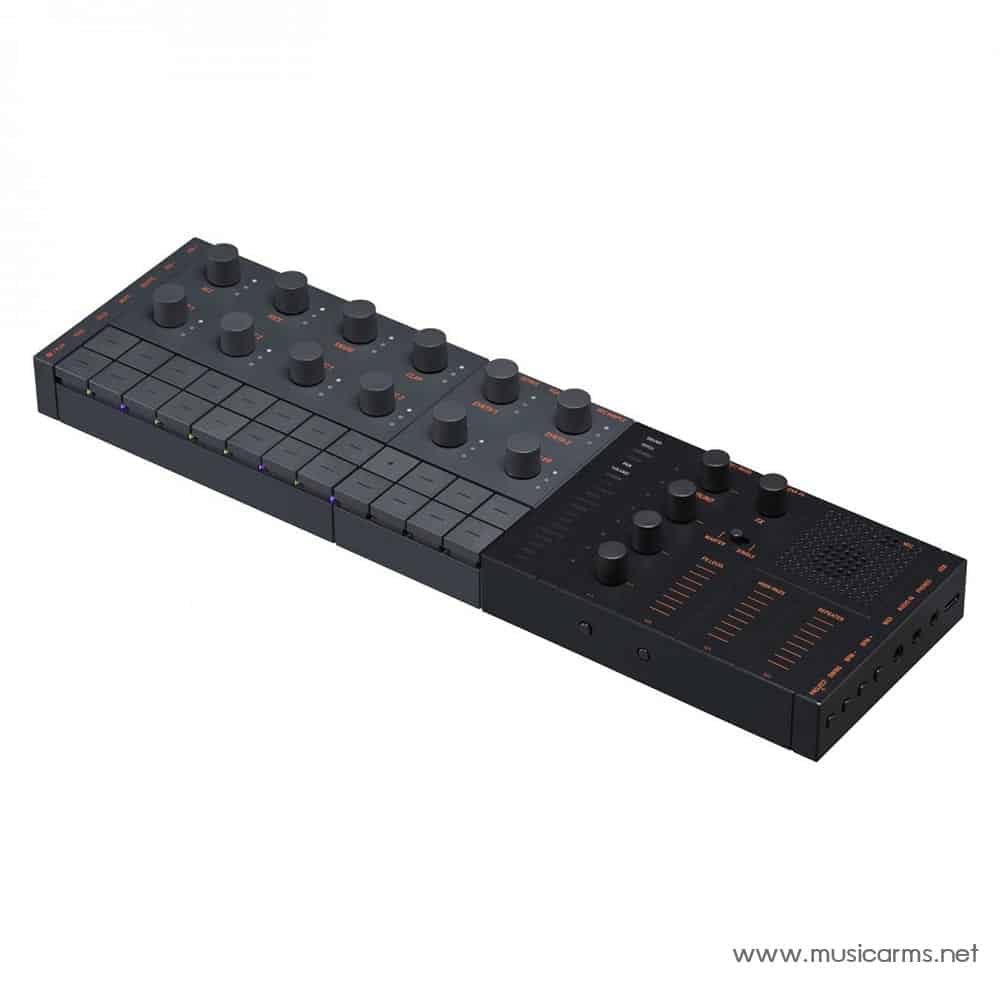

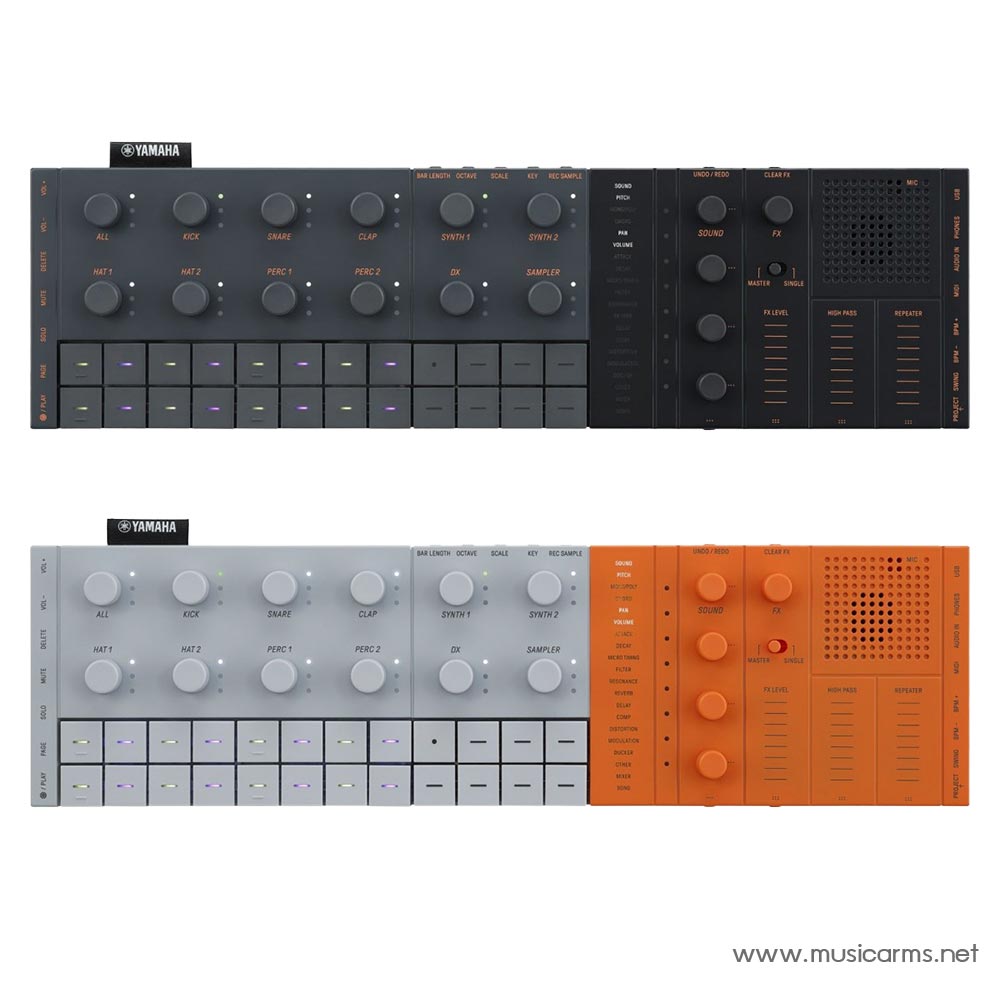

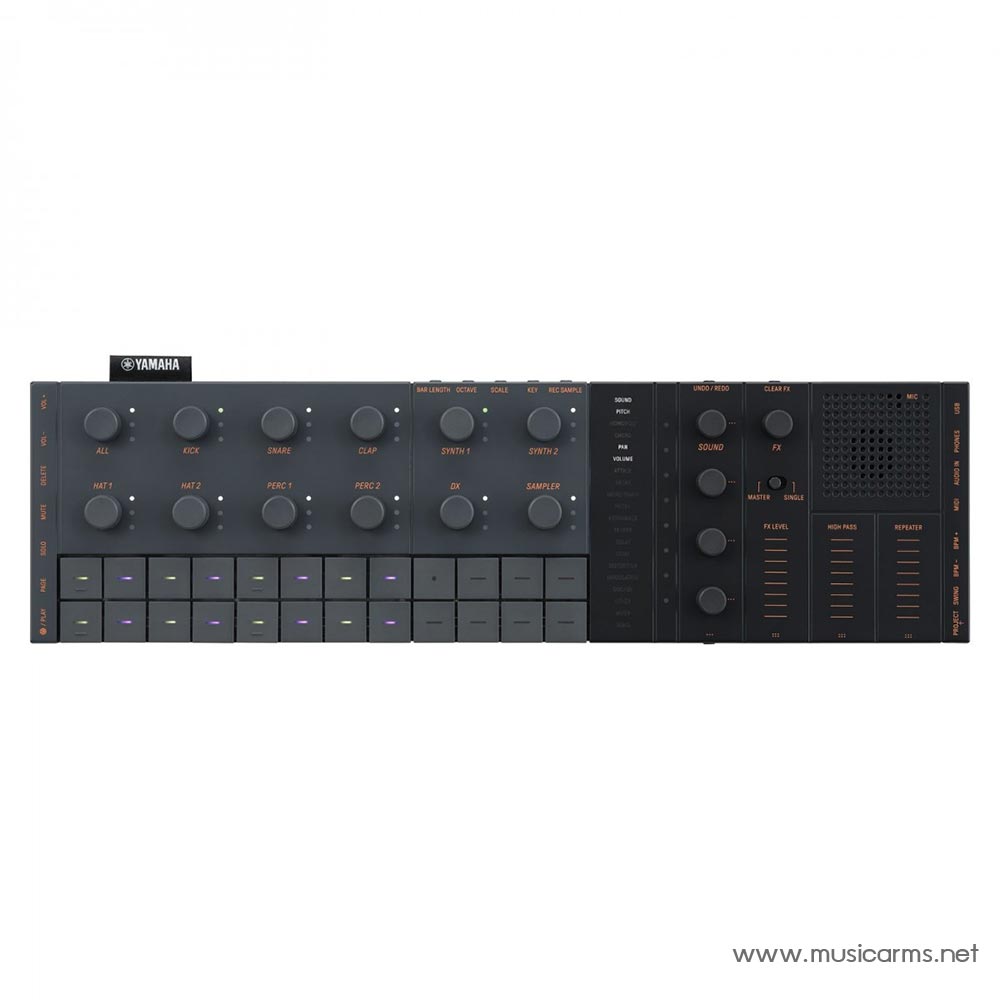

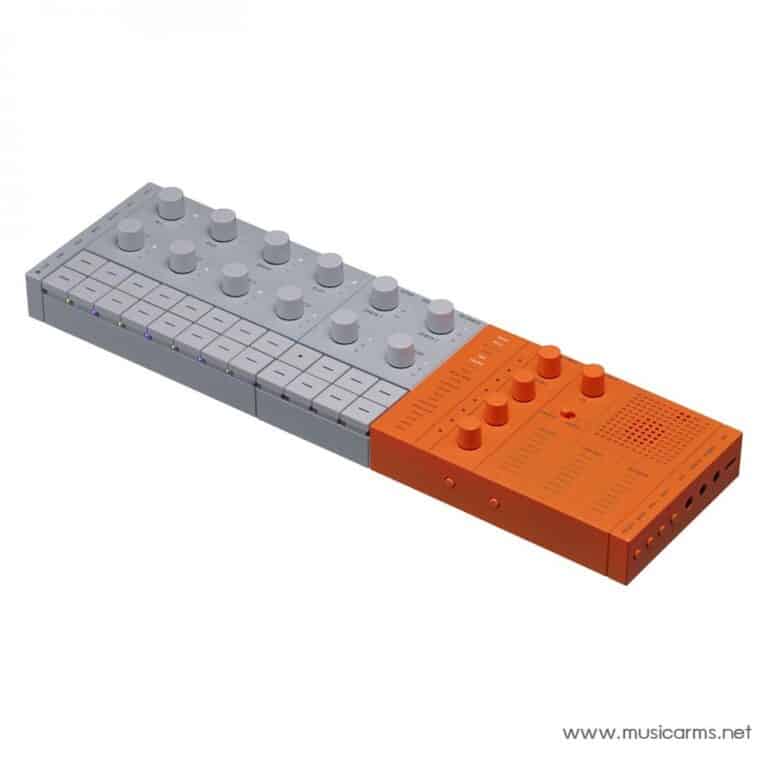

Yamaha SEQTRAK Music Production Studio

Compact standalone production studio

The SEQTRAK is the ultimate music production studio – combining a step sequencer, drum machine, synthesizer, sampler, and mixer in a sleek and compact design. Whether you’re a musician on the go or a producer seeking a portable setup, the SEQTRAK is your perfect companion for capturing creative ideas anywhere, anytime. This battery-powered device also features an integrated microphone and speaker, ensuring you have all the tools you need to bring your music to life.

At the heart of the Yamaha SEQTRAK lies a powerful sequencer with dynamic and intuitive controls. The sequencer provides a grid for placing and arranging various sounds, making it invaluable for recordings, live performances, and on-the-go music production. With six pattern slots available for every track, you can easily switch between patterns to introduce an exciting variety to your compositions.

Seven-track drum section

The SEQTRAK features a dedicated drum section with seven tracks, including kick, snare, clap, two hi-hats, and two percussion sounds. Each track can be loaded with high-quality sounds from the extensive library, which currently offers over 2,000 sounds spanning all instrument categories. Additionally, you have the option to import your own samples via the SEQTRAK app. Arrange these sounds effortlessly using the step sequencer’s 128 steps, with 16 steps displayed on the face of the device.

Synth and sampler section – create melodies with ease

Equipped with three synthesizers and a sampler, the SEQTRAK allows you to create captivating harmonies and melodies. The first two synths utilize Yamaha’s renowned AWM2 engine, offering a versatile and polyphonous sound experience with 128 notes. The third synth, aptly named DX, revives the vibrant sounds of the classic Yamaha synth with its four-operator FM engine. Switch between mono, poly, and chord modes to tailor the synth to your track’s specific requirements.

With seven keys available, you can effortlessly play melodies or chords, along with selectable scales and keys. In keyboard mode, the step sequencer keys transform into a chromatic keyboard. You even have an arpeggiator at your disposal. The sampler allows for the mapping of sample sounds to each key, offering an extensive selection from the library. Alternatively, you can record and sample individual sounds from external sources, via USB, re-sampling, or using the built-in microphone. This level of versatility in such a compact form factor makes the SEQTRAK truly exceptional.

All-in-One System

• Drum machine, synth, sampler, sequencer and USB MIDI and audio interface 24-bit / 44.1 kHz
• Sound generation: AWM2 (Advanced Wave Memory 2) with 128x polyphony and FM synthesis with 8x polyphony
• Over 2000 sounds (expandable via app and user samples)
• 11 Tracks (7 x drum, 2 AWM2 synths, DX synth and sampler)
• Step sequencer with 128 steps
• Built-in microphone and speaker
• Built-in effects processor with over 80 effect types
• WiFi and Bluetooth support
• Rechargeable battery (lithium-ion battery 2,100 mAh, 7.6 W)
• AUX input: 3.5 mm stereo mini jack
• Headphone output: 3.5 mm stereo mini jack
• MIDI input and output: 3.5 mm mini jack
• USB-C (audio / MIDI / power supply)
• Incl. USB-C and MIDI adapter cable
• Dimensions (W x H x D): 343 x 38 x 97 mm
• Weight: approx. 0.8 kg
• Colour: Black/Grey
