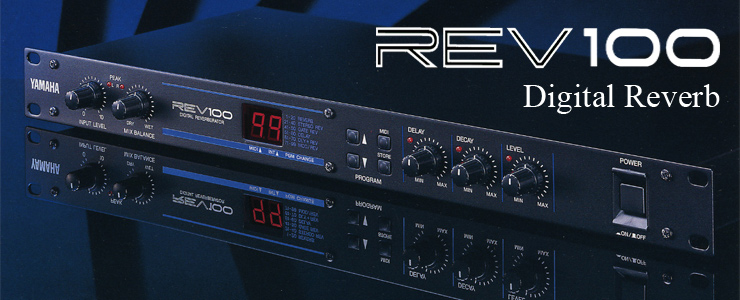

Yamaha REV100

Reverb is the essential effect for musical instruments, recording, and live sound. Delay and modulation run a close second and third. In fact, the quality of the effects you use has a major influence on the overall quality of your sound. If you’re looking for the kind of reverb, delay, and modulation effects that can give your sound a serious lift, take a good look at the Yamaha REV100 Digital Reverberator. It offers remarkably smooth, natural reverb sound as well as a range of outstanding studio-quality delay and modulation effects. It’s also super-simple to use, and surprisingly affordable for the quality and flexibility it offers. So affordable, in fact, that you could easily add several to your system for sensational processing power.
The Yamaha REV100: the easy way to add extraordinary ambiance to your sound.

Specifications

• Dynamic Range 44.1/48 kHz
• Distortion Less than 0.1% (1kHz, max. level)
• Input Number of Channel 2 (phone jacks)
• Nominal Level -10dB
• Impedance 20k (Stereo), 10k (L-MONO)
• Output Number of Channel 2 (phone jacks)
• Nominal Level ±10dB
• Highest Output +24dB (level select SW: +4dB)
• Impedance 20k　; (Stereo), 10k (L-MONO)
• AD/DA Conversion A/D Conversion 16-bit
• D/A Conversion 16-bit
• Sampling Freq. 44.1kHz
• Program Program Memories 99
• MIDI Control Program Change, Conrol Change
• Bulk Dump, Note On, Parameter Change
• Front Panel Switches MIDI, STORE, POWER
• Rotary Controls INPUT LEVEL, MIX BALANCE, DELAY, DECAY, LEVEL
• Display 7 segment LED x 2, PEAK L/R, DELAY, DECAY, LEVEL
• Rear Panel Connectors Input L (MONO)/R, Output L (MONO)/R
• DIN MIDI IN
• DC12V IN
• General AC Adaptor DC12V
• Dimensions
  (W x H x D) 480 x 45 x 232 mm (18.9″ x 1.8″ x 9.1″)
• Weight 2.5kg (5.5 lbs.)
