Yamaha NU1XA แกรนด์เปียโนไฟฟ้า

Yamaha NU1XA Grand Piano

The spirit of a true performance grand piano

It allows you to design the stage show you desire. Giving you the ability to play music whenever you want, fulfilling those musical desires by creating a true acoustic piano playing experience with state-of-the-art technology for a thrilling experience from a grand piano and Take you to a special world of music as you desire

An expression that perfectly conveys the musical expression you intend to convey.

The natural feel of playing an acoustic piano.

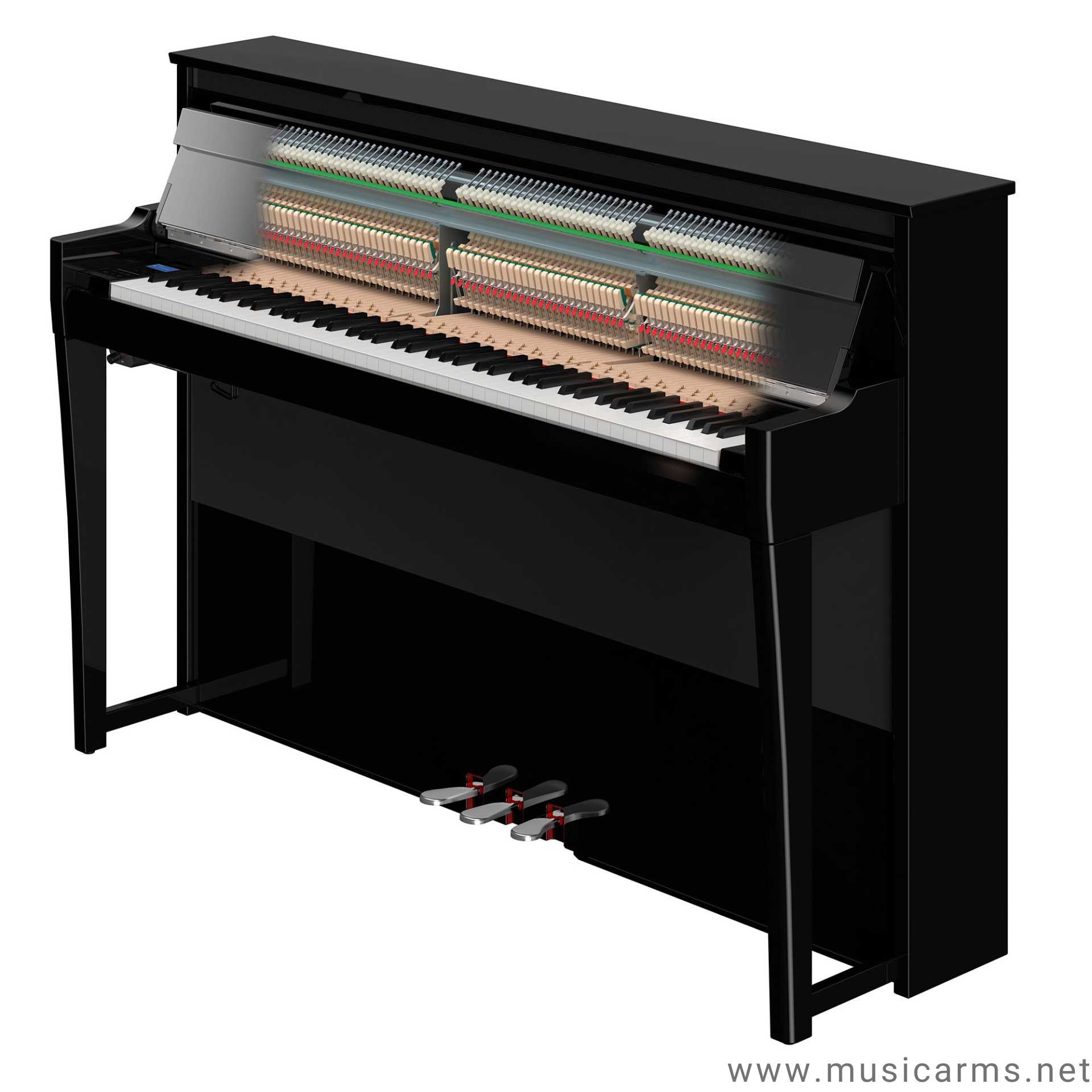

The NU1XA uses a complex and meticulous upright piano mechanism to transfer the delicate movement of the keys to the hammers. This mechanism responds to gameplay details and accurately conveys the emotions the player desires. Including subtle playing techniques such as trilling and repeating notes. In addition, the keyboard is made of wood. It provides a natural and solid response just like an acoustic piano.

Reproducing outstanding emotional details with YAMAHA’s ARTICULATION SENSOR SYSTEM.

NU1XA has our newly developed Articulation Sensor System. It accurately and seamlessly reproduces the most delicate details of a pianist’s performance through non-contact electromagnetic sensors and Yamaha’s proprietary algorithms. The system uses two separate sensors on each key The first sensor is located on the hammer. It is the most important part of an acoustic piano’s sound mechanism. Another sensor is located on the keyIts job is to accurately measure the movement of your finger release and clearly communicate extraordinary details when the sound stops. Together, the two sensors fully convey the player’s most subtle emotions.

GRANDTOUCH pedal to support a wider range of performance types.

The damper pedal on a grand piano responds to slightly different resistance forces at the player’s feet. according to the time the pedal is pressed When the effect starts and when the pedal is held down, skilled players generally know the slightest difference in resistance when pressing the pedal. and adding different details to the tone and sound itself. Additionally, when you release your foot from the pedal, The resistance force changes slightly more than whenPress and hold the pedal. The GrandTouchTM pedal uses a weight-bearing structure similar to that of a grand piano. Thus conveying emotion and giving a familiar pedal feel. and enhance the efficiency of the performance even further

Resonating sound that fills the performance space Like a grand piano

When the hammer hits the string The performer will hear the sound immediately. At the same time, there will be a resounding sound from the whole machine. Fill the entire room with beautiful sound. The NU1XA uses a new sound system to replicate the unique sound experience created by a grand piano. Features an upward-facing woofer that causes sound to resonate throughout the piano. and the tweeter speaker, which uses a newly designed horn structure to reflect high-diffuse frequencies.
out the front and back of the piano. When working with these echo effects The quality of the tone and sound projection allows the player to control the sound as it plays in real time. This results in a sound that is amazingly similar to a real grand piano. Providing three-dimensional sound that resonates beautifully throughout the performance space

A unique technology that conveys emotions with subtlety and intensity.

VIRTUAL RESONANCE MODELING technology for realistic grand piano sound simulation Technology

Virtual Resonance Modeling (VRM) realistically simulates the extraordinarily complex resonances in a grand piano created by the vibrations of the strings and soundboard. Sympathetic tones are added to harmonize the rhythm and strength. To tap the key and step on the pedal Add color to a variety of tones to express even more emotion.

GRAND EXPRESSION MODELING technology for expressive nuances in tone and resonance.

Acoustic pianos have a complex set of internal mechanisms. It includes hammers, dampers and strings that sensitively respond to the slightest changes in the player’s touch. Grand Expression Modeling technology precisely simulates this complex interaction between the player and the piano. This creates limitless differences in the tone of a grand piano. In addition to using the strength of your fingers toExpress your emotions from the moment you press the key until it is released. You can also create timbre changes based on the speed and strength of key presses. In order to give full enjoyment to the performance. All the little nuances that you imagine while playing are perfectly reproduced.

YAMAHA’s CFX and BÖSENDORFER’s IMPERIAL, two world-famous grand pianos in one.

The NU1XA uses the sound of two world-renowned grand pianos, Yamaha’s CFX and Bösendorfer’s Imperial, to deliver the wide range of expressions players desire. The CFX is Yamaha’s ultimate grand piano. Has a wide dynamic range From loud highs to deep bass, Bösendorfer’s flagship Imperial is famous for its delicate tone and warm Viennese sound. Play the sound of your favorite instrument. This depends on the style of music you are playing.

The Binaural Sampling technique produces an exceptionally natural sound. Even when wearing headphones

When playing NU1XA with headphones and when you do not want to disturb others, such as at night. You will never need to turn down this beautiful piano sound. Binaural Sampling technique effectively simulates the feeling of hearing an acoustic piano in front of you while playing. With a special microphone positioned at the player’s position while recording piano sound samples, This technology is used on the Voice of both Yamaha’s CFX and Bösendorfer’s Imperial. The sound is natural and surrounds you. Until you forget you’re wearing headphones while playing.

Authentic FORTEPIANO sounds for an immersive playing and musical instrument experience.

NU1XA features four acoustic piano sounds that faithfully replicate the sound of “Fortepiano” from the 1700s to the 1800s. It allows you to experience the unique sound characteristics of pianos from the eras of famous composers such as Mozart, Beethoven and Chopin, and gives you a deeper understanding of what the composers wanted to communicate through the scores written in those eras. even more

Intricate design reminiscent of the profound beauty of a grand piano.

The NU1XA evokes timeless beauty while enhancing the elegance of an acoustic piano. Using elegant curves from the side arms to the legs, it also reduces the height so you can fit it into any room without feeling cramped or cramped. The mirror-like key stops reflect the beauty of the hands and keys, just like on a grand piano. Add a beautiful appearance and add enjoyment to your performance.

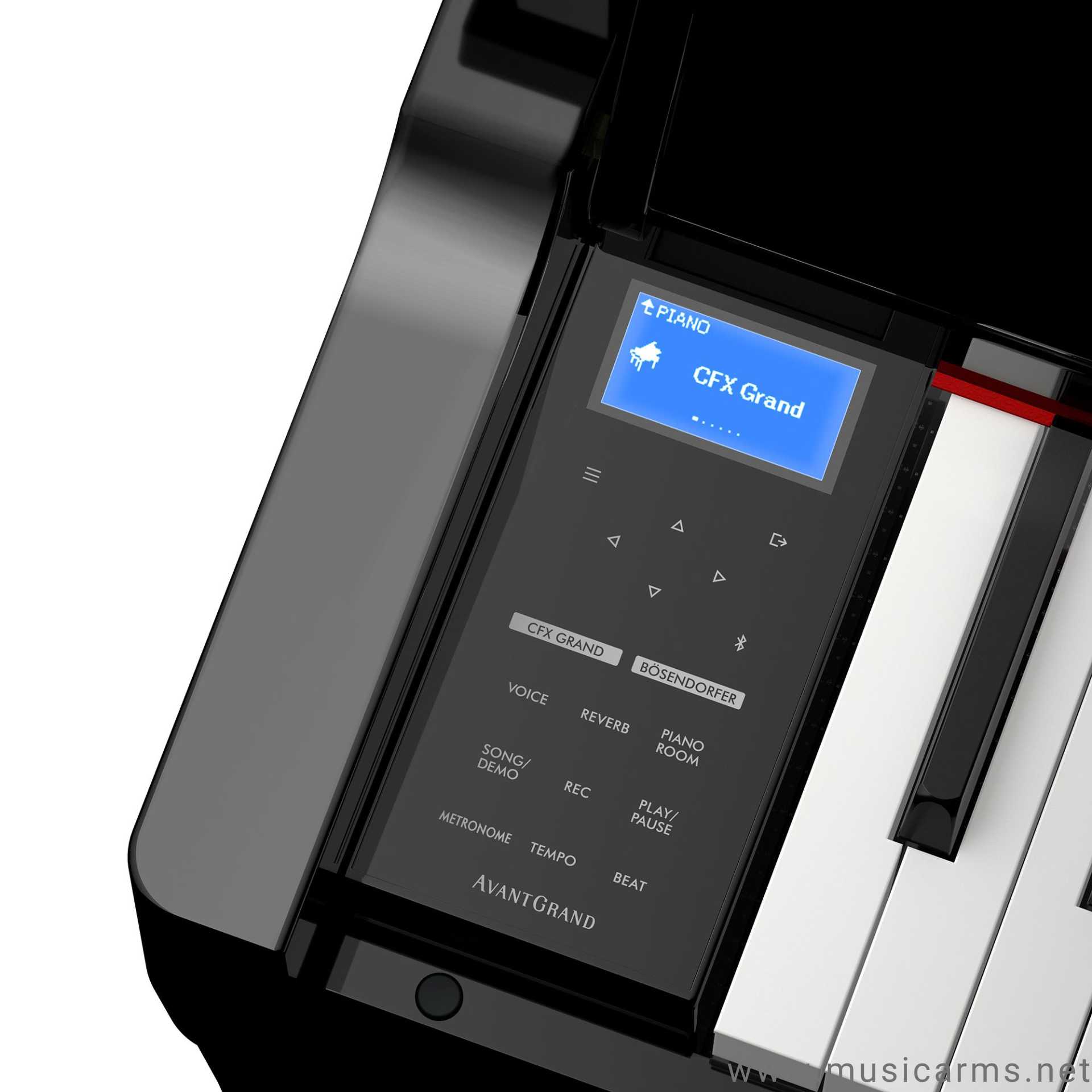

Elegantly designed control panel for easy operation and better performance.

NU1XA has a simple yet elegant touch control panel. Allows you to control various functions of general musical instruments easily Whether it’s choosing a sound Adjusting the reverb and control the metronome When not in use This display screen will turn off and disappear. This makes the overall appearance more like an acoustic piano. and make your piano playing more enjoyable.

Enjoy your music even more with smart device apps and a BLUETOOTH® connection.

Download the free Smart Pianist app to your smartphone or tablet. Then connect the app to the NU1XA via Bluetooth® and enjoy useful functions and intuitive control of the instrument’s wide range of features and operations. All of this can be viewed on the screen of your smart device. You can select built-in Voice along with visualizations for each instrument and useThe metronome and tuning knobs have become much easier. The NU1XA also supports Bluetooth® audio. Wirelessly connect your smart device to the instrument and enjoy playing along with the music data streamed from the device.

Specification

Color/Finish

• Cabinet   Color Polished Ebony/Polished Whit
• Finish      Polished

Size/Weight

• Width 1,501 mm (59-1/8″)
• Height 1,024 mm (40-5/16″)
• Depth 462 mm (18-3/16″)
• Weight 108 kg (238 lb, 2 oz)

Control Interface

• Keyboard  88
• Number of Keys Acrylic resin
• Key Surfaces – White Phenolic resin
• Key Surfaces – Black Hard2/Hard1/Medium/Soft1/Soft2/Fixed
• Touch Sensitivity Hard2/Hard1/Medium/Soft1/Soft2/Fixed
• Keyboard Action Specialized Upright Piano Action for NU1XA
• Tactile Response System (TRS) –

Pedal

• Type Grand Touch Pedals with GP Response Damper
• Number of Pedals 3
• Half Pedal Yes
• Functions Damper (with half-pedal effect) , Sostenuto,Soft

Sensor/Driver

• Hammer Sensors  Non-contact continuous detection electromagnetic inductive type
• Key Sensors   Non-contact continuous detection electromagnetic inductive type

Cabinet

• Key Cover Soft-Close Fallboard  Yes
• Music Rest  Yes

Voices

• Tone Generator   Piano Sound Spatial Acoustic Sampling (Yamaha CFX, Bösendorfer Imperial)
• Binaural Sampling es (Yamaha CFX Grand and Bösendorfer only)
• Key-off Samples  Yes
• Smooth Release  Yes
• Virtual Resonance Modeling (VRM) Yes
• Polyphony Number of Polyphony (Max.) 256
• Preset Number of Voices 28

Effects

• Types Reverb  Yes
• Brilliance  7 types + User
• Intelligent  Acoustic Control (IAC) Yes
• Stereophonic Optimizer  Yes

Songs

• Preset Number of Preset Songs 50 Classics, 28 voice demo songs, 303 Lesson
• Recording Number of Songs 250
• Number of Tracks 16
• Data Capacity approx. 500 KB/Song
• Recording Function Yes
• Compatible Data Format Playback SMF (Format 0, 1)
  Recording SMF (Format 0)
  Functions
• Compatible Data Format
• Playback SMF (Format 0, 1)
• Recording SMF (Format 0)

Functions

• Overall Controls Metronome   Yes
• Tempo Range  5 – 500
• Transpose     -12 – 0 – +12
• Tuning   414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
• Scale      Type 7 types
• Audio Recorder/Player Recording Time (max.) 80 minutes/Song
• Recording WAV (44.1 kHz, 16 bit, stereo)
• Playback WAV (44.1 kHz, 16 bit, stereo)
• Bluetooth  Yes (Audio/MIDI) (varies by area)

Storage and Connectivity

• Storage Internal Memory approx. 1.4 MB
• External Drives USB Flash Drive

Connectivity

• Headphones Standard stereo phone jack (x 2)MIDI In/Out
• AUX IN Stereo Mini
• AUX OUT [L/L+R] [R] (Standard stereo phone jack)
• OUTPUT –
• USB TO DEVICE Yes
• USB TO HOST Yes

Power Supply

• Auto Power Off    Yes
• Power Supply AC Adaptor(Output: DC 24 V, 2.5 A)
• AC Adaptor   PA-500
• Sound System
• Spatial Acoustic Speaker System –
• Soundboard Resonator –
• Amplifiers (40 W + 45 W) × 2
• Speakers (16 cm + 2.5 cm (dome) with Bidirectional Horn) × 2

Accessories

• Included Accessories  Owner’s Manual , “50 Classical Music Masterpieces” music book, Online Member Product Registration, AC adaptor PA-500*, Power cord*, Felt key cover, Headphone hanger, Headphone hanger screws, Felt strip set, Bench* *May not be included depending on your area. Check with your Yamaha dealer.
• Separately Sold Accessories  Headphones (HPH-50/HPH-100/HPH-150), AC adaptor (PA-500), USB wireless LAN adaptor (UD-WL01) *May not be available depending on your area.
