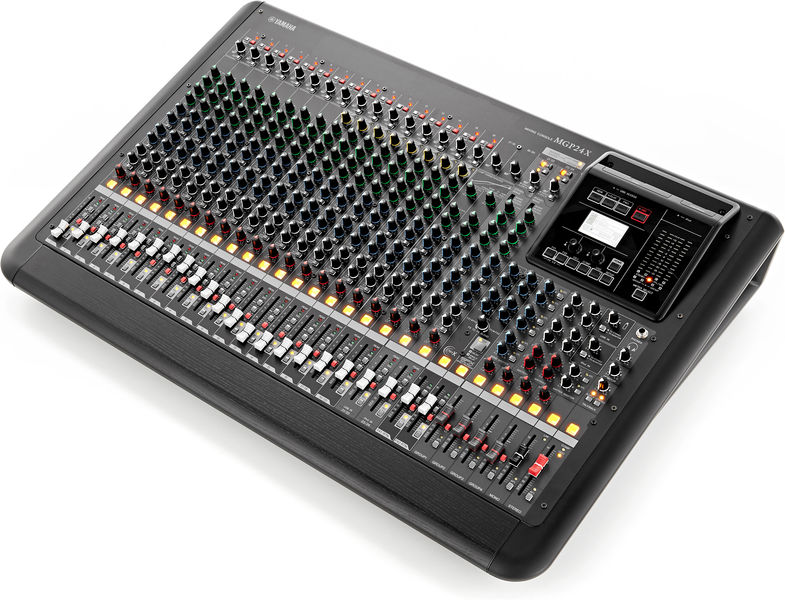

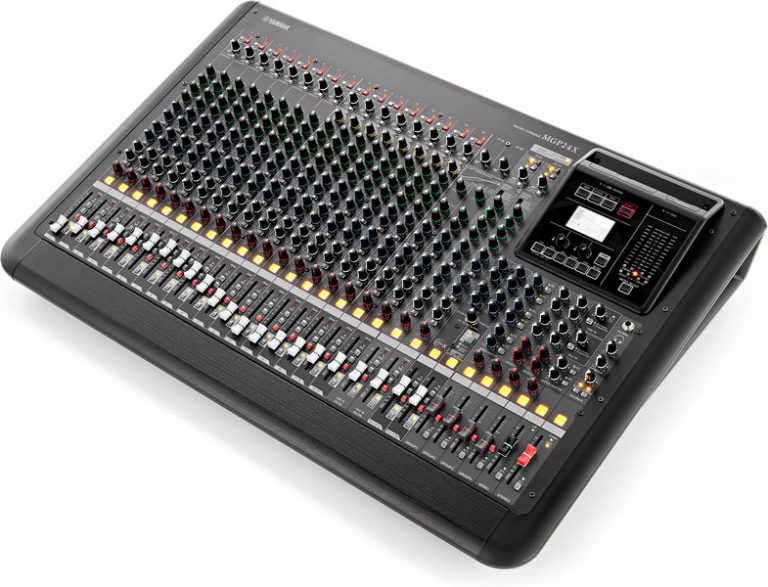

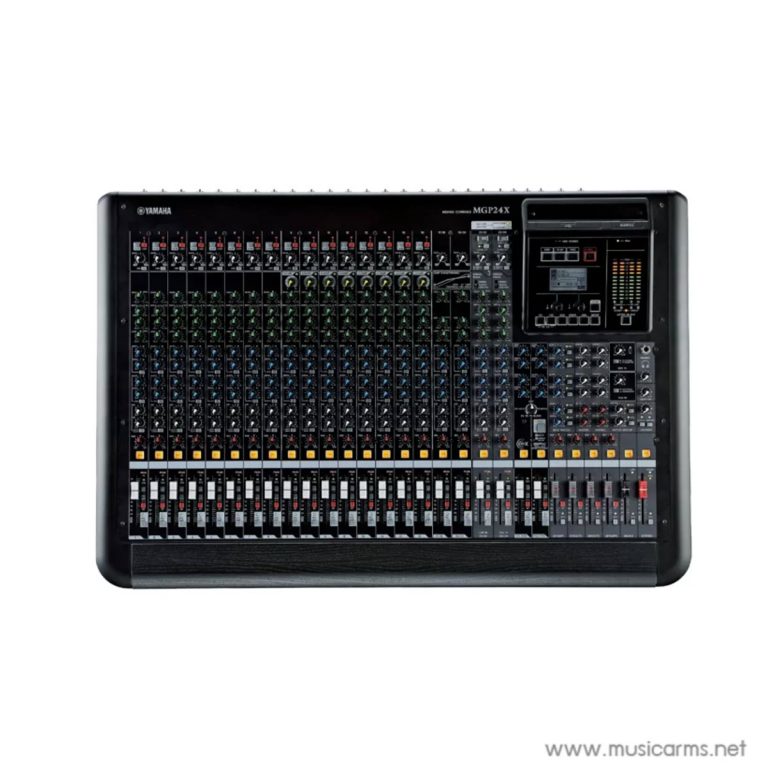

Yamaha MGP24X Analog Mixer

The Evolution of the Analog Mixer

The Yamaha MGP24X mixer gives you analog warmth and simplicity along with sophisticated DSP functions, all in a compact metal chassis packed with slick Yamaha innovation. Your signal path starts with great-sounding D-PRE Class A mic preamps, sporting an inverted Darlington circuit design. The MGP24X’s X-pressive equalization delivers the essence of classic vintage EQs, while its intelligent 1-knob compressors give you effortless dynamic control. With its Priority Ducker, Leveler, and Stereo Image functions, the Stereo Hybrid channel offers a fresh take on sound reinforcement in the digital age. Check out the evolution of the analog mixer: Yamaha’s MGP24X.

Tech Specs

• Type:Analog
• Channels:24
• Computer Connectivity:1 x USB (Device, iPod, iPhone)
• Faders:28
• Inputs – Mic Preamps:16 x XLR
• Phantom Power:16
• Inputs – Line:24 x TRS (16 x Mono, 4 x Stereo)
• Inputs – Other:4 x Stereo (RCA)
• Outputs – Main:2 x XLR, 2 x TRS; 1 x XLR (Mono)
• Outputs – Other:4 x TRS (Monitor, Matrix), 4 x TRS (Bus)
• EQ Bands:3-band, Sweepable Mid
• Effects:Yes
• Aux Sends:6 x Sends
• Send/Return I/O:6 x TRS, 4 x Stereo
• Busses/Groups:4 x Bus
• Channel Inserts:Yes
• Headphones:1 x 1/4″
• Talkback:Yes
• Height:6.7″
• Width:32.2″
• Depth:22.2″
• Weight:34.2 lbs.
• Manufacturer Part Number:MGP24X
