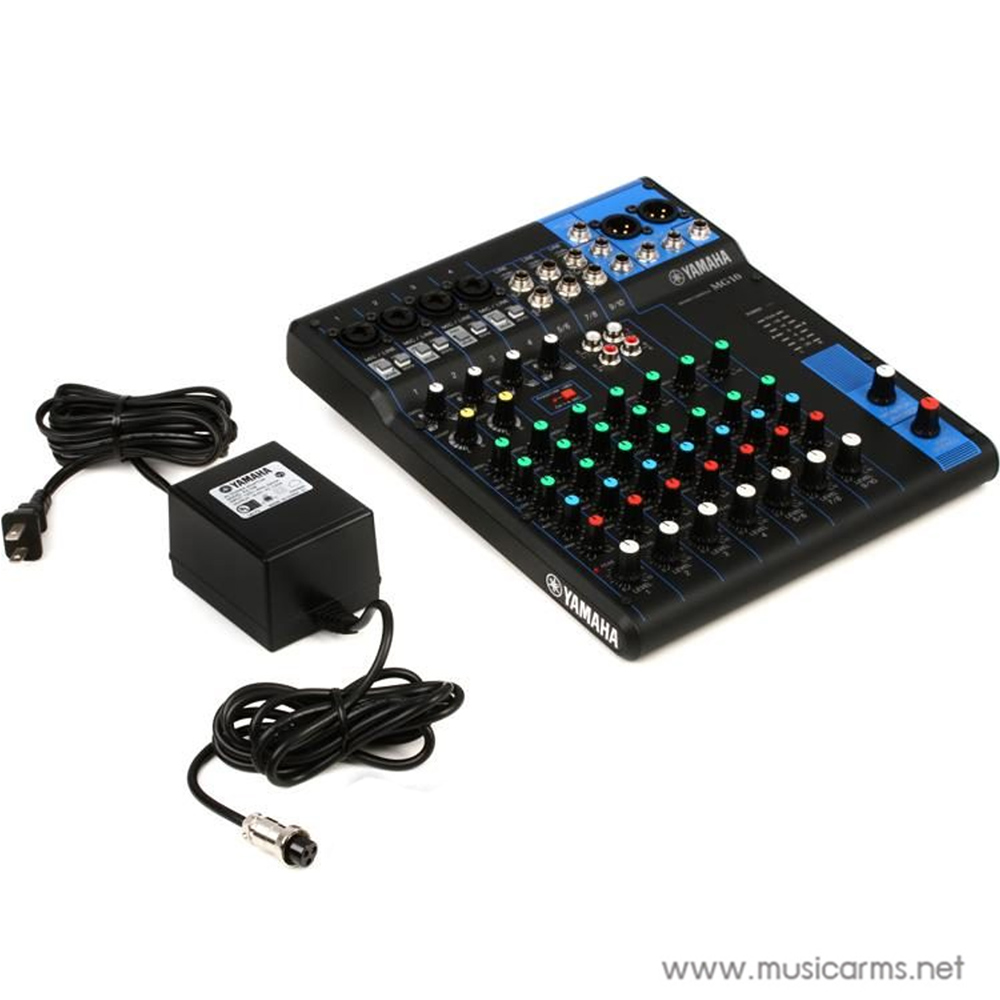

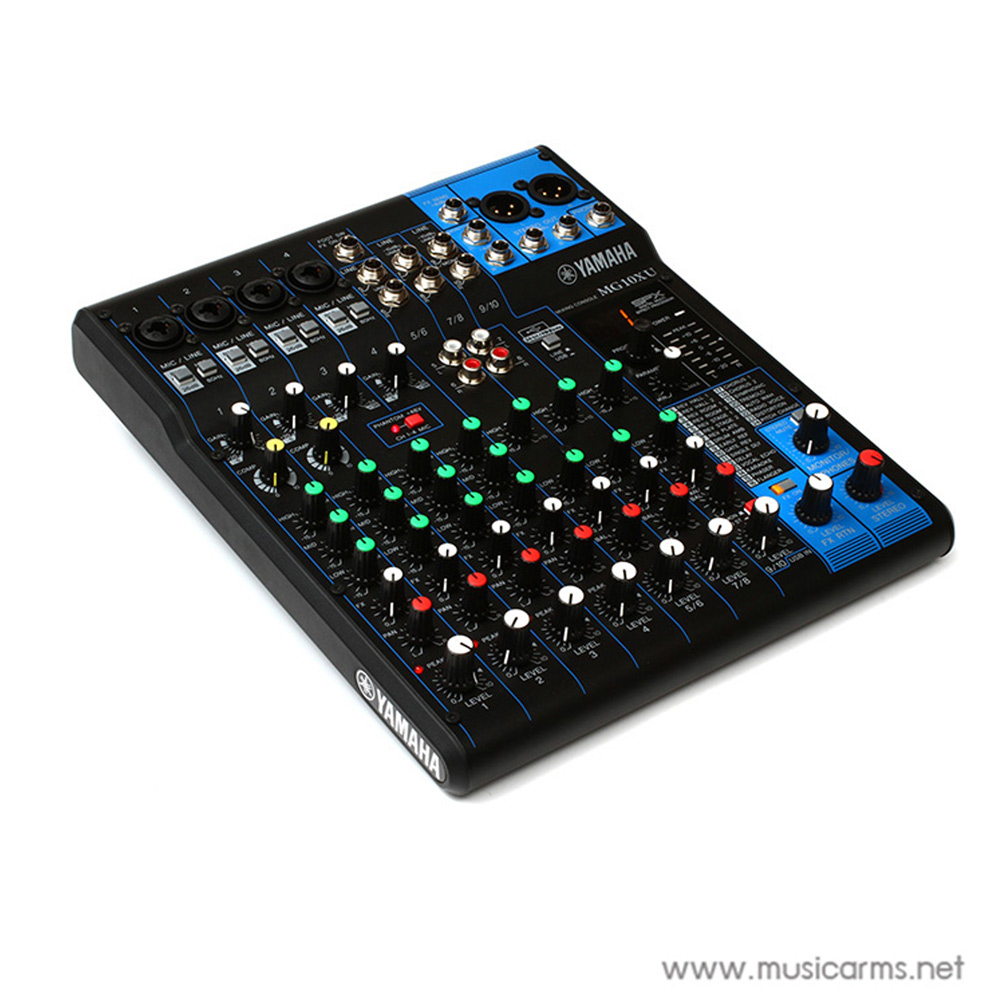

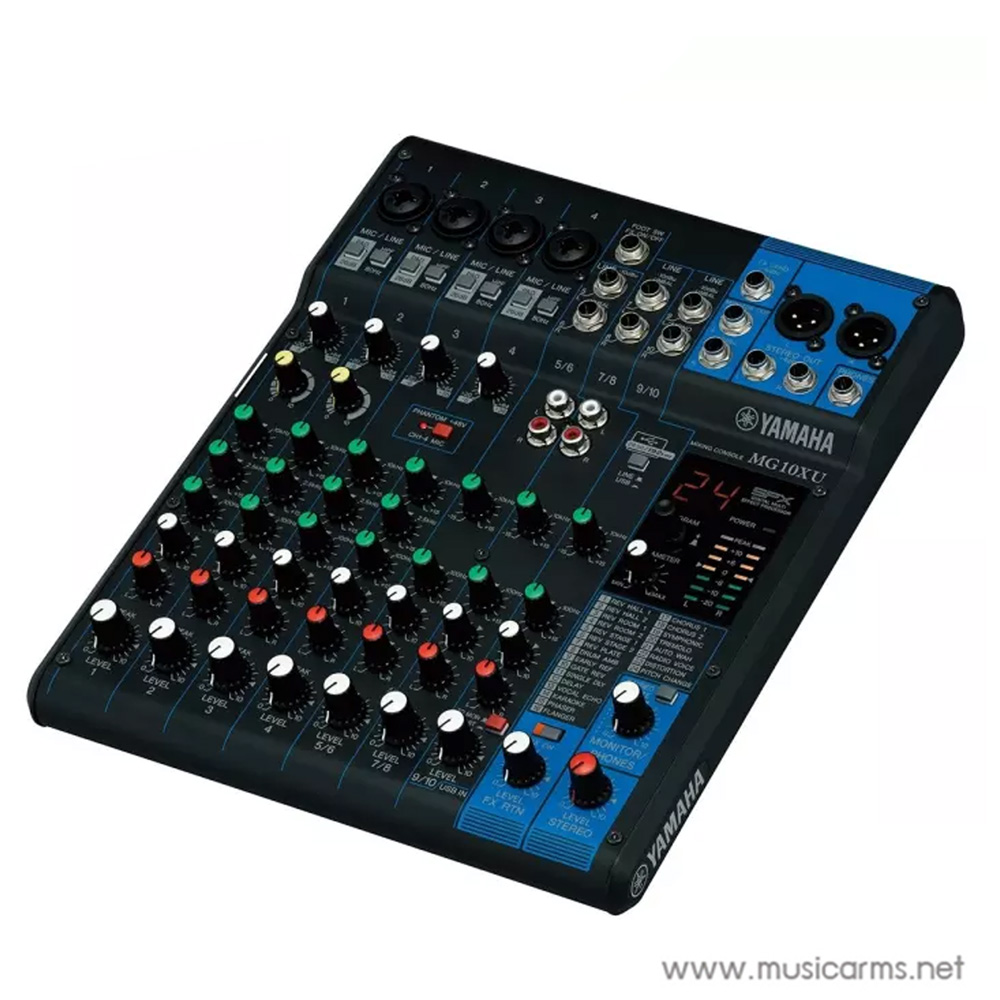

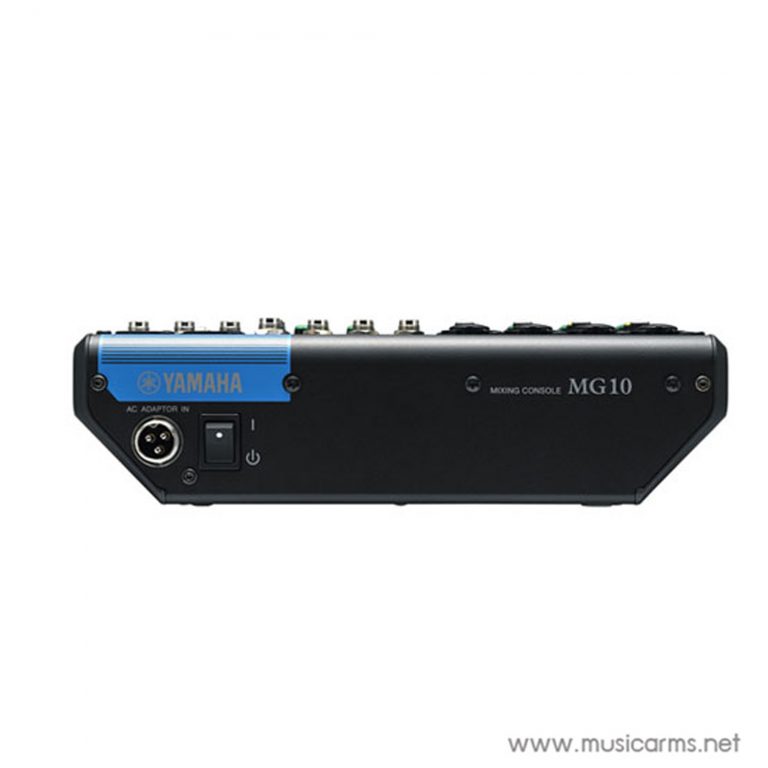

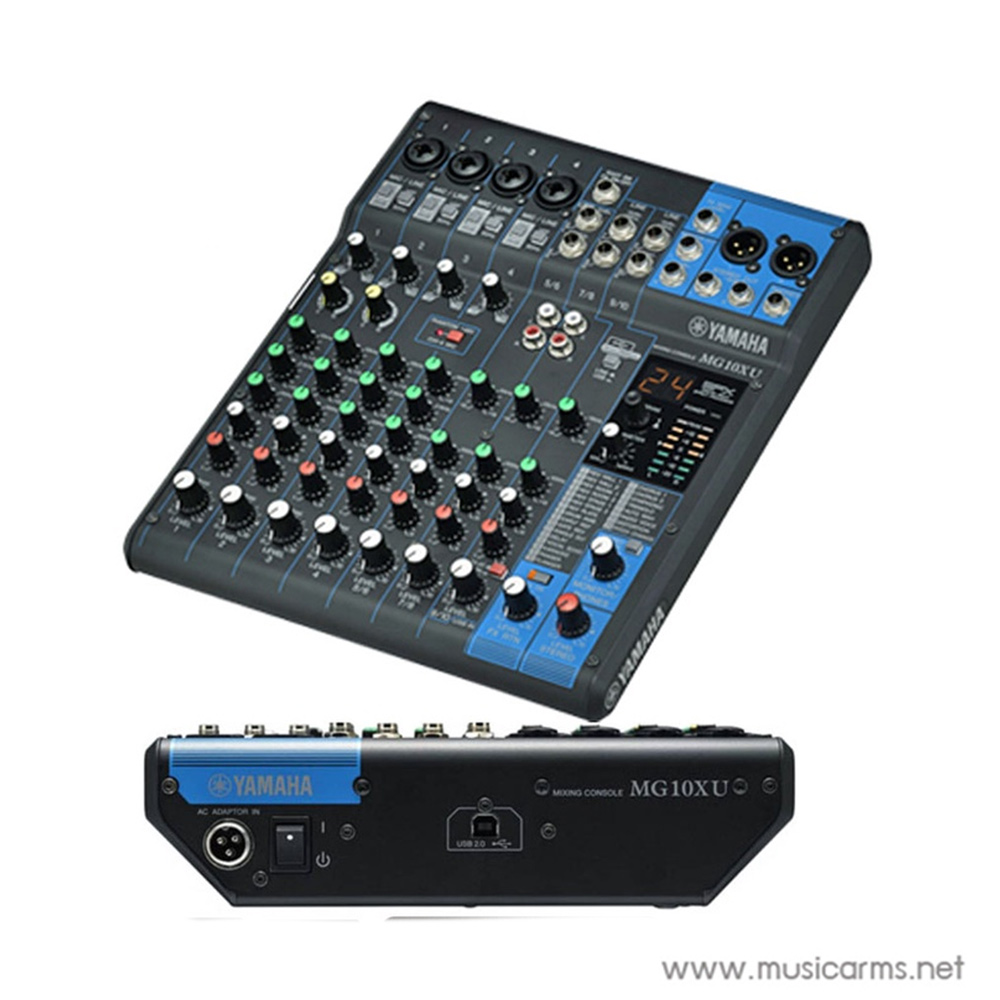

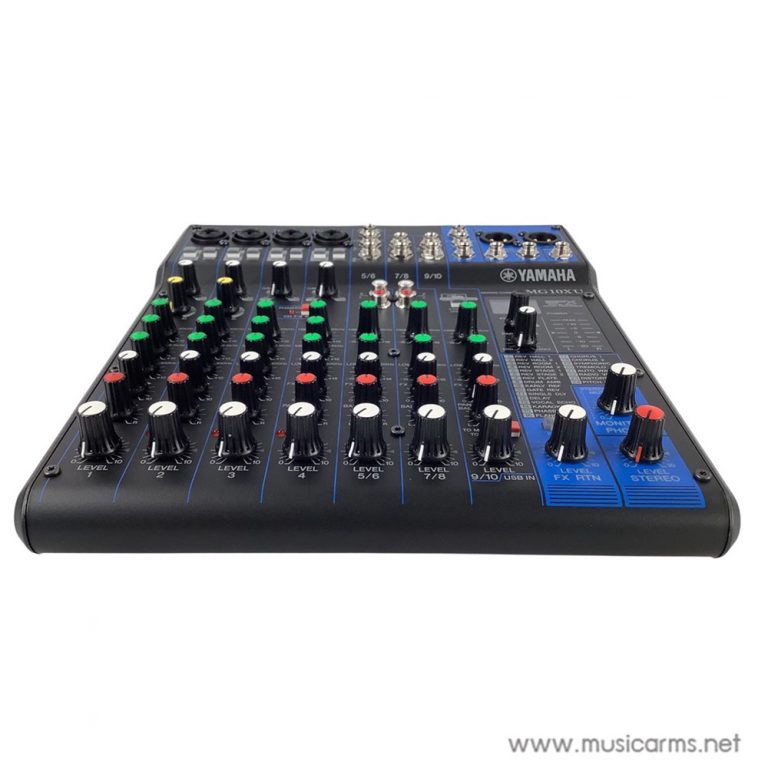

Yamaha MG10XU Analog Mixer

Fully Loaded Mixer for the Studio and Stage!

The Yamaha MG10XU analog mixer is well-suited for small, portable rigs, with its rich features and outstanding sound quality. The MG10XU’s quality op-amp ensures that your mix sounds transparent and articulate. The MG10XU’s crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, and LED metering, the MG10XU can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha’s high-end consoles, the MG10XU is ready to work for you!

Specification

• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• 1 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase AI DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Metal chassis
• Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6″x 2.8″x 11.6″)
• Net Weight: 2.1 kg (4.63 lbs.)
