Yamaha DTX10K-X Real Wood Electronic Drum Kit กลองไฟฟ้า

True acoustic behaviours backed by world-class tech

As a minimum, an electronic drum kit should offer a realistic drum response with a degree of technology to justify its purchase. With the JDTX10KXRWUK, you have a superbly playable drum set that faithfully reproduces acoustic drum behaviour. This is thanks to Yamaha’s exhaustive investigations into how drums respond when they’re struck. The original Yamaha TCS (Textured Cellular Silicone) head surfaces go a long way in recreating these nuances, and when you add the DTX-PROX Drum Module’s powerful technology to the mix, you have an outstanding instrument on your hands.

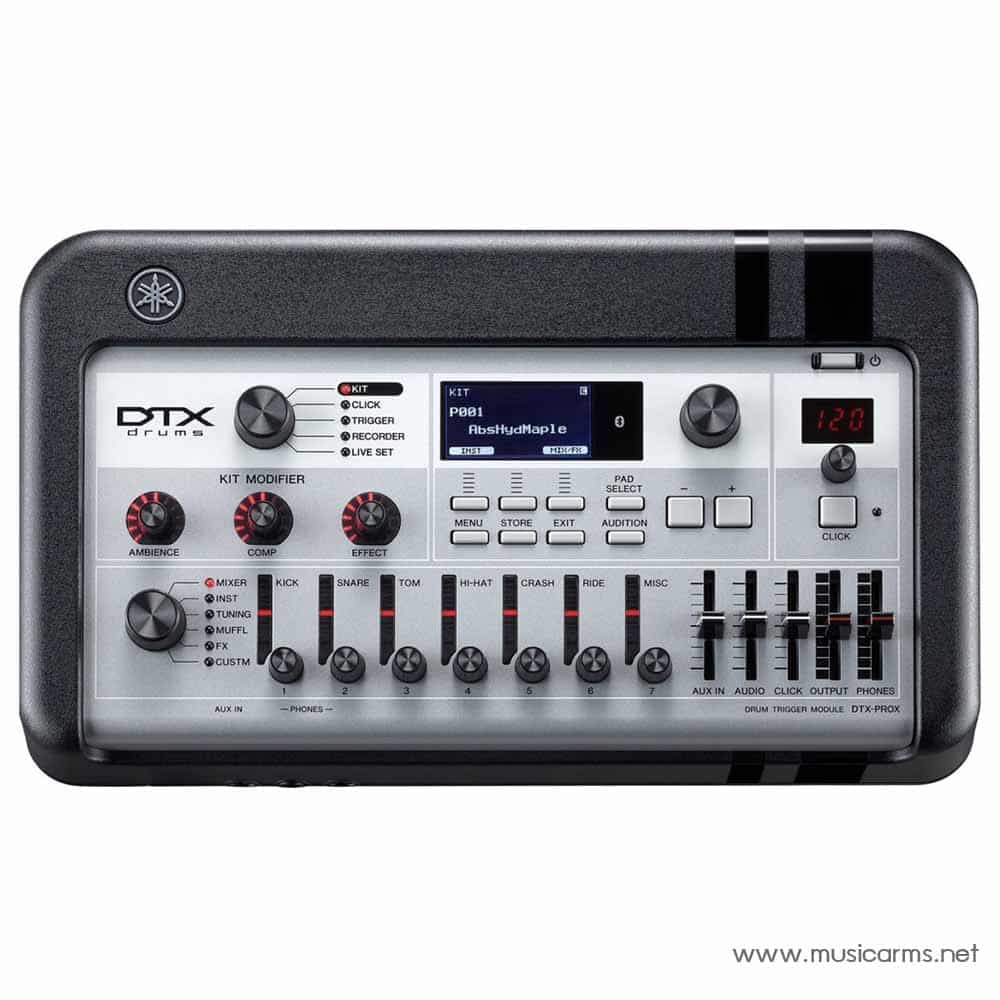

Stand-out features on the new DTXPROX module

The new DTXPROX module features new high-definition sounds and studio quality effects, providing further freedom in selecting, editing, and creating your own sounds. These effects can be added individually onto each channel, meaning you can have different effects on your snare drum than the rest of the kit. With eight individual outputs, the Yamaha DTX10K-X RW Electronic Drum Kit can be recorded easily, and on separate tracks for better editing and mastering. Once recorded, this module can be used as a mixer to control your DAW.

This module also allows you to load up to 1000 user samples via USB, providing endless options of sounds, genres, and sound effects.

Bluetooth is a unique feature on the DTXPROX module and does not feature on the DTXPRO. This allows you to play along to your favourite songs from a tablet or mobile, without plugging into the module directly.

So why choose the DTX10?

The Yamaha DTX10K-X RW Electronic Drum Kit is packed with more sounds and more kits that can be edited as you desire in order to find your perfect sound. The DTXPROX module also features accurate velocity responses due to there being a sensor around the rim of the drum. This means, your light and heavy hits will respond beautifully and authentically – just like on an acoustic drum.

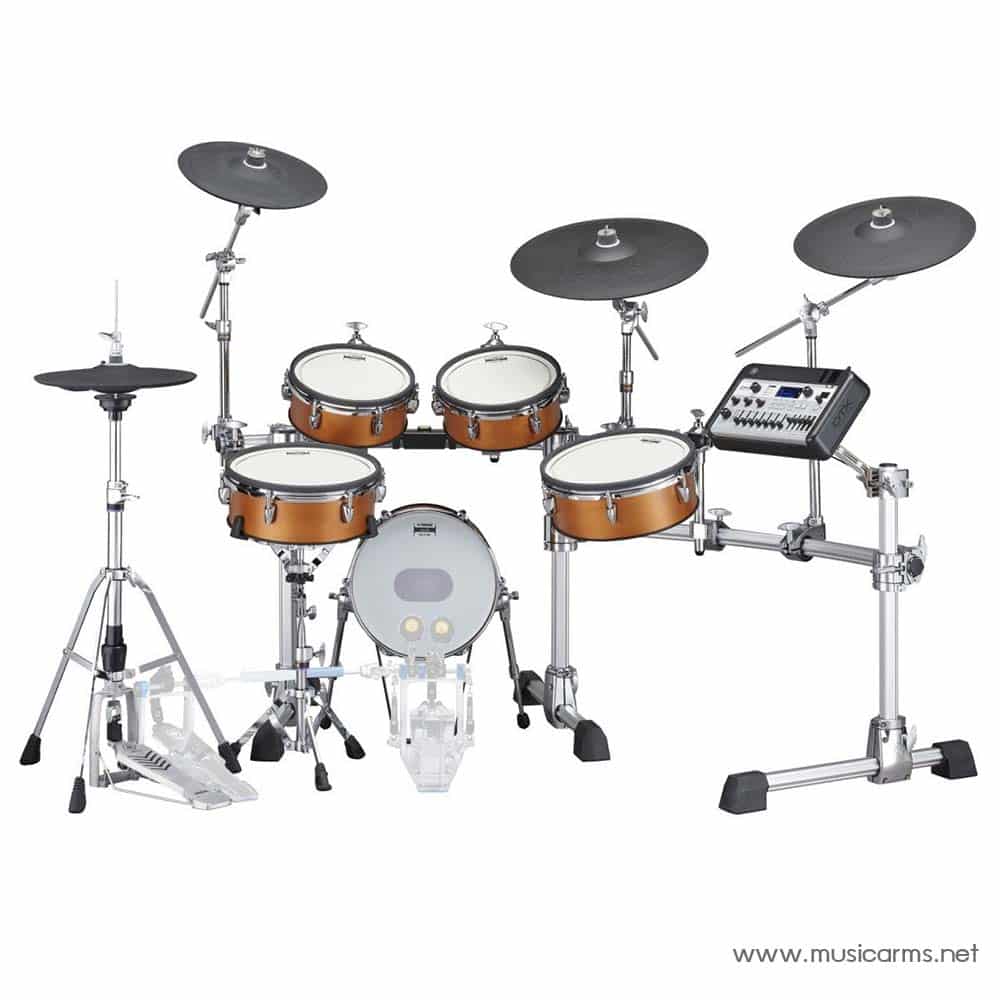

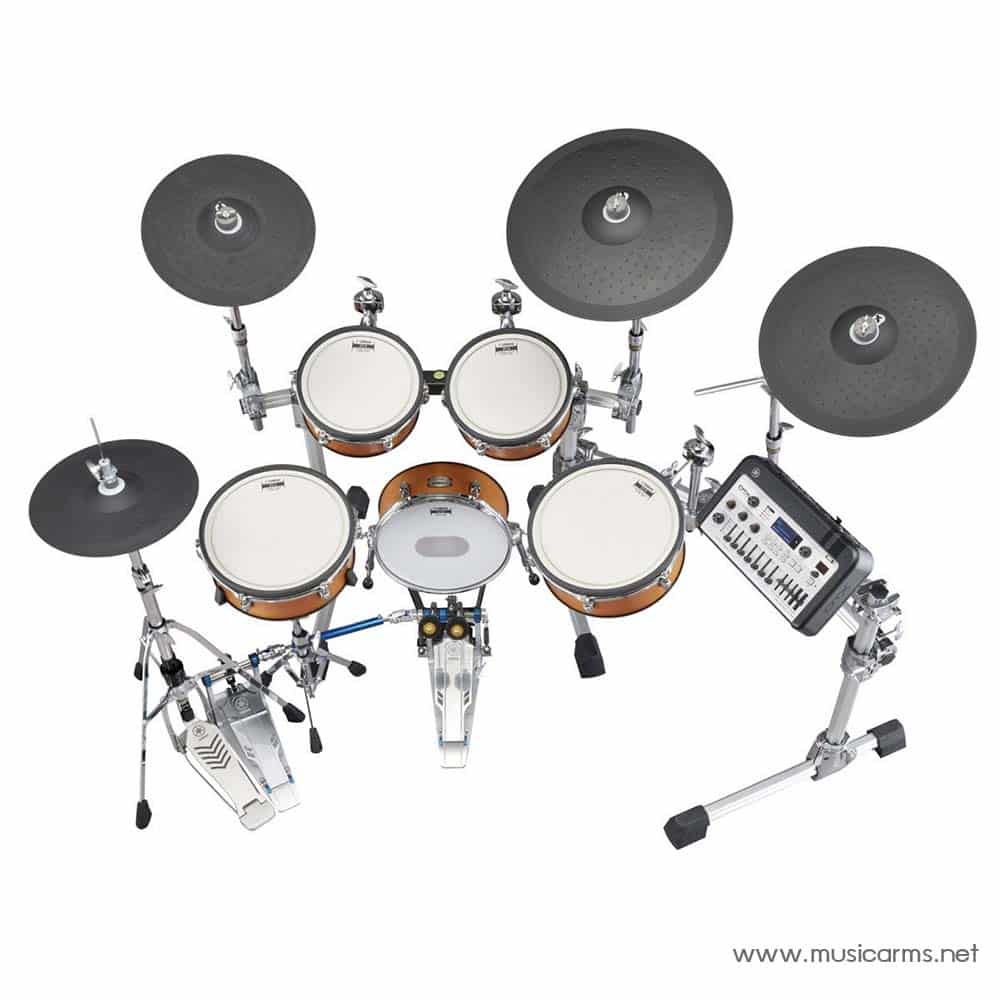

Kit configuration

• DTXPROX Drum Trigger Module

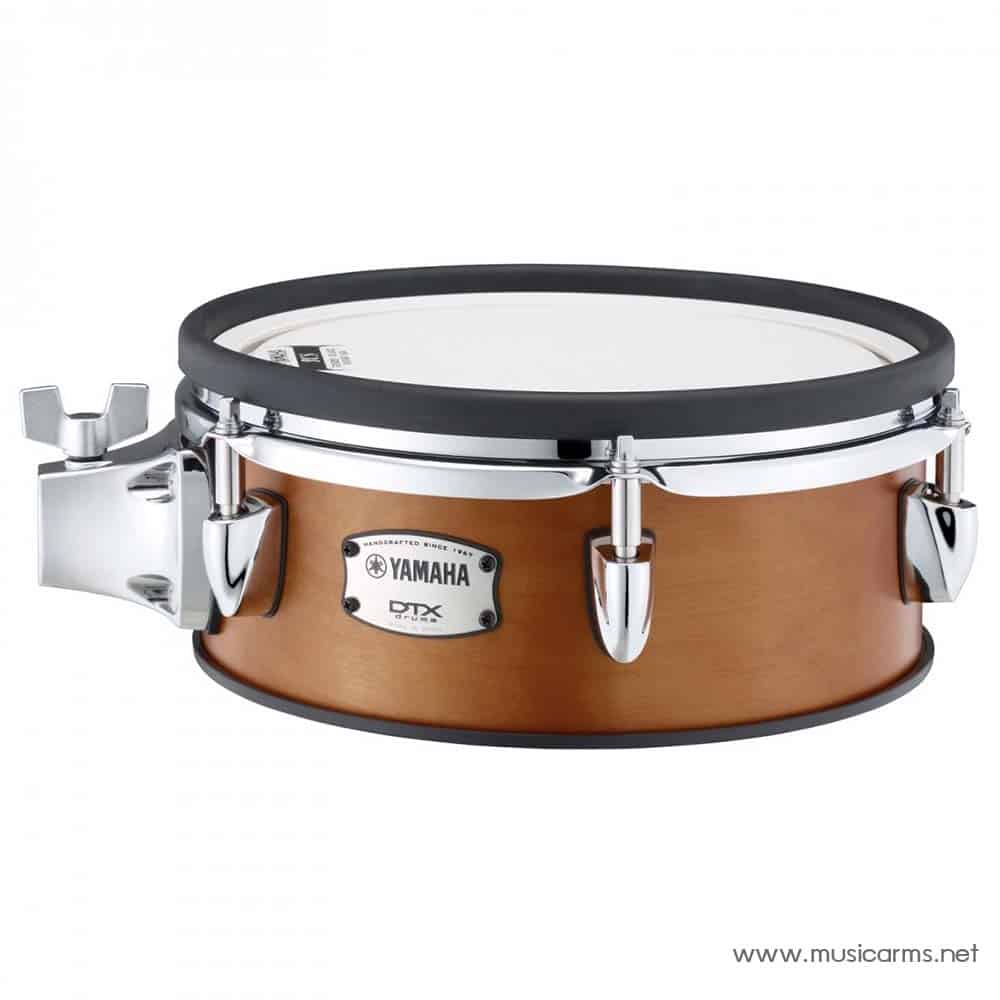

• XP125SD-X 12” TCS Snare Pad (x1)
• XP105T-X 10” Tom Pads (x2)
• XP125T-X 12” Tom Pad (x1)
• KP128 Kick Pad (x1)
• PCY175 Pad (x1) Ride Pad
• PCY155 Pad (x1) Crash Pad
• PCY135 Pad (x1) Crash Pad
• RHH135 HiHat Controller and Stand
• RS10-HXR Hex Rack System
• Power adapter, Module Holder, Manual

Specifications

• Snare Material: Textured Cellular Silicone
• Tom Material: Textured Cellular Silicone
• Polyphony: 256-Note
• Power Supply: AC adaptor
• Current Draw: 150 mA
• MIDI Interface: USB and 5-pin MIDI Out
• Master Out: L+R
• Headphone Connection: 6.3mm and 3.5mm
• Auxiliary Input: 3.5mm and 3.5mm
• Individual Outputs: 8
• Finish: Real Wood
• SKU: JDTX10KXRWUK

Module Specifications:

• Dimensions:18cm x 26cm x 46cm
• Weight: 3.5kg
• Click:
  • Click Sets: 30
  • Tempo: 30 to 300 BPM, Tap Tempo supported.
  • Time Signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
  • Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
  • Others: Individual click volume control, wav import, timer

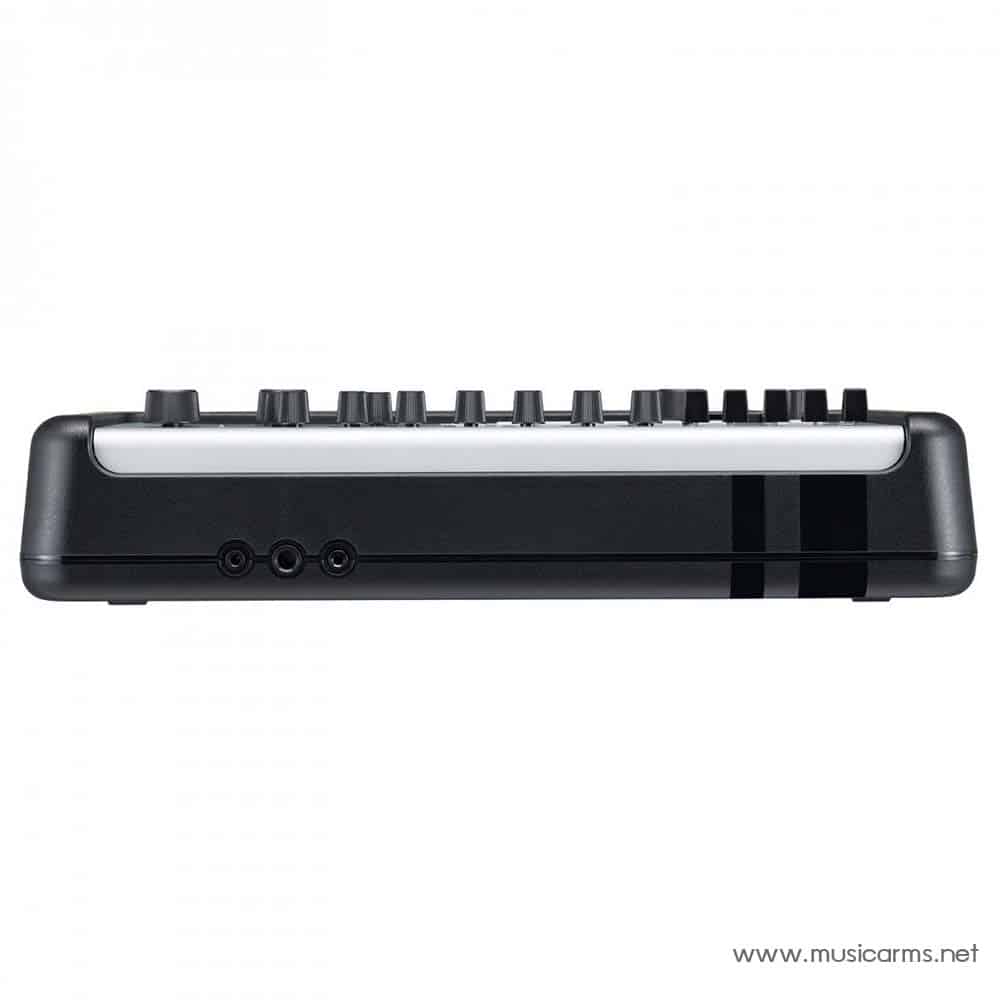

  • Connectivity:
    • DC IN: DC IN (+12V)
    • Headphones: Headphones (standard stereo phone jack x 1)
    • AUX IN: AUX IN (stereo mini jack x 1)
    • Output: OUTPUT L/MONO, R (standard phone jack, one for each)
    • USB: USB TO DEVICE, USB TO HOST
    • MIDI: MIDI OUT
