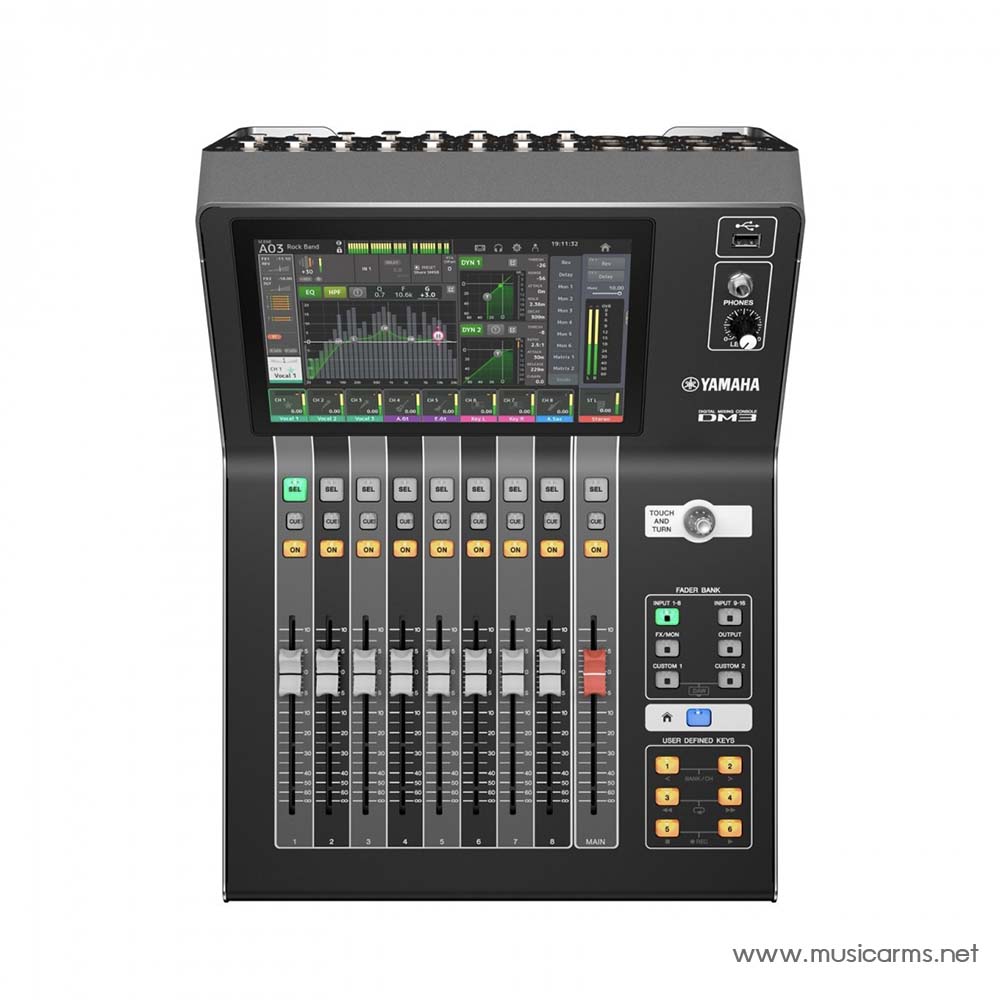

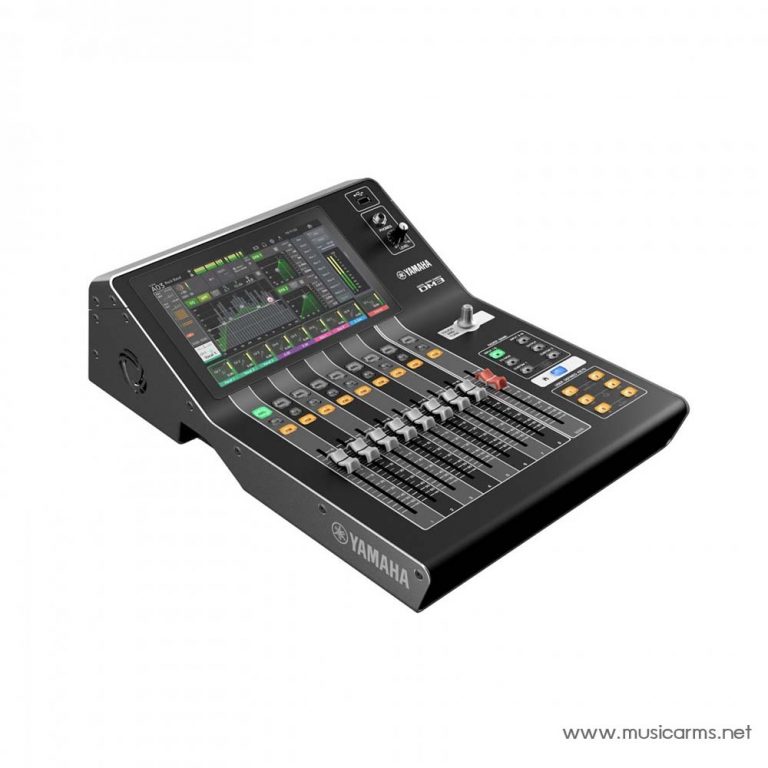

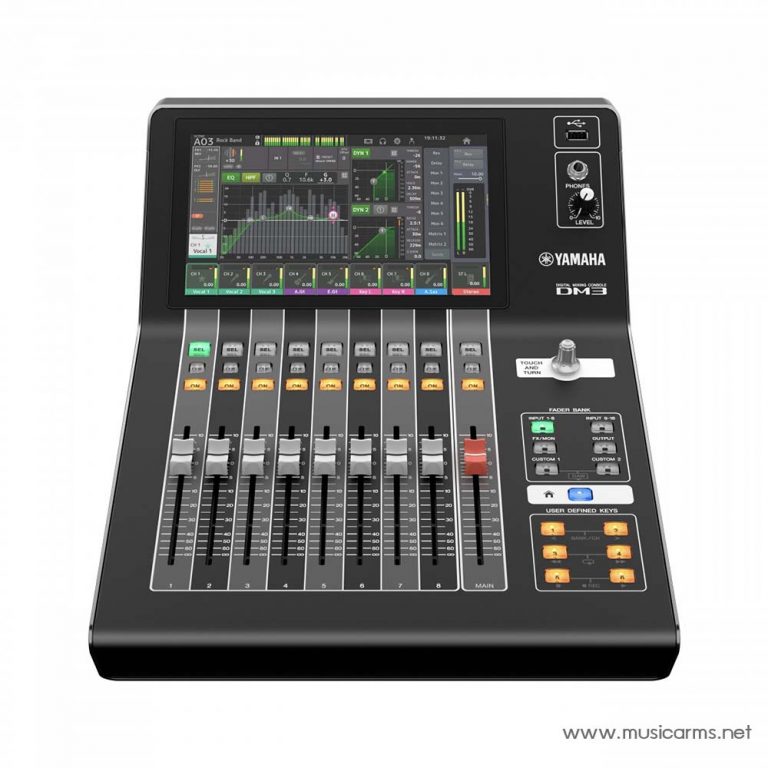

Yamaha DM3S Digital Mixer

The Yamaha DM3S is an ultra-compact 22-channel digital mixer sure to get you your next gig.

The word “compact” is often associated with limitations, and in the sound reinforcement world, often implies compromises in functionality, connectivity, or sound quality, and sometimes all three. Until now, choosing a compact console has almost invariably been a matter of what you’re willing to sacrifice to get the capabilities you need in the space you have. The DM3 series of mixing consoles shatters this stereotype, offering superb sound quality, fast and easy setup and operation, and professional-level features for live sound, streaming, and live or home recording and music production—a combination unmatched in any other mixing console this size. In an ever-changing world that constantly presents new challenges as well as opportunities, DM3 mixing consoles give you the power and flexibility to do more than you ever imagined with a compact digital console.

Capable of 96kHz sample rates, the DM3 Series continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording, and streaming from a company that knows how to create music. When not on stage, DM3S can be used as a DAW controller in the home studio. Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a best-in-class 9″ touchscreen, and a single Touch & Turn knob for managing most of the operation.

22-Channel Digital Mixer for Studio, Stream and Live Applications

• 9″ Touchscreen
• 9 Motorised faders
• “Turn & Touch” controls
• 18 x 18 USB 2.0 audio interface 96 kHz
• 8 Outputs
• 6 x Mix Bus + 2 x FX + 2 x Matrix
• DAW Remote Feature (HUI)
• OSC support for installations
• Editor app available for tablet (tablet not included)
• 6 Freely assignable buttons
• 2 x 2 Channel record/playback via USB port
• 8 Effects + GEQ on the mix/stereo bus
• Dimensions (W x H x D): 320 x 140 x 455 mm
• Weight: 6.5 kg
• Includes Steinberg Cubase AI and VST Rack Elements

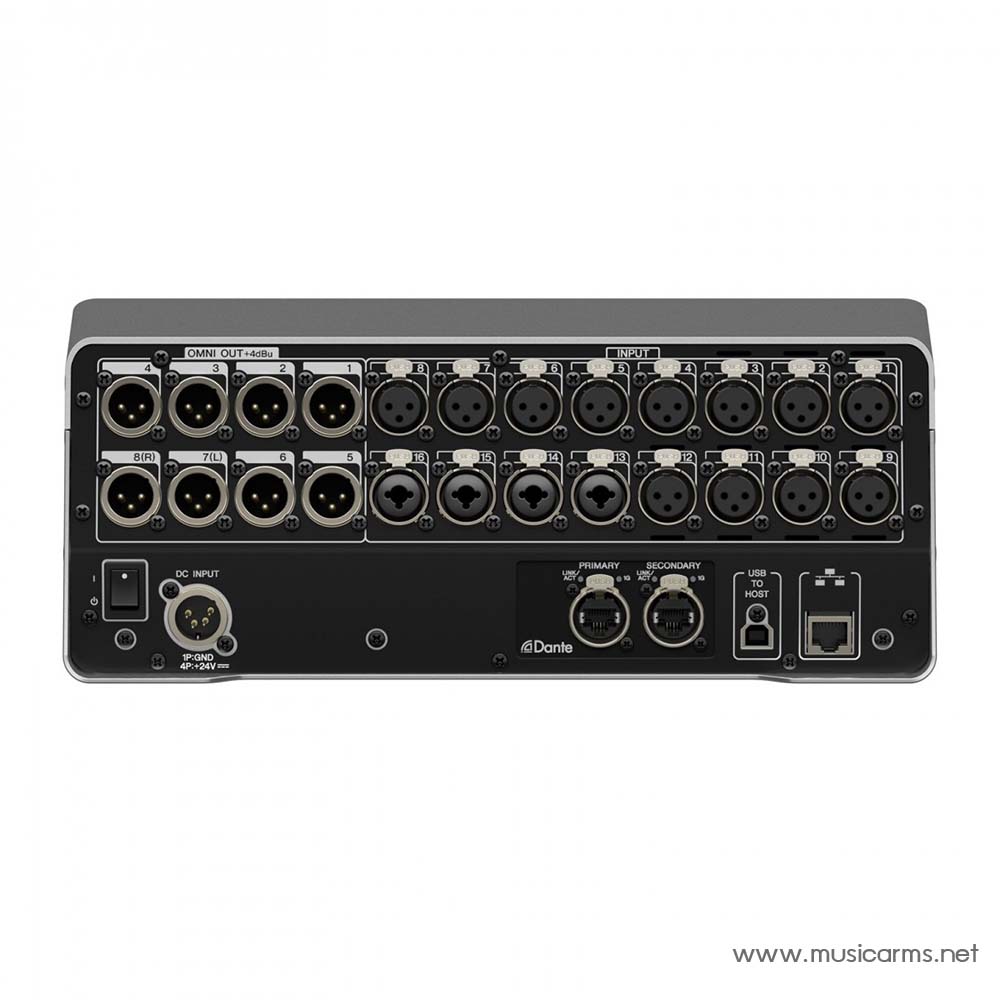

Connections:

• 16 Mic/line inputs (12 x XLR, 4 x combo XLR/jack 6.3 mm)
• 8 Line outputs XLR
• Stereo headphone output: 6.3 mm jack
• USB to Host
• USB to device
• Ethernet RJ45
