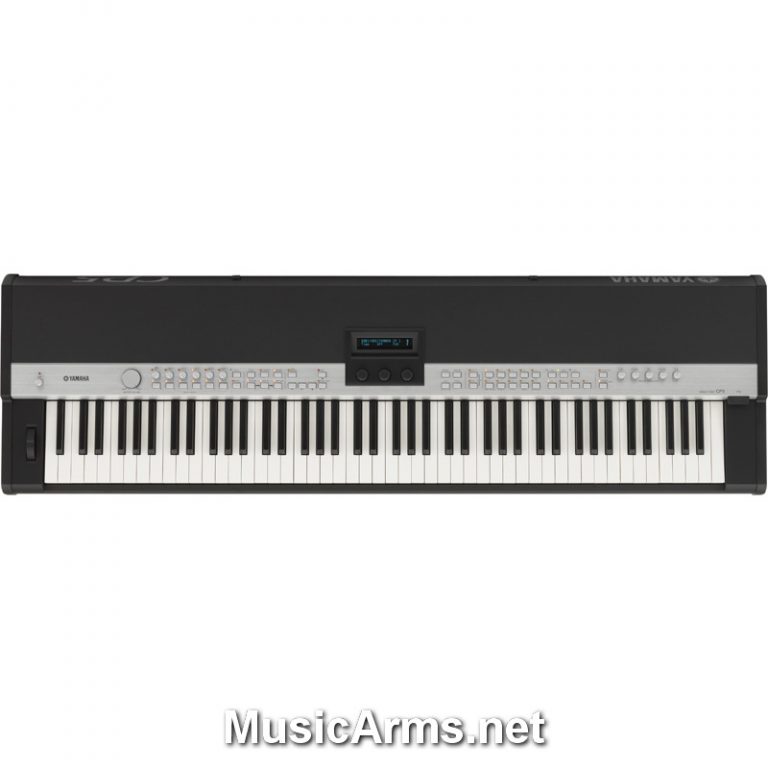

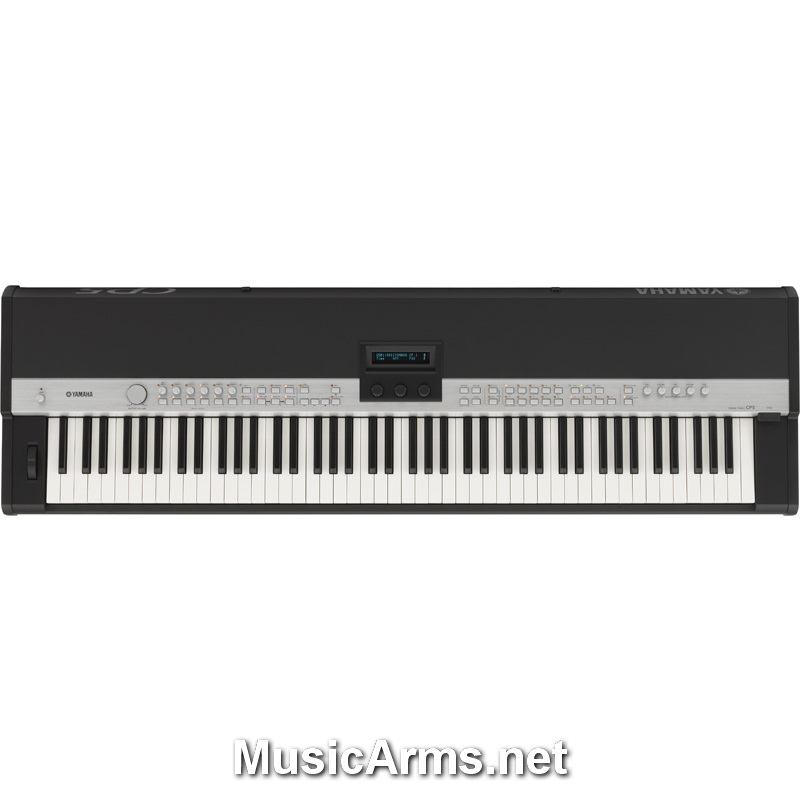

Yamaha CP5

The CP5 take the core sounds and technology of the CP and offer them in instruments that are both flexible and affordable enough to appeal to a wide range of people. In fact, the CP5 adds a wide range of sounds to the CP. Clavs, organs, strings and more make the CP5 perfect for church, and live situations where everything needs to be performed on one keyboard. Moreover, the CP5 features not only Virtual Circuit Modeling effects, but many effects taken from the Motif XS line of synthesizers. The CP5 has the same NW-STAGE wooden action keyboard as same with the CP.

Specification

Width:,38 mm
Height:74 mm
Depth:405 mm
Weight:25.2 kg
Maximum Polyphony: 28
Tone Generator:SCM (Spectral Component Modeling) + AWM2
Preset: 0 x 4 groups x 3 banks
User: 0 x 4 groups x 3 banks
External: 0 x 4 groups x 3 banks (USB Flash Memory)
Parts: 6
Voice Block: 7 piano voices (SCM + AWM2) + 305 other voices (AWM2)
Modulation Effect Block: 49 types
Power-Amplifier / Compressor Block: 8 types
Reverb: 8 types
Master Compressor: 3-band
Master Equalizer: 5-band
Number of Kits: 4
Number of Patterns: 00
Keyboard: 88 keys, NW-STAGE keyboard (Wooden synthetic ivory weighted keyboard)
Display: 24 character x 2 lines, vacuum fluorescent display (VFD)
Controllers: Pitch bend wheel, Master volume, Knobs to 3, Part volume x 6, Master equalizer x 5, Gain
Line Out: L/MONO,R (Unbalanced), L, R (Balanced)
Headphones: Headphones jack (stereo-phone)
Foot Switch: SUSTAIN, ASSIGNABLE
Foot Controller: 2
Mic Input:
MIDI: IN, OUT, THRU
USB: TO HOST, TO DEVICE
Power Consumption: 25W

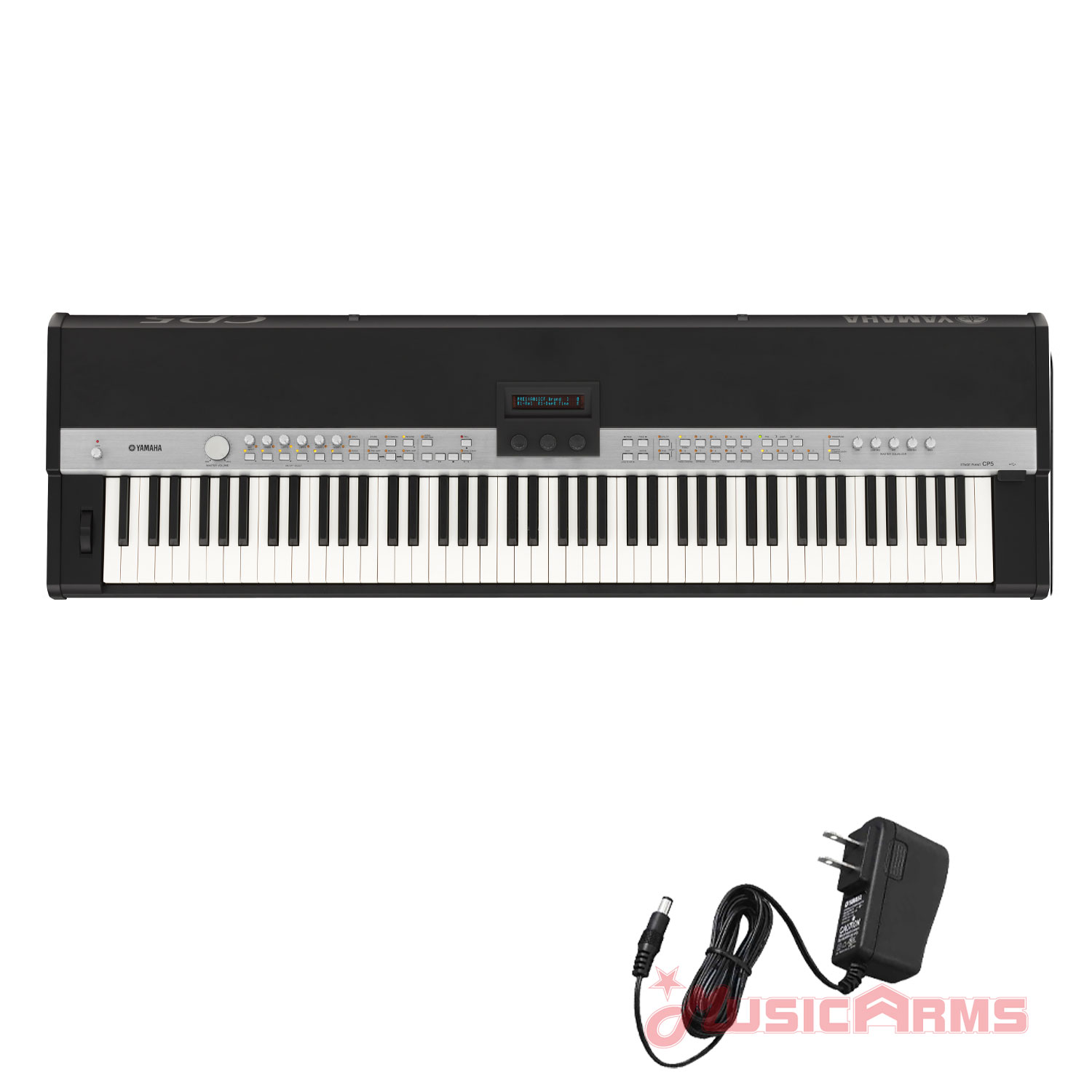

Additional package contents: Power cord, Foot pedal FC3, Owner’s Manual, Owner’s
