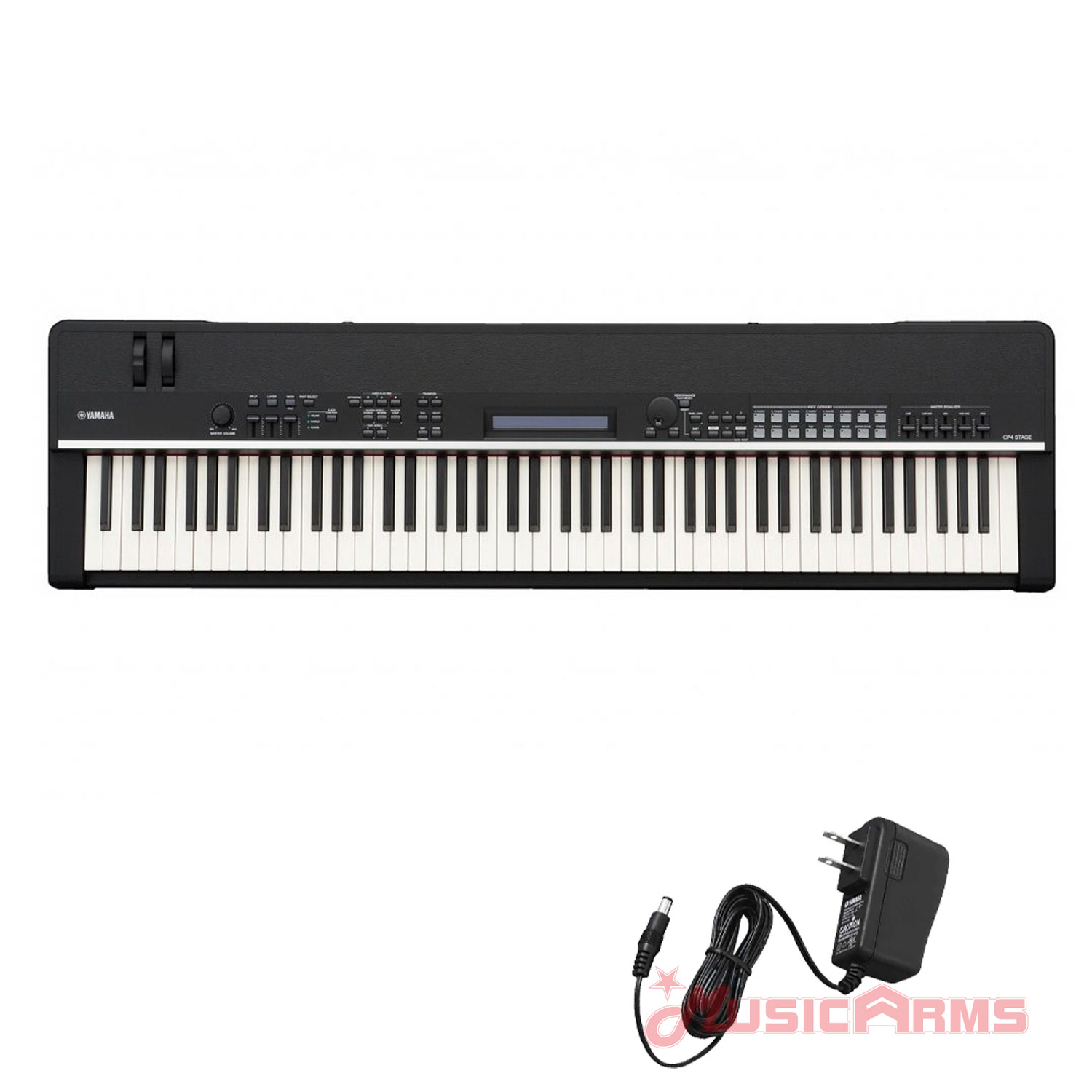

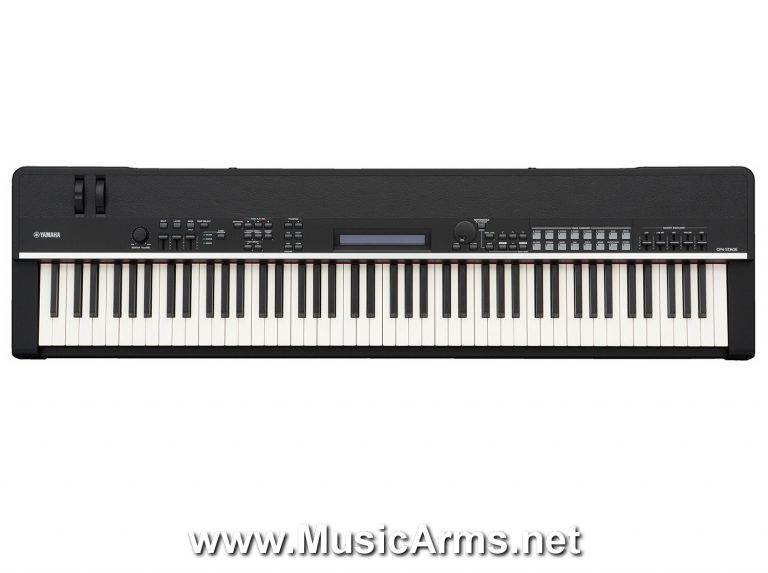

Yamaha CP4

The CP4 STAGE is simply the best stage piano Yamaha has ever made. A selection of voices from Yamaha’s Premium hand-crafted grand pianos including CFX, CFIIIS and S6, vintage EPs with VCM effects and a variety of sounds based on our flagship MOTIF synth have been matched with an 88-note wooden- key Graded Hammer action to provide the ultimate piano touch and response. The CP4 STAGE’s slim, lightweight design combines portability with elegant style, and features an easy-to-understand interface with large lighted buttons for splits and layers that gives you all the controls you need right at your fingertips.

Keyboards
CP4 STAGE     88-key Natural Wood Graded Hammer (NW-GH) keyboard with Synthetic Ivory Keytops (with real-wood white keys)
Voices
Tone Generation     Tone Generating Technology     SCM (Spectral Component Modeling) + AWM2
Polyphony     Number of Polyphony (Max.)     128
Preset     Number of Voices     433 (CFX:15, CF:15, S6:15, Rd:15, Wr:6, CP80:8, DX:18, Clav, Organ:67, Strings, Choir, PAD:86, Others:174, Others(Drum):14)
Effects
Types     Reverb     11 types
Chorus     9 types (46 presets)
Master Compressor     1 type (7 presets)
Master EQ     5 bands
Insertion Effect     62 types (226 presets) × 2 Parts
Performances
Performances     User     128
Parts     3
Connectivity
Connectors     Line Out     UNBALANCED [L/MONO] and [R] OUTPUT jacks (standard mono-phone), BALANCED [L] and [R] XLR OUTPUT jacks
Headphones     [PHONES] jack (stereo-phone)
Foot Switch     [SUSTAIN] and [ASSIGNABLE] FOOT SWITCH jacks
Foot Controller     2 jacks
MIDI     [IN] and [OUT] MIDI terminals
USB     [TO HOST] and [TO DEVICE] USB terminals
Size/Weight
Dimensions     Width     1,332 mm
Height     161 mm
Depth     352 mm
Weight     Weight     17.5 kg
Other
Controllers     Pitch bend wheel, Modulation wheel, Part slider × 3, [MASTER VOLUME] dial, Data Dial, MASTER EQUALIZER slider × 5
Display     40 characters × 2 lines, Character LCD with back-light
Power Consumption     18W
Additional package contents     Power cord, FC3 foot pedal, Owner’s Manual, Online Manual CD-ROM (containing Reference Manual, Synthesizer Parameter Manual, and Data List)
