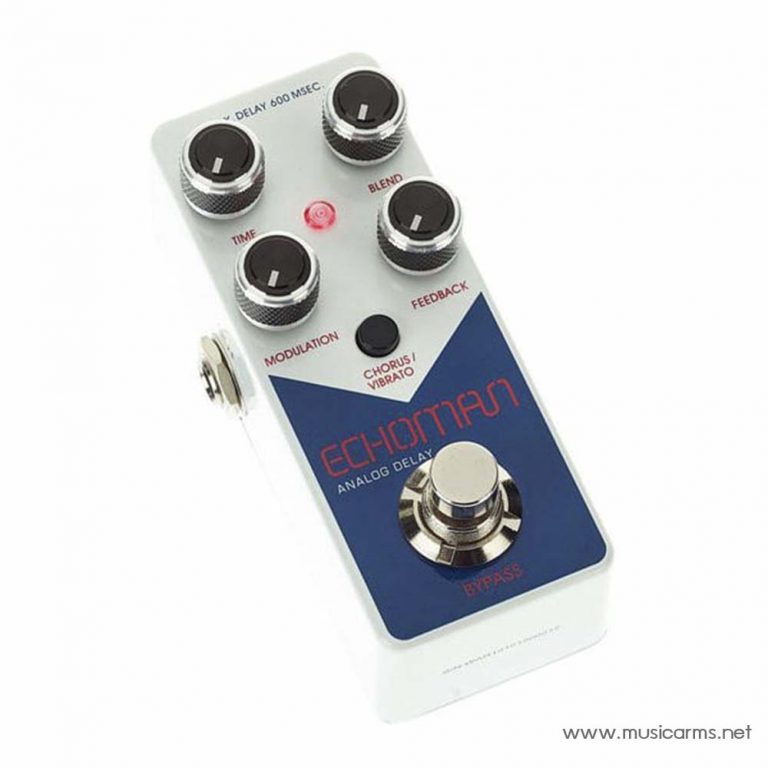

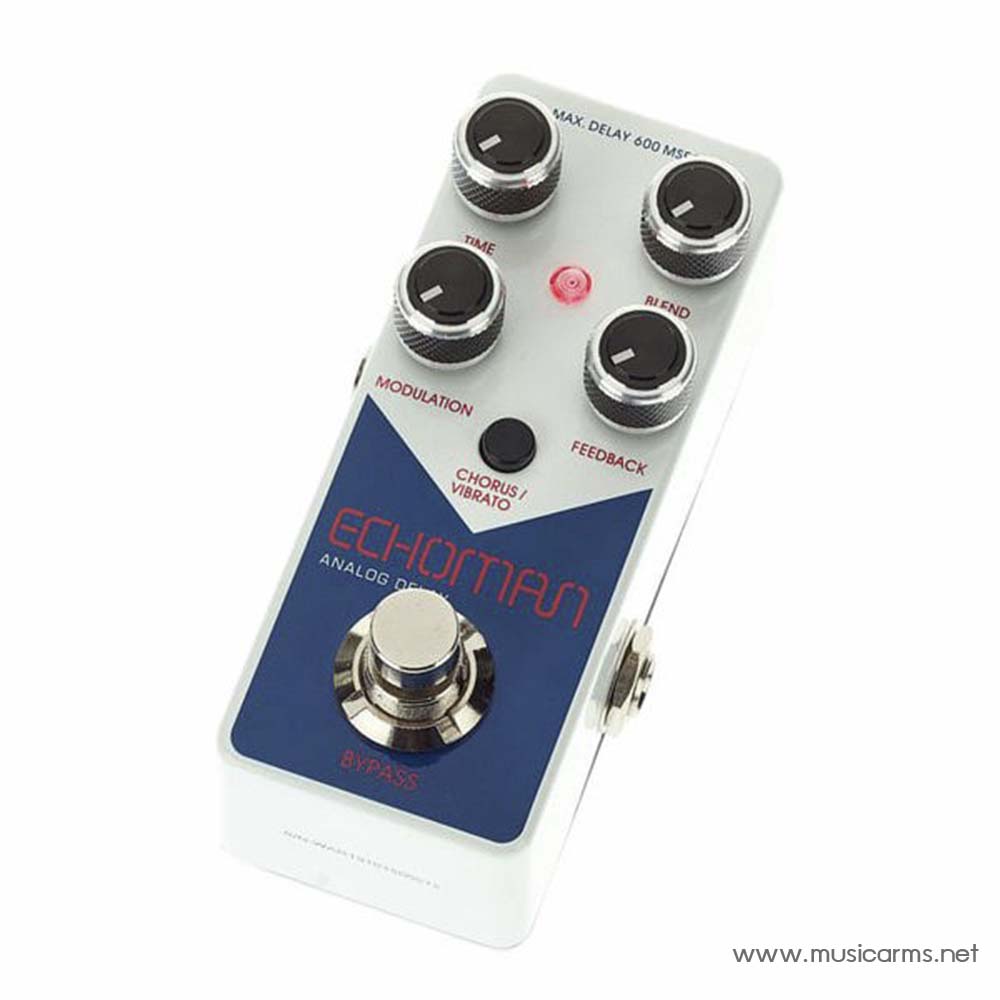

Xvive V21 Echoman

คลิ๊กที่ภาพเพื่อขยาย
ยี่ห้อ : Xvive

ราคา : 2,990 บาท

รุ่น :  Xvive V21 Echoman เอฟเฟคก้อน Strombox
การจัดส่ง : ซื้อครบ 500 บาท จัดส่งฟรีทั่วประเทศ / จัดส่งด่วนภายในวัน ทั่วกทม. และปริมณฑล
การชำระเงิน : จ่ายหน้าร้าน 11 สาขา / โอนเงิน / เก็บปลายทาง / บัตรเครดิต /ผ่อนชำระ 0% (บางรายการ) / Shopee / Lazada

ลูกค้าองค์กร/ใบเสนอราคา
E-mail
: musicarmsproject@gmail.com

สั่งซื้อ Xvive V21 Echomanผ่านline สั่งซื้อ Xvive V21 Echomanผ่าน messenger

วีดีโอ


Description

ECHOMAN

The Echoman, designed by guitar effects guru Howard Davis, is a simplified monaural version of the Memory Analog Delay. It is a state-of-the-art design based on Davis’s highly successful Deluxe Memory Man, acknowledged as among the best if not THE best analog delay pedal.Up to 600 msec of delay time with no aliasing distortion. Buffered bypass with a 900K input impedance guarantees no tone sucking (loss of highs) due to pickup loading. Wide bandwidth – good high frequency response even at long delay settings. Feedback control allows self-oscillation if desired. Blend control allows adjusting the output from dry signal only to delayed signal only. High-tech filtering and noise reduction circuitry guarantee an excellent signal to noise ratio, even at long delay settings.

OPERATING INSTRUCTIONS

Connect the 9VDC center negative adaptor to the power in jack, guitar or other instrument to the input, and amplifier to the output. If the power polarity is incorrect the pedal will not work, but will not be damaged. With the MODULATION DEPTH turned all the way down, set DELAY, BLEND, and FEEDBACK for the echo effect you want. If desired, turn up the MODULATION DEPTH and set the MODULATION switch for the effect speed you want, chorus or vibrato.

Other settings

FOR CHORUS EFFECT
Set BLEND for equal levels of dry and delayed signal, DELAY very short,MODULATION DEPTH high. FEEDBACK can be added to enhance the effect.FOR VIBRATO
The delayed signal only is modulated. Set controls for the sound desired.FOR REVERB EFFECTS
Set DELAY short, MODULATION DEPTH all the way down or low, and BLEND for equal dry and delayed signal levels. Set the FEEDBACK high for multiple repeats that slowly die out. Feedback settings just before self-oscillation occurs will produce a “bathtub reverb” effect that can be varied with the delay and modulation settings.

Specification

Effect pedal for electric guitar

  • Delay
  • Analogue operation
  • XVive Chip Design (MN 3005 BBS)
  • Up to 600 ms delay time
  • True bypass

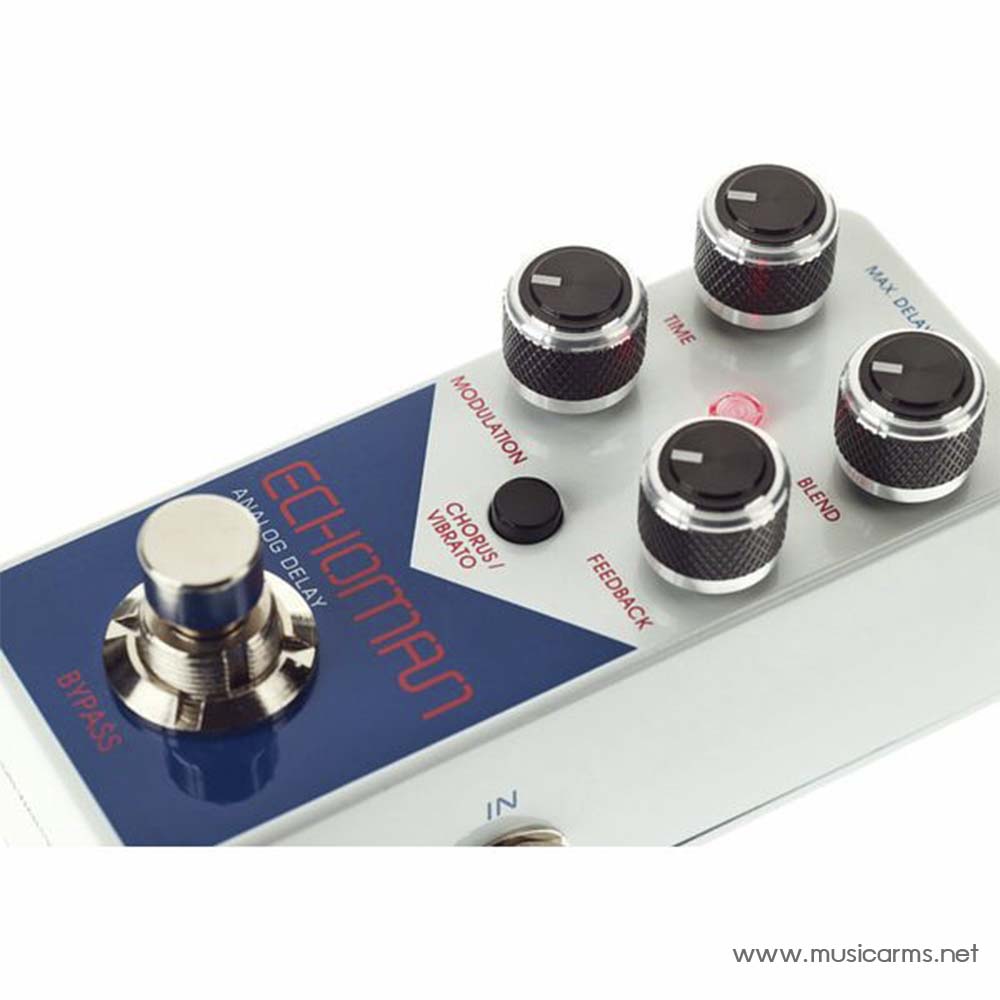

  • Controls for Time, Blend, Feedback and Modulation
  • Chorus / Vibrato tactile switch
  • Bypass footswitch
  • Status LED
  • Metal housing

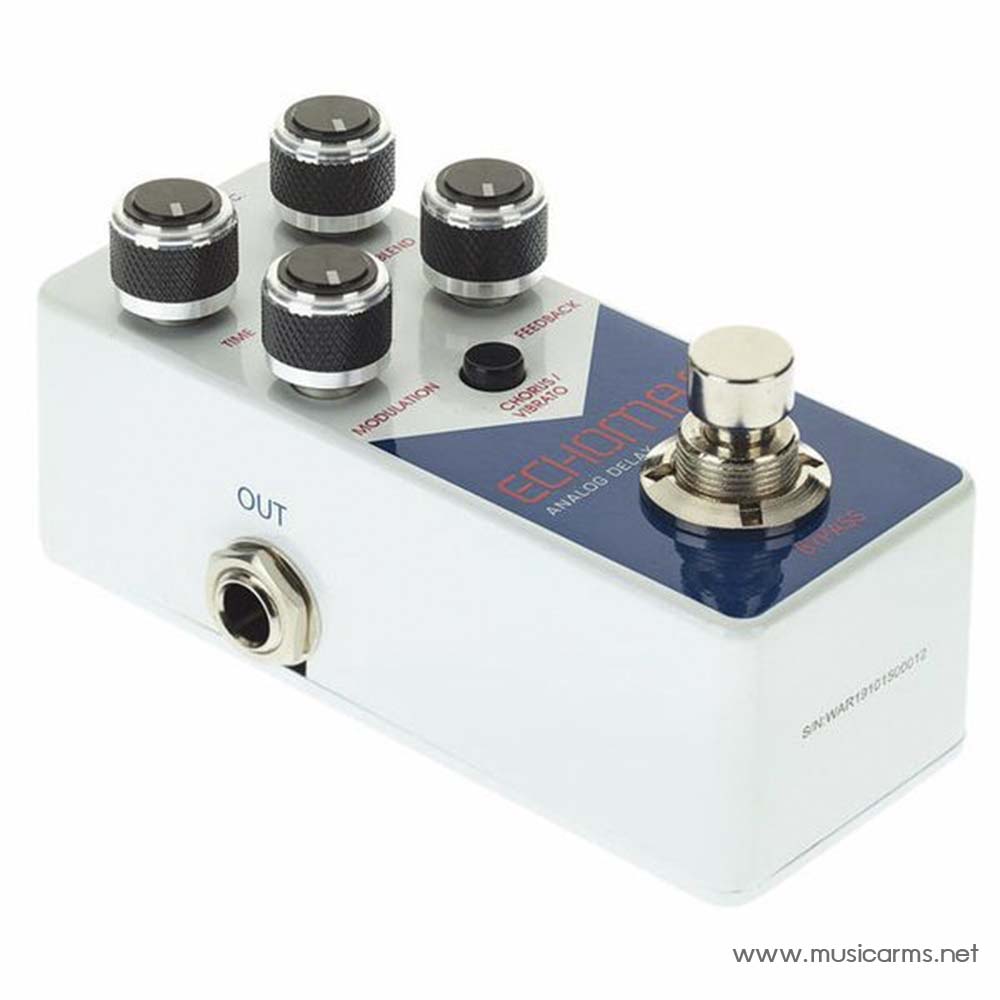

  • Input and output: 6.3 mm mono jack
  • Power supply via 9 V DC power supply, 2.1 x 5.5 mm coaxial connector, polarity (-) inside (not included)
  • Dimensions (L x W x H): 95 x 45 x 45 mm
  • Weight: 250 g
