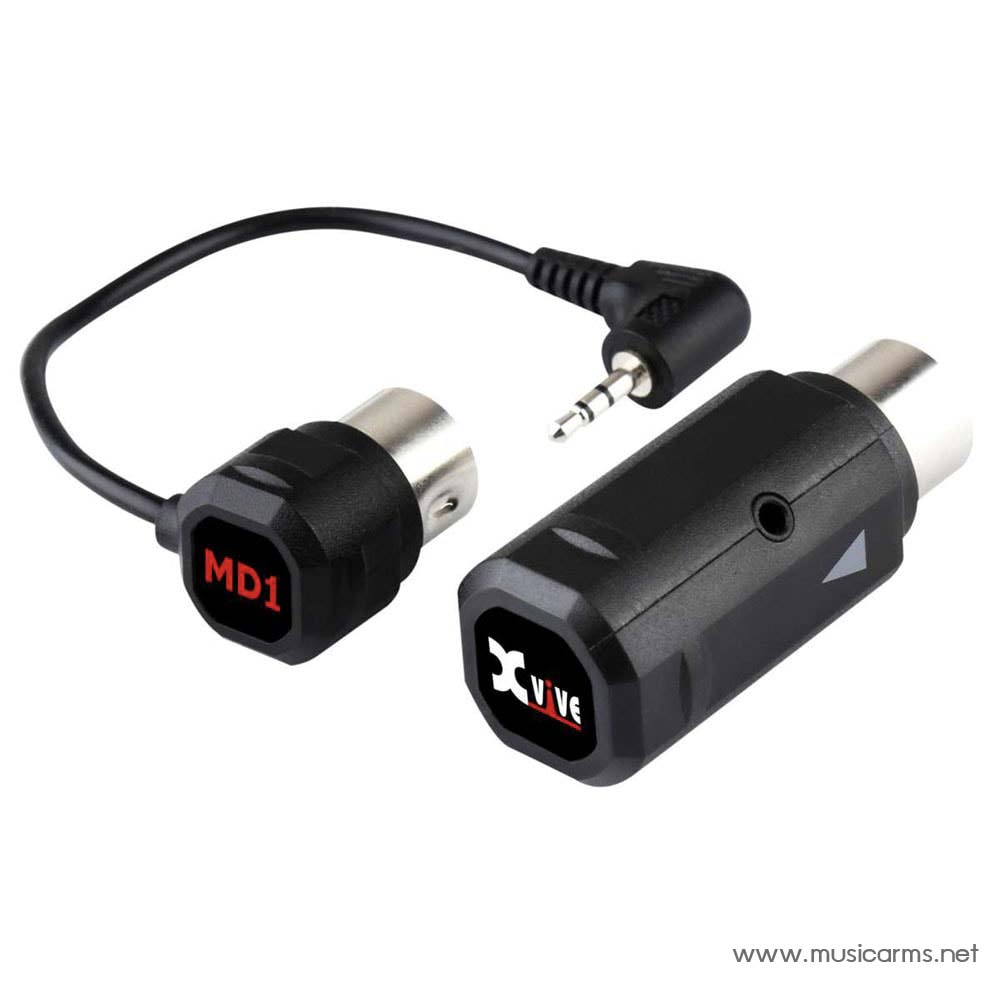

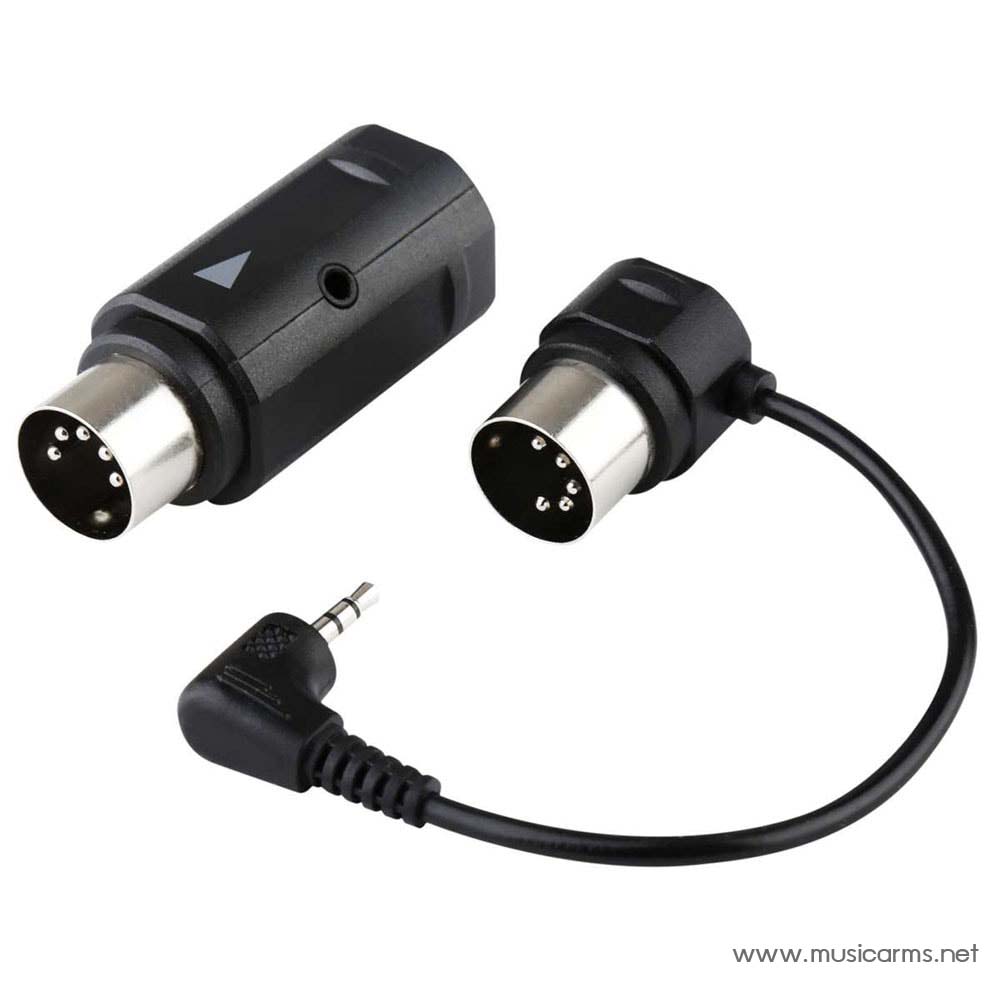

Xvive MD1 Wireless MIDI System

The XVive MD1 Wireless MIDI System adds wireless Bluetooth MIDI transmission and reception functionality to music equipment with MIDI DIN connectors. The MD1 can be used to send MIDI information to, or receive MIDI information from, any MIDI devices or computers that have built-in BLE (Bluetooth Low Energy) MIDI functionality, including Bluetooth MIDI controllers, iPhones, iPads, Mac computers etc. When you need to transmit MIDI information between two MIDI devices that don’t have built-in BLE functionality, you can use two MD1 sets: one on the transmitting end and one on the receiving end. MD1 can be used with any MIDI DIN connectors of MIDI devices that apply to the MIDI standard, such as: synthesizers, MIDI controllers, MIDI interfaces, keytars, electric wind instruments, v-accordions, electronic drums, electric pianos, electronic portable keyboards, audio interfaces and digital mixers.

Digital Wireless MIDI System

• Offers simple, wireless transmission of MIDI signals
• Compatible with all MIDI devices with 5-pin MIDI-Out jack, Bluetooth MIDI Controller and Mac, iPhone, iPad, iPod Touch with Bluetooth 4.0 or later
• Compact adapters are powered via MIDI-Out – no additional power source required
• Bluetooth 5 offers fast and secure signal transmission (3 ms latency)
• Automatic pairing guarantees easy and uncomplicated use
• Modular design of main and sub-adapter
• Up to 20 m range (without obstacles)
• 5-Pin MIDI connector
• Status LED
• Wireless update via the XVive app (iOS/Android)

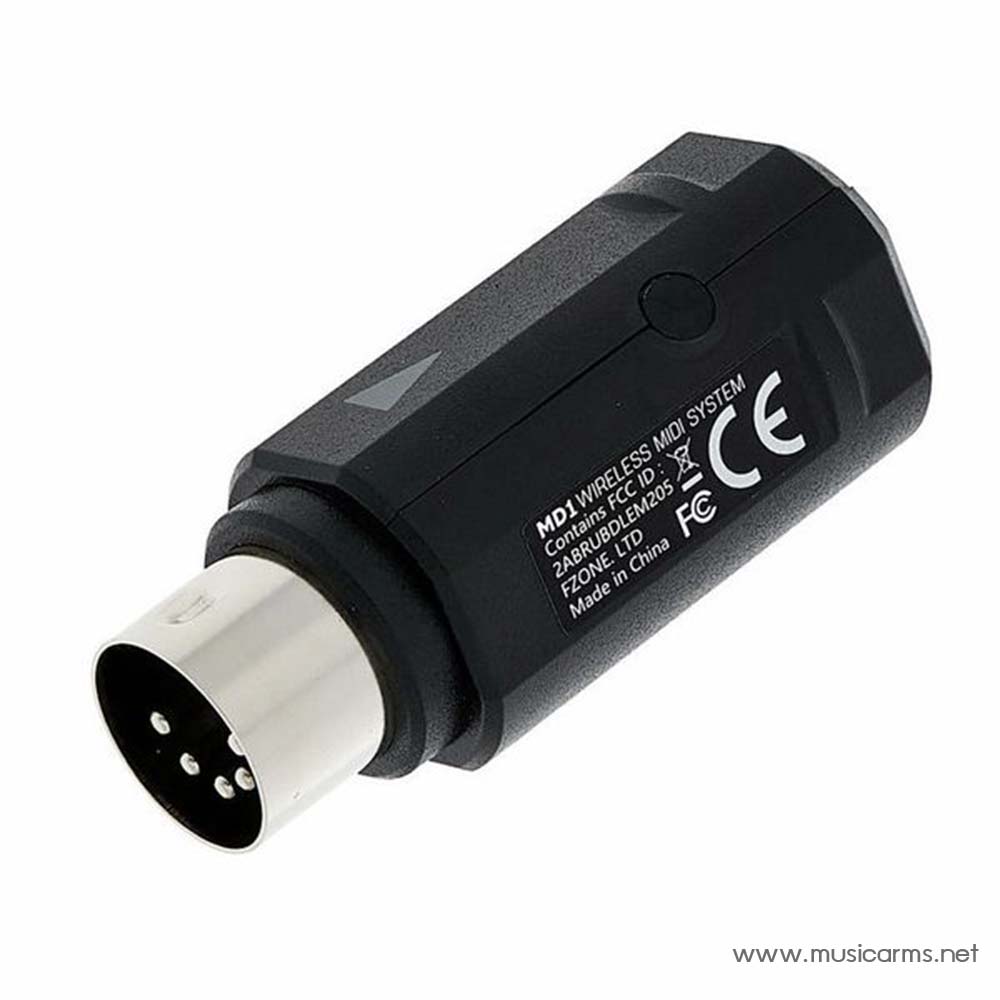

• Power supply dimensions (L x W x H): 49 x 21 x 21 mm

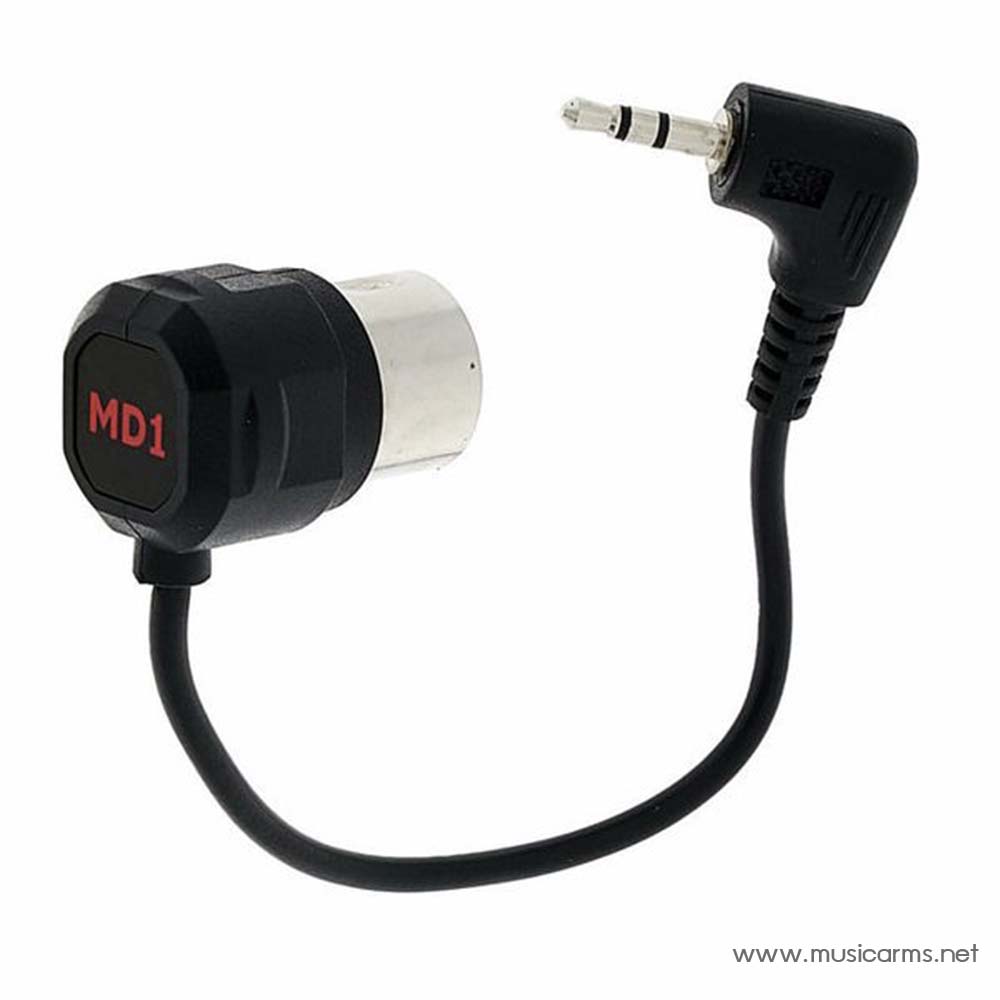

• Dimensions Sub Adapter (L x W x H): 24 x 18 x 18 mm
• Weight power supply: approx. 12 g
• Weight Sub Adapter: approx. 11 g
