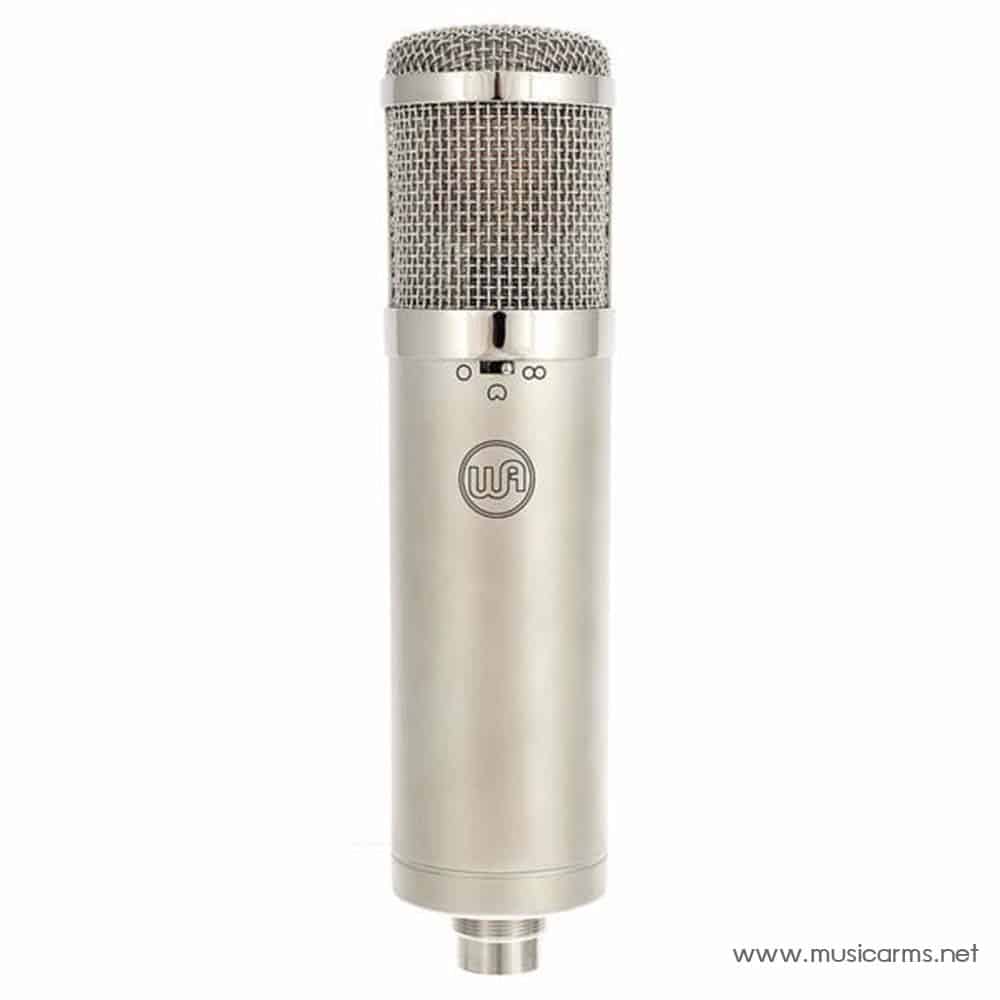

Warm Audio WA-47jr ไมโครโฟนคอนเดนเซอร์

Replica Of The Classic ’47

The Warm Audio WA-47jr – FET Transformerless Condenser Microphone uses premium components to capture the true essence of the classic ’47 microphone. Utilising a custom reproduction of the vintage k47 style capsule, designed with the same hole pattern and frequency response, the WA-47jr is able to replicate the tone found in the vintage ’47. Using a Toshiba FET circuit, Wima film capacitors, and Panasonic electrolytic capacitors, the WA-47jr delivers impressive sound quality, and a tone that puts itself far above the rest in that price range. With its top-notch components that have been precision manufactured and carefully sourced, the WA-47jr is able to produce a very similar tone to the classic ’47 microphone.

An Affordable ’47

Warm Audio have produced a microphone that captures the beauty of the classic ’47 microphone, without the extremely high pricing. It is versatile and sounds stunning on vocals, brass, piano, drums, percussion, and acoustic/electric guitars. You can use the WA-47jr on just about anything, and be sure you will always get high quality results. The ’47 was one of the most popular microphones ever made, and Warm Audio have produced an impressive replica of this gorgeous sounding mic. All the components have been carefully selected and sourced to provide you with the best sound possible.

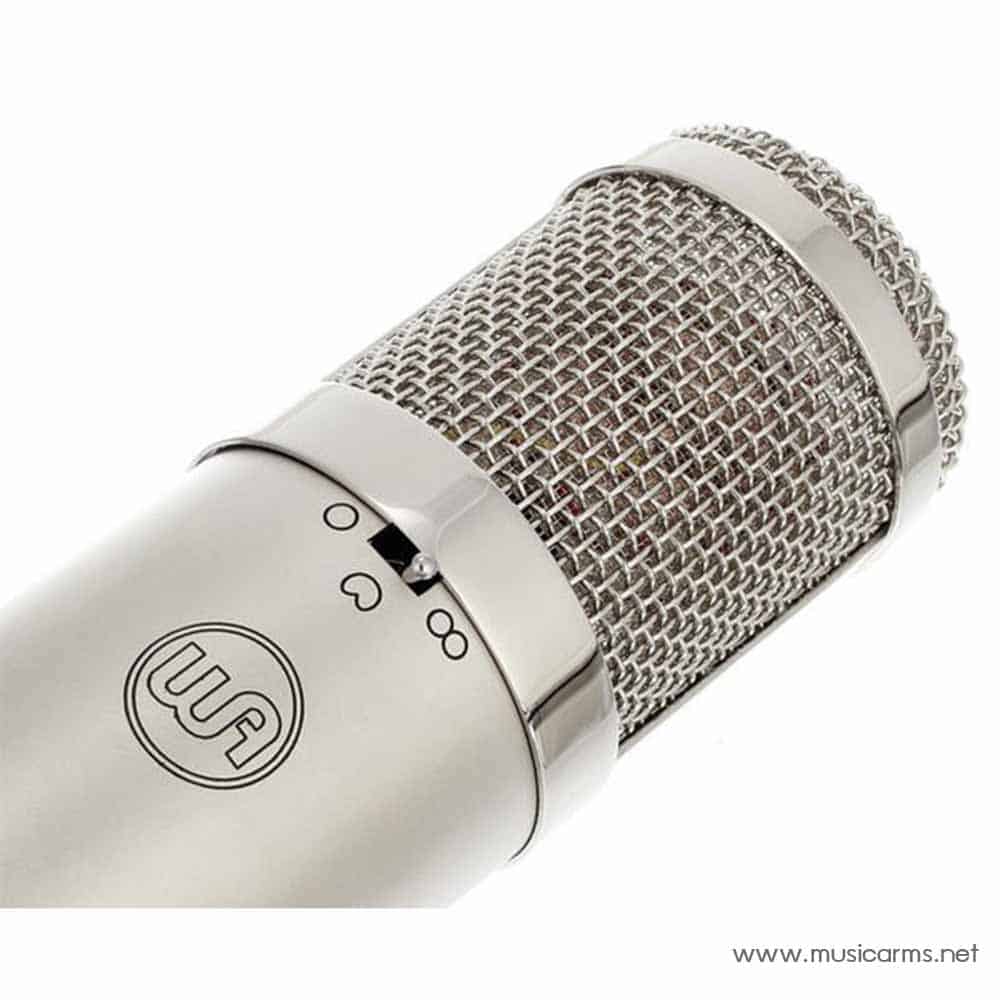

Multiple Polar Patterns

The WA-47jr provides you with a great amount of flexibility. It features 3 different polar patterns including cardioid, omnidirectional, and figure-of-eight, allowing you to explore multiple recording techniques, and gather a range of various tones and sounds. The Warm Audio WA-47jr is useful for a variety of applications, and is a great choice for any studio looking for a versatile microphone.

Large-Diaphragm Condenser Microphone

• Discrete construction
• Transformerless FET version of the renowned ’47 classic
• Gold-coated double large diaphragm

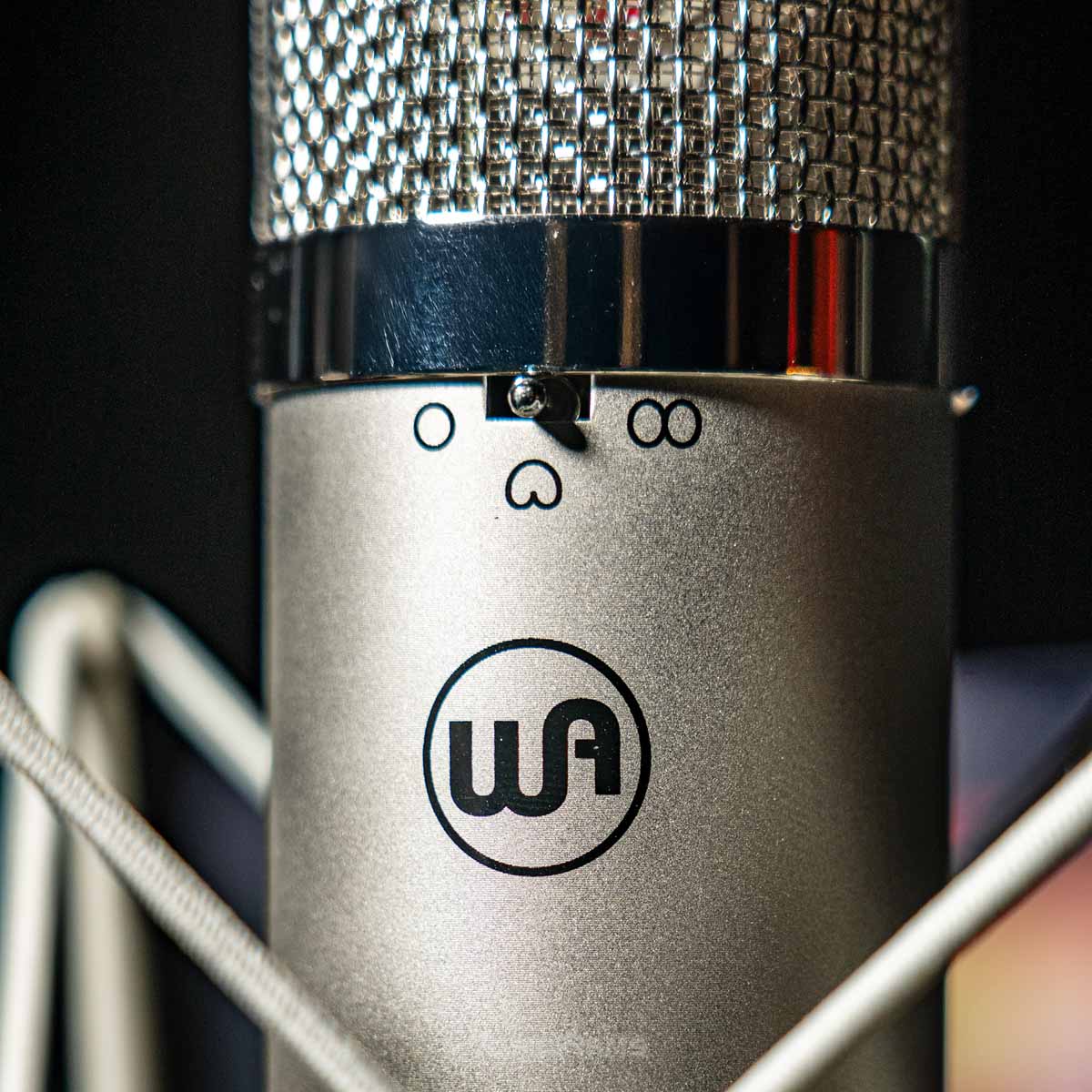

• Switchable polar pattern: cardioid, ball, eight
• Frequency range: 20 – 20,000 Hz
• Dynamic range: 138 dB (A)
• Max. SPL: 147/157 dB SPL (@ 1 kHz 1k Ohm 0.5% THD 0 / -10 dB)
• Noise: 9 dB (A)
• Output impedance: max. 100 ohms
• Output: 16 dBu @ 1 kHz 1k ohms
• 0.5% THD
• LoCut: 70 Hz

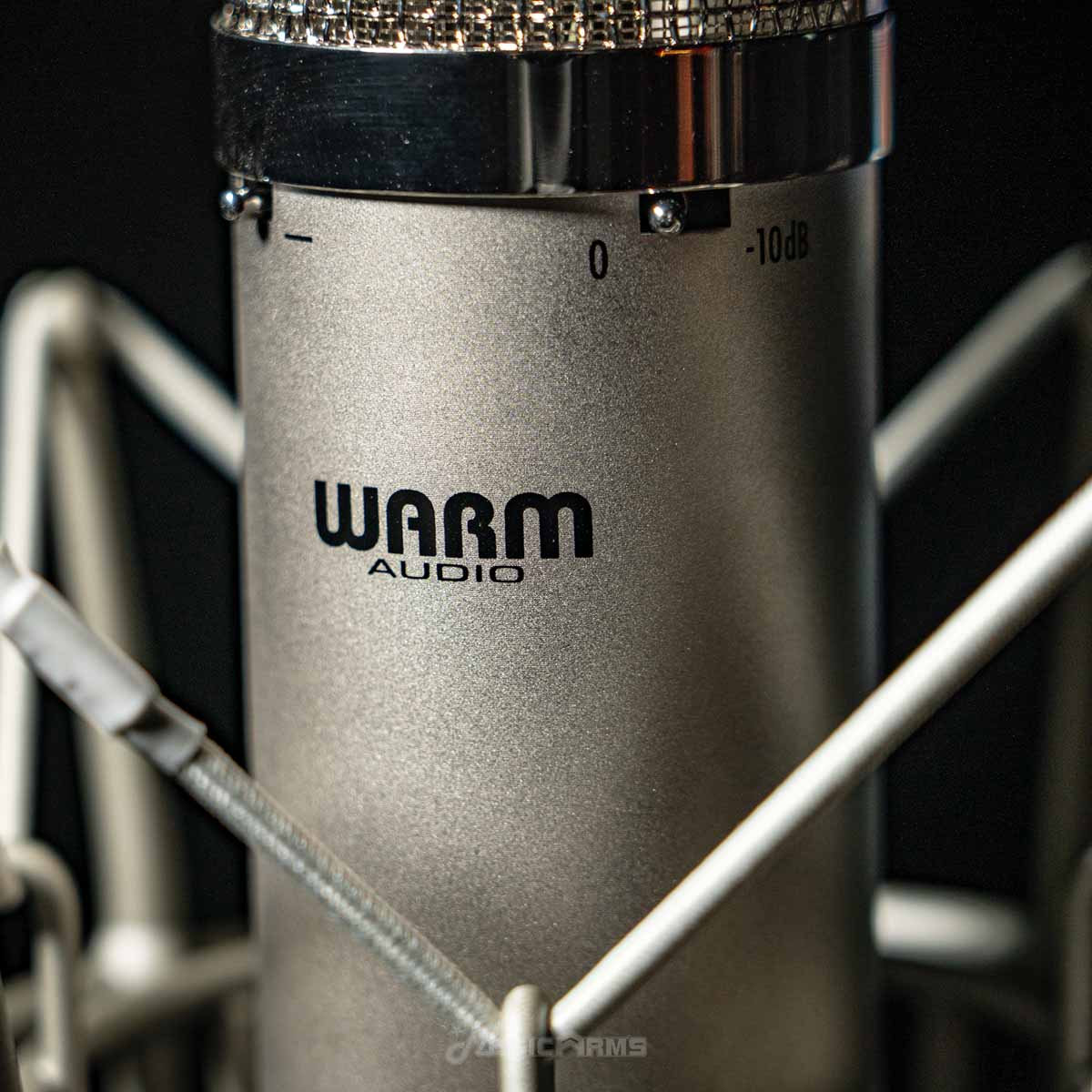

• Pad: -10 dB
• Requires 48 V phantom power

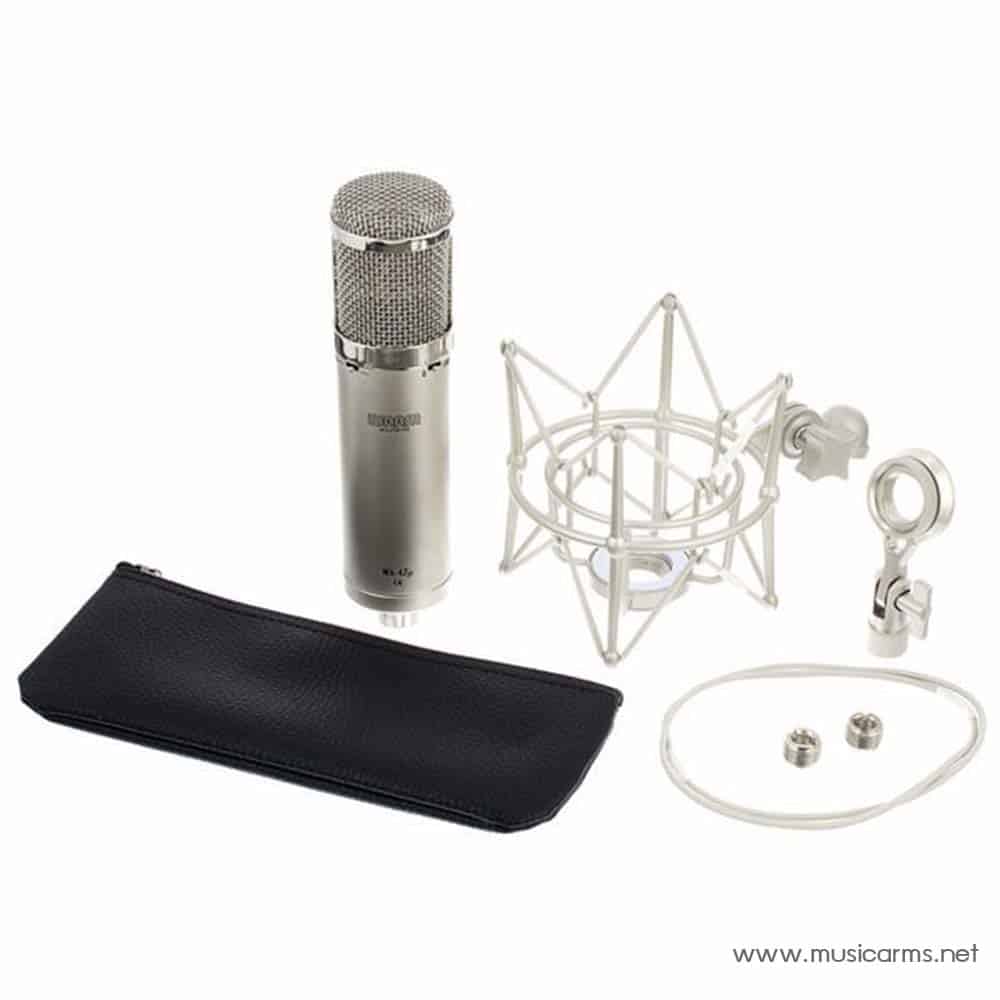

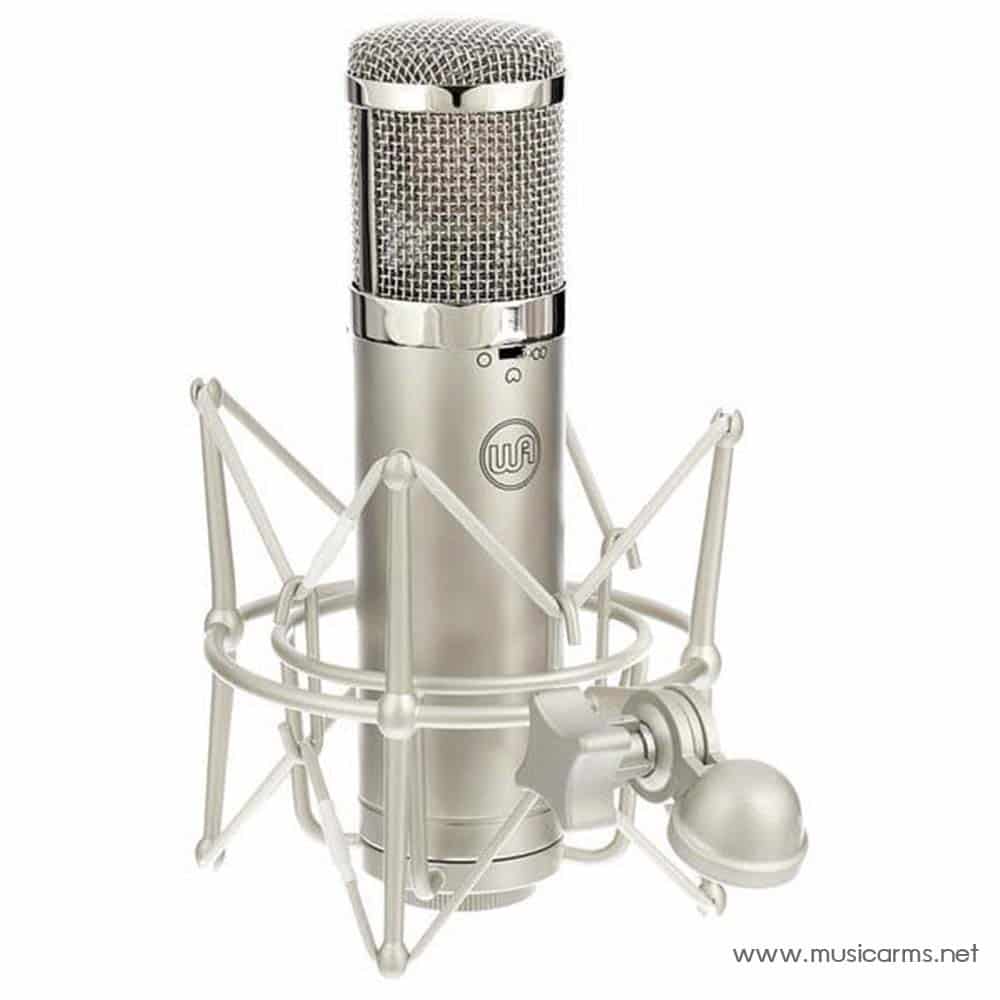

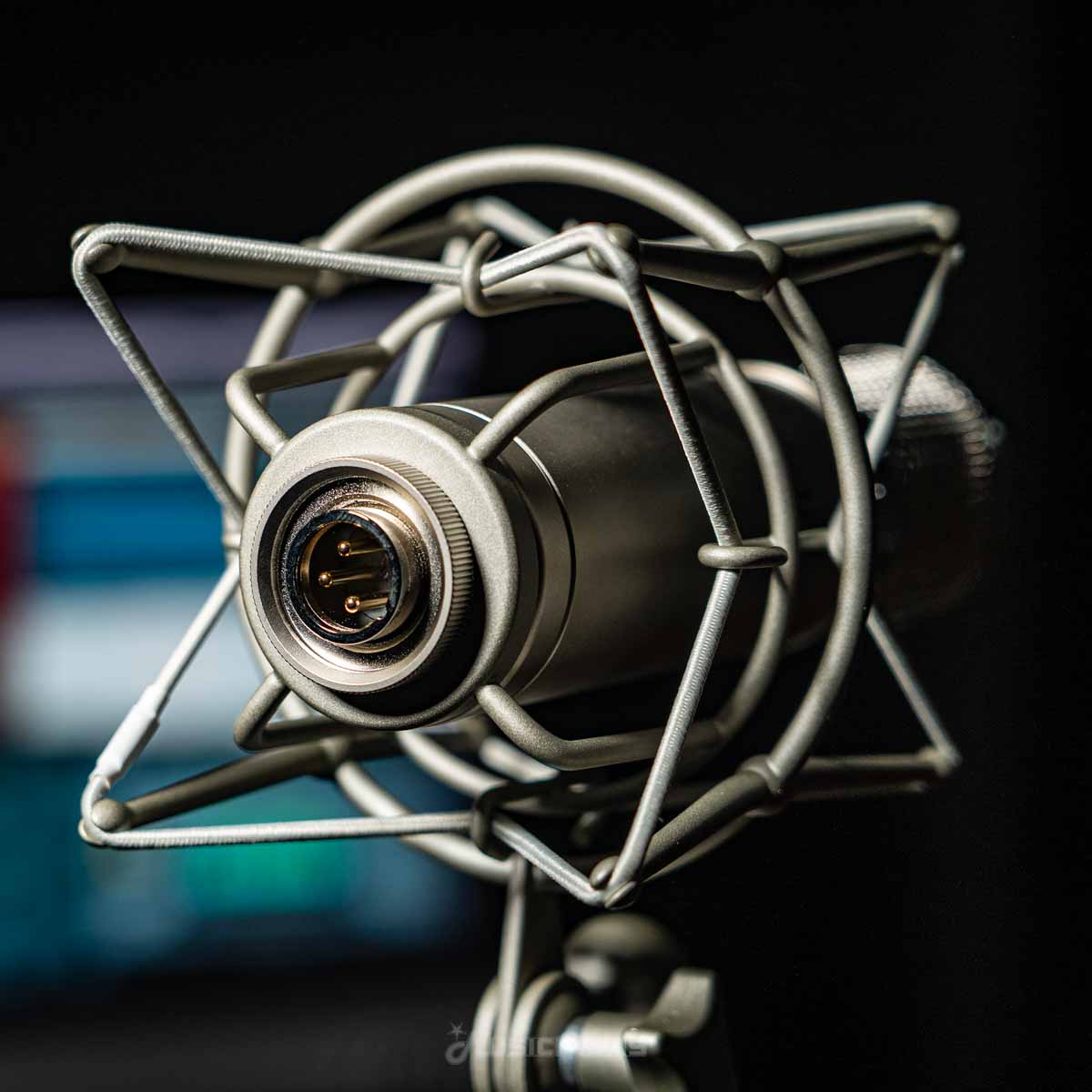

• Including elastic suspension, microphone holder and storage bag
• Dimensions (Ø x length): 52 x 210 mm
• Weight: 0.5 kg

• ไมโครโฟนคอนเดนเซอร์ไดอะแฟรมขนาดใหญ่
• รุ่น Transformerless FET ของคลาสสิก ’47 ที่มีชื่อเสียง
• ไดอะแฟรมขนาดใหญ่สองชั้นเคลือบทอง
• รูปแบบขั้วสลับได้: cardioid, ball, eight
• ช่วงความถี่ : 20 – 20,000 Hz
• ช่วงไดนามิก: 138 dB (A)
• SPL: สูงสุด 147/157 dB SPL (@ 1 kHz 1k โอห์ม 0.5% THD 0 / -10 dB)
• เสียงรบกวน: 9 เดซิเบล (A)
• อิมพีแดนซ์เอาต์พุต: สูงสุด 100 โอห์ม
• เอาต์พุต: 16 dBu @ 1 kHz 1k โอห์ม
• 0.5% THD
• LoCut: 70 Hz
• Pad: -10 dB
• ต้องใช้ไฟ Phantom 48 V
• รวมถึงตัวแขวนยางยืด ที่วางไมโครโฟน และกระเป๋าเก็บของ
• ขนาด: 52 x 210 มม.
• น้ำหนัก : 0.5 กก.
