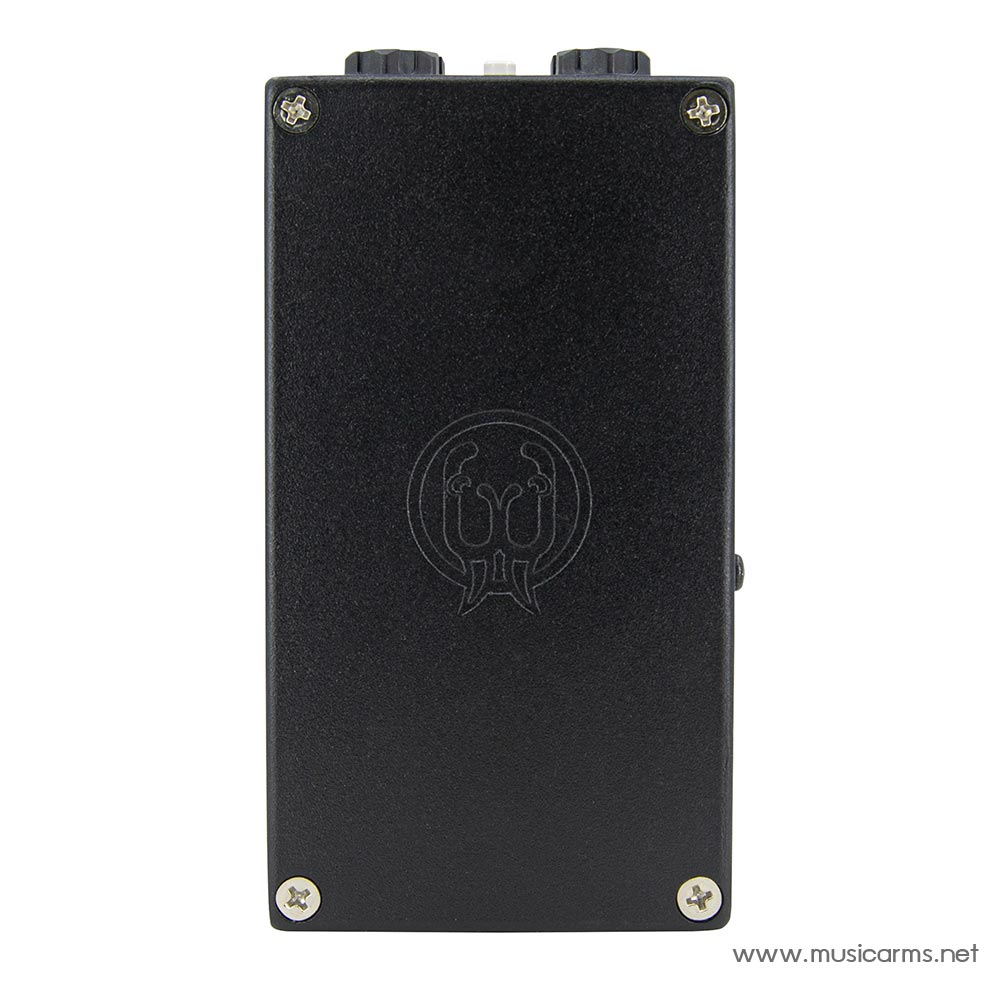

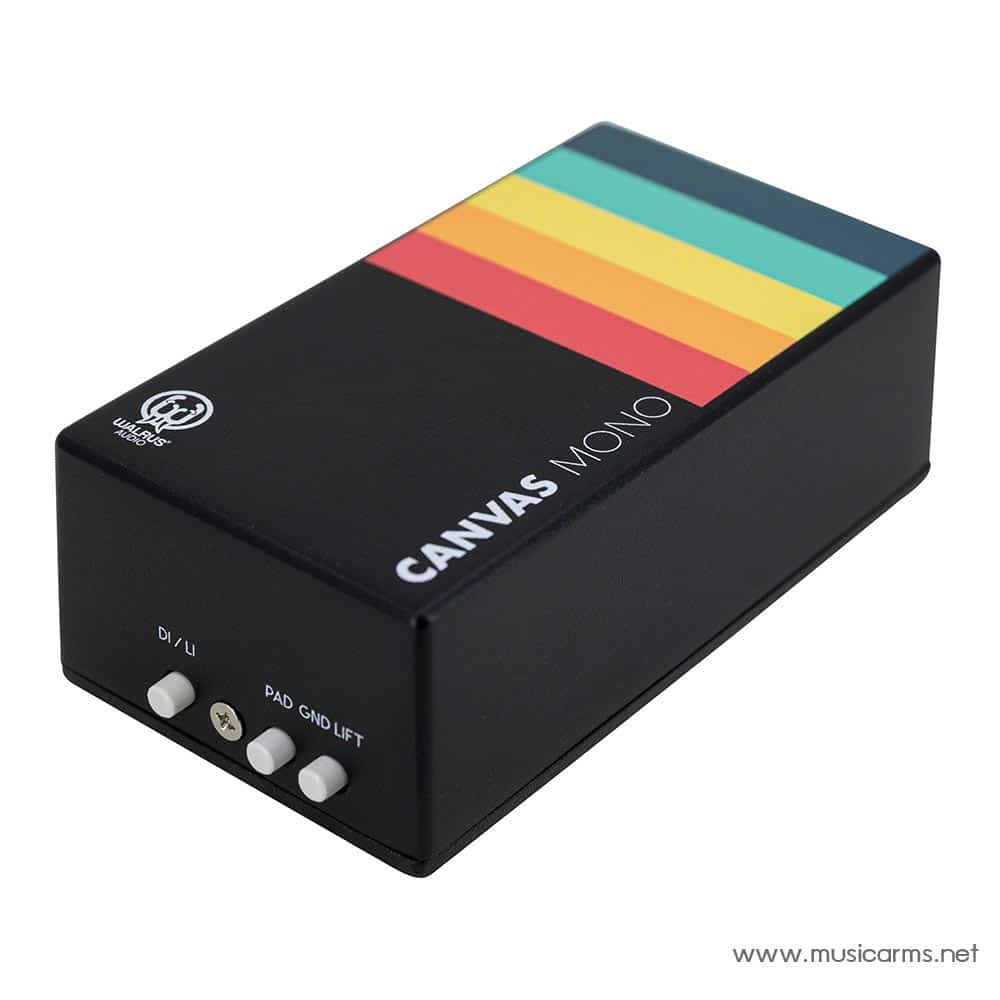

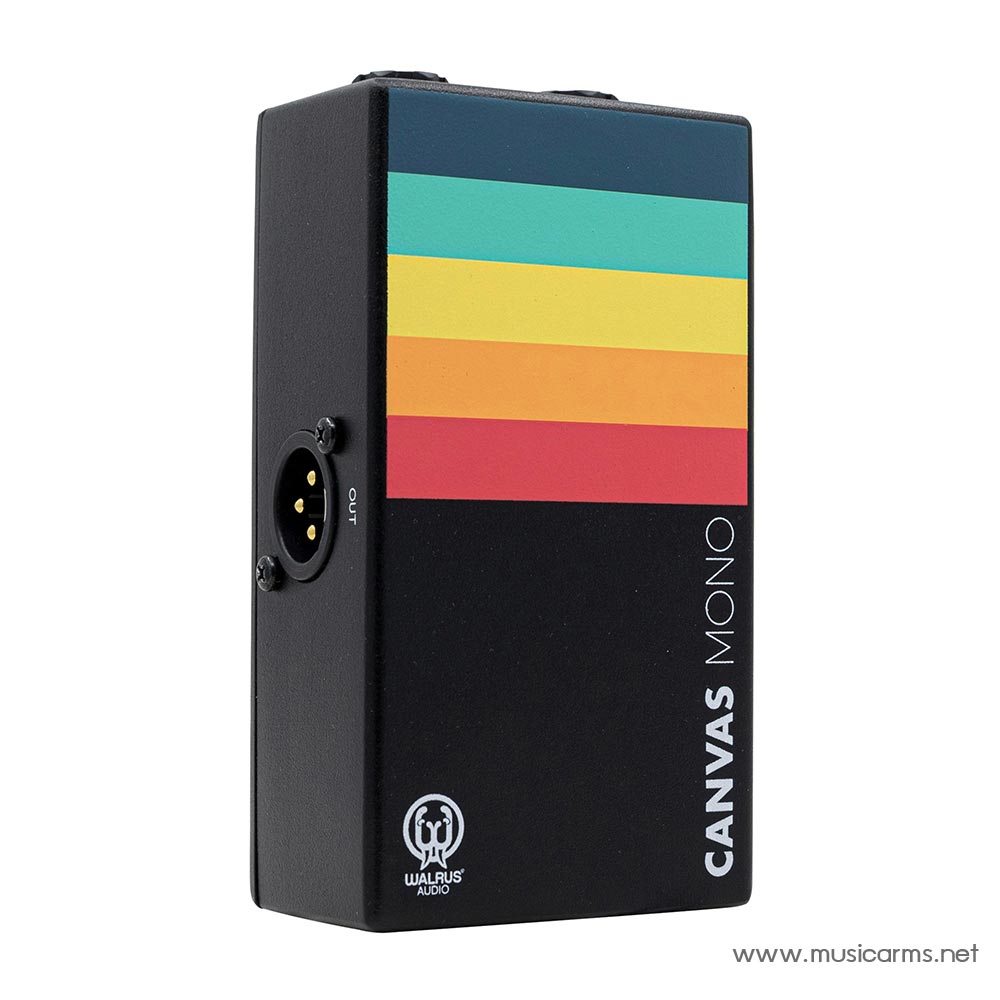

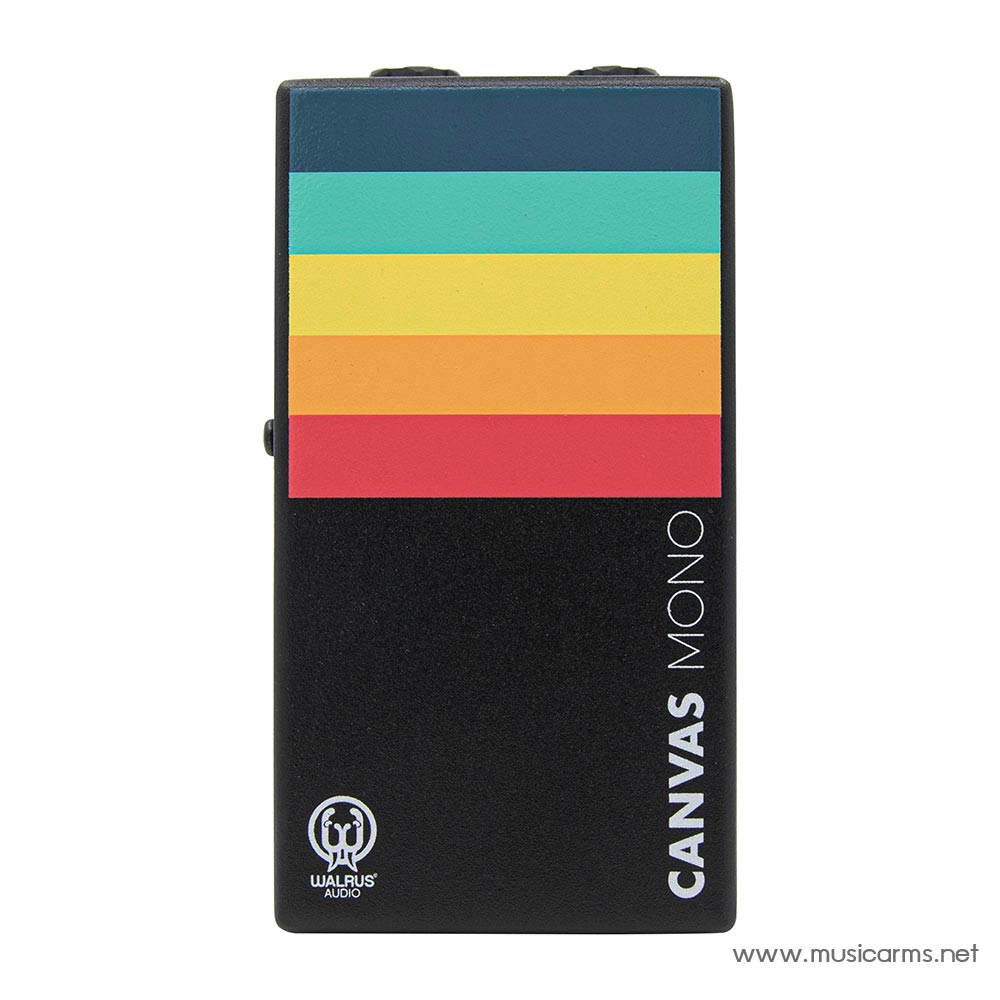

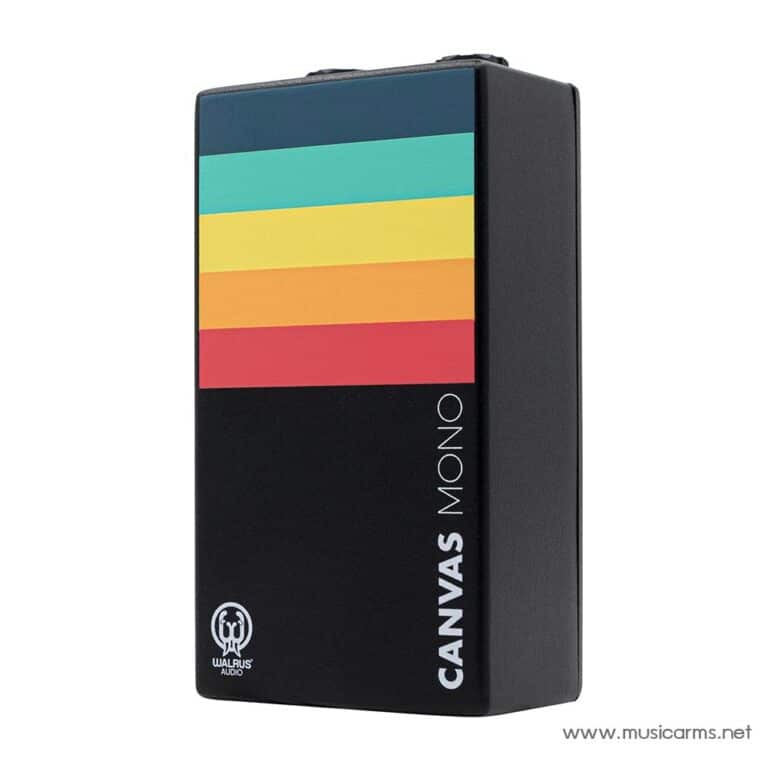

Walrus Audio Canvas Mono Line Isolator / D.I.Box

Walrus Audio are revered for their boutique-style pedals and eye-catching graphics and have become a major force in the guitar pedal market in recent years. Constantly pushing the boundaries of stompbox design, Walrus Audio provide a solid platform on which to work and are inspirational and practical in equal measure. The all-new Canvas is Walrus Audio’s first foray into DI boxes, with mono and stereo versions available.

The Canvas Mono is a dual-purpose line isolator and DI box and works by converting your unbalanced signal into a balanced signal for seamless integration with a recording interface or front of house mixing desk. Housed in a familiar stompbox sized chassis, the Canvas Mono fits perfectly on your pedalboard and is fully passive, which means it does not require power! The Canvas Mono features two modes of operation: DI mode and LI mode. DI mode is optimised for high impedance sound sources such as electric guitars or basses. LI mode is designed for low impedance line-level sound sources including amp sims and keyboards. A built-in 15dB input pad (DI mode only) minimises distortion on hotter signals, for complete rig versatility.

Passive Mono DI Box / Line Isolator

• In pedal format
• Turns an unbalanced signal into a balanced one to go directly into the mixer or audio interface
• Works perfectly with amp-in-a-box pedals, such as the Walrus Audio ACS1
• DI mode: for high impedance sources such as electric guitar or bass
• LI mode: for low impedance (line-level) sources such as amp sims, e.g. ACS1 or keyboards
• Linear frequency response: 20 – 20,000 Hz
• Specially wound “custom” transformers for best sound quality and low distortion factor
• Pad switch: -15 dB (only in DI mode)
• GND lift to avoid hum loops

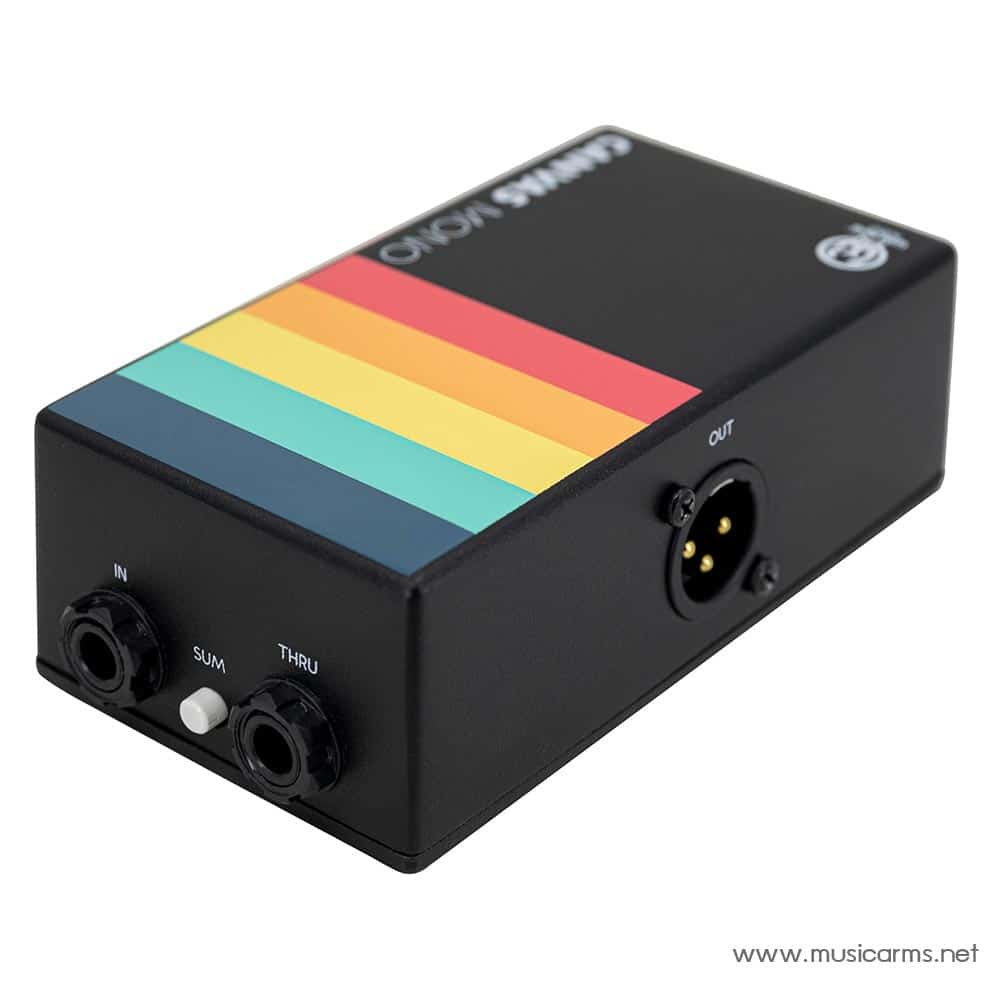

• Sum switch mixes both input signals to both thru connectors
• Stompbox format – perfect for mounting on the pedalboard
• Passive design – no power supply needed
• Made in the USA
