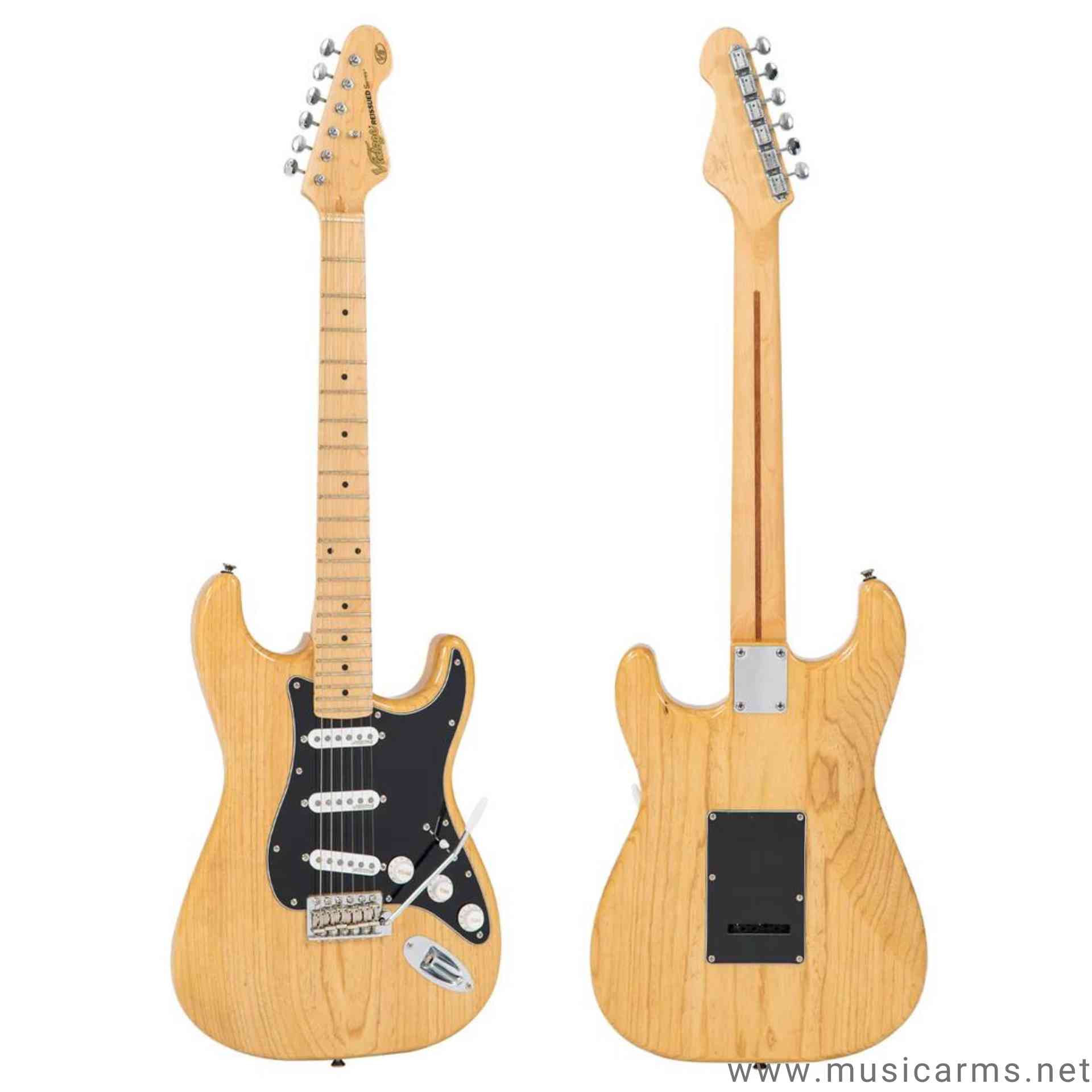

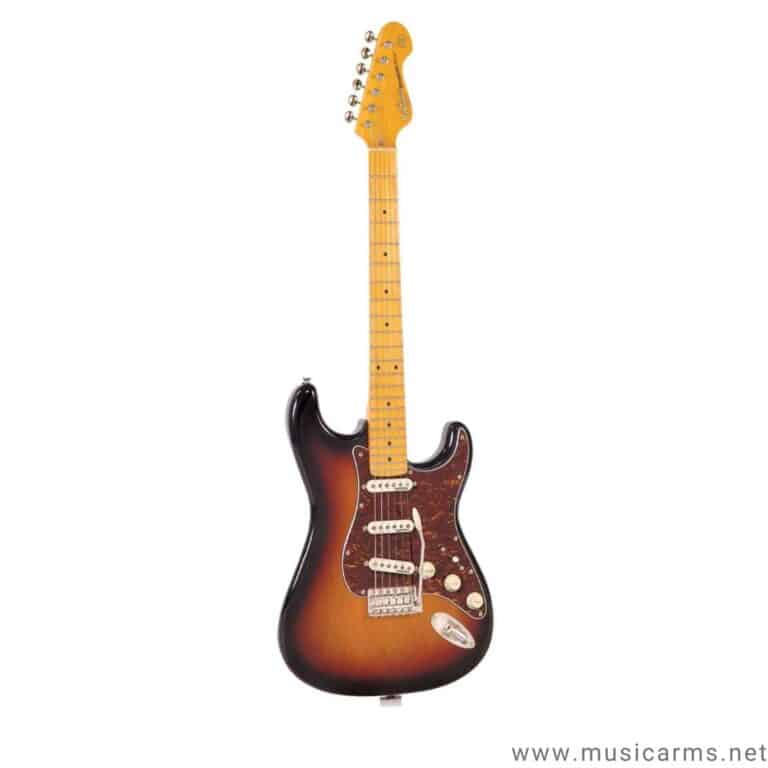

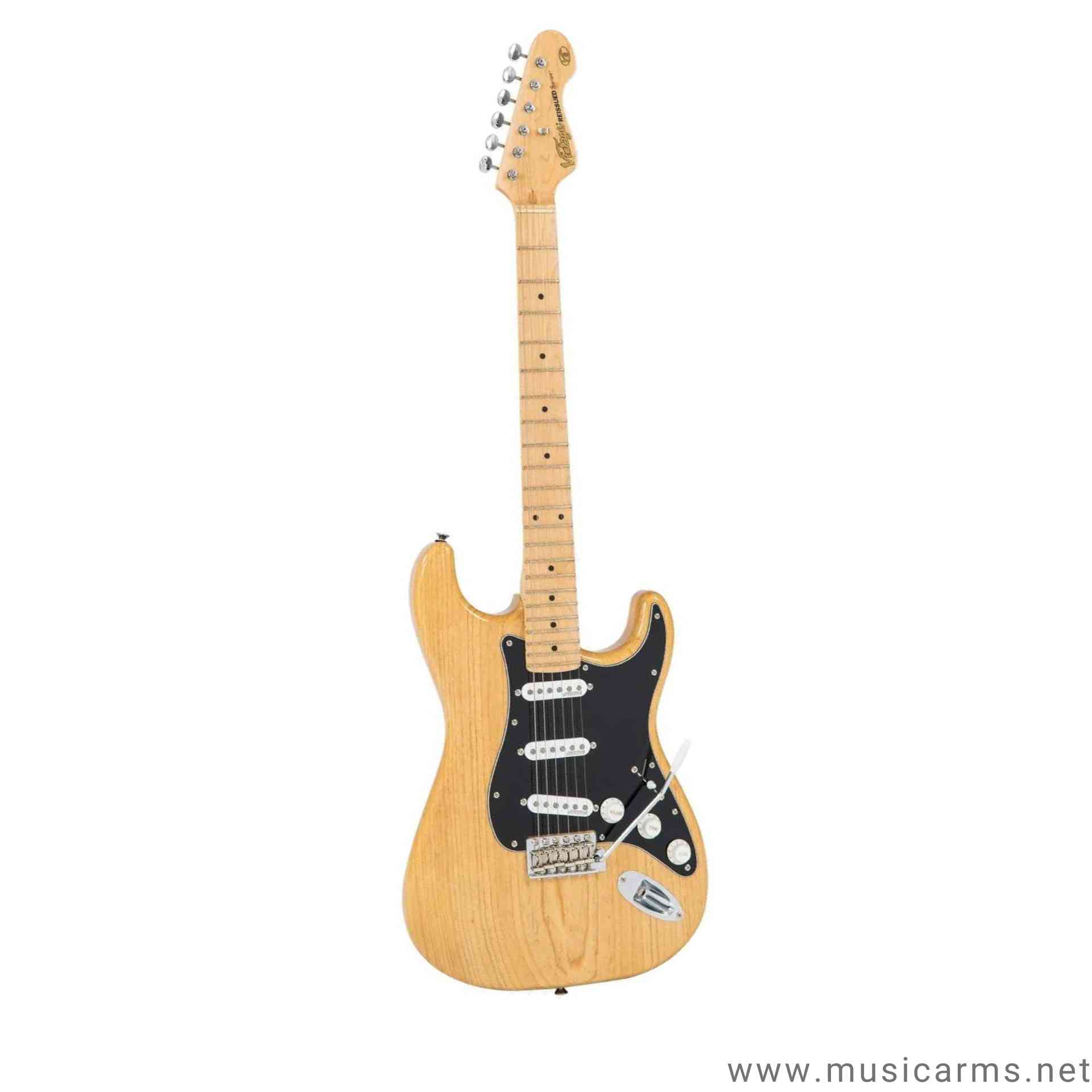

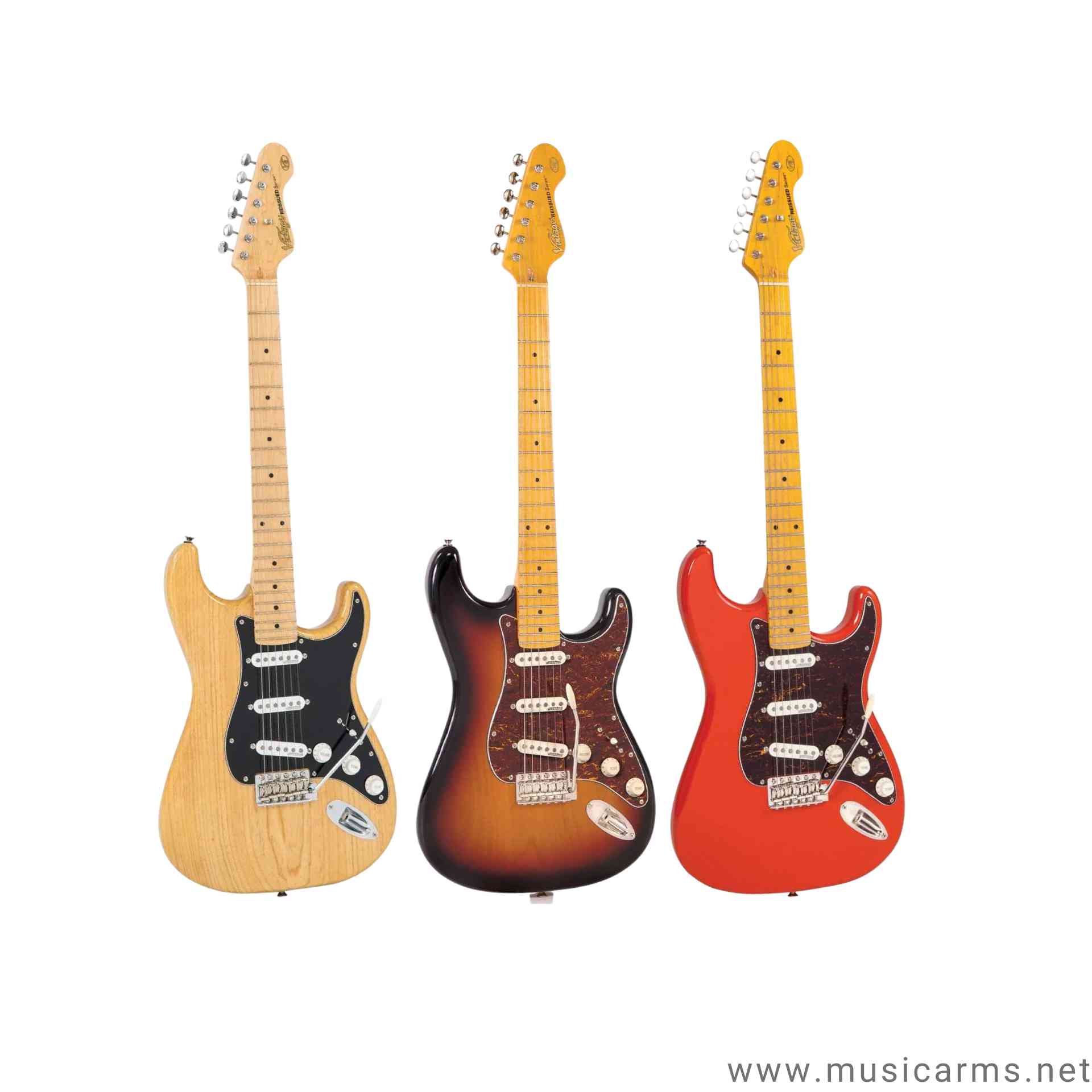

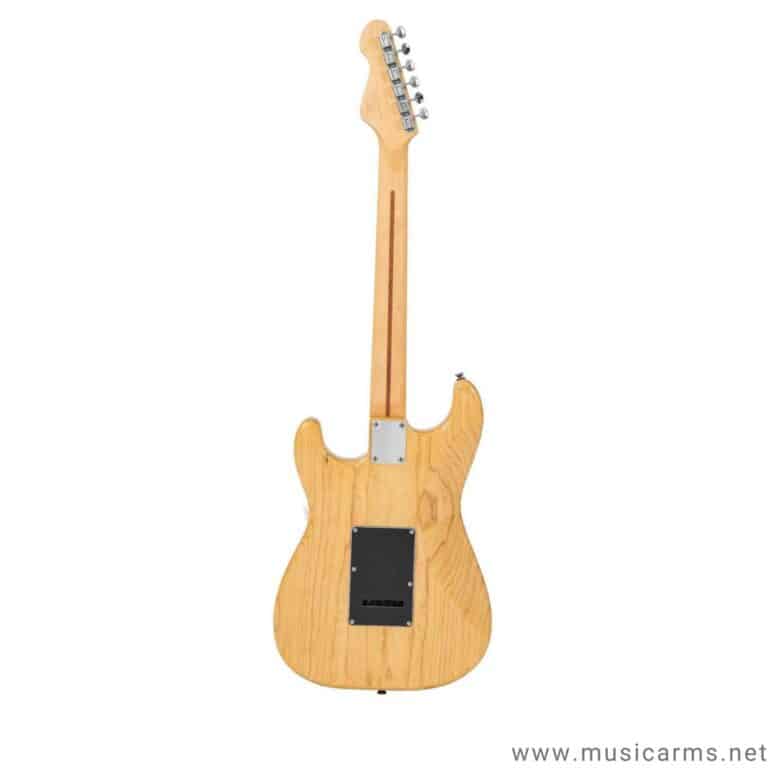

Vintage V6MReIssuedSeries Electric Guitar

Specification

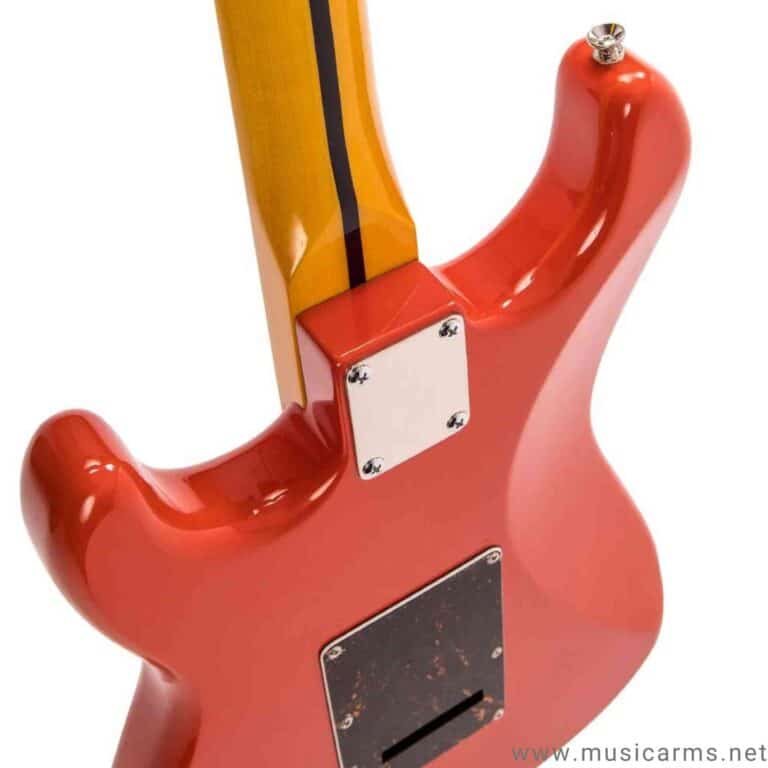

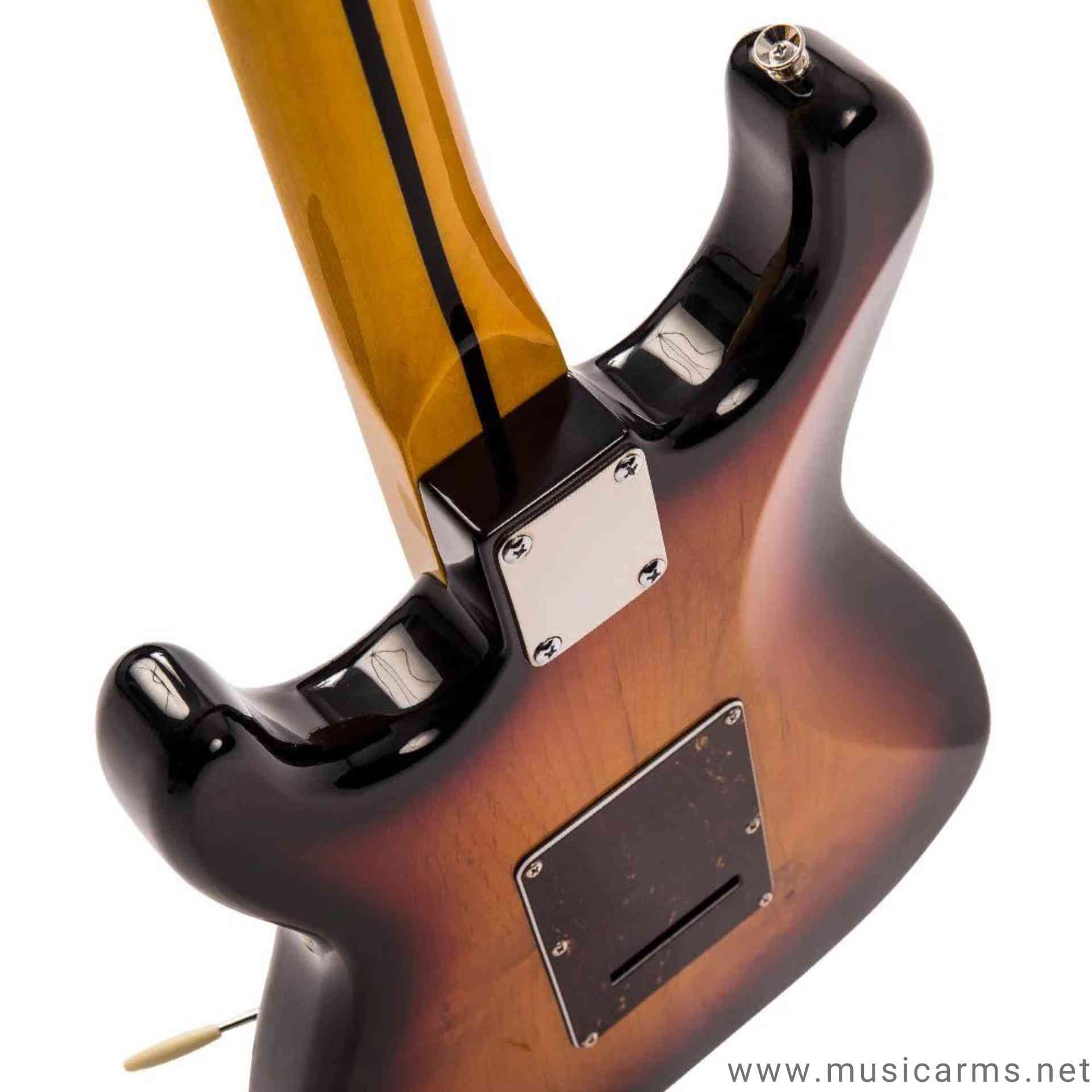

Body:
American Alder body provides resonance, tone and ‘correct weight’ comfort, enhanced with correctly radiused contoured body.

Vibrato:
The Wilkinson WVC vibrato bridge featured on the Vintage V6 is a masterpiece of detail. Positive location, 6 screw design provides return to pitch accuracy; perpendicular bend, high grade steel saddles enhance tonality and ‘snap’. Ground base plate corner provides authentic looks. Stagger drilled cast block significantly enhances return to pitch accuracy and classic vintage tone. The ‘push-in’ delrin-bushed arm with variable tension provides the arm feel that suits your style.

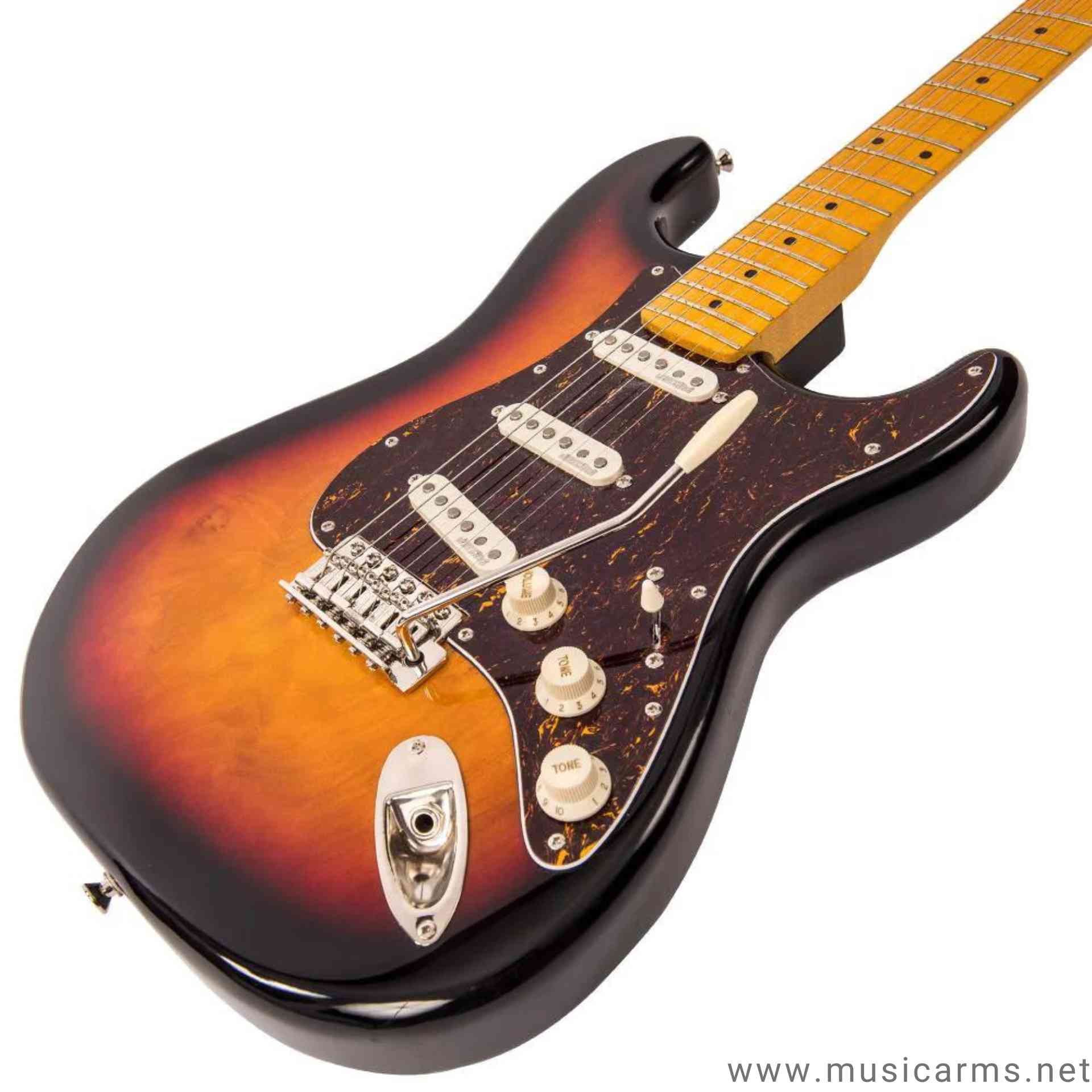

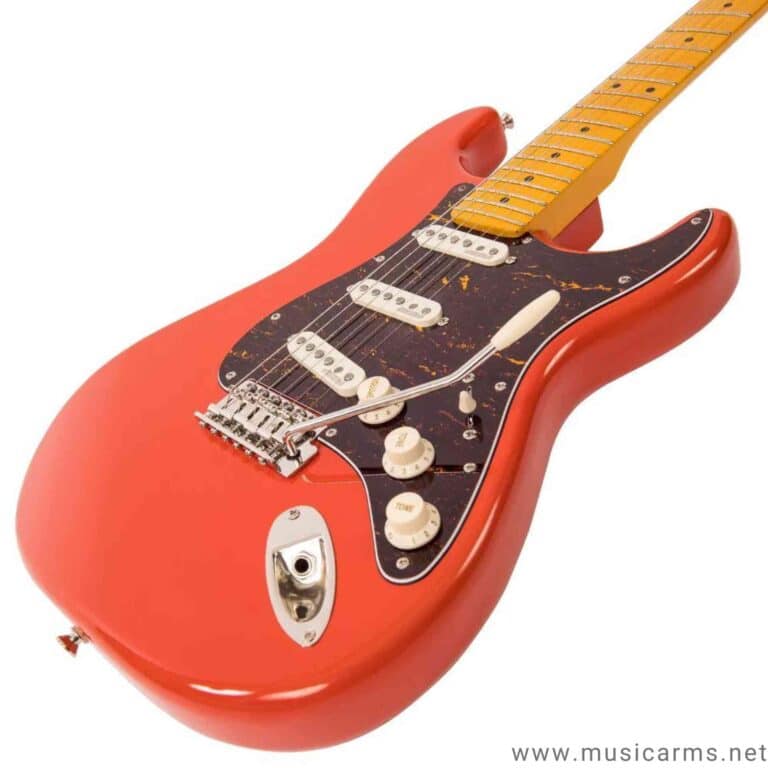

Pickups:
Balanced set of Wilkinson WVS vintage-voiced Alnico V pickups, with staggered, chamfered edge pole pieces, for authentic tone and contemporary power. Reverse wound, reverse polarity centre pickup provides hum cancelling in switch position 2 and 4. Wilkinson double coil pickup in the bridge position provides high output and hum cancelling operation.

Controls:
Single master Volume control with Tone control 1 for the neck and middle pickup, with ‘Custom Mod’ Tone control 2 for bridge pickup. Five-way selector switch.

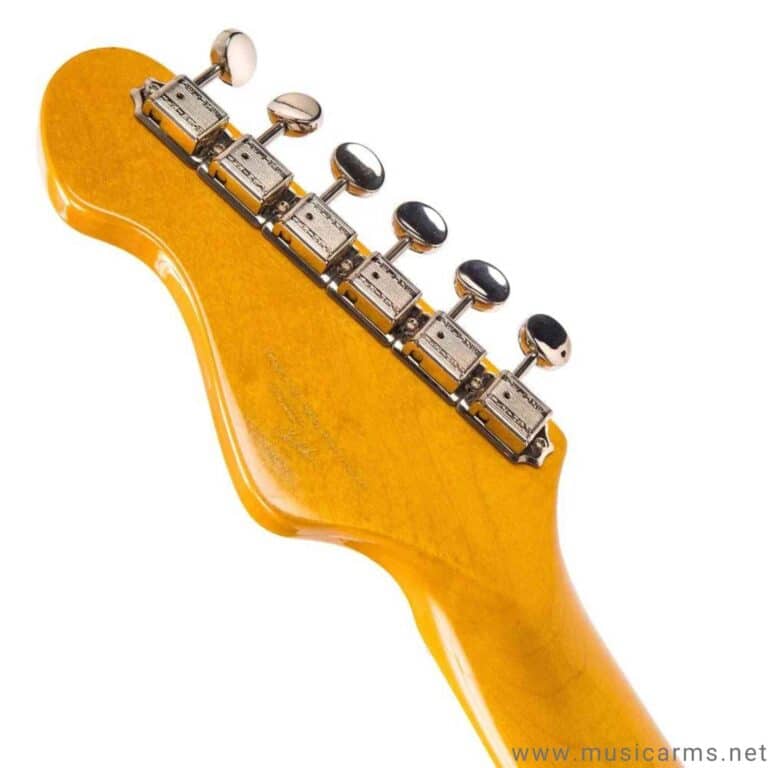

Machine Heads:
Wilkinson WJ55 patented E-Z-Lok machine heads. Simple, effective locking action for increased tuning stability. Staggered string post heights provide correct string rake angle for smooth vibrato action and correct playing tension.

Neck:
Hard rock Maple with classic Vintage ‘soft C’ profile for instant comfort, speed, accuracy and great feel.

Fingerboard:
Traditional 10″ radius fingerboard provides positive feel and superior playability.

Scale Length:
25.5″ / 648mm.

Frets:
22 Medium profile frets add to comfort, accuracy and overall positive feel of the Vintage V6.

Nut:
43mm GraphTech® nut, smooth and friction free.

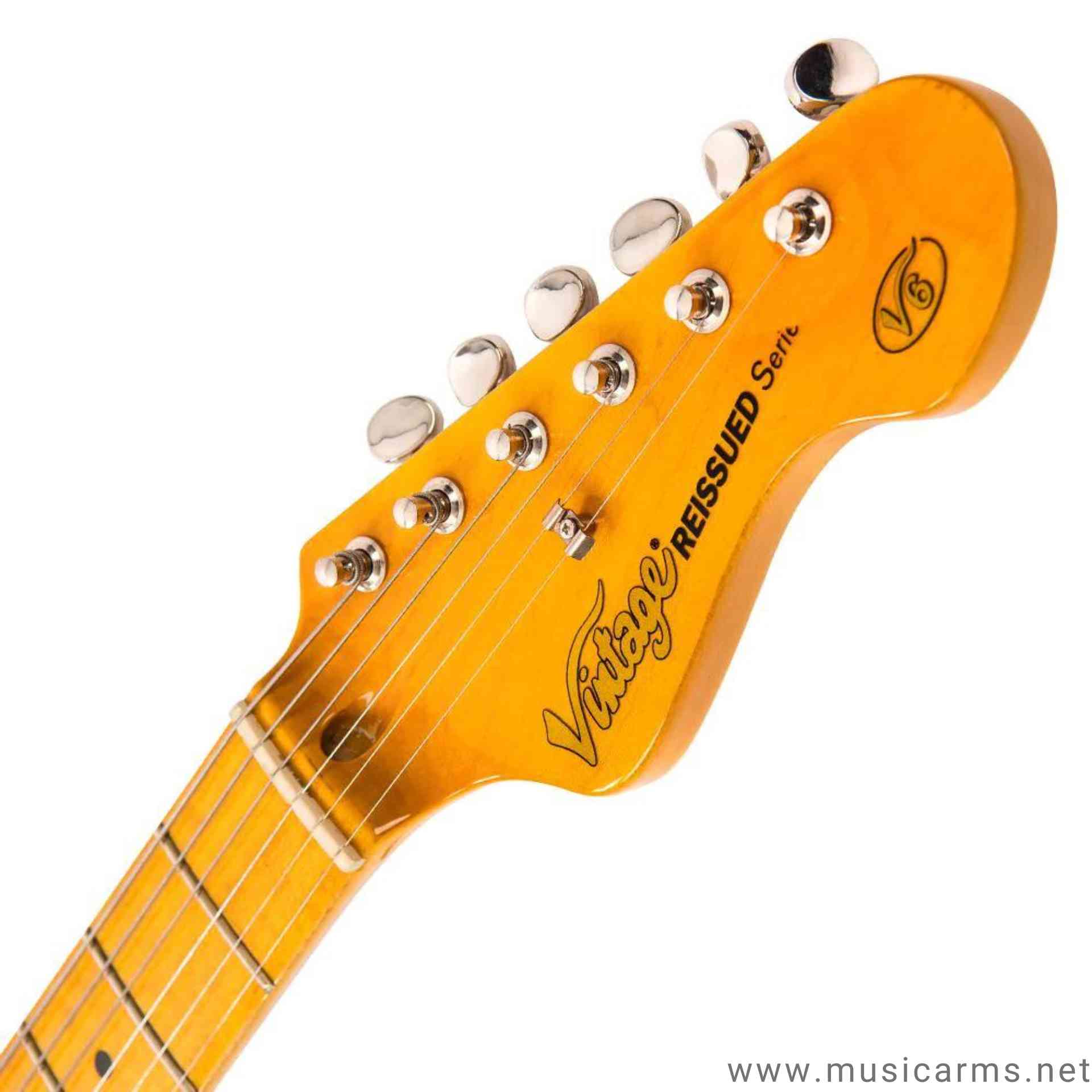

Headstock:
Classic Vintage headstock design for balance and visual appeal.
