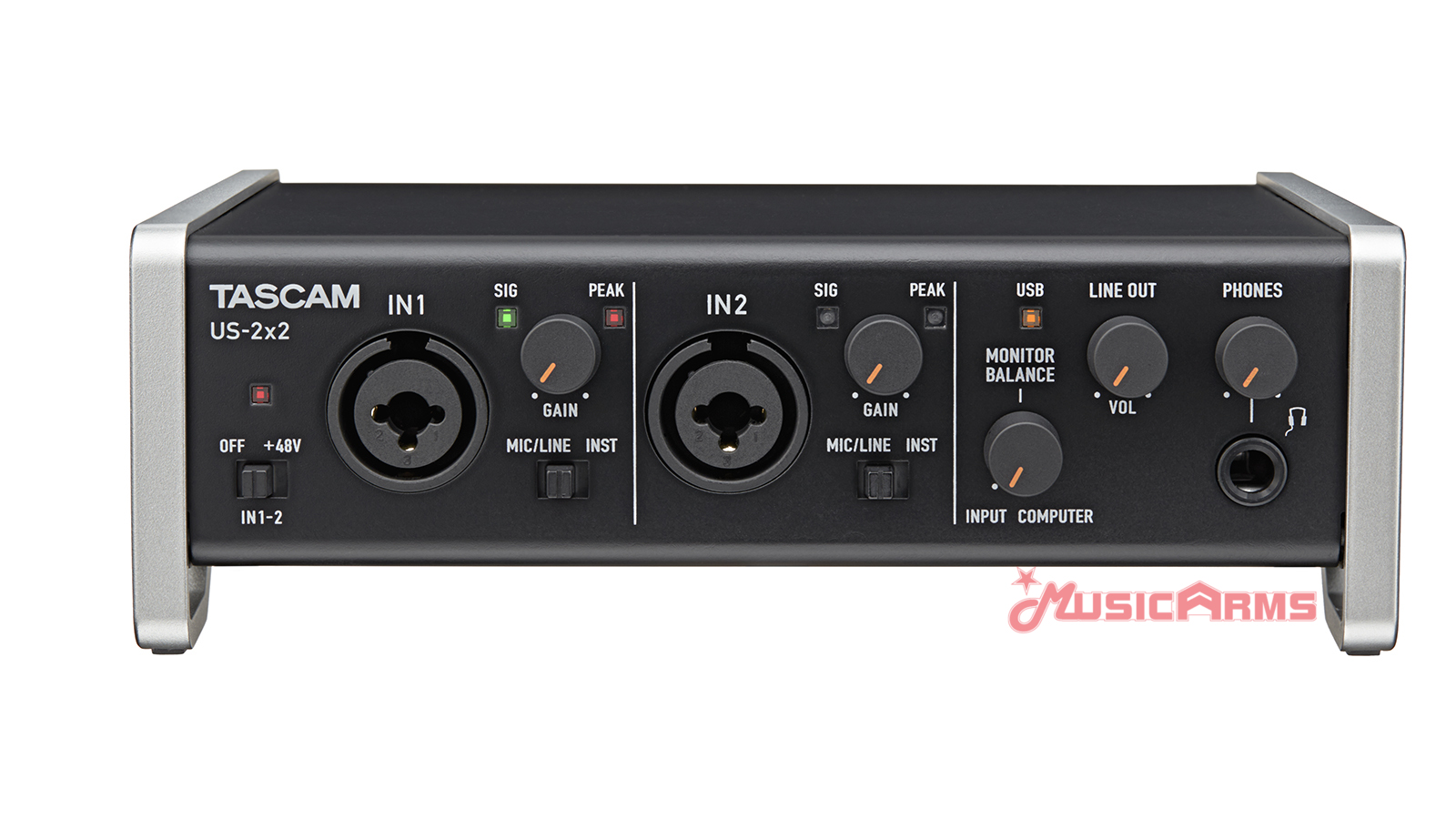

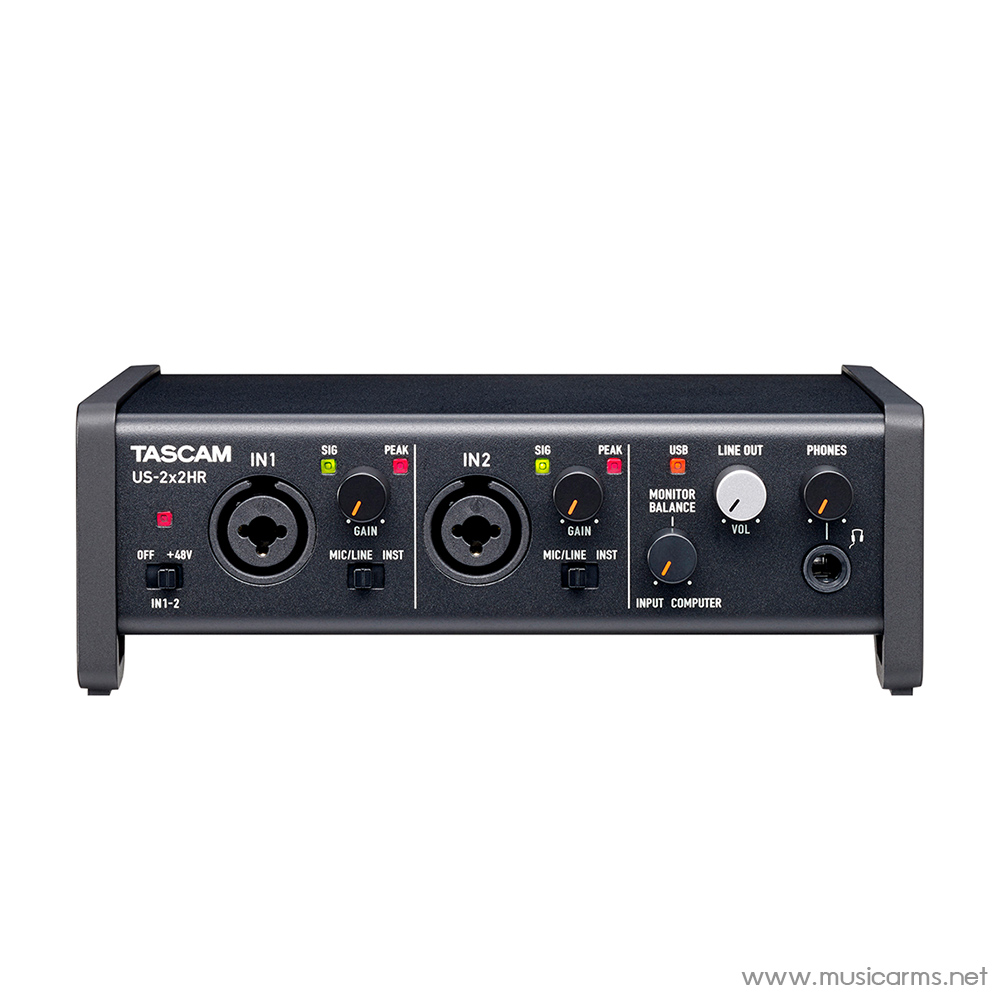

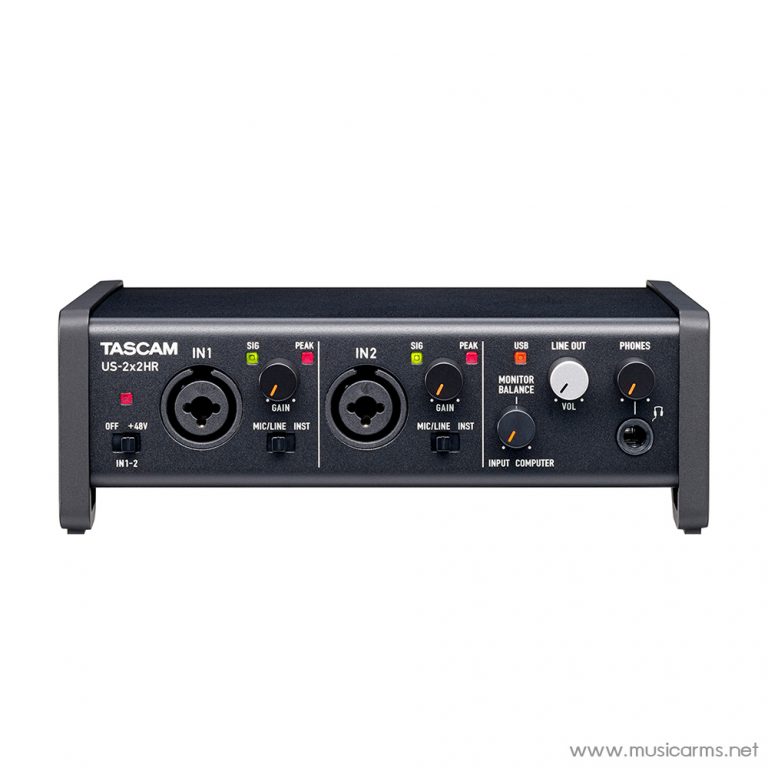

TASCAM US-2X2HR

US-2×2

Audio/MIDI interfaces with iOS compatibility – featuring proven TASCAM Ultra-HDDA mic preamps and simple operation

TASCAM’s US-2×2 combines great audio quality and ergonomic design for a powerful 2-in/2-out USB 2 Audio interface.

Two of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.

The US-2×2 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers.

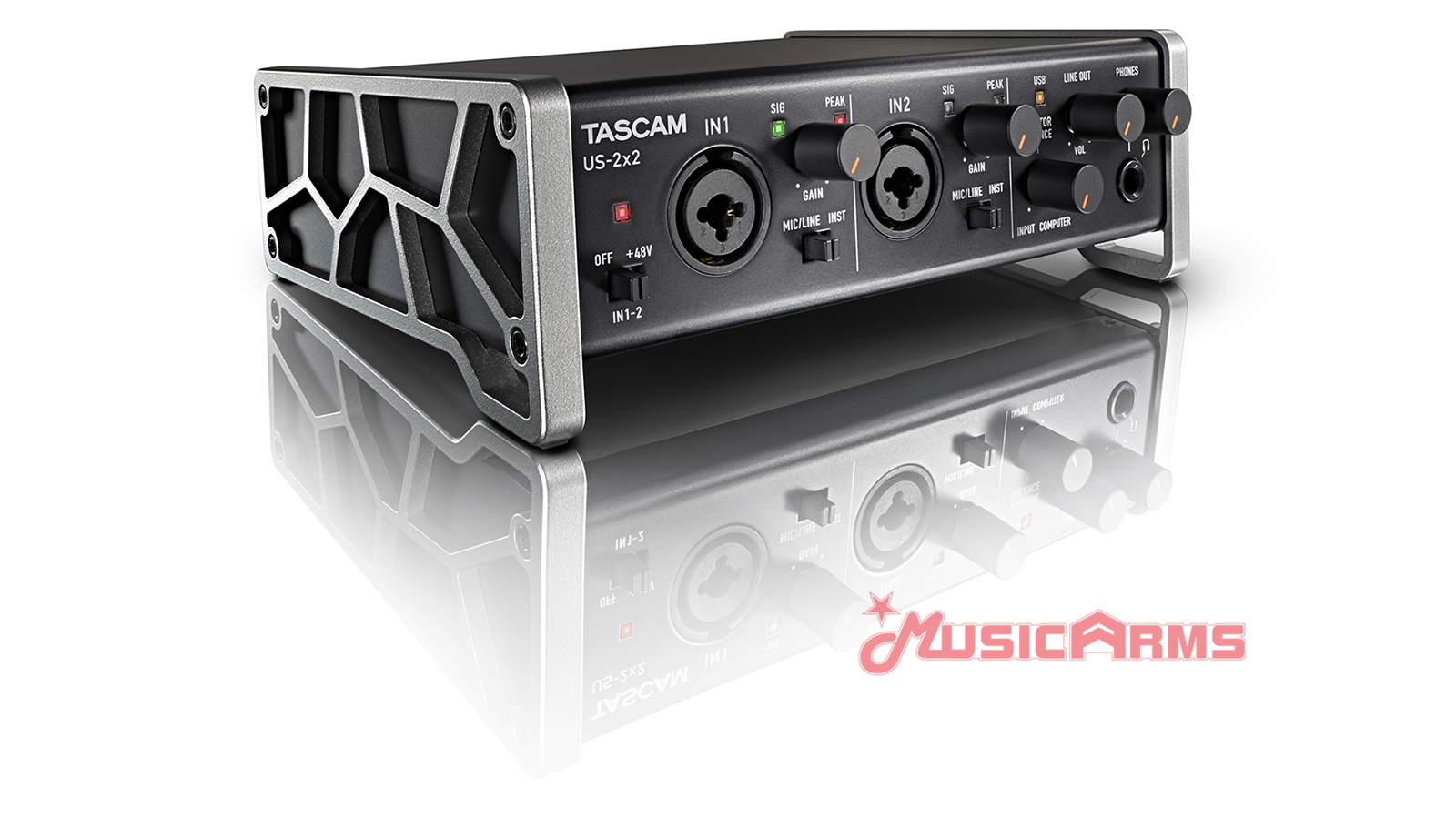

With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-2×2 is the ultimate 2-channel interface for home, project, and mobile studios.

New Update: Settings Panel for Windows

TASCAM USB Audio Interfaces Driver (Settings Panel) software for Windows has been updated to Version 4.00, enabling to build music production environments with ultra-low latency that maximizes the processing power of the computers in use. In this new version, the driver’s stability has been greatly enhanced, the audio buffer size is now selectable up from 4 samples instead of older versions with the default buffer size of 64 samples, and overall usability has been improved.

Spec description

• Sampling frequency 44.1k/48k/88.2k/96kHz
• Quantization bit rate 16/24bit

Analog audio inputs

• MIC IN IN 1-2
• Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
• Input impedance 2.2k ohms

Nominal input level

• GAIN:MAX -65dBu (0.0004Vrms)
• GAIN:MIN -8dBu (0.3090Vrms)

Maximum input level

• (GAIN:MIN ) +8dBu (1.9467Vrms)
• Gain 57dB
• INST IN IN 1-2
• Connector 6.3mm(1/4″)TS-jack(T：HOT, S：GND), UNBALANCED
• (When set to “INST” at MIC/LINE.INST switch)
• Input impedance 1M ohms

Nominal input level

• GAIN:MAX -63dBV(0.0007Vrms)
• GAIN:MIN -6dBV(0.5015Vrms)

Maximum input level

• (GAIN:MIN ) +10dBV(3.162Vrms)
• Gain 57dB
• LINE IN IN 1-2
• Connector 6.3mm(1/4″)TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
• (When set to “MIC/LINE” at MIC/LINE.INST switch)
• Input impedance 10k ohms

Nominal input level

• GAIN:MAX -53dBu(0.0017Vrms)
• GAIN:MIN +4dBu(1.228Vrms)

Maximum input level

• (GAIN:MIN ) +20dBu(7.75Vrms)
• Gain 57dB

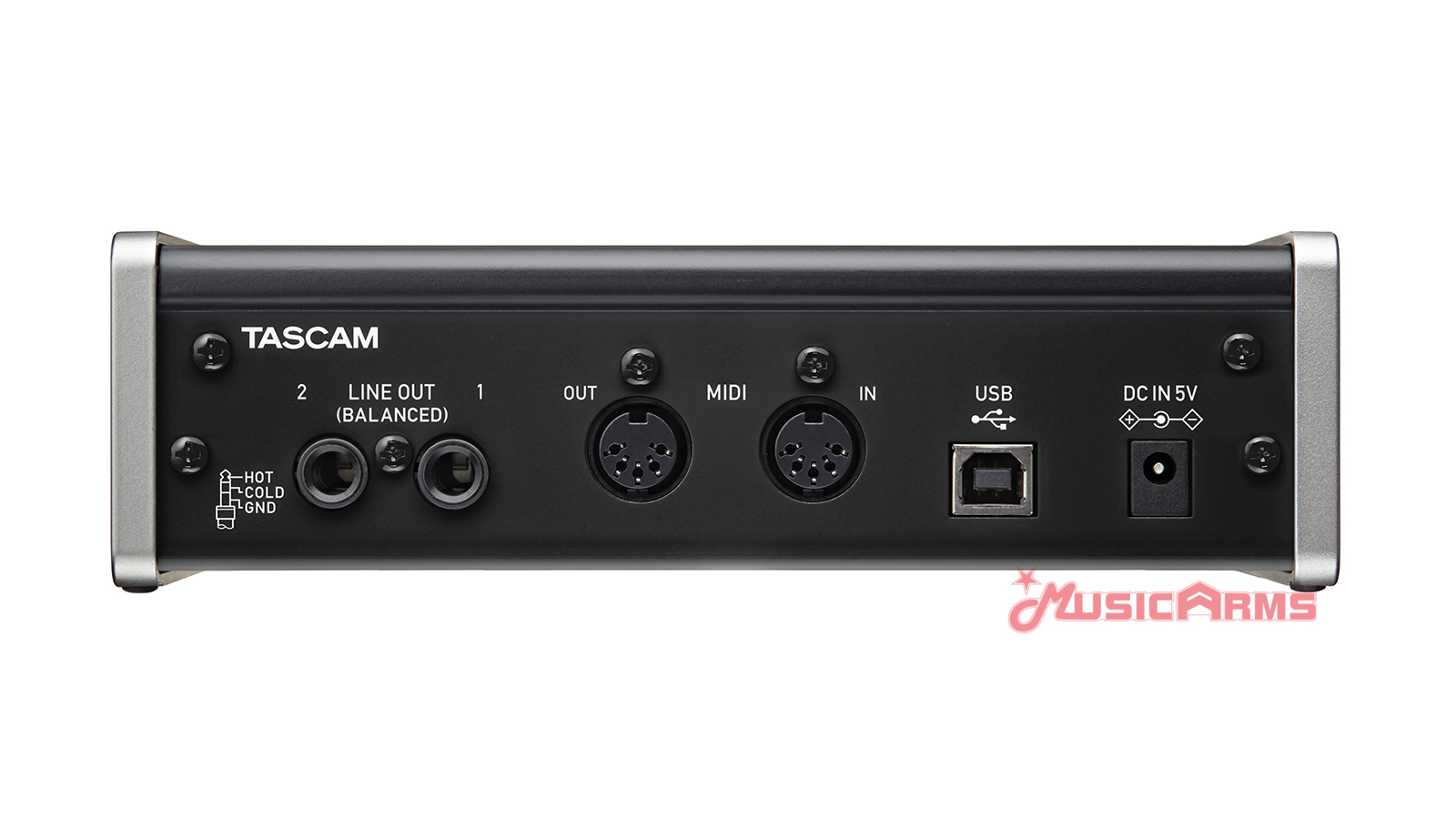

• Analog audio outputs

LINE OUT

• Connector 6.3mm(1/4″)TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
• Output impedance 110ohms
• Nominal output level +4dBu (1.273Vrms)
• Maximum output level +20dBu (7.75Vrms)

PHONES

• Connector 6.3mm(1/4″) stereo phone jack
• Maximum output level 18mW+18mW or more
• (THD+N 0.1% or less, 32ohms loaded)

MIDI IN / OUT

• Connector Din 5-pin
• Format Standard MIDI format

USB

• Connector USB B type 4-pin
• Format USB2.0 HIGH SPEED

Power

• When connected PC USB bus powered
• When connected iOS AC Adapter
• (TASCAM PS-P520, sold separately)
• Power consumption 2.5W

Dimensions

• 7.32″ W ×2.56″ H ×6.3″ D
• (186mm W x 65mm H x 160mm D)
• Weight 2.43lb (1.1kg)
• Operating temperature 5 to 35˚C
• Bundled software
• US-2×2 Cubase LE
• Accessories USB cable, User’s manual, warranty card

Manual

Owner’s Manual

รายละเอียด TASCAM US-2X2HR

• ความถี่ในการสุ่มตัวอย่าง 44.1k / 48k / 88.2k / 96k Hz
• อัตราบิต Quantization 16/24 บิต
• อินพุตเสียงอนาล็อก

ช่องต่อไมค์ (1-2)

• ขั้วต่อ XLR-3-31 (1: GND, 2: HOT, 3: COLD), BALANCED
• อิมพีแดนซ์อินพุต2.4kΩ
• Gain สูงสุด –68dBu (0.0003Vrms)
• Gain ตำสุด -12dBu (0.195Vrms)
• ระดับอินพุตสูงสุด + 8dBu (1.947Vrms)
• Gain 56dB

ช่องต่อ INST IN ( 1-2)

• ขั้วต่อ 1/4 “(6.3 มม.) TS-jack (T: HOT, S: GND), UNBALANCED (เมื่อตั้งค่าเป็น” INST “ที่สวิตช์ LINE / INST)
• อิมพีแดนซ์อินพุต1MΩหรือมากกว่า
• Gain สูงสุด –57dBV (0.0014Vrms)
• Gain ตำสุด–12dBV (0.251Vrms)
• ระดับอินพุตสูงสุด + 8dBu (0.2512Vrms)
• Gain 45dB

ช่องต่อ Line IN ( 1-2)

• ขั้วต่อ 1/4 “(6.3 มม.) TS-jack (T: HOT, S: GND), UNBALANCED (เมื่อตั้งค่าเป็น” INST “ที่สวิตช์ LINE / INST)
• อิมพีแดนซ์อินพุต10KΩ
• Gain สูงสุด –41dBu (0.0069Vrms)
• Gain ตำสุด +4dBu (1.228Vrms)
• ระดับอินพุตสูงสุด +24dBu (12.182Vrms)
• Gain 45dB
