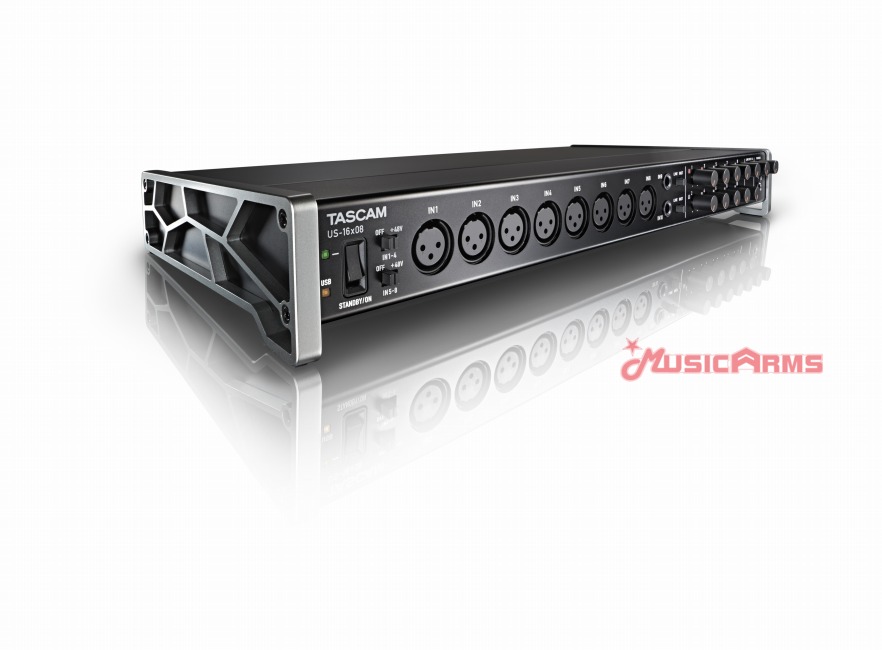

Tascam US-16×08

US-16×08

16-input Audio Interface for Mac, Windows and iPad

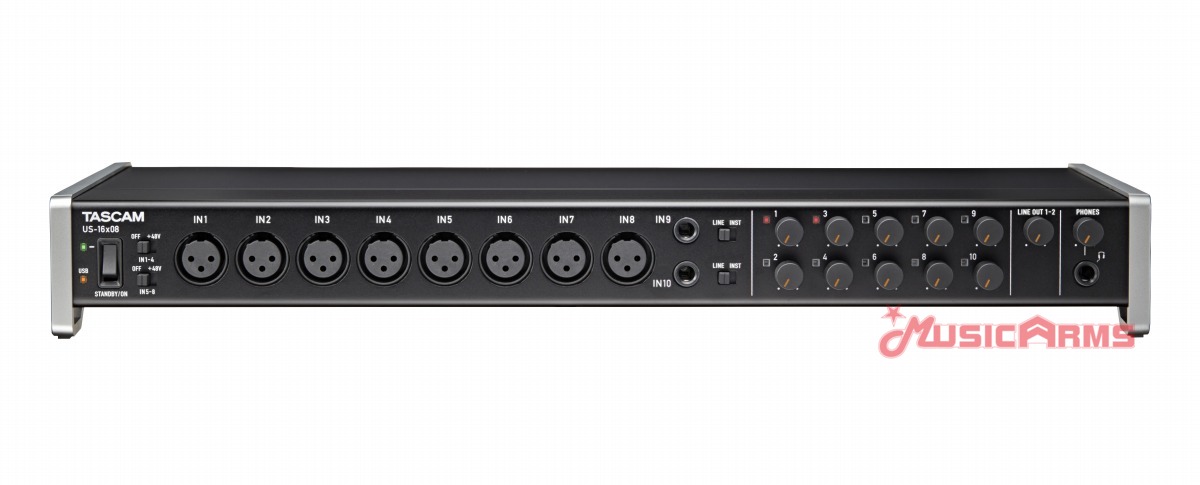

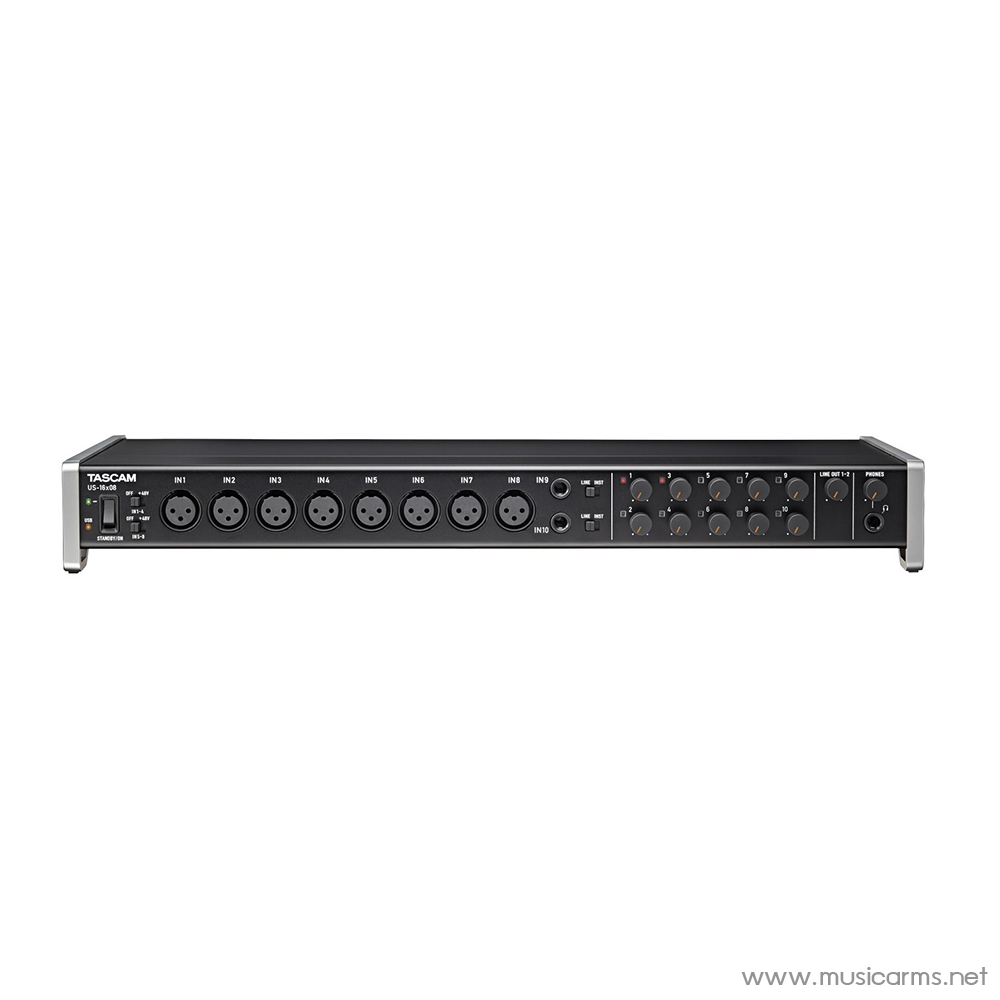

The TASCAM US-16×08 captures 16 mic and line inputs to your computer with clear sound quality and advanced features to manage big sessions. Eight Ultra-HDDA microphone preamps deliver the cleanest and quietest operation in their class, while delivering up to 56dB of gain. An additional eight line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.

New Update: Settings Panel for Windows

TASCAM USB Audio Interfaces Driver (Settings Panel) software for Windows has been updated to Version 4.00, enabling to build music production environments with ultra-low latency that maximizes the processing power of the computers in use. In this new version, the driver’s stability has been greatly enhanced, the audio buffer size is now selectable up from 4 samples instead of older versions with the default buffer size of 64 samples, and overall usability has been improved.

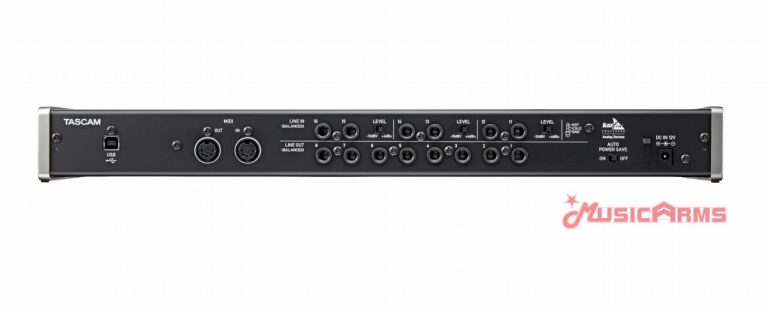

Built into the US-16×08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes. In addition to interface mode, the US-16×08 can be used as a standalone mic preamp. Mac and Windows drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like Apple’s iPad. MIDI input and output are also available on the rear panel.

Whether using the ergonomically-designed angled desktop stand, or mounting with the included rack ears, the US-16×08 includes analog I/O for almost any music recording application.

Ultra-HDDA Mic Preamps for Clear Audio Quality from All of Your Mics

TASCAM’s own Ultra-HDDA mic preamps are the cleanest, quietest, and best-sounding of any interface in their price range. A gain range of 56dB makes them ideal for any type of mic – dynamic, condenser, or ribbon. With preamp performance well beyond any interfaces in their price range, the Ultra-HDDA preamps on the US-16×08 make your tracks sound like a record.

Spec description

• Sampling frequency 44.1k/48k/88.2k/96k Hz
• Quantization bit rate 16/24-bit
• Analog audio inputs
• MIC IN(IN 1-8)
• Connector XLR-3-31 (1: GND, 2: HOT, 3: COLD), BALANCED
• Input impedance 2.4kΩ

Nominal input level

• GAIN: MAX –68dBu (0.0003Vrms)
• GAIN: MIN –12dBu (0.195Vrms)
• Maximum input level +8dBu (1.947Vrms)
• Gain 56dB
• INST IN (IN 9-10)
• Connector 1/4″ (6.3mm) TS-jack (T: HOT, S: GND), UNBALANCED  (when set to “INST” at LINE/INST switch)
• Input impedance 1MΩ or more

Nominal input level

• GAIN: MAX –57dBV (0.0014Vrms)
• GAIN: MIN –12dBV (0.251Vrms)
• Maximum input level +8dBV (0.2512Vrms)
• Gain 45dB
• LINE IN (IN 9-10)
• Connector 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED  (when set to “LINE” at LINE/INST switch)
• Input impedance 10kΩ

Nominal input level

• GAIN: MAX –41dBu (0.0069Vrms)
• GAIN: MIN +4dBu (1.228Vrms)
• Maximum input level +24dBu (12.182Vrms)
• Gain 45dB
• LINE IN (IN 11-16)
• LEVEL switch : “–10dBV”
• Connector 1/4″ (6.3mm) TS-jack (T: HOT, S: GND), UNBALANCED
• Input impedance 10kΩ or more
• Nominal input level –10dBV (0.3162Vrms)
• Maximum input level +10dBV (3.162Vrms)
• LEVEL switch : “+4dBu”
• Connector 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED
• Input impedance 10kΩ
• Nominal input level +4dBu (1.228Vrms)
• Maximum input level +24dBu (12.182Vrms)

Analog audio outputs

• LINE OUT (LINE OUT 1-8)
• Connector 1/4″ (6.3mm) TRS-jack (T: HOT, R: COLD, S: GND), BALANCED
• Output impedance 100Ω
• Nominal output level +4dBu (1.228Vrms)
• Maximum output level +24dBu (12.177Vrms)

PHONES

• Connector 1/4″ (6.3mm) stereo phone jack
• Maximum output level 70mW + 70mW or more (THD+N 0.1% or less, 32Ω loaded)

MIDI IN / OUT

• Connector DIN 5-pin
• Format Standard MIDI format

USB

• Connector USB B type 4-pin
• Format USB2.0 HIGH SPEED mass storage class
• Power Dedicated AC adapter (GPE248-120200-Z, included)
• Power consumption 12W
• Dimensions (W×H×D) 17.5″ × 2.32″ × 8.62″ / 445 × 59 × 219 mm
• Weight 6.11 lbs. / 2.8 kg
• Operating temperature 41˚F to 95˚F / 5˚C to 35˚C
• Accessories Rack mount adapter, USB cable, User’s manual, warranty card, dedicated AC adapter (GPE248-120200-Z)

Manual

Owner’s Manual

รายละเอียด Tascam US-16×08

• ความถี่ในการสุ่มตัวอย่าง 44.1k / 48k / 88.2k / 96k Hz
• อัตราบิต Quantization 16/24 บิต
• อินพุตเสียงอนาล็อก

ช่องต่อไมค์ (1-8)

• ขั้วต่อ XLR-3-31 (1: GND, 2: HOT, 3: COLD), BALANCED
• อิมพีแดนซ์อินพุต2.4kΩ
• Gain สูงสุด –68dBu (0.0003Vrms)
• Gain ตำสุด -12dBu (0.195Vrms)
• ระดับอินพุตสูงสุด + 8dBu (1.947Vrms)
• Gain 56dB

ช่องต่อ INST IN ( 9-10)

• ขั้วต่อ 1/4 “(6.3 มม.) TS-jack (T: HOT, S: GND), UNBALANCED (เมื่อตั้งค่าเป็น” INST “ที่สวิตช์ LINE / INST)
• อิมพีแดนซ์อินพุต1MΩหรือมากกว่า
• Gain สูงสุด –57dBV (0.0014Vrms)
• Gain ตำสุด–12dBV (0.251Vrms)
• ระดับอินพุตสูงสุด + 8dBu (0.2512Vrms)
• Gain 45dB

ช่องต่อ Line IN ( 9-10)

• ขั้วต่อ 1/4 “(6.3 มม.) TS-jack (T: HOT, S: GND), UNBALANCED (เมื่อตั้งค่าเป็น” INST “ที่สวิตช์ LINE / INST)
• อิมพีแดนซ์อินพุต10KΩ
• Gain สูงสุด –41dBu (0.0069Vrms)
• Gain ตำสุด +4dBu (1.228Vrms)
• ระดับอินพุตสูงสุด +24dBu (12.182Vrms)
• Gain 45dB
