TASCAM DR-70D

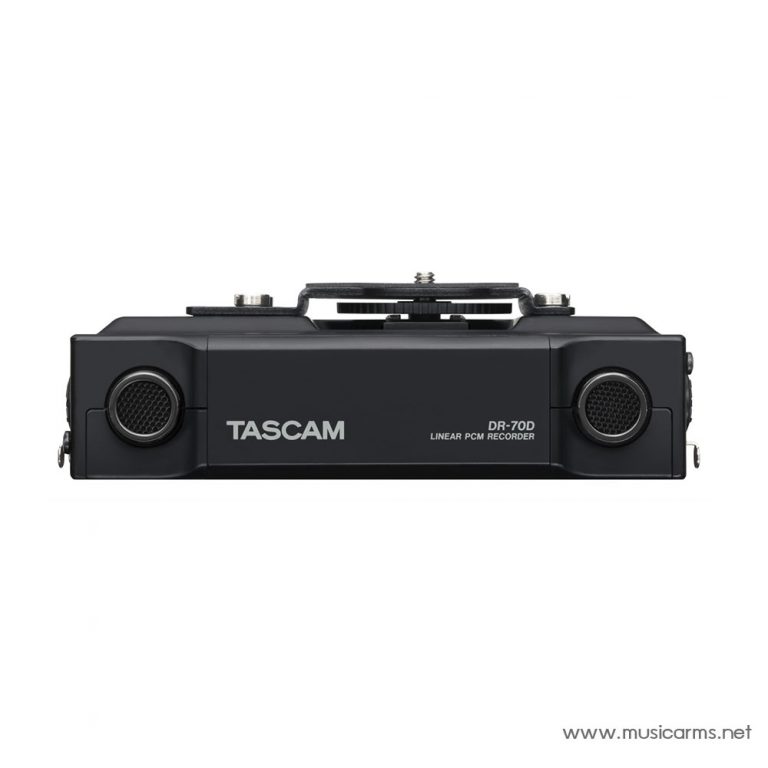

For filmmaking, television, and web broadcast applications where you want to record direct sound and ambience, the Tascam DR-70D multi-track field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphones, route audio to and from your camera, and conveniently monitor through headphones. With strap-friendly handles, a tripod mounting socket, and a camera-mount screw attachment, the DR-70D is compatible with a variety of setups and working styles.

Versatile powering methods and remote-control options make the DR-70D ideal for location recording and extended video shoots. Its four balanced XLR-1/4″ combo inputs handle mic- or line-level signals (even +4 dBu from high-end sound mixers) and can independently supply phantom power. A 3.5mm mic/line input with selectable plug-in power is provided for situations that require you to record a lavalier microphone or the output of a wireless receiver. Utilize settings such as stereo safety track recording, limiting, and low-cut filtering to achieve a clean, undistorted recording.

Main Features

• Supports SD/SDHC/SDXC cards
• Maximum number of tracks recorded simultaneously: (4)
• Recording modes: MONO, STEREO, 2MIX, DUAL MONO, DUAL ST, DUAL 2MIX
• Recording formats: 16/24-bit, 44.1k/48k/96k Hz (WAV/BWF)
• TASCAM HDDA microphone preamps provide legendary audio performance
• Input levels can be adjusted independently

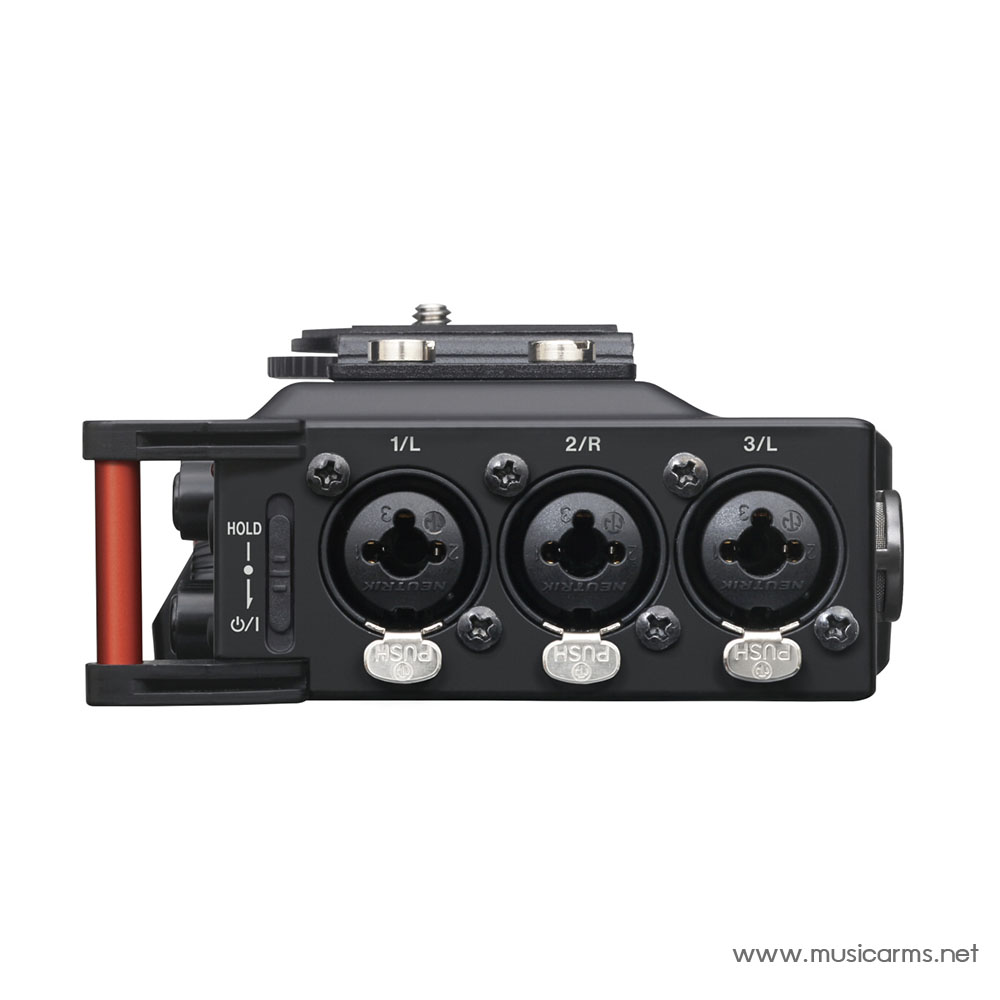

• XLR/TRS inputs support +4dBu line level and phantom power (24V/48V)
• Supports mics requiring plug-in power, and mics with high output (1-2)

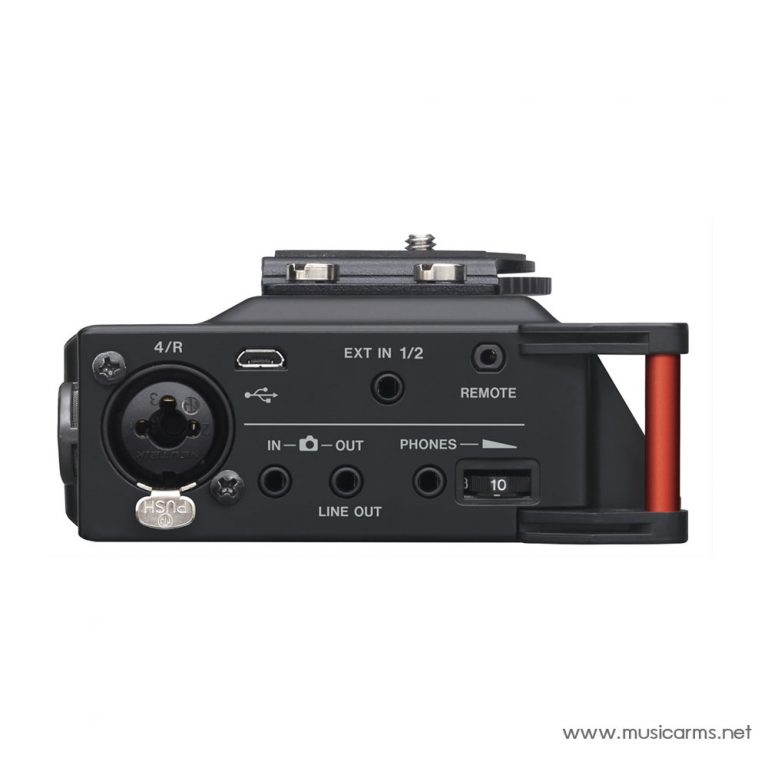

• CAMERA OUT jack enables audio mixed on the DR-70D to be output to the camera
• CAMERA IN jack allows the DSLR camera audio to be monitored through the DR-70D
• High-quality audio output through the line output jack that is independent of the headphones jack
• Headphone jack with 20mW+20mW maximum output
• Tripod mounting threads (bottom), camera screw attachment and a shoe mount that can be attached and removed with a coin (top)

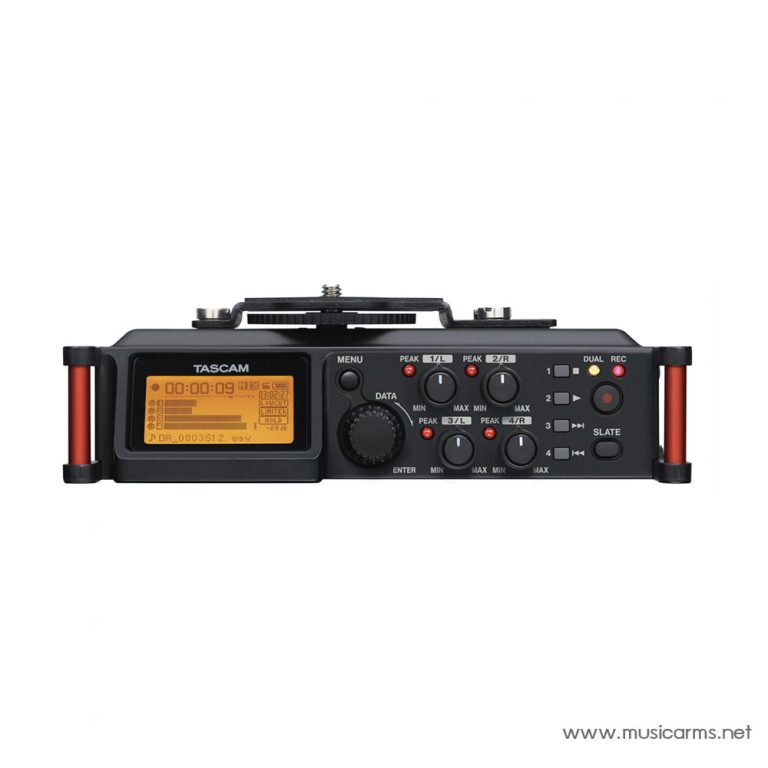

• Handles on the front left and right sides protect the screen and can be used to attach a shoulder strap
• Transport and SLATE buttons are made of rubber to prevent handling noise during use
• HOLD switch prevents accidental operation
• 128×64-pixel graphic LCD with backlight
• High-speed transfer of files to a computer using USB 2.0
• Micro-B USB cable included
• Operates on (4) AA batteries, with an optional AC adapter (TASCAM PS-P515U) or USB cable provided with the unit (USB bus power).
• BP-6AA external battery pack (sold separately) makes operation for even longer times possible
• RC-3F footswitch or RC-10 wired remote control (both sold separately) for remote control
• Built-in mixer can be used to adjust Pan and Level to mix output of (4) channels
• Low-cut filter with five settings (40/80/120/180/220 Hz) to be used to reduce unwanted air-conditioning noise and other low-frequency sounds
• Limiter function can automatically adjust excessive input levels (stereo-linking possible for 1/L and 2/R)
• Delay function to adjust for distances between mics (+/−150 ms)
• Mid-side decoding function enables the use of mid-side stereo mics
• Slate tone functions (automatic/manual)
• Selectable slate tone insertion points (recording start or recording start and finish when using the automatic slate function)
• File name format can be set to use a user-defined word or date
• Dual recording function allows two files to be recorded simultaneously at different levels (second file at between −1 dB and −12 dB)
• Can start a new file automatically when a maximum file size set in advance is reached to continue recording
• Track incrementing function allows a file to be split by creating a new file during recording when desired
• Resume function remembers the playback position when the unit is turned off
• Mark function allows up to 99 points to be added to a single recording (mark information can be used in software that supports the BWF format)

Recording media SD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(48GB to 128GB)

Recording format
WAV 44.1k / 48k / 96k Hz, 16bit / 24bit
BWF 44.1k / 48k / 96k Hz, 16bit / 24bit

Number of channels 4-channel (stereo 2, mono 4)

Analog audio input
1/L, 2/R, 3/L, 4/R connectors
Connector XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 6.3mm(1/4″)TRS standard jack

Set to “MIC / MIC+PHANTOM”
Input impedance 2k ohms
Phantom power 48V +/-4V(10mA/CH), 24V +/-4V(10mA/CH)
Maximum input level 0dBu
Minimum input level -72dBu
MIC input gain TRIM MAX
LOW +11dB
HIGH +51dB
HI + PLUS
+63dB

Set to “LINE”
Input impedance 10k ohms or more
Standard input level +4dBu
Maximum input level +20dBu

1/2 connector
Connector 3.5mm(1/8″)stereo mini jack (this connector can be supplied plug-in power)
Input impedance 10k ohms
Maximum input level +10dBV
Minimum input level -50dBV
MIC input gain TRIM MAX
LOW +3dB
HIGH +26dB
HI + PLUS +38dB

CAMERA IN connector
Connector 3.5mm(1/8″)stereo mini jack
Input impedance 10k ohms
Standard input level -10dBV
Maximum input level +6dBV

Analog audio output

LINE OUT connector
Connector 3.5mm(1/8″)stereo mini jack
Output impedance 200 ohms
Standard output level -10dBV
Maximum output level +6dBV

CAMERA OUT connector
Connector 3.5mm(1/8″)stereo mini jack
Output impedance 200 ohms
Standard output level -40dBV
Maximum output level +24dBV

PHONES connector
Connector 3.5mm(1/8″)stereo mini jack
Maximum output level 20mW + 20mW

USB
Connector Micro-B type
Format USB2.0 HIGH SPEED mass storage class

REMOTE
Connector 2.5mm TRS jack

Power
4 AA batteries(Alkaline or NI-MH),
USB bus power,
Dedicated AC adapter(TASCAM PS-P515U, sold separately),
Dedicated external battery pack(TASCAM BP-6AA, sold separately)

Power consumption 5.0W

Continuous operation time
2ch WAV, 44.1kHz, 16bit rec
Phantom power not used

DR-70D
Alkaline batteries (EVOLTA) About 6:00 min : When XLR/TRS input selecte (Phantom off)
About 3:30 min : When XLR/TRS input selecte (Phantom on)
About 11:00 min : When 3/4 MIC (Built-in Mic) selected
NI-MH batteries (eneloop) About 6:15 min : When XLR/TRS input selecte (Phantom off)
About 3:15 min : When XLR/TRS input selecte (Phantom on)
About 10:30 min : When 3/4 MIC (Built-in Mic) selected
NI-MH batteries
(eneloop pro) About 7:45 min : When XLR/TRS input selecte (Phantom off)
About 4:45 min : When XLR/TRS input selecte (Phantom on)
About 14:15 min : When 3/4 MIC (Built-in Mic) selected
DR-70D + BP-6AA *BP-6AA is using the alkaline batteries (EVOLTA).
Alkaline batteries (EVOLTA) About 13:00 min : When XLR/TRS input selecte (Phantom off)
About 7:30 min : When XLR/TRS input selecte (Phantom on)
About 25:30 min : When 3/4 MIC (Built-in Mic) selected
NI-MH batteries (eneloop) About 12:45 min : When XLR/TRS input selecte (Phantom off)
About 7:45 min : When XLR/TRS input selecte (Phantom on)
About 24:45 min : When 3/4 MIC (Built-in Mic) selected
NI-MH batteries
(eneloop pro) About 14:30 min : When XLR/TRS input selecte (Phantom off)
About 8:45 min : When XLR/TRS input selecte (Phantom on)
About 27:00 min : When 3/4 MIC (Built-in Mic) selected

Dimensions 6.65(W)2.2(H)4.2(D)inch
169(W)55.2(H)106.5(D)mm
(with the top adapter attached)

Weight 1.37lb ( including batteries) / 1.16lb (without batteries )
625g ( including batteries) / 530g (without batteries )

Operating temperature 0 to 40˚C

Audio performance
Frequency response 20-20kHz +0.5/-2dB(LINE IN or MIC IN to LINE OUT, Fs44.1k/48k Hz, JEITA)
20-40kHz +0.5/-3dB(LINE IN or MIC IN to LINE OUT, Fs96kHz, JEITA)
Distortion 0.02% or less(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96k Hz, JEITA)
S/N ratio 92dB or more(LINE IN or MIC IN to LINE OUT Fs44.1k/48k/96k Hz, JEITA)
Equivalent input noise -120dBu or less

Computer compatibility

Windows
OS Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
CPU Pentium 300MHz or more
RAM 128MB or more
USB recommended: USB2.0

Macintosh
OS Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4),
Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7),
OS X Mountain Lion(V10.8), OS X Mavericks(10.9)
CPU Power PC, iMac, G3, G4 266MHz or more
RAM 64MB or more
USB recommended: USB2.0

Recording Duration

The table below shows the maximum recording time on SD/SDHC cards of different capacities for different file formats for recording.
File format(recording setting) SD/SDHC card capacity(hours:mintes)
1GB 2GB 4GB 8GB
WAV/BWF 16bit(STEREO) 44.1kHz 1:41 3:22 6:44 13:28
48kHz 1:33 3:06 6:12 12:24
96kHz 0:46 1:33 3:06 6:12
WAV/BWF 24bit(STEREO) 44.1kHz 1:07 2:15 4:30 9:00
48kHz 1:02 2:04 4:08 8:16
96kHz 0:31 1:02 2:04 4:08
