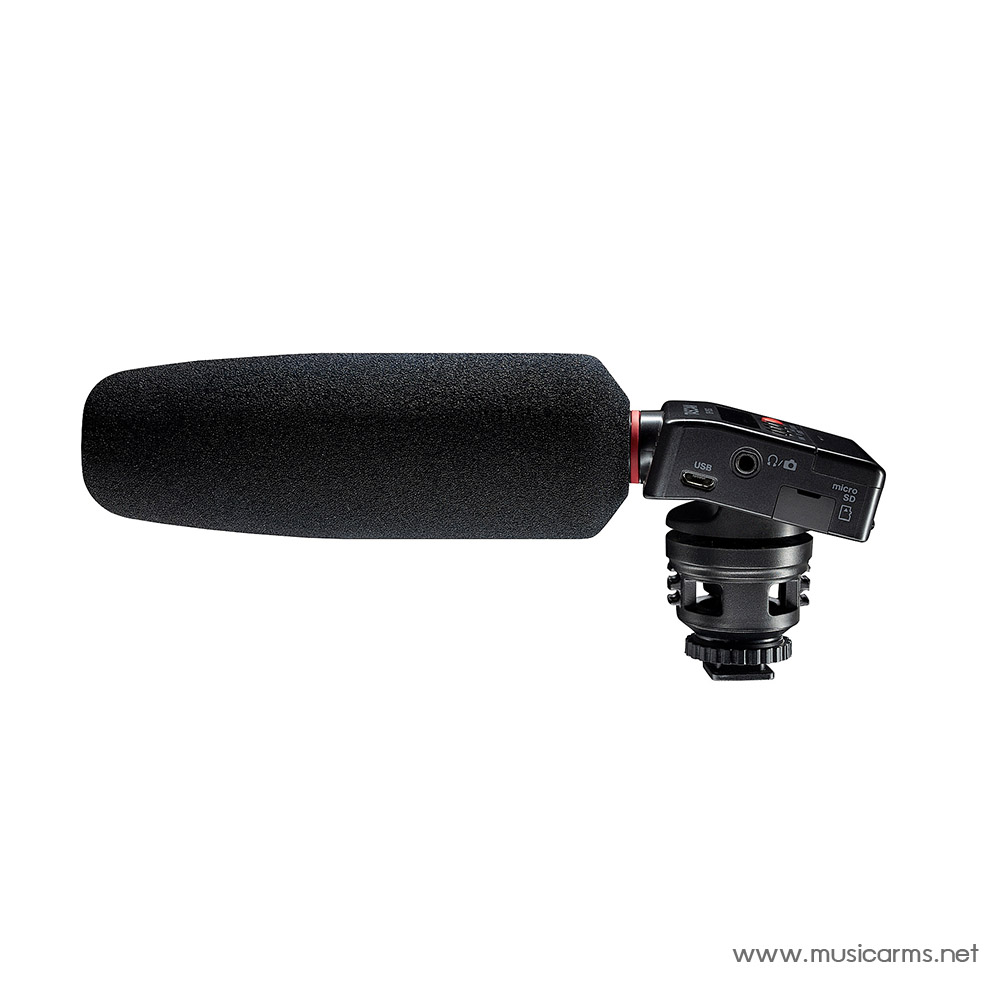

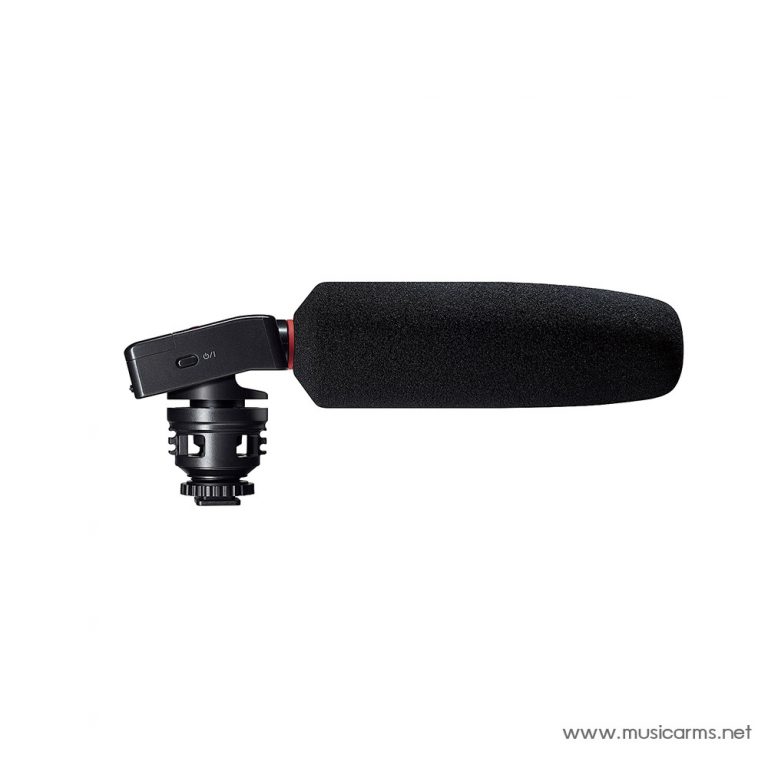

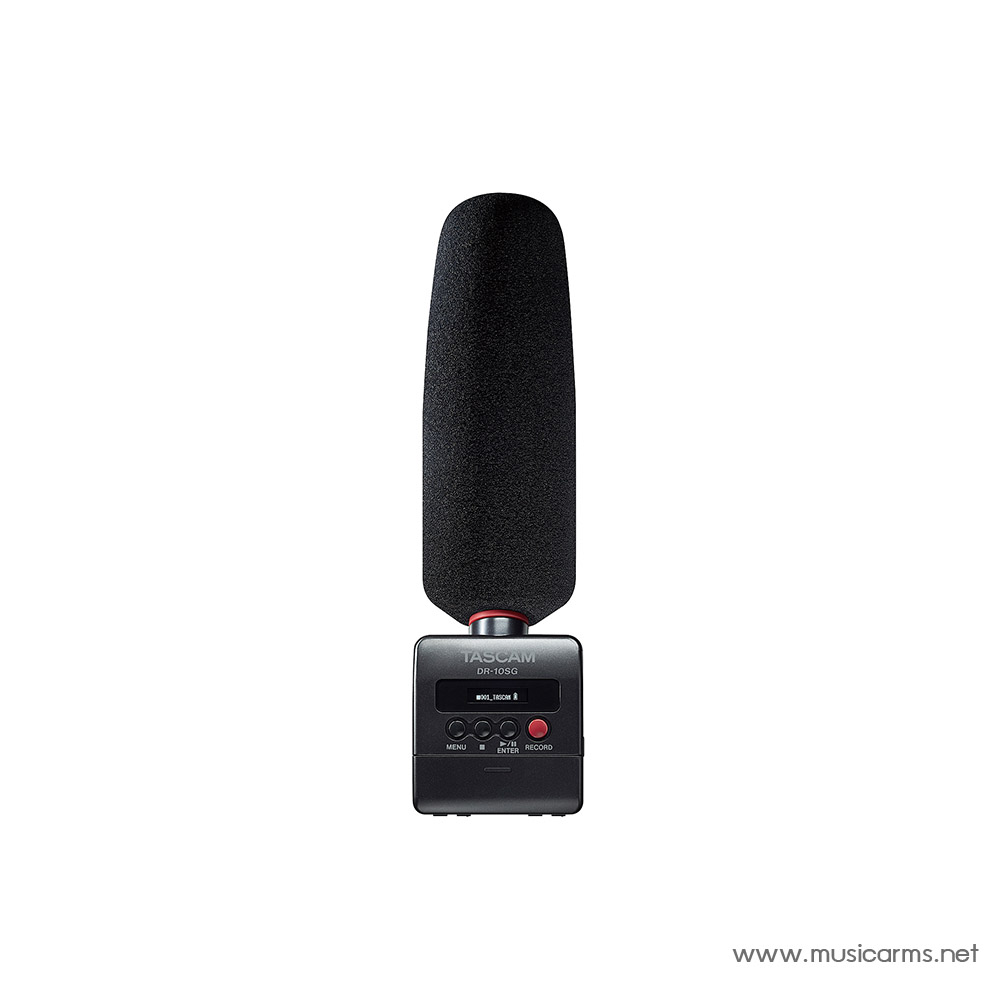

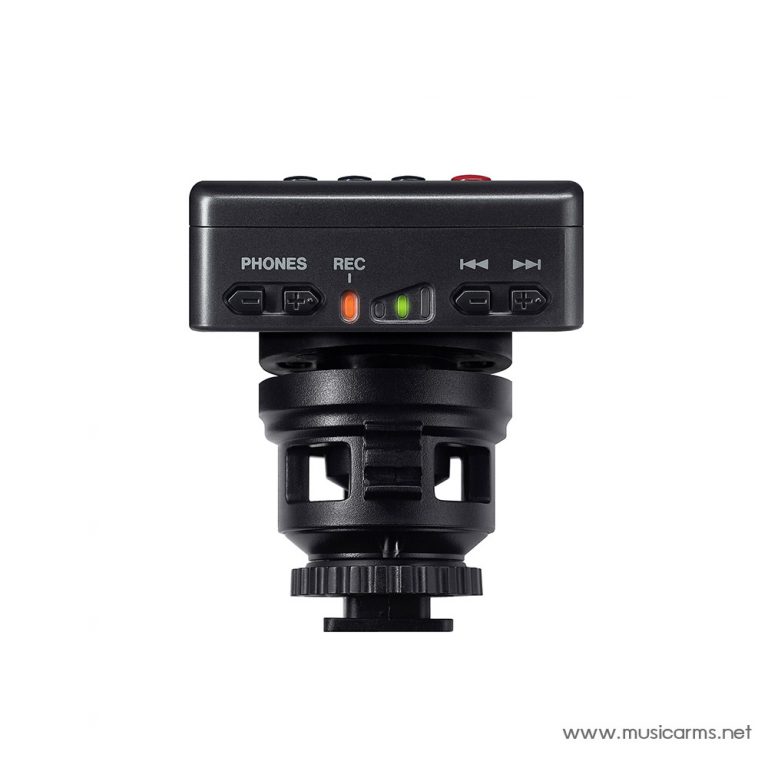

Tascam DR-10SG

The TASCAM DR-10SG packs problem-solving punch into a small package. Combining both a purpose built shotgun microphone and a professional quality digital recorder in a single unit, the DR-10SG addresses many issues faced by today’s DSLR videographer.

First and foremost, the DR-10SG features an extremely directional supercardioid microphone and an integrated shock-resistant mounting foot. The dual benefits of this design include the rejection of unwanted ambient sound during filming and the avoidance of physically transmitted noise from shutter or lens mechanisms. Coupled with this is a professional-quality digital recorder featuring four selectable EQ modes, audio pass-through to the camera and an on-board audio slate for synchronization during post production. As an added safeguard against unexpected volume spikes, the DR-10SG also features TASCAM’s unique Dual Recording mode which automatically records a second “safety take” at a lower level. Designed to deliver excellent quality while addressing the inherent issues of on-camera audio, the DR-10SG will prove to be a valuable tool in your audio arsenal.

Features:
• Custom designed, high-performance shotgun microphone
• Camera shoe attachment with shockmount for maximum mobility
• Four EQ presets to match the subject and setting: Natural, Standard, Interview, and Field
• High-quality audio that’s simple to use
• Shock mount mechanism and noise isolation arm reduce handling and lens operation noise
• Audio from the DR-10SG Camera Out jack can be recorded on the camera
• Slate tone simplifies synchronization with video files
• Dual recording records two files simultaneously at different levels
• Automatic file closing saves file data before the battery runs out
• Automatic level, limiter and other functions solve common recording level problems
• Compact and lightweight body that is only 110g, including battery
• Operates for 8.5 hours continuously on a single alkaline AAA battery

• Recording media: microSD card(64MB to 2GB), microSDHC card (4GB to 32GB)
• Recording format: 44.1k/48k Hz, 16/24-bit
• Mic IN Polarity: Super Cardioid, 0 to +50dB (1dB step) gain
• Camera out/phones connector: Connector 3.5mm (1/8″) stereo mini jack (DUAL MONO signal)
• USB: Micro-B connector, USB2.0 HIGH SPEED mass storage class
• Power: 1 AAA battery(alkaline, rechargeable NiMH or disposable lithium) USB bus power
• Power consumption: 0.75W (maximum)
• Battery operation time: 7.5-8.5 hrs on NI-MH or alkaline battery, 15hrs on lithium battery
• Operating temperature: 0C to 40C
• Dimensions: 53(W)168.1(H)70.3(D)mm
• Weight: 110g (including batteries) / 98g (without batteries)
