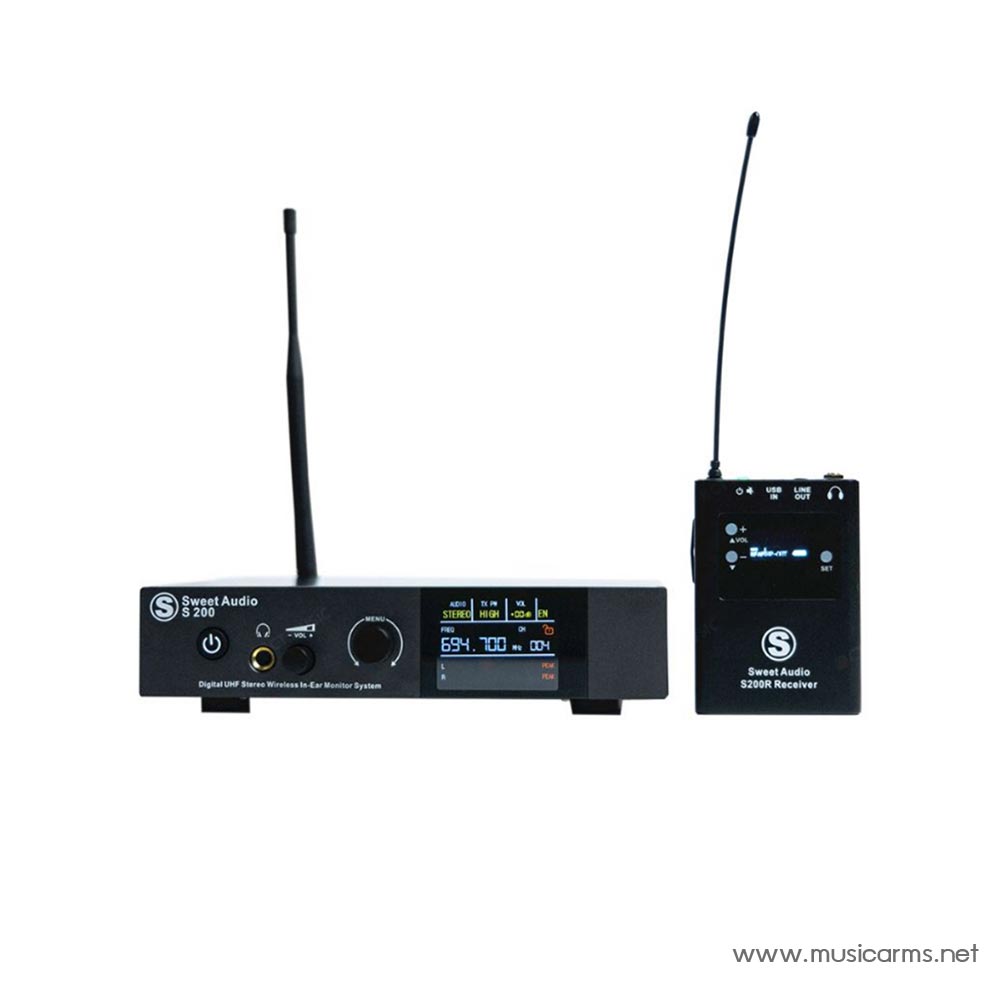

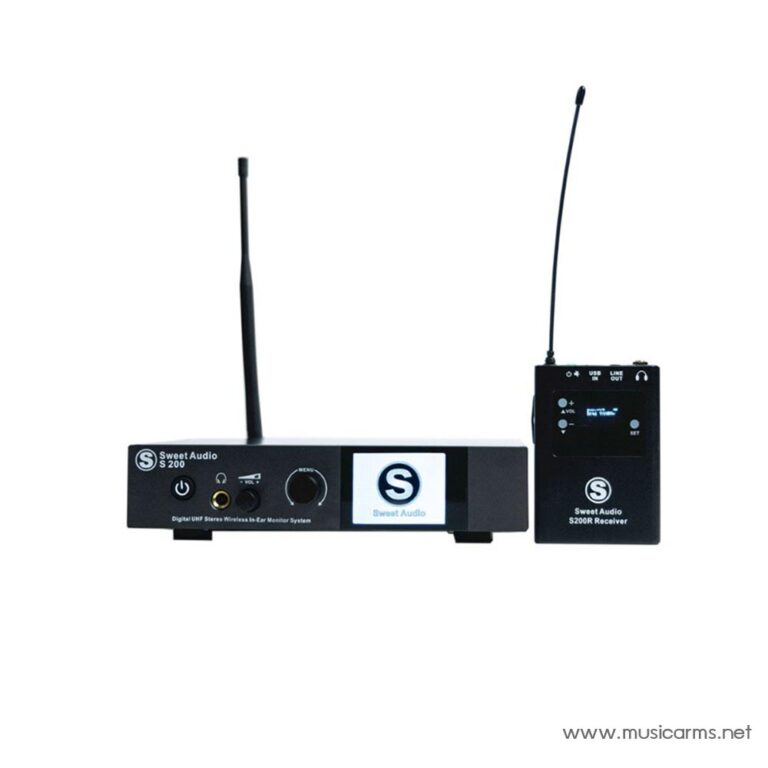

Sweet Audio S200 Stereo Wireless In-Ear Monitor อินเอียร์มอนิเตอร์

Professional Wireless Stage Monitoring System

INTRODUCTION

Wireless Personal monitoring system unmatched sound quality, Stable radio fequency performance and leading in the class of setup functions, to meet the requirements of most of the most demanding professional monitoring applications High frequency wireless back listening transmitter, high quality back listening. The use of superb circuit technology, allround round no dead Angle reception, so that the received signal is more stable, you can operate and switch the preset 10 groups of frequency excellent and reliable technology, to help you perform more excellent and successful.

The TFT-S4 is a wireless stereo Fanny pack receiver that works with a listening system. With 24-bit digital audio performance for clear sound quality and an effective 50-meter operating range, the TFT-S4 enables reliable wireless freedom of performance, covering every corner of the stage.

MAIN FUNCTION

• Reliable 24-bit digital audio processing to create superior personal monitoring mixing for each performance.
• One audio channel is sent to a waist pack receiver at a distance of up to 50 meters, while digital audio technology reliably ensure clear sound quality with neither noise nor signal loss.
• Rugged half-rack transmitter with simple front panel control.
• Full-color TFT display, wide viewing Angle, high clarity, all working
• conditions at a glance

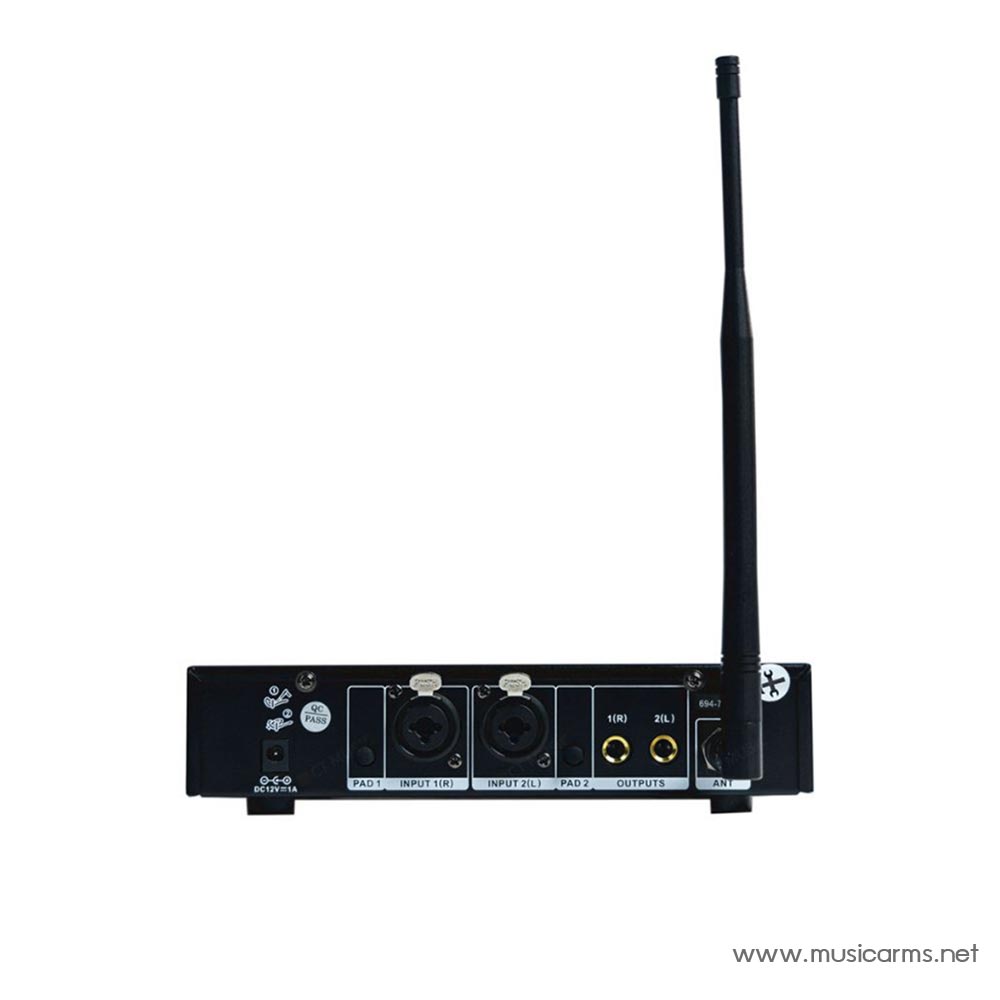

• The rear panel balances inputs and loop outputs to provide full Connectivity to the audio source and other units.

Transmitter

Frequency range: 470 – 950 MHz
Audio input: Max input +18dBu
Power supply: 12-15 V DC
Consumption: 15V 300 mA
Transmitted power: 10mW~50mW (optional)

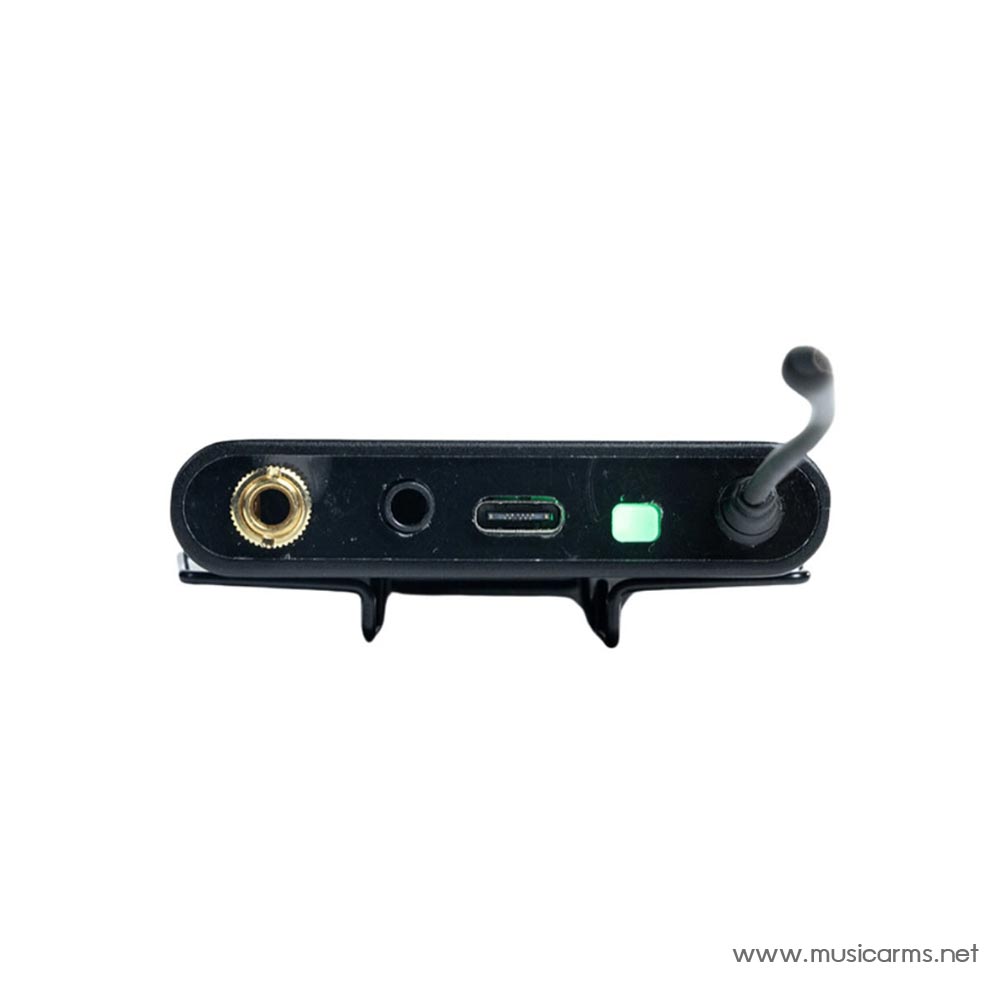

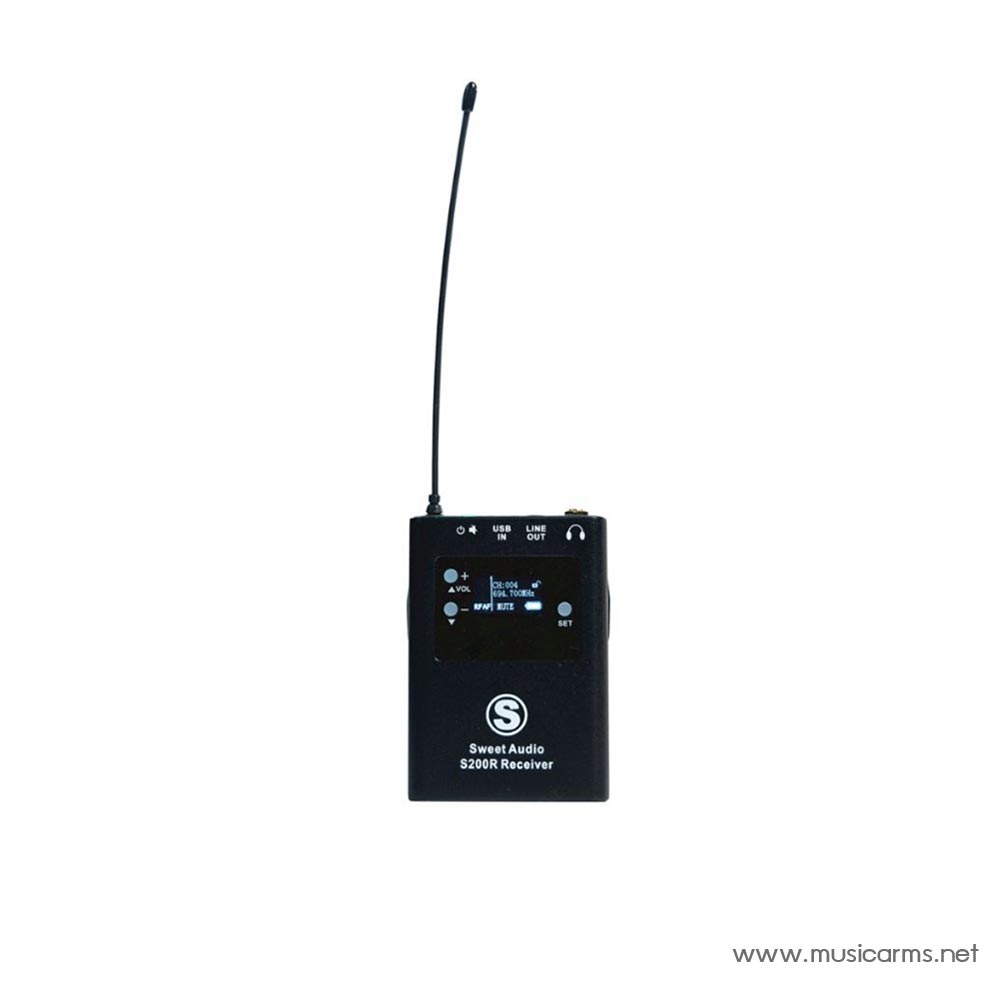

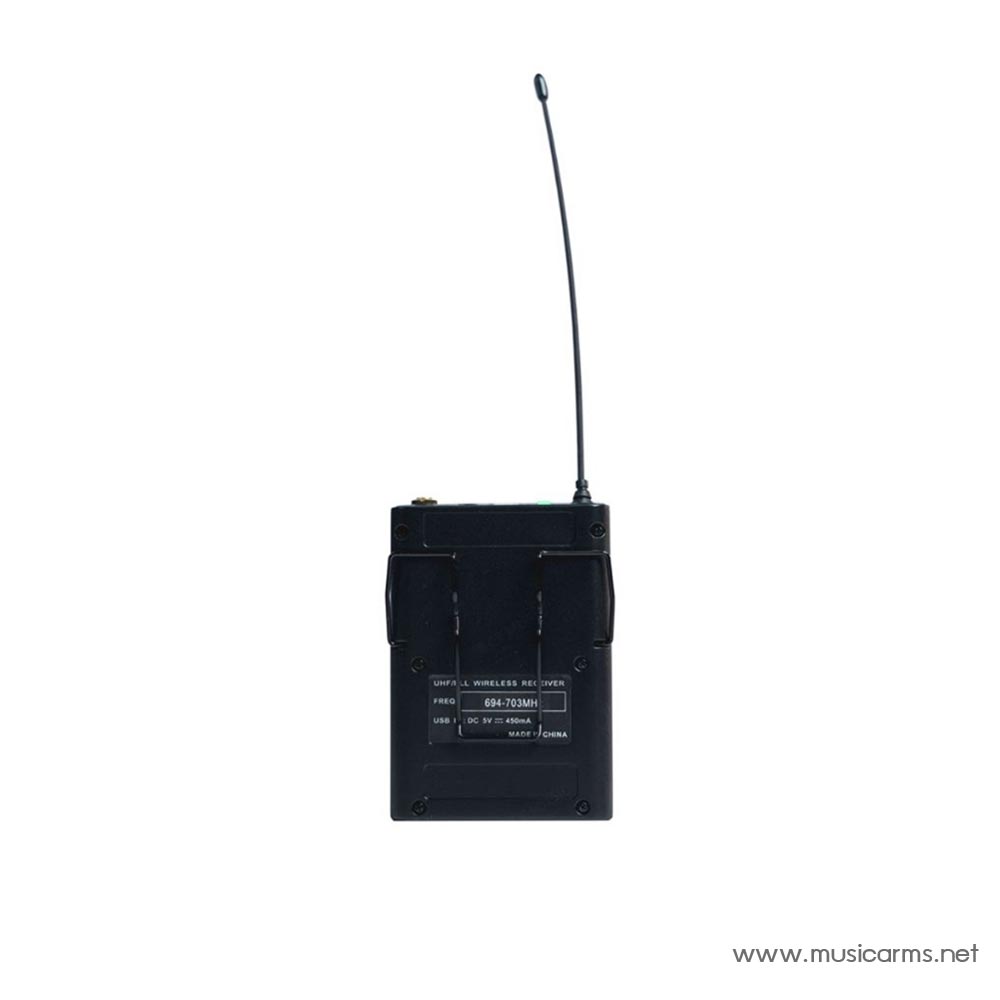

Receive

Frequency range: 470 – 950 MHz
Receiving sensitivity: -95dBm
The battery: Lithium battery 4.2V
Frequency response: 20-20,000 Hz
Audio output power: 100mW (1kHz@<1%distortion,peak power,@16)
Consumption: 200 mA

System

Distortion: <0.1%
Signal-to-noise ratio: 100dB
Frequency range: 470-950 uH Z
Bandwidth: 2MHz
Dynamic range: 100dB
Audio sampling: 24 bit/192 kHz
Launch system: Digital modulation
Audio response time: &lt, 5 ms
Audio coding: Digital coding
Frequency response: 20-20,000 Hz
Service distance: 50 meters
