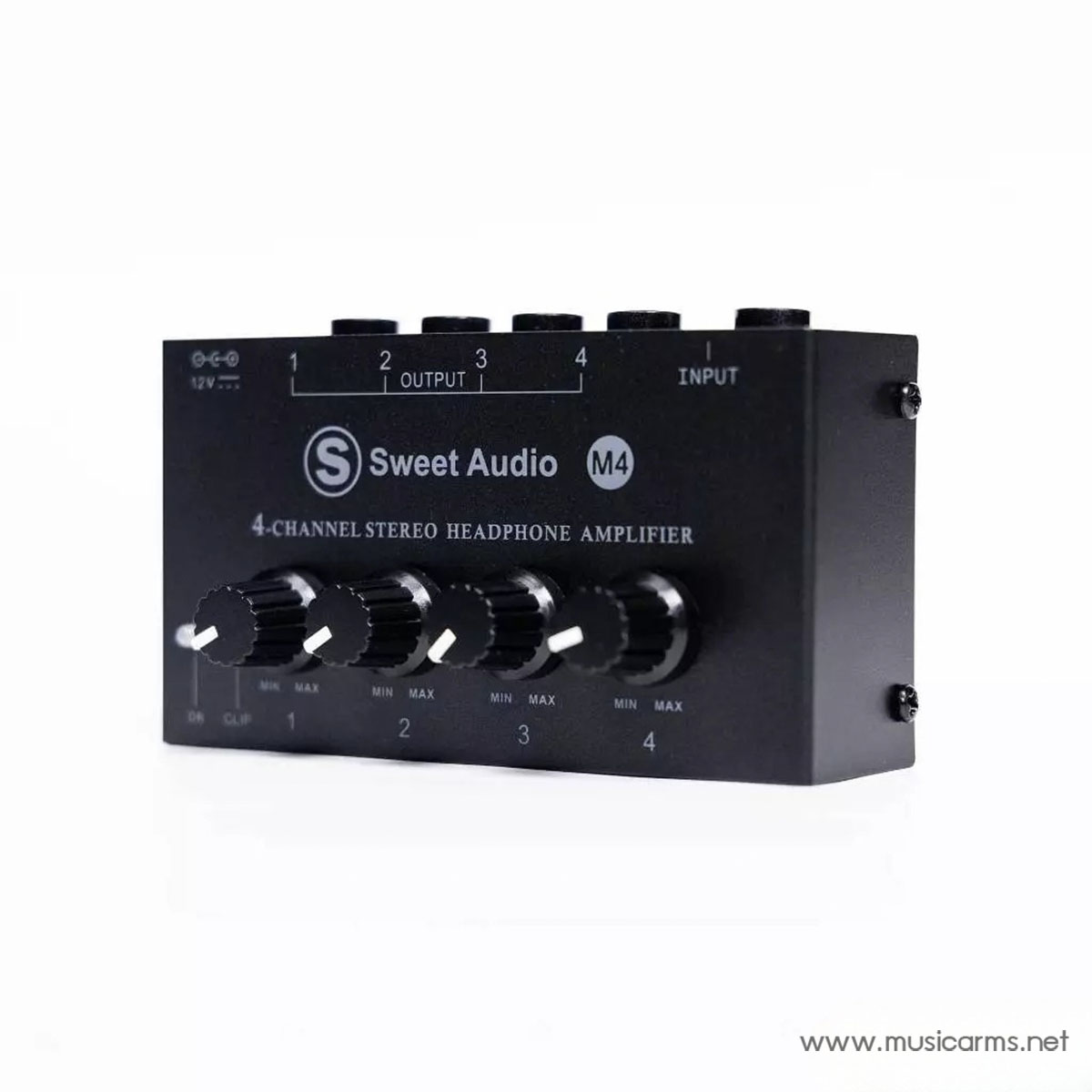

Sweet Audio M4 แอมป์หูฟัง 4-Channel Stereo Headphone Amplifier

This four-channel stereo headphone amplifier is designed to provide high-fidelity stereo sound, even at high volumes, up to four people listening to audio simultaneously. This Compact unit offers independent volume control for each headphone output, and is suitable for all types of headphones and earphones with a 1/4″ jack or adapter. The P5’s high-power stereo amplifier delivers clean, clear audio with low noise, even at maximum volumes.
.
Features
ㆍ4 stereo headphone outputs with independent volume controls
ㆍSmall and portable
ㆍ12V DC adapter included
ㆍInput clip LED
ㆍHigh-power stereo amplifer for low noise and top sound quality, even at max volume
.
WARNING
LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.
HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.
.
Overexposure to excessive sound levels can damage your ears, resulting in permanent noise-induced hearing loss. Do not use earphones for a long time and set the volume below low.
APPLICATION
.
Connect the & TRS input of the P5 to your mixer/sound source. If your mixer has a TRS (stereo) Aux output, you can use a 1/4″ TRS cable. if your aux outputs are TS (mono), you will need an insert cable to send two TS 14″ aux outputs (left and right) to a single 14″ TRS (stereo) plug.

Input
Type: 1/4″ TRS stereo input Type
Impedance: 40 kQ
Max. input level: +15 dBu
.
Headphone output
Type: 1/4″ TRS stereo output Type
Impedance: 50 Q
Max. output level: 50 mW @ 32 0hm
.
Power supply
Type: DC 12V, 300 mA, center-positive
Dimensions(W x H x D): 104mmx59mmm x x 46 mm (4.1″x.2.3″x18″)
Weight: 197 g (0.43 Ibs)

อินพุต

• ประเภท: อินพุตสเตอริโอ 1/4″ TRS
• อิมพีแดนซ์: 40 kΩ
• ระดับสัญญาณอินพุตสูงสุด: +15 dBu

เอาต์พุตหูฟัง

• ประเภท: เอาต์พุตสเตอริโอ 1/4″ TRS
• อิมพีแดนซ์: 50 Ω
• ระดับสัญญาณเอาต์พุตสูงสุด: 50 mW @ 32 โอห์ม

แหล่งจ่ายไฟ

• ประเภท: DC 12V, 300 mA, ขั้วบวกตรงกลาง
• ขนาด (กว้าง x สูง x ลึก): 104 มม. x 59 มม. x 46 มม. (4.1″ x 2.3″ x 18″)
• น้ำหนัก: 197 กรัม (0.43 ปอนด์)
