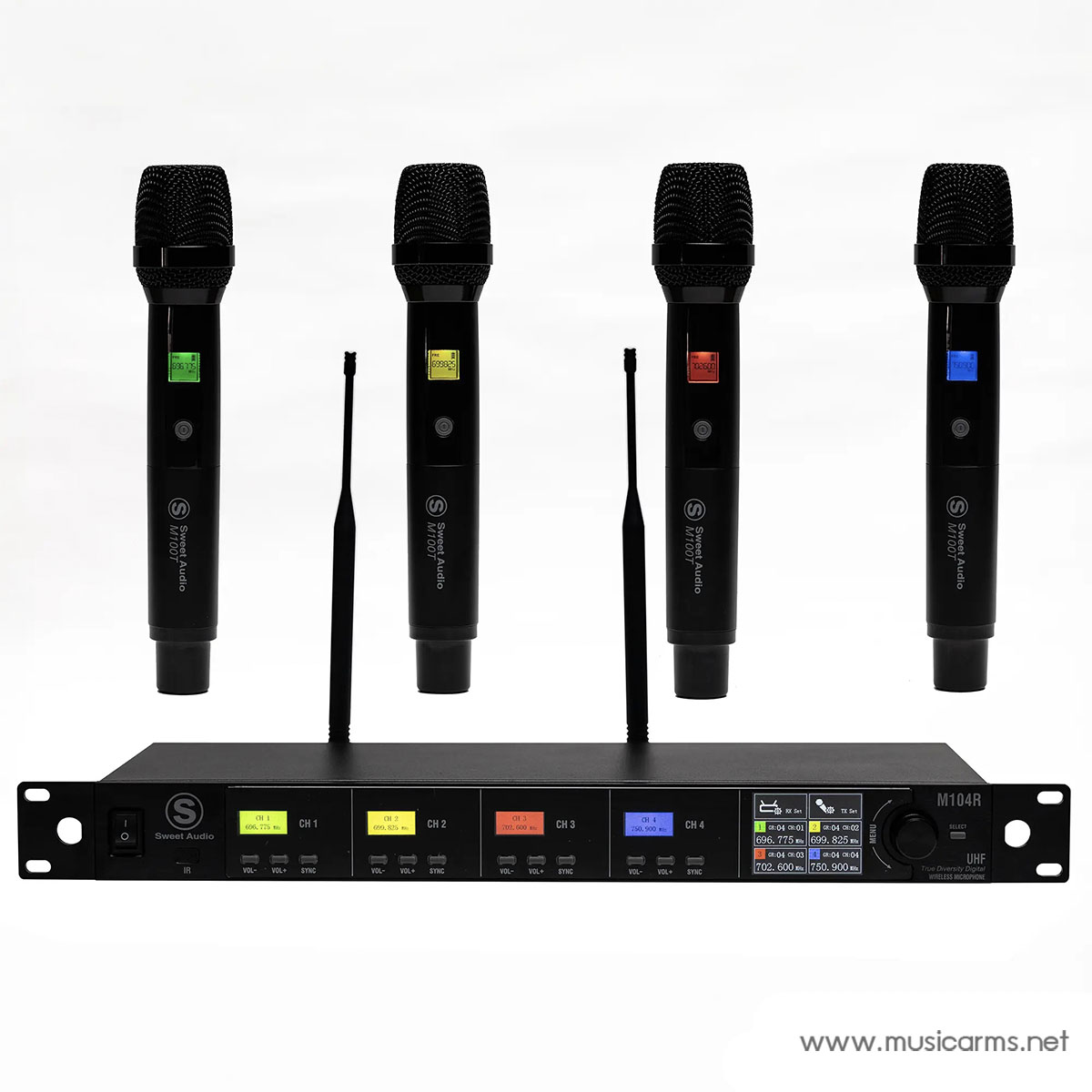

Sweet Audio M104R ไวเลสไมโครโฟน

Features

• Adopt adjustable UHF frequency, true diversity receiving circuit, stable performance, reliable transmission.
• Integrated antenna distribution system, reduce antenna mutual radiation interference effectively.
• 1 main control + 4 sub-channels are with TFT colorful screen to show functions
• Max transmission power: 13dBm (depends on the regions)
• 7-band adjustable EQ processor
• Adjustable background color of sub-display design, the color of transmitter display could be changeable with receiver display accordingly.

Receiver

• Receiving channel: 1CH/2CH/4CH
• Carrier wave: 470-960MHz, depends on the regions
• Oscillation: PLL phase-locked frequency synthesis
• Frequency sensitivity: Input 6dBuV, S/N>80dB
• Operating distance: 60 meter
(Note: the actual range depends on RF signal absorption, reflection and interference factors)
• Sound processing: 7-band adjustable EQ
• T.H.D.: <0.5% @ 1KHz
• Transmission bandwidth: < 100KHz

Handheld transmitter

• Oscillation mode: PLL phase-locked frequency synth
• RF carrier ware range: 470-960MHz depends on reg
• Pickup gain: Fixed gain
• Transmission power: 13dB
• Current drain: standard<130mA
• Display: LCD
• Cartridge mode: Dynamic cardioid cartridge

Bodypack transmitter

• Oscillation mode: PLL phase-locked frequency synthesis
• RF carrier ware range: 470-960MHz depends on regions
• Pickup gain: Adjustable gain
• Transmission power: 13dB
• Current drain: standard<130mA
• Display: LCD
• Cartridge mode: Condenser cardioid cartridge
