Sonicake Vexpress เอฟเฟคกีตาร์

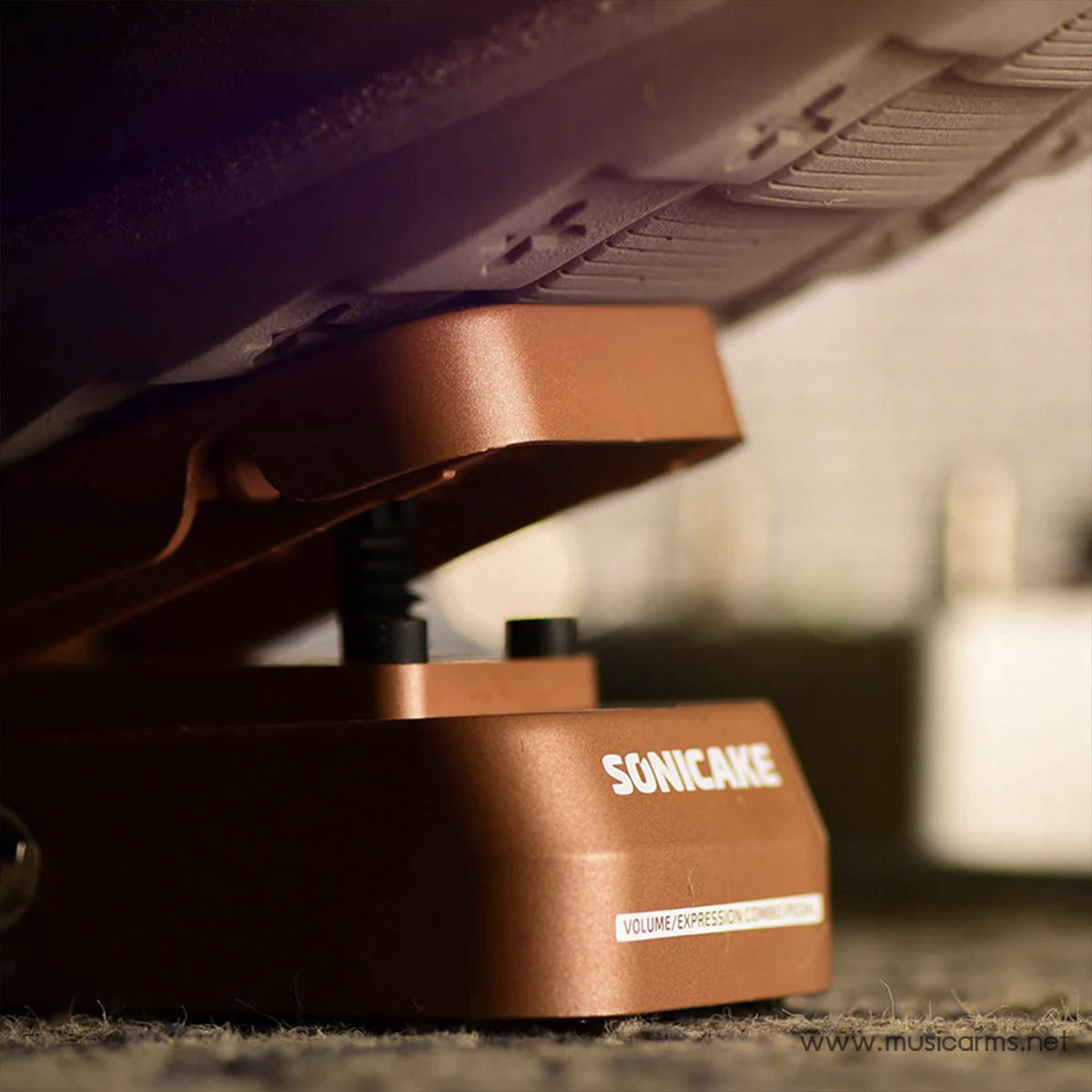

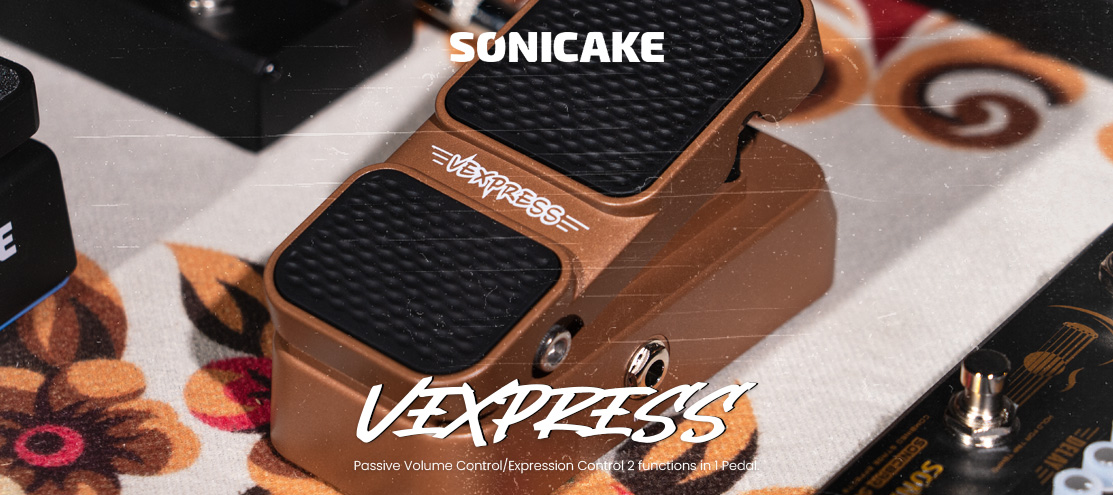

SONICAKE Expression Pedal Vexpress is a passive volume/expression pedal for those people who think that a full-size, expression pedal may be a little heavy, and simply took too much space on the pedal board.

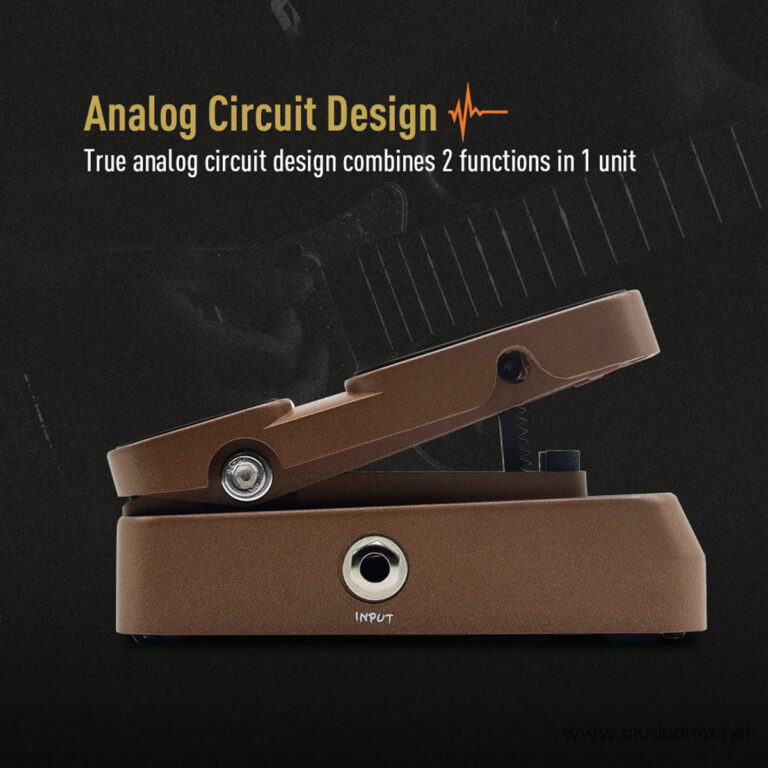

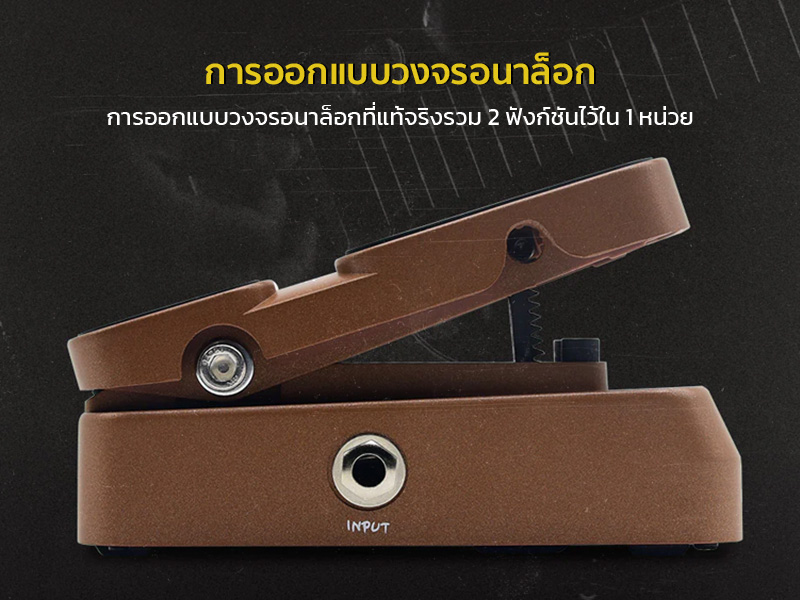

True analog circuit design combines 2 functions in 1 unit, a passive volume and an expression pedal.

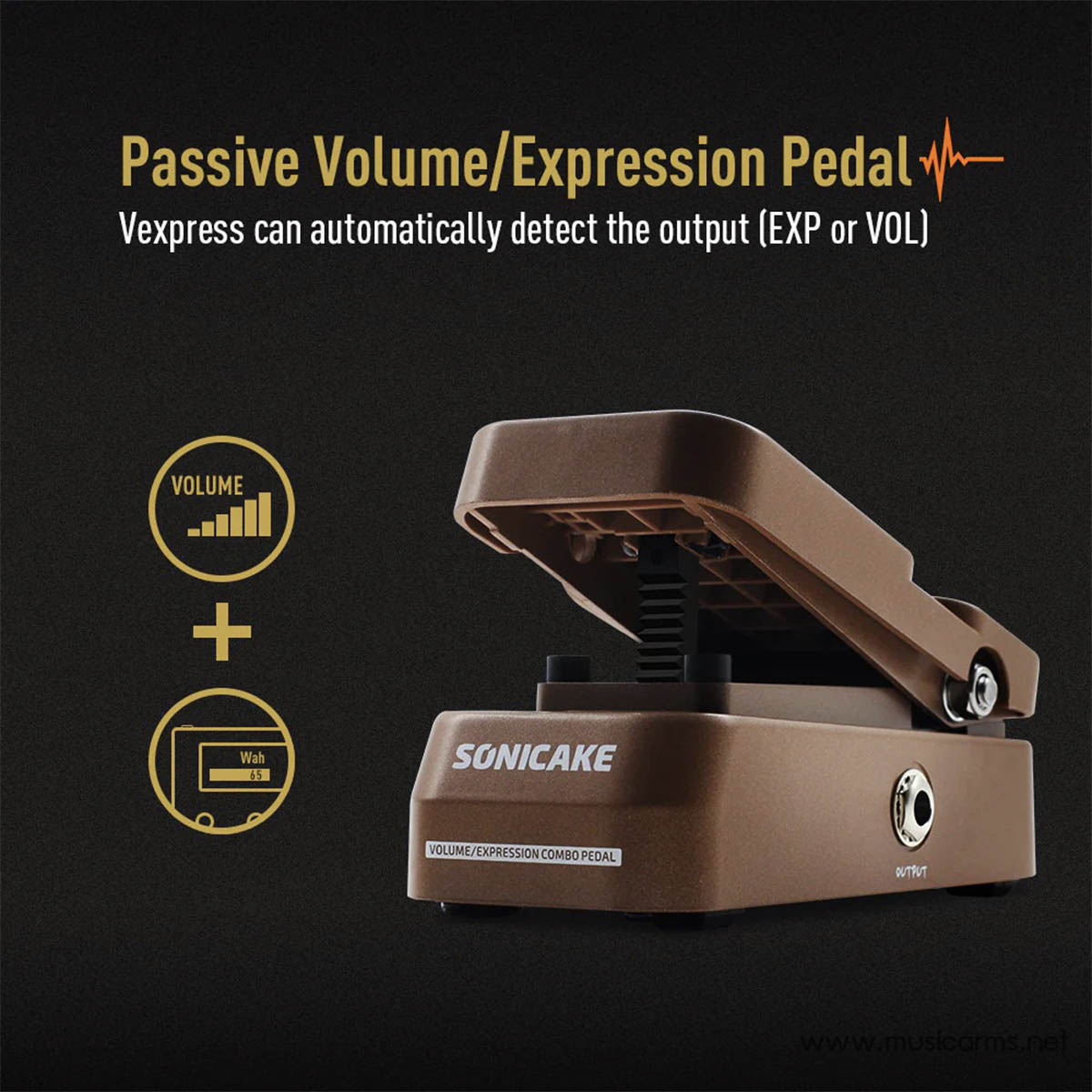

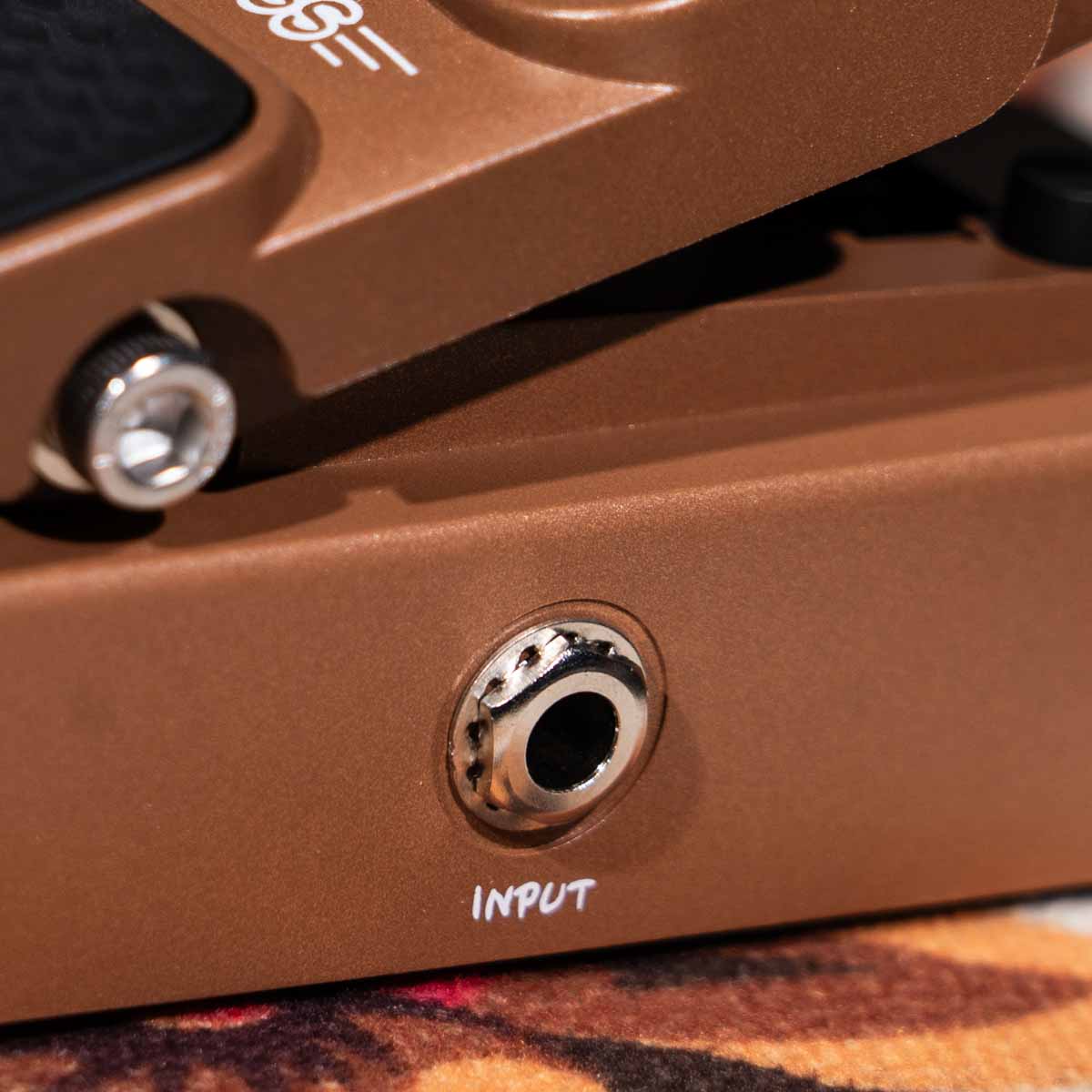

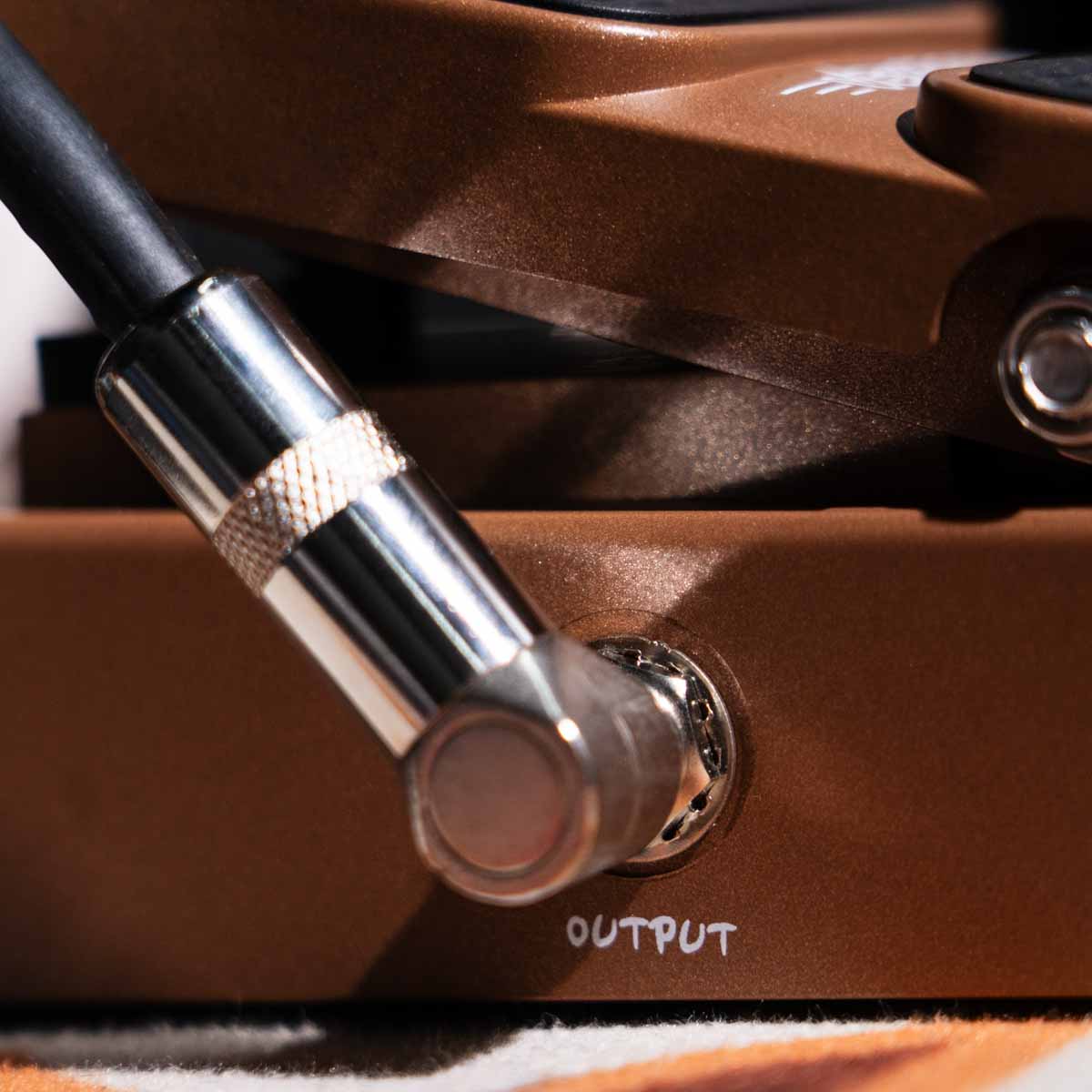

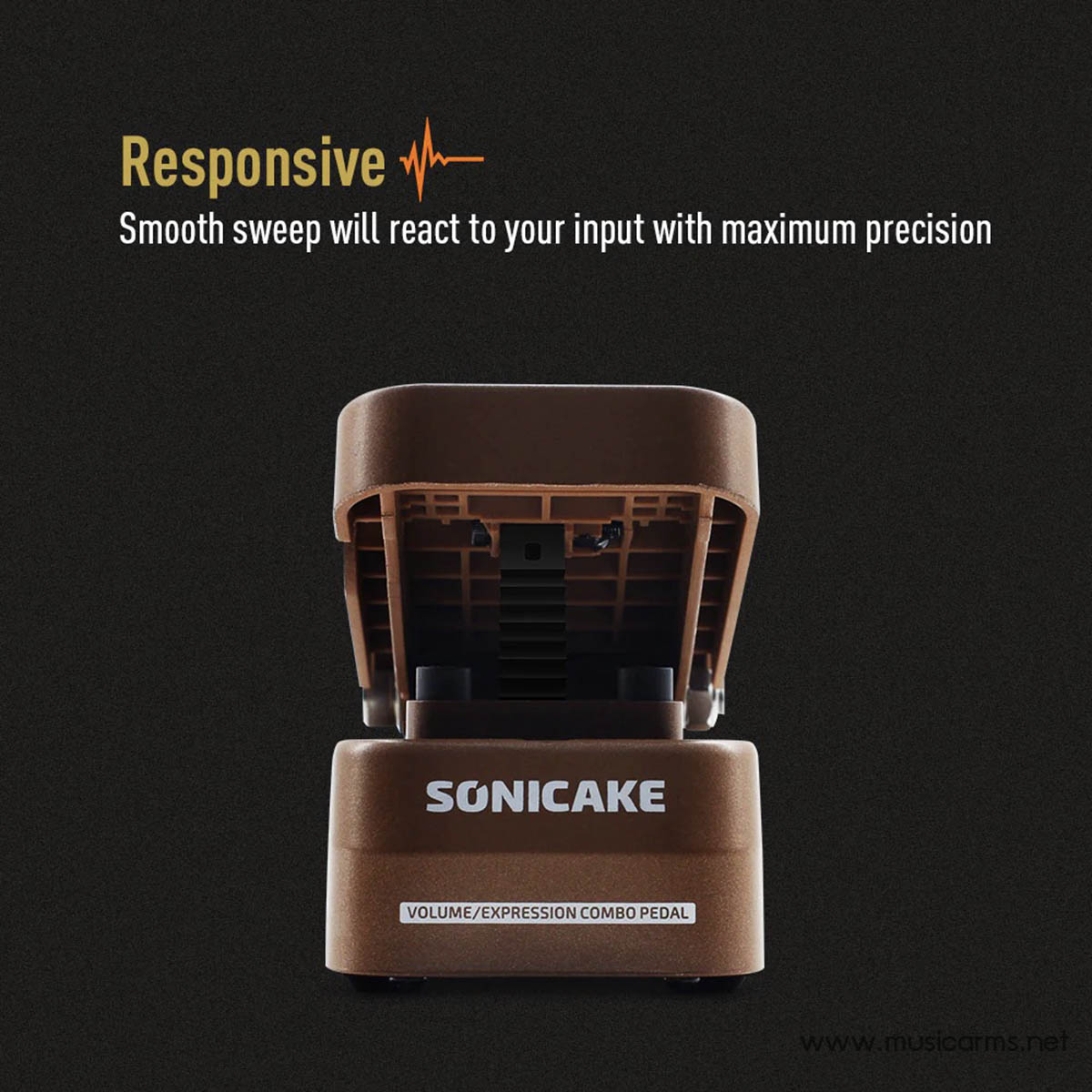

Vexpress can automatically detect and grab the output (EXP or VOL) objective. Smooth taper responds to various parameters with maximum precision. Used as a volume pedal, input jack in, output jack out, as usual. Used as an expression pedal, leave the input jack unconnected, and connect the output jack to the device with a stereo 1/4″ cable.

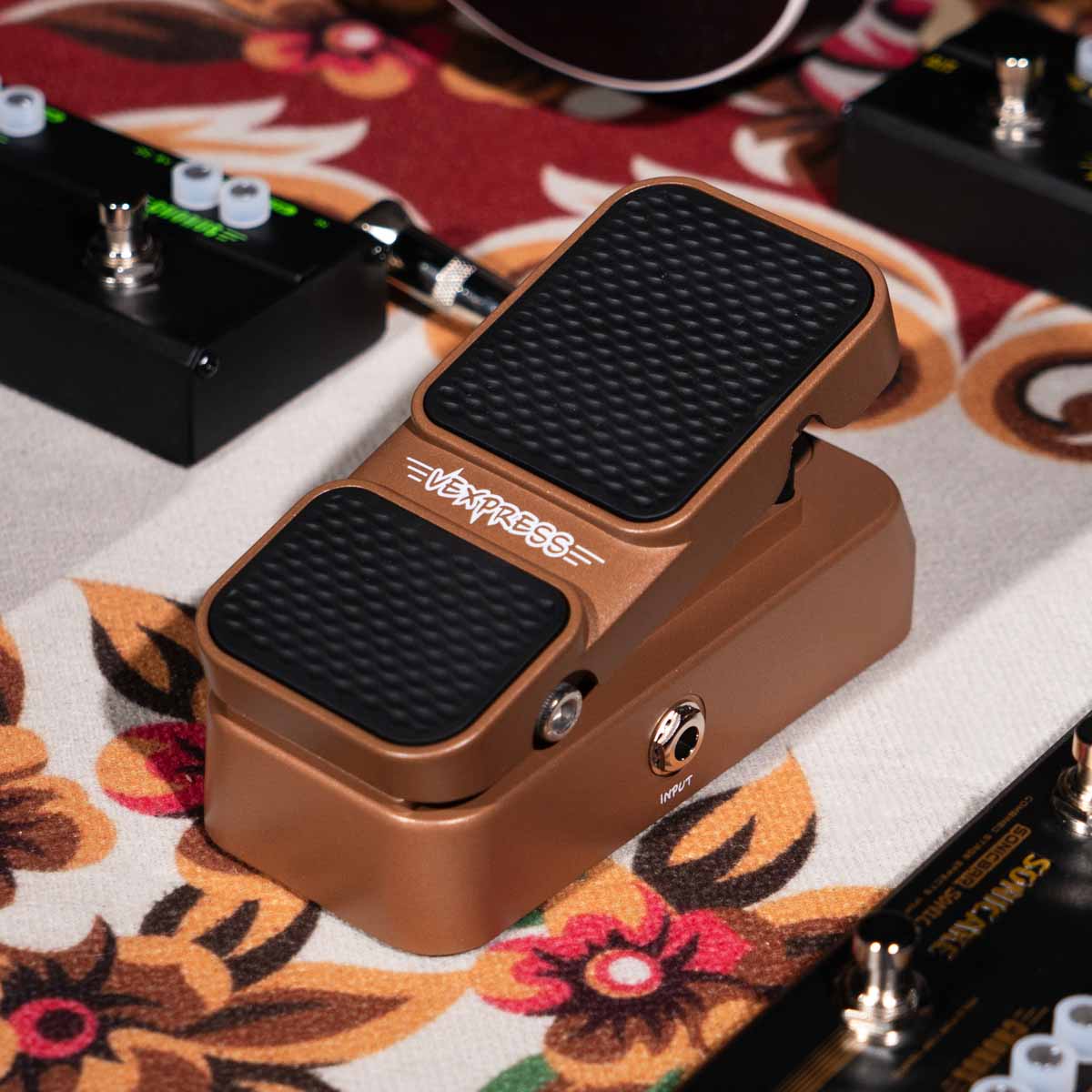

An extremely compact miniature size saves quite some space on your crowded pedal board.

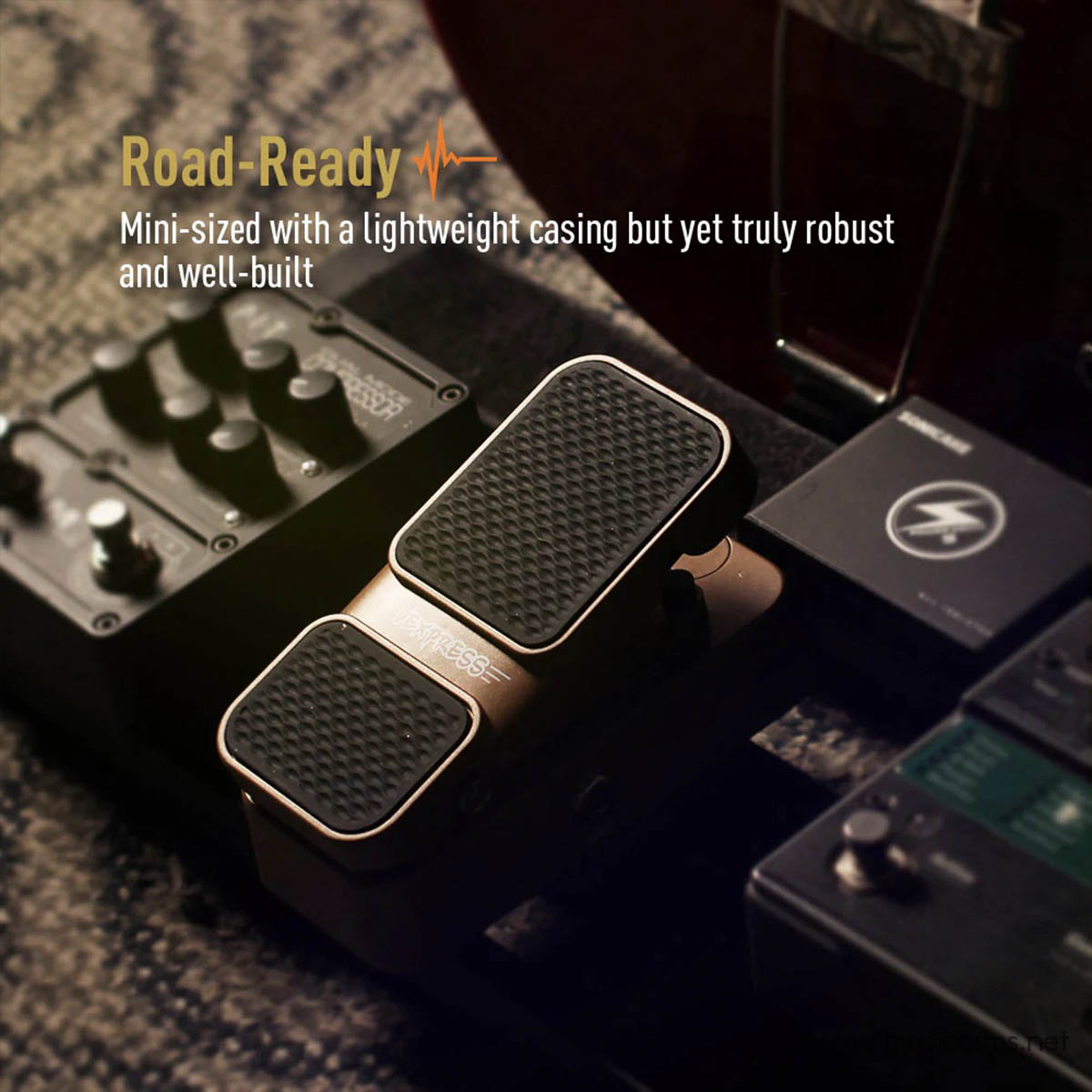

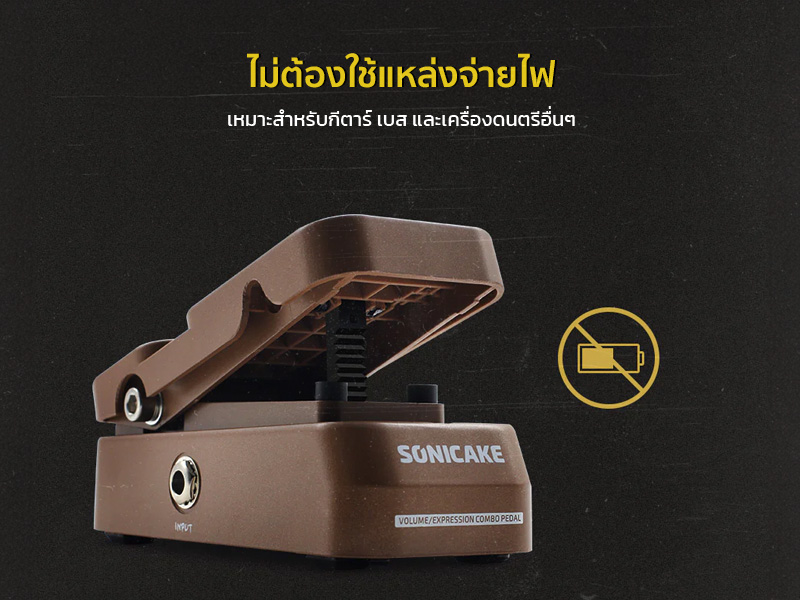

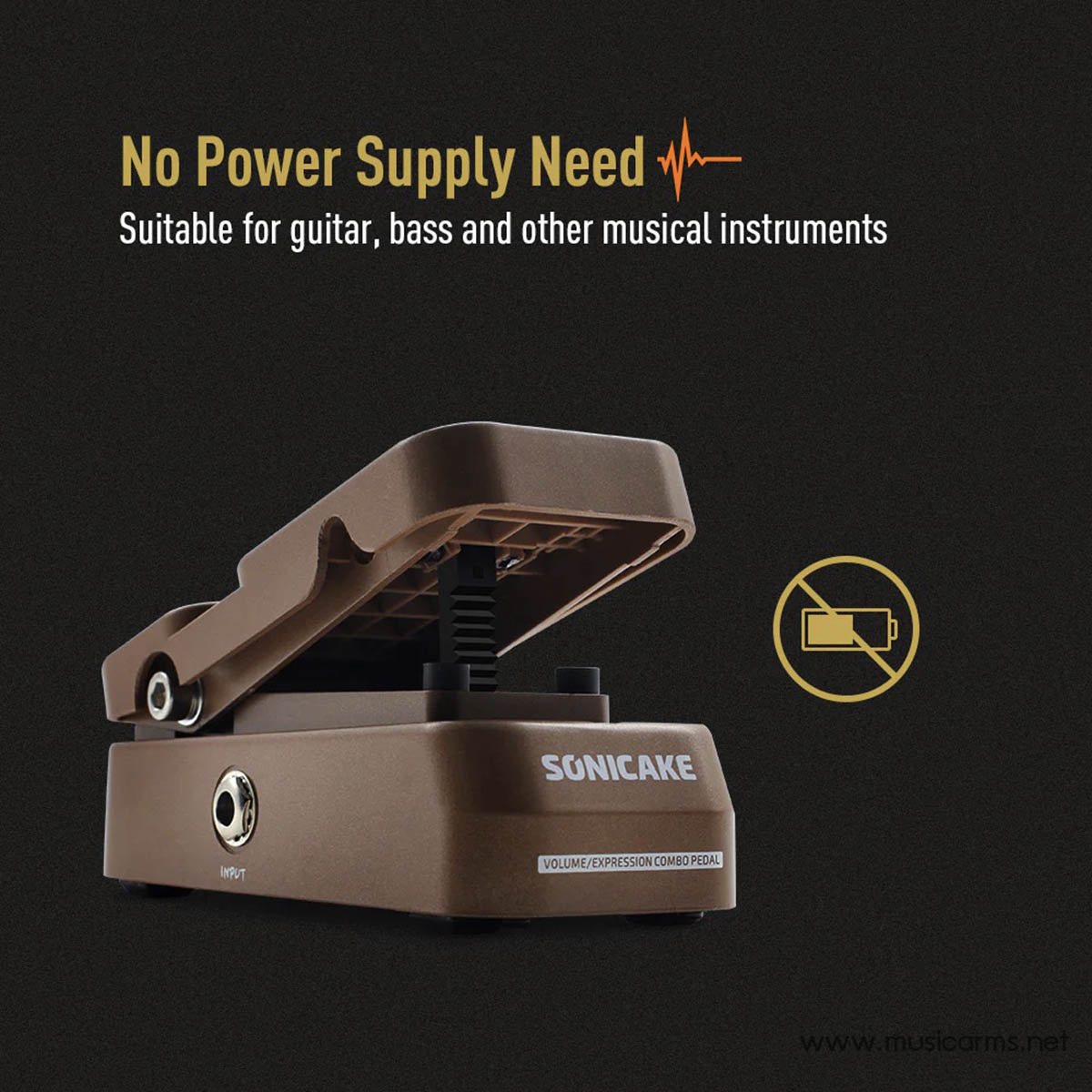

Working without battery or pedal power supply, it can be used in an extensive range with guitar, bass and other musical instruments. Made of hard plastic, lightweight casing, but yet very robust and well-built.

● Passive Volume Control/Expression Control 2 functions in 1 Pedal.

● Automatically Detect the Functionality (Volume or EXP Control).

● Working with Guitar, Bass, Keyboard, Synthesizer, Workstation, Controller, etc.

● Working without Battery or Pedal Power Supply.

● Lightweight & Comact Design for easy Taking it Anywhere.

Input impedance (Volume Mode): 100k Ohms
Pot Resistance (Expression Mode): 10k Ohms
Power: DC 9v center negative (not included)
Dimensions: 148.5(D)×65.5(W)×61(H)mm
Weight: 280g

User Manual
