Sonicake Matribox มัลติเอฟเฟค

Sonicake Matribox – Multi Effects

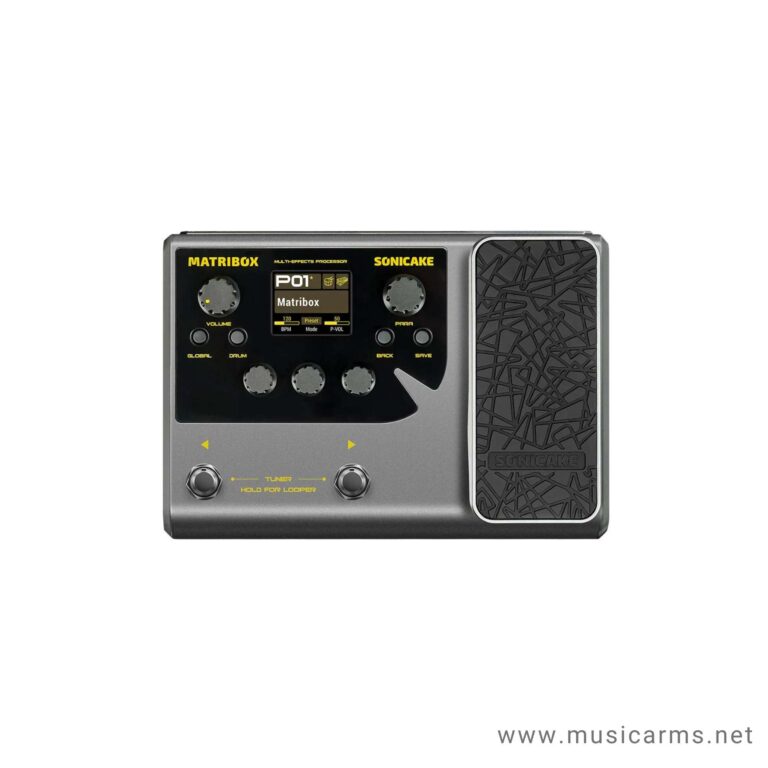

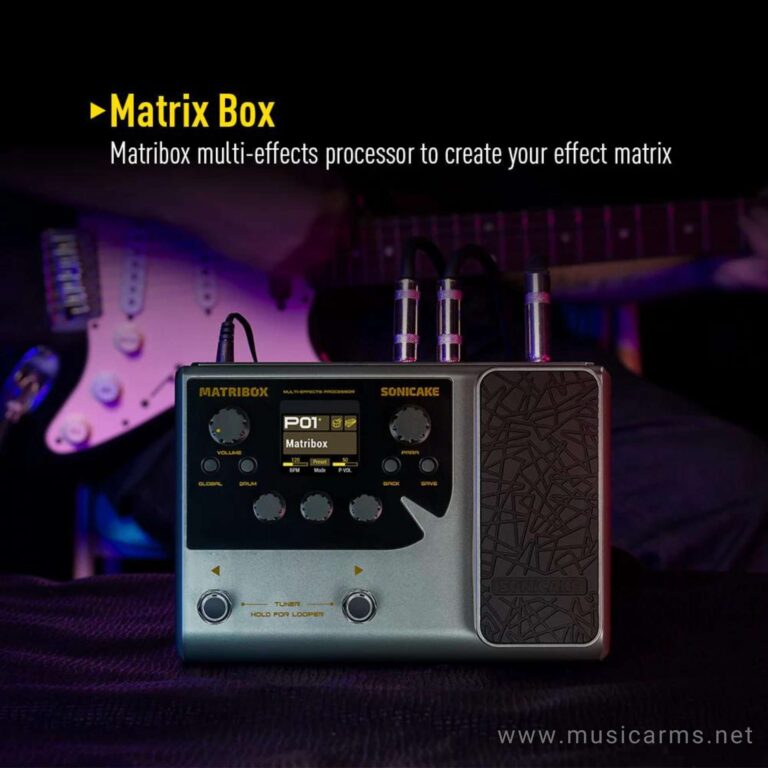

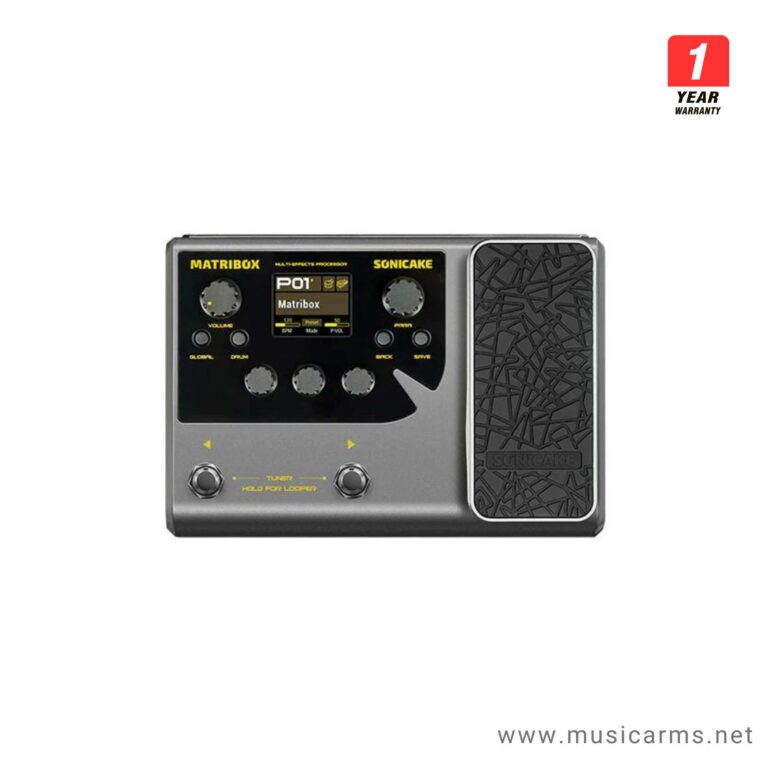

MATRIBOX is a compact multi-effects processor with potent circuit design and high quality digital effects. It contains 130+ various effects suitable for different musicians, whether you play electric guitar, acoustic guitar, bass, even keyboard, etc., it can make your playing sound more attractive.

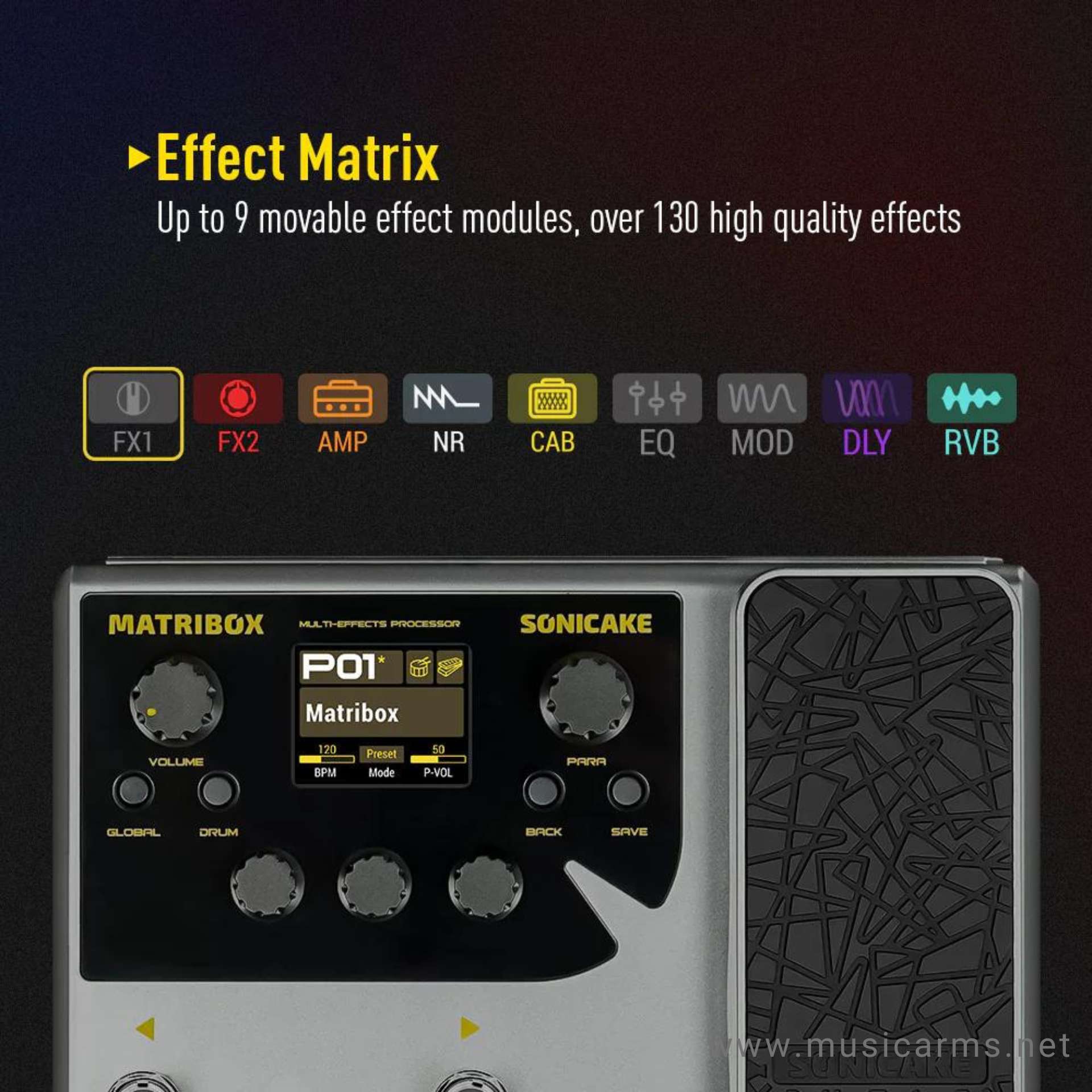

Matribox is more professional in the sound processing of electric guitar. The 40+ legendary amplifier models and more simulators based on classic effect pedals are all derived from white-box digital modeling technology. Every detail of the tone comes from real feedback from real electronic components. 9 movable effect modules to help you create your own effect matrix.

Features

• Excellent white-box digital modeling technology to create high-quality tone
• 24-bit 44.1kHz signal processing
• Over 130 high quality effects
• Editable effect chain
• 40 legendary guitar/bass/acoustic amp types
• 38 factory IR cabinets
• Supports storing 15 user IRs
• 50+ dynamic/drive/EQ/mod/delay/reverb effects
• USB audio interface function with stereo audio streaming
• Stompbox and preset modes for different situations
• 198 presets (99 factory, 99 user)
• High quality looper
• 100 high quality drum patterns
• Durable metal chassis and footswitches
• Built-in chromatic tuner
• Intuitive PC/Mac editor
• 1/4″ stereo outputs
• 1/8″ headphone output
• Stereo 1/8″ Aux Input

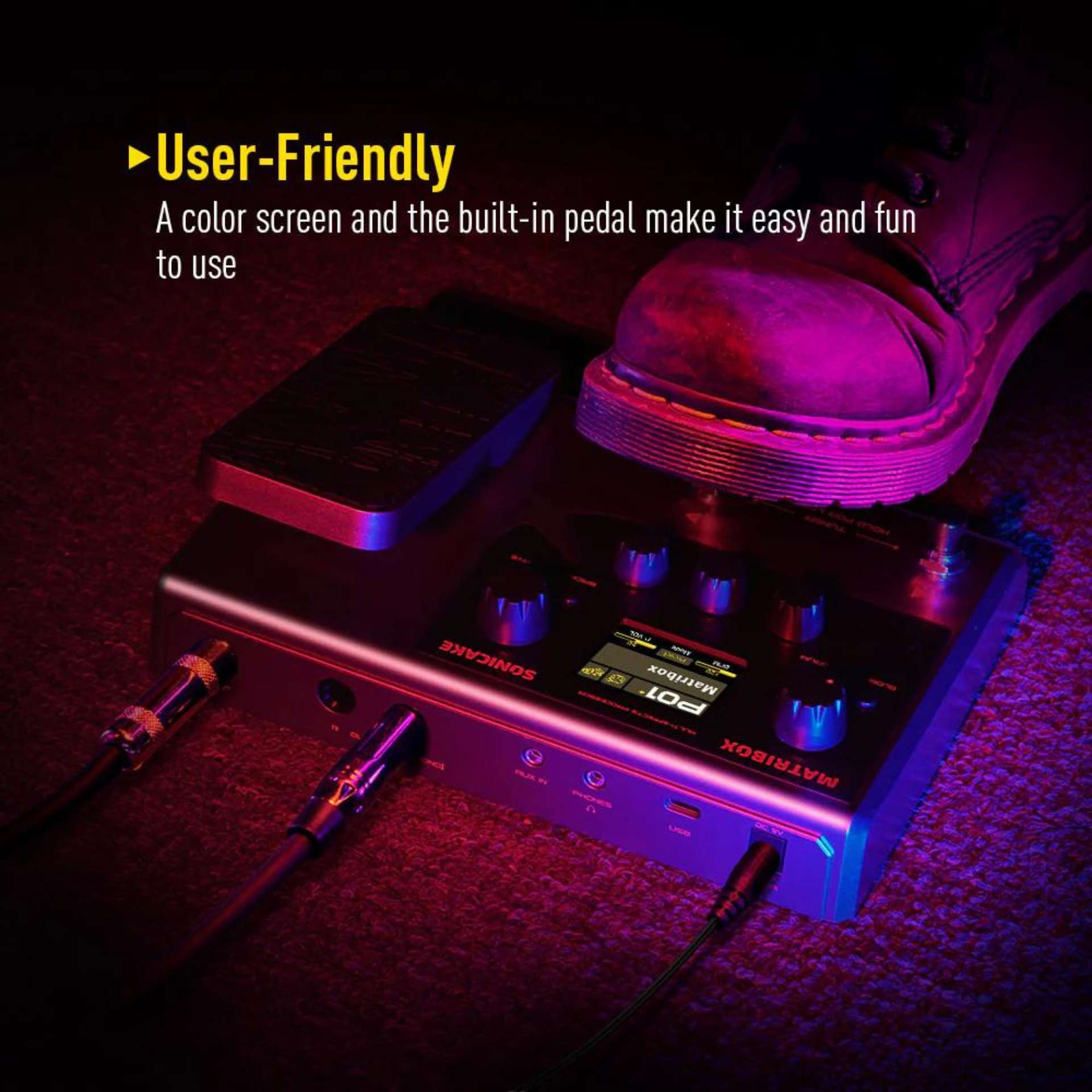

• Built-in expression pedal
• DC 9V power supply

Professional Effects and Amplifiers for Musicians

MATRIBOX comes with a diverse range of effects for electric guitars, basses, and acoustic guitars, totaling over 130 types. This allows musicians to create various and interesting sounds for different music styles with ease.

• The 40 legendary amplifier models enable users to access popular tones from music history, allowing them to simulate the distinctive sound of famous amps, which enhances the uniqueness of their performances.
• The carefully selected 38 IR (Impulse Response) cabinet simulations use IR technology to replicate the sound of real cabinets, providing high-quality sound suitable for all music genres. Additionally, this feature allows users to choose sounds that align with their preferences and playing styles.
• The 24-bit 44.1kHz signal processing ensures high and clear sound quality, making guitar or bass performances feel more natural. This processing can accurately capture subtle details of the sound, resulting in excellent quality for live performances or recordings.

Create Unique Sounds with White-Box Technology

The White-Box digital sound creation technology is an innovative approach that allows musicians to generate high-quality, natural-sounding tones. By simulating lively sounds and responding accurately to real electronic components, this technology enables musicians to easily craft unique and standout sounds.

The support for IR (Impulse Response) from third-party developers is an intriguing feature, as it allows musicians to use simulations from renowned amplifiers and microphones. With 15 user slots available, users can conveniently store and access their custom-created sounds. This opens up opportunities for experimentation and the creation of new sounds tailored to individual styles and preferences.

With the ability to create distinctive sounds, musicians can fine-tune their tones to meet specific needs, whether for live performances or studio recordings. This enhances the efficiency and creativity in music production, allowing artists to express themselves more fully through their work.

Professional Audio Connectivity

The USB audio interface included in the MATRIBOX is an incredibly useful feature for musicians and sound producers. It supports stereo audio streaming, allowing users to quickly and easily send high-quality sound to their computer or other devices.

The OTG (On-The-Go) function enables direct connection of the MATRIBOX to mobile devices, both iOS and Android. This means you can use the MATRIBOX as a sound recorder or playback device right away without relying on additional equipment. Furthermore, you can create and edit sounds directly on your mobile device, making it much more convenient and agile for musicians.

This feature is ideal for live performances, sound recording, or even creating music in a portable studio setup, providing musicians with greater flexibility and professionalism in their work.

Easily Create Sounds with MATRIBOX Software for Mac and Windows

MATRIBOX comes with free software for Mac and Windows that enables users to edit sounds and manage presets effectively. This software is designed to be user-friendly, allowing both beginner and professional musicians to quickly and easily access various features.

The sound editing capabilities within this software allow users to customize effects, amp sounds, and various settings according to their personal preferences. Users can save these changes as presets for convenient access in the future.

The preset management feature enables users to organize and store their created sounds systematically, making it easy to access desired sounds quickly during live performances or recording sessions.

These features enhance the overall experience of using the MATRIBOX, allowing users to easily create diverse and unique sounds.

Technical Specifications

A/D/A Converter: 24-bit high performance audio

Sampling Frequency: 44.1 kHz

SNR: 110dB

Maximum Simultaneous Effects: 9

Preset Memory: 99 User Presets/99 Factory Presets

Looper: 90 seconds of record time

Drum Machine: 100 Patterns

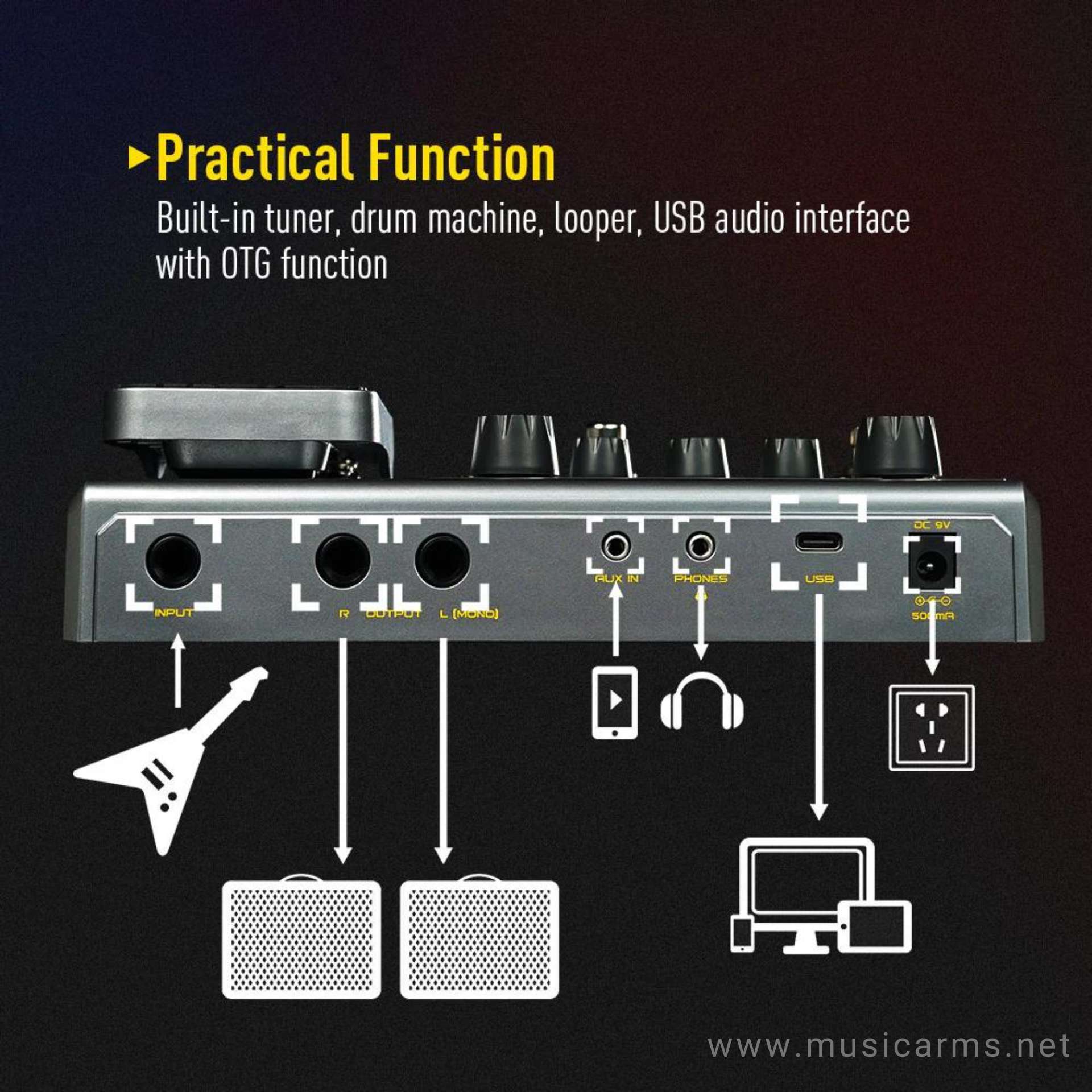

Analog Input Connections

• Guitar Input: 1/4” Unbalanced (TS), 1M Ohms
• Aux Input: 1/8” Stereo (TRS), 10k Ohms

Analog Output Connections

• Left/Right Outputs: 1/4” Unbalanced (TS), 1k Ohms
• Headphone Output: 1/8” Stereo (TRS), 47 Ohms

Digital Connections

• USB Port: USB 2.0 Type-C Port

USB Recording Specification

• Sample Rate: 44.1 kHz
• Bit Depth: Supports 16-bit or 24-bit

Size and Weight

• Dimensions: 200mm (W) x 137.5mm (D) x 53.6mm (H)
• Unit Weight: 732g

Power

• Power Requirements: DC 9V center negative, 500mA

Software

Matribox Software V1.0.2 for Mac

Matribox Software V1.0.2 for Windows

Firmware

Matribox Firmware V1.0.4.zip

Manual

Matribox Manual

Driver

Sonicake USB ASIO Driver V5.41.2

ข้อมูลจำเพาะทางเทคนิค

ตัวแปลง A/D/A: เสียงคุณภาพสูง 24 บิต

ความถี่ในการสุ่มสัญญาณ: 44.1 kHz

อัตราส่วนสัญญาณต่อสัญญาณรบกวน (SNR): 110dB

เอฟเฟกต์สูงสุดที่ใช้งานพร้อมกัน: 9

หน่วยความจำพรีเซ็ต: พรีเซ็ตผู้ใช้ 99 รายการ / พรีเซ็ตโรงงาน 99 รายการ

ลูปเปอร์: เวลาบันทึก 90 วินาที

เครื่องกลอง: 100 รูปแบบ

การเชื่อมต่ออินพุตแบบแอนะล็อก

• อินพุตกีตาร์: 1/4” Unbalanced (TS), 1M Ohms
• อินพุต Aux: 1/8” Stereo (TRS), 10k Ohms

การเชื่อมต่อเอาต์พุตแบบแอนะล็อก

• เอาต์พุตซ้าย/ขวา: 1/4” Unbalanced (TS), 1k Ohms
• เอาต์พุตหูฟัง: 1/8” Stereo (TRS), 47 Ohms

การเชื่อมต่อแบบดิจิทัล

• พอร์ต USB: USB 2.0 Type-C

สเปคการบันทึกผ่าน USB

• อัตราการสุ่มสัญญาณ: 44.1 kHz
• ความลึกของบิต: รองรับ 16 บิต หรือ 24 บิต

ขนาดและน้ำหนัก

• ขนาด: 200 มม. (กว้าง) x 137.5 มม. (ลึก) x 53.6 มม. (สูง)
• น้ำหนัก: 732 กรัม

พลังงาน

• ข้อกำหนดการใช้พลังงาน: DC 9V ศูนย์ลบ, 500mA
