Description

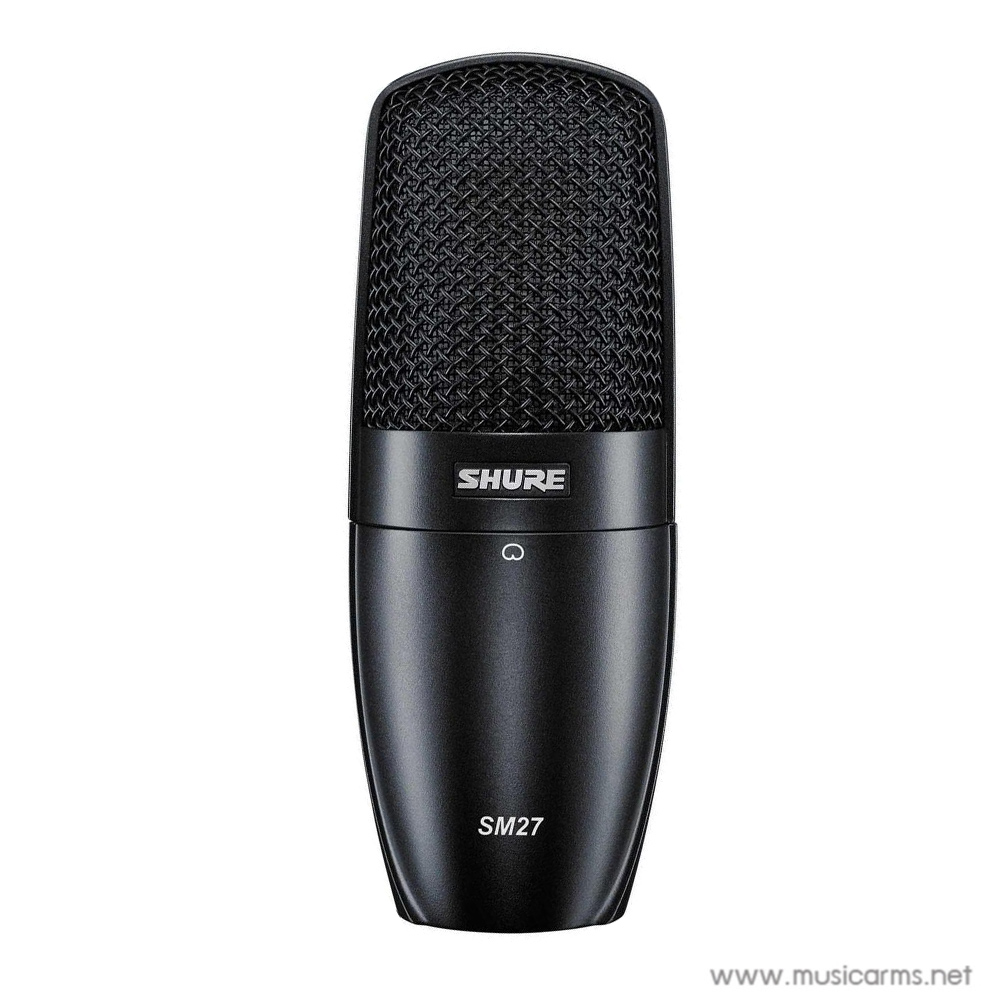

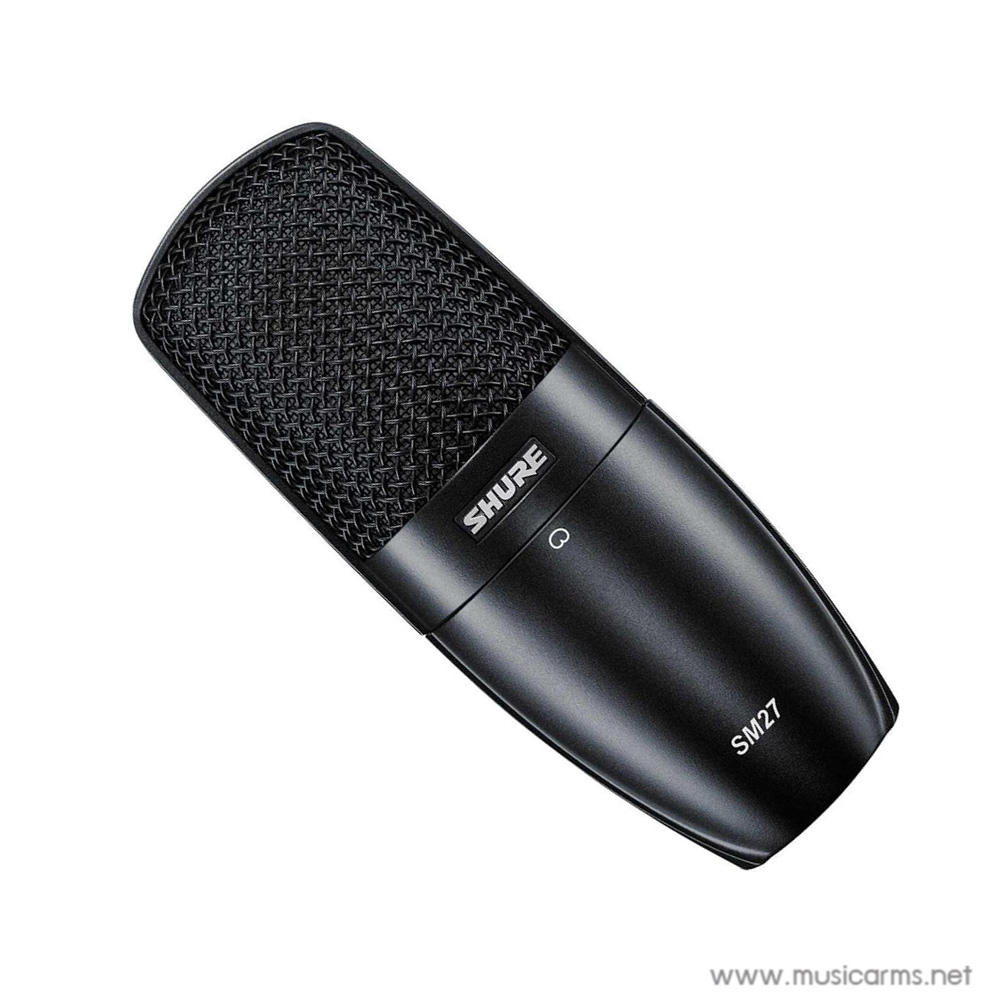

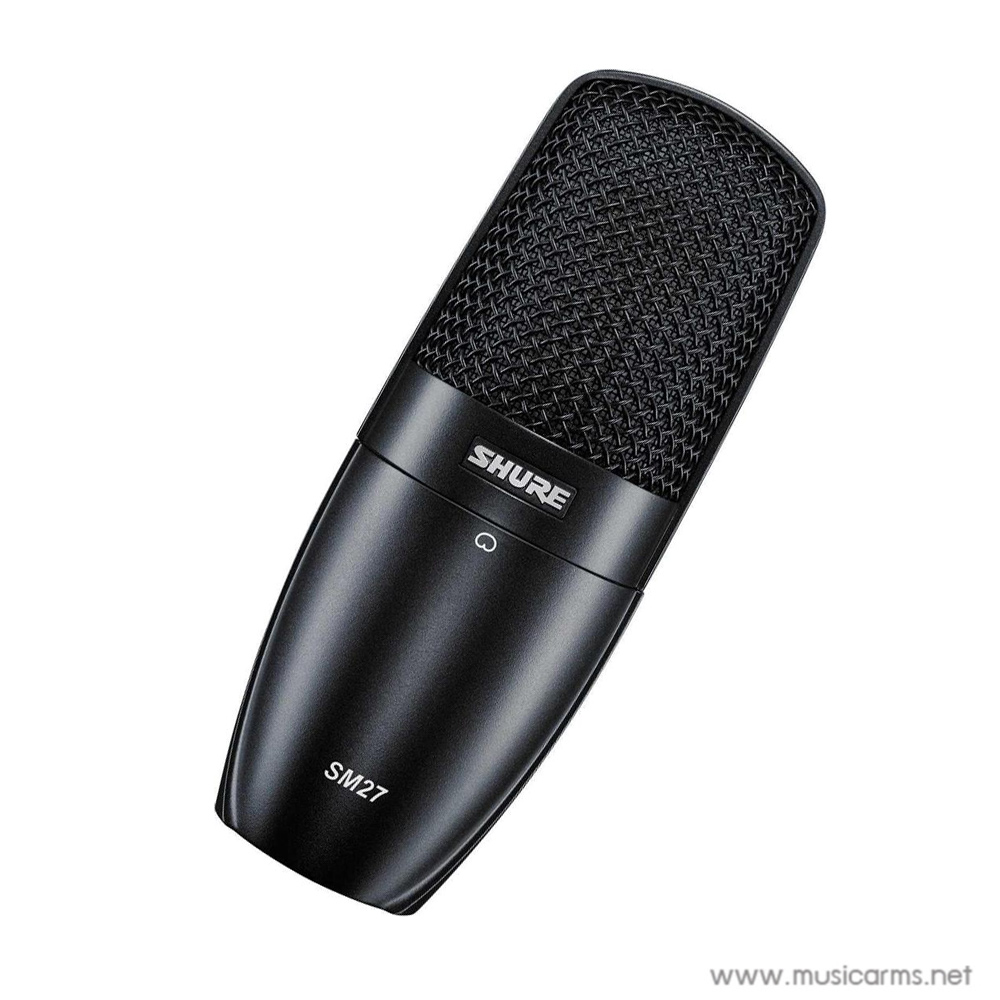

Shure SM27 – Professional Large Diaphragm Condenser Microphone
Cardioid large diaphragm condenser microphone delivers exceptional stage and studio performance applications. Features include a preamplifier for transparency, switchable low-frequency filter, and a -15dB switchable attenuator for SPL versatility.
It’s ideal for both professional vocal and instrument use such as lead and ensemble vocals, acoustic guitar, strings, cymbals, woodwind and saxophone. The latest addition to the SM family is equally as comfortable on stage or in the studio.
What are the characteristics of the SM27?
The SM27 has a flat, neutral frequency response and very low self noise for a natural reproduction of the sound source. It includes a 3-position switchable low frequency filter which helps reduce unwanted background noise or counteract proximity effect and a -15db switchable attenuator for added versatility.
- Flat, neutral frequency response and very low self noise for natural reproduction
- Class-A transformerless preamplifier for transparency, extremely fast transient response and no crossover distortion
- 3-position switchable low-frequency filter helps reduce unwanted background noise or counteract proximity effect
- -15dB switchable attenuator for additional SPL versatility
- Internal shock mount reduces handling noise
- Three separate mesh layers reduces wind and breath noise
- Includes a stand adapter and a zippered pouch
- 1 – A32M ShureLock™ Black Swivel Adapter
Specification
Type : Condenser (externally biased)
Frequency Response : 20 to 20,000 Hz
Polar Pattern : Cardioid
Output Impedance : 140 Ω
Sensitivity at 1kHz,open circuit voltage : -37 dBV/Pa[1]
Maximum SPL – 1 kHz at 1% THD[2]
| 2500 Ω load | 138 dB (152 dB, PAD ON) |
| 1000 Ω load | 133 dB (147 dB, PAD ON) |
Signal-To-Noise Ratio[3] : 84.5 dB
Dynamic Range- at 1kHz
| 2500 Ω load | 128 dB |
| 1000 Ω load | 123 dB |
Common Mode Rejection – 20 Hz to 20 kHz : >50 dB
Clipping Level -20 Hz to 20 kHz, at 1% THD
| 2500 Ω load | 7 dB |
| 1000 Ω load | 1 dB |
Self Noise – equivalent SPL, A-weighted, typical : 9.5 dB
Polarity : Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight : 642 g(22.6 oz.)

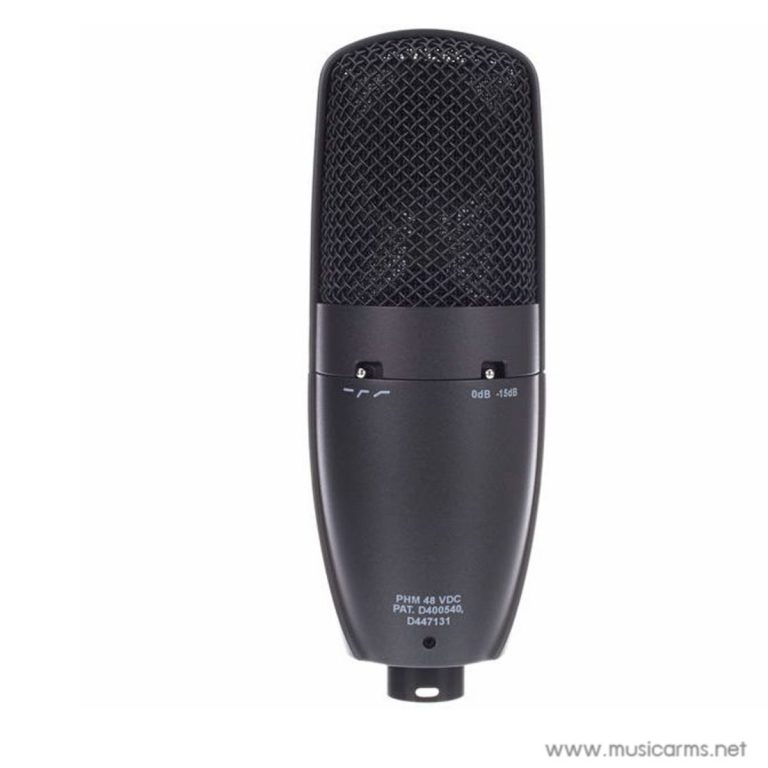

Switch
| Attenuator Switch | -15 dB |
| LOWFrequency Response | Flat, –6 dB/octave below 115 Hz, or –18 dB/octave below 80 Hz |

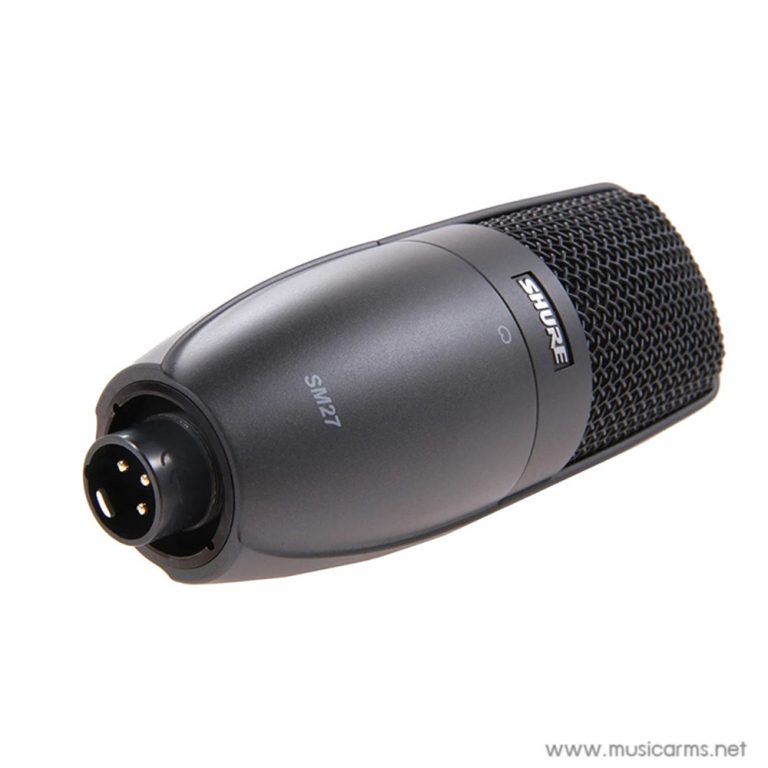

Connector : Three-pin professional audio (XLR), male, balanced
Power Requirements : 48 V DCphantom power, 5.4 mA
[1] 1 Pa=94 dB SPL
[2] THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL
[3] S/N ratio is the difference between 94 dB SPL and equivalent SPL of self-noise, A-weighted
Typical Frequency Response
Typical Polar Patterns
