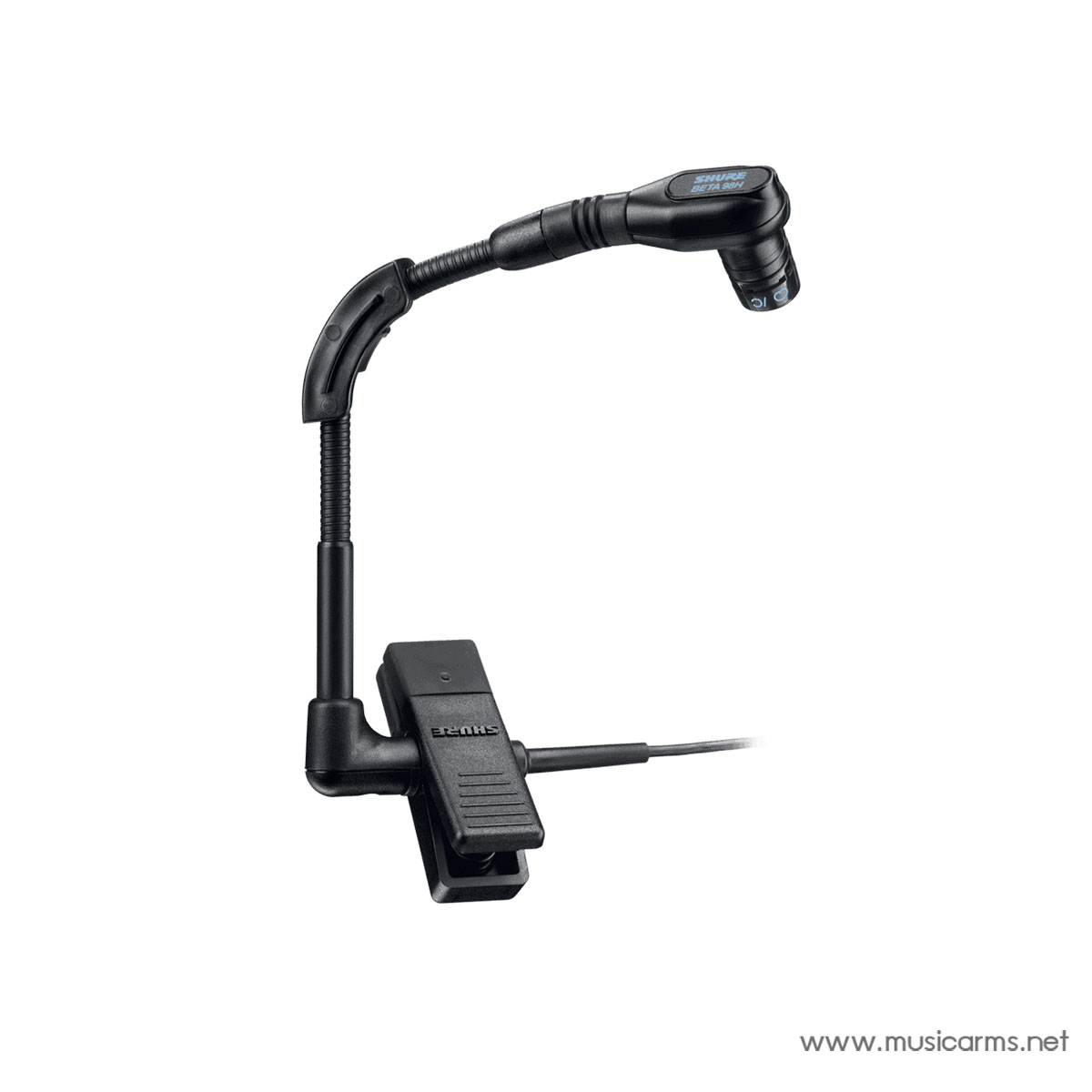

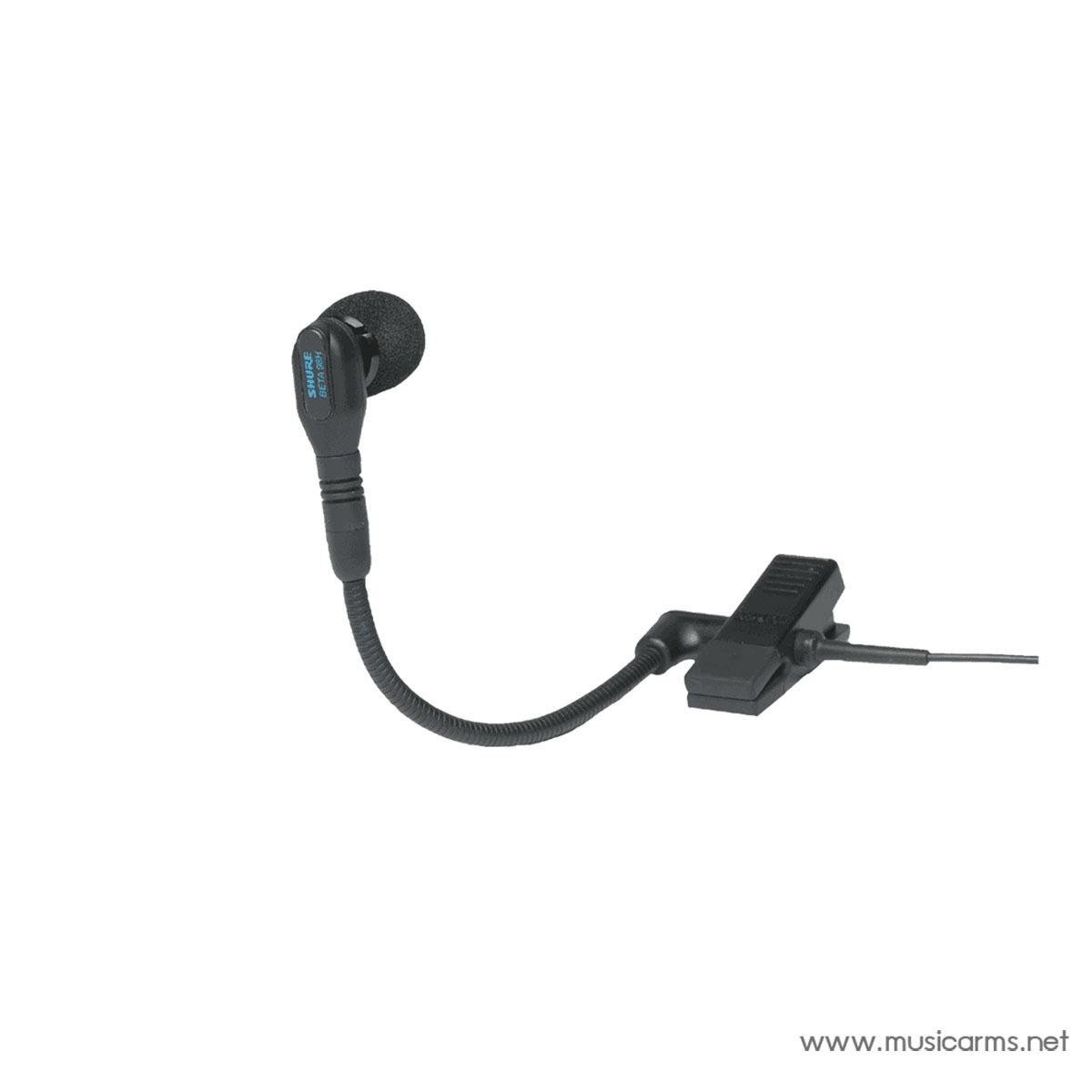

Shure Beta 98H/C-X

The Beta 98H / C operates with a transformerless preamplifier circuitry for better linearity over the entire transmission range, thomann while the cardioid polar pattern provides high feedback-resistant gains and an excellent suppression of unwanted subsonic noises. The high maximum sound pressure level makes it possible to meet the extreme requirements of brass, woodwind and percussion instruments.

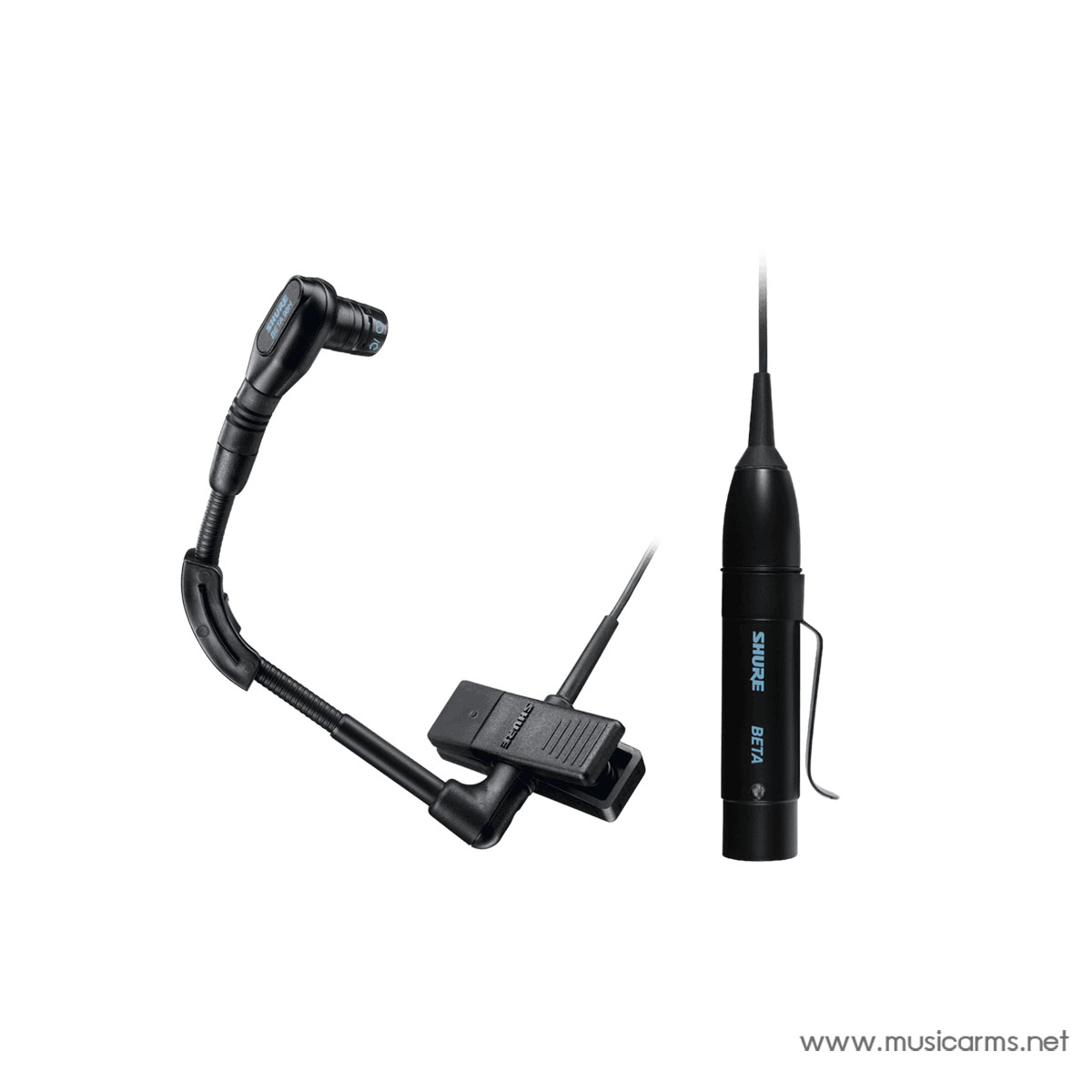

The Beta 98H / C comes with a latching windscreen, a thomann case and a swan neck fixation. The preamplifier can be operated with any 11 – 52 volt phantom power.

Specifications

• Type: Condenser (electret bias)
• Polar Pattern: Unidirectional (cardioid)
• Frequency Response: 20 to 20,000 Hz
• Output Impedance: 1200 ohms
• Output Level (0 dB = 1 volt per Pascal): Open Circuit Voltage: -56.5 dB (1.5 mV)
• Output Clipping Level (at 1kHz, THD < 1%): -9 dBV (0.35 V)
• Maximum SPL: 143.5 dB
• Dynamic Range: 112.5 dB
• Signal-to-noise Ratio: 63 dB at 94 dB SPL (IEC 651)
• Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground).
• Weight: 2.3 ounces
