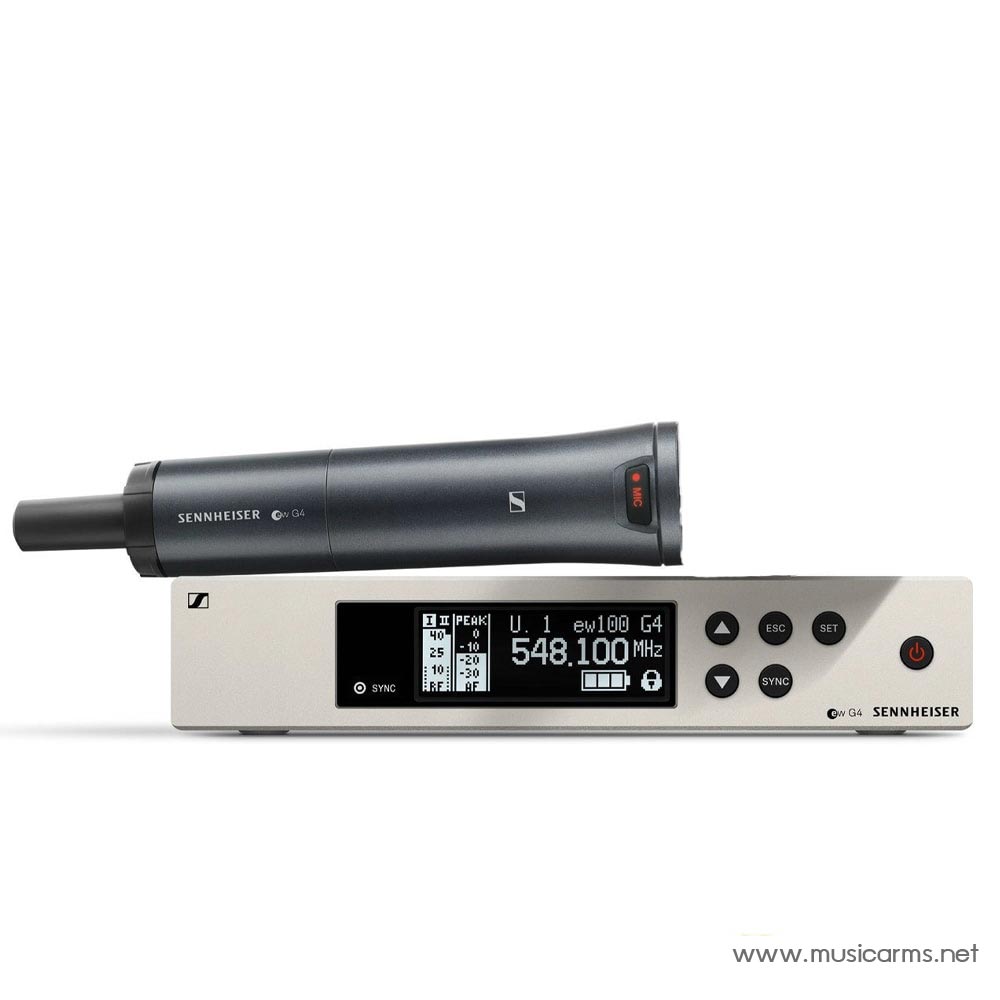

Sennheiser EW 100 BASE SKM-S-C-TH 100 G4 ไวเลสไมโครโฟน

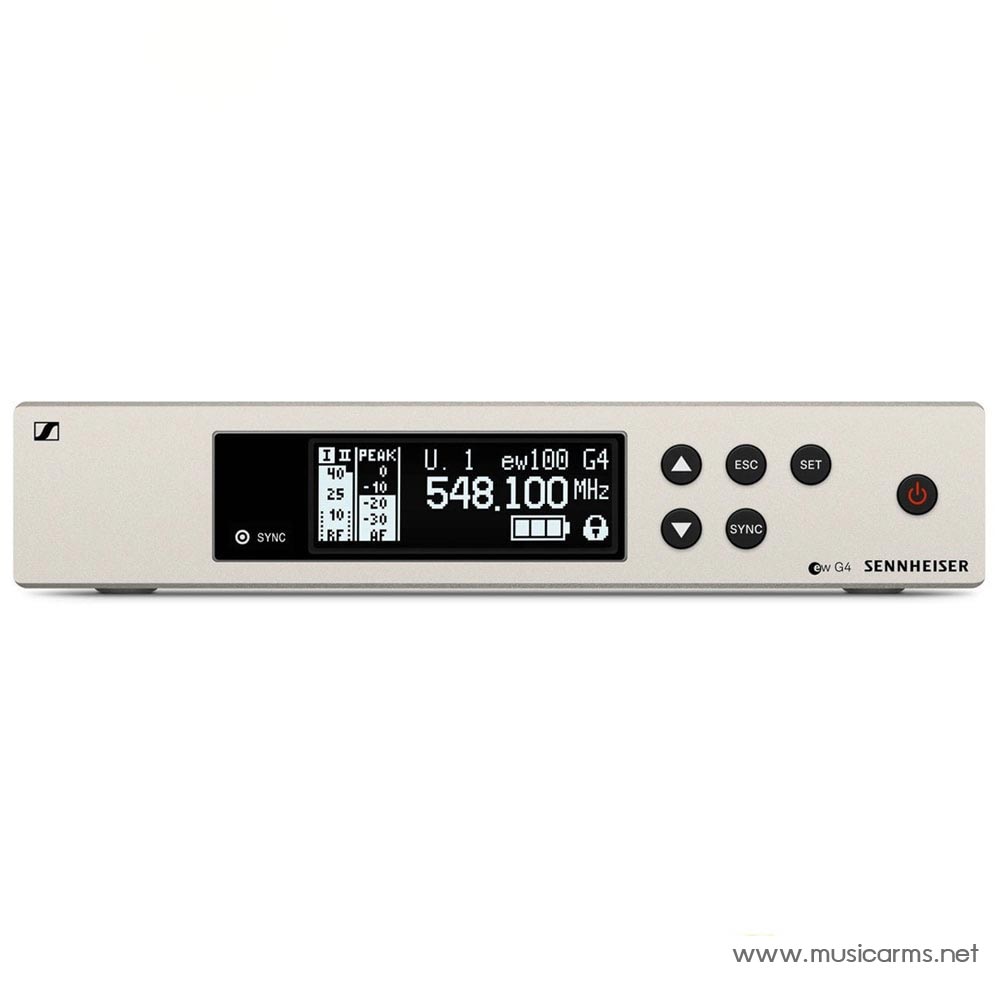

EW 100 G4

• FREQUENCY RANGE

  A1: 470 – 516 MHZ

  A: 516 – 558 MHZ

  AS: 520 – 558 MHZ

  GB: 606 – 648 MHZ

  G: 566 – 608 MHZ

  B: 626 – 668 MHZ

  C: 734 – 776 MHZ

  D: 780 – 822 MHZ

  E: 823 – 865 MHZ

  1G8: 1785 – 1800 MHZ

  JB: 806 – 810 MHZ

  K+: 925 – 937,5 MHZ

• DIMENSIONS

  APPROX. 190 X 212 X 43 MM

• COMPANDER

  SENNHEISER HDX

• THD, TOTAL HARMONIC DISTORTION

  ≤ 0.9 %

• WEIGHT

  APPROX. 980 G

• AUDIO OUTPUT

  6.3 MM JACK SOCKET (UNBALANCED): +12 DBU

  XLR SOCKET (BALANCED): +18 DBU

• SIGNAL-TO-NOISE RATIO

  ≥ 110 DBA

• SWITCHING BANDWIDTH

  UP TO 42 MHZ

• PEAK DEVIATION

  ±48 KHZ

• NOMINAL DEVIATION

  ±24 KHZ

• MODULATION

  WIDEBAND FM

• POWER SUPPLY

  12 V DC

• ANTENNA CONNECTOR

  2 BNC SOCKETS

• CURRENT CONSUMPTION

  300 MA

• ADJACENT CHANNEL REJECTION

  TYPICALLY ≥ 65 DB

• INTERMODULATION ATTENUATION

  TYPICALLY ≥ 65 DB

• RECEIVING FREQUENCY

  MAX. 1680 RECEIVING FREQUENCIES, ADJUSTABLE IN 25 KHZ STEPS 20 FREQUENCY BANKS, EACH WITH UP TO 12 FACTORY-PRESET CHANNELS, NO INTERMODULATION 1 FREQUENCY BANK WITH UP TO 12 PROGRAMMABLE CHANNELS

• RF SENSITIVITY

  < 2.5 ΜV FOR 52 DBA EFF S/N

• SQUELCH

  LOW: 5 DBΜV MIDDLE: 15 DBΜV HIGH: 25 DBΜV

• EQUALIZER

  PRESET 1: FLAT

  PRESET 2: LOW CUT (-3 DB AT 180 HZ)

  PRESET 3: LOW CUT/HIGH BOOST (-3 DB AT 180 HZ, +6 DB AT 10 KHZ)

  PRESET 4: HIGH BOOST (+6 DB AT 10 KHZ)

• TEMPERATURE RANGE

  -10 °C TO +55 °C

• RECEIVER PRINCIPLE

  TRUE DIVERSITY

• BLOCKING

  ≥ 70 DB

SKM 100 G4-S

• DIMENSIONS

  APPROX. Ø 50 X 265 MM

• COMPANDER

  SENNHEISER HDX

• THD, TOTAL HARMONIC DISTORTION

  ≤ 0.9 %

• WEIGHT

  (INCL. BATTERIES) APPROX. 450 G

• SIGNAL-TO-NOISE RATIO

  ≥ 110 DBA

• RF OUTPUT POWER

  MAX. 30 MW

• SWITCHING BANDWIDTH

  UP TO 42 MHZ

• PEAK DEVIATION

  ±48 KHZ

• NOMINAL DEVIATION

  ±24 KHZ

• OPERATING TIME

  TYPICALLY 8 H

• MODULATION

  WIDEBAND FM

• POWER SUPPLY

  2 AA BATTERIES, 1.5 V OR BA 2015 ACCUPACK

• CURRENT CONSUMPTION

  AT NOMINAL VOLTAGE: TYP. 180 MA

  WITH TRANSMITTER SWITCHED OFF: ≤ 25 ΜA

• INPUT IMPEDANCE

  40 KΩ

• MAX. INPUT VOLTAGE

  3 VEFF

• POWERING

  3 V BATTERY / 2.4 V RECHARGEABLE BATTERY

• TRANSMISSION FREQUENCY

  MAX. 1680 TRANSMITTING FREQUENCIES, ADJUSTABLE IN 25 KHZ STEPS 20 FREQUENCY BANKS, EACH WITH UP TO 12 FACTORY-PRESET CHANNELS, NO INTERMODULATION 1 FREQUENCY BANK WITH UP TO 12 PROGRAMMABLE CHANNELS

• AF FREQUENCY RESPONSE

  80 – 18,000 HZ

• TEMPERATURE RANGE

  -10 °C TO +55 °C

• FREQUENCY STABILITY

  ≤ ±15 PPM
