Rupert Neve Designs R6 Six Space 500-Series Rack

Rupert Neve Designs R6 will help you hear the full potential of your modules. The headroom in available current helps prevent the power rails from falling under a higher than expected load. LED metering shows you how much power is being used and the internal power supply has been designed with double shielding to avoid significant magnetic induction in any of the channel positions.

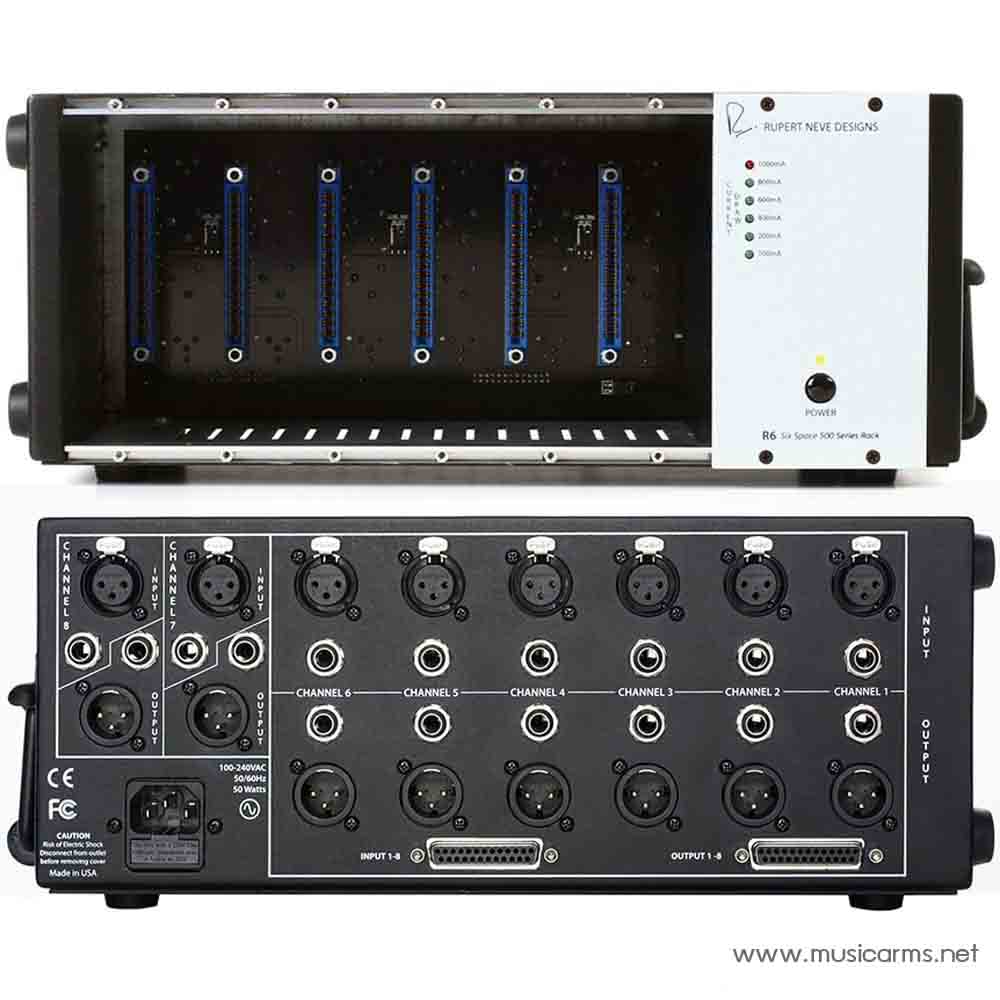

The solid steel chassis has a collapsible handle for portability. The unit offers a total of eight balanced I/O channels with interchangeable TRS, XLR, and DB-25 connections with a 48V phantom power bus. The channel 7-8 thru connections can be used as a way to quickly and easily convert your signal from and to DB-25, XLR, and TRS connectors.

To accommodate 500 series modules that are slightly out of spec, the unit has variable-position screw holes to make the installation process go more smoothly. A 500 series link function can be enabled in pairs using the link jumpers on channels 1-2, 3-4, or 5-6. Matching blank panels are also available to cover any empty slots.

• 150% Available Current for Six Spaces
• Eight Channels
• LED Power Metering
• Double Shielded PSU to Manage Induction
• Balanced DB-25, XLR, and TRS Connections
• Versatile Interchangeable
• THRU Functionality on Channels 7-8
• Solid Steel Construction
• Collapsible Handle
• Variable Position Crew Holes
