Roland RD-2000 EX

Keyboard Section

Keyboard

• PHA-50 Keyboard: Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel (88 keys)

Sound Generator Section

Sound Generator

• 2x Independent Sound Engines
• Sound Engine1: V-Piano Technology
• Sound Engine2: SuperNATURAL
• SuperNATURAL Piano
• SuperNATURAL (E.Piano, Clav)
• Virtual Tone Wheel Organ
• PCM Sound Generator

Max. Polyphony

• V-Piano Technology Sound Engine: Full Polyphony
• SuperNATURAL Sound Engine: 128 voices

Parts

• 16 parts (Max 8 parts are used in the PROGRAM )

Tones

1,100 tones Over

Program

300

Scene

100

Effects

• Modulation FX: 4 systems, 62 types
• Tremolo/Amp Simulator: 4 systems, 6 types
• Reverb: 6 types
• Delay: 5 types
• Sympathetic Resonance (Only for SuperNATURAL Piano)
• 3-band Compressor
• 5-band Digital Equalizer

Audio File Player

File Format

• Audio Files

(WAV format, 44.1 kHz, 16-bit linear)

Recorder Section

• File Format

Audio Files (WAV format, 44.1 kHz, 16-bit linear)

• External Storage Device

USB Flash drive (sold separately)

Other

Rhythm Pattern

• 200 patterns

Controllers

• Slider x 9 (with illumination)
• Knobs x 8 (with illumination)
• Pitch Bend/Modulation lever
• Modulation Wheel x 2 (Assignable)

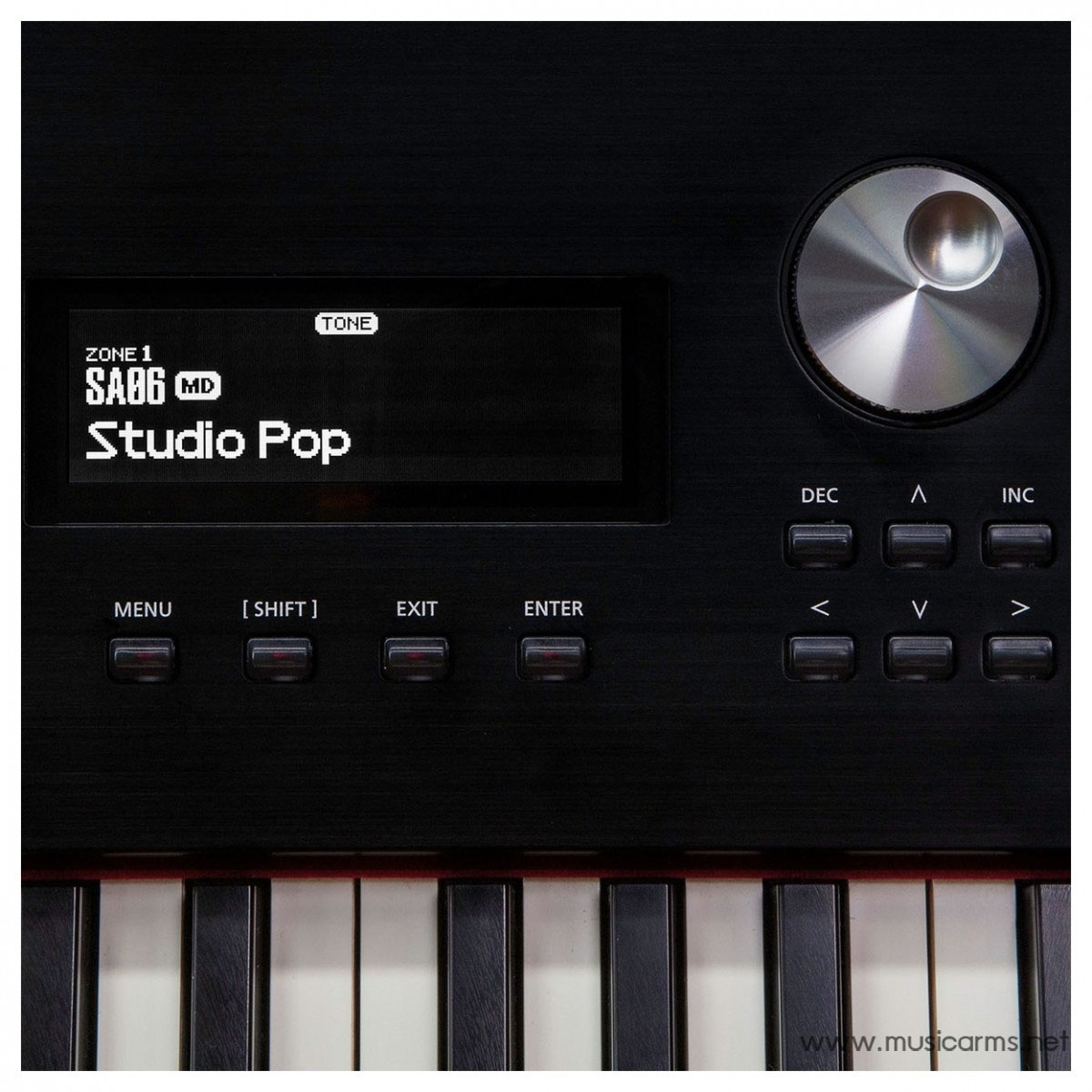

Display

• Graphic LCD 256 x 80 dots

Connectors

• MAIN OUT (L/MONO, R) jacks: 1/4-inch phone type
• MAIN OUT (L, R) jacks: XLR type
• SUB OUT (L/MONO, R) jacks:1/4-inch phone type
• INPUT jack: Stereo miniature phone type
• Pedal (DAMPER, FC1, FC2, EXT) jacks: TRS phone type
• MIDI (IN, OUT1, THRU/OUT2) connectors
• USB (COMPUTER) port (AUDIO/MIDI): USB B
• USB (MEMORY) port: USB A
• USB FOR UPDATE port: USB A
• PHONES jack: Stereo 1/4 inch phone type
• AC In jack

USB Audio

• Signal Processing: 24-bit
• Sampling Rate: 192 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
• Record: 2 channels
• Playback: 2 channels

Power Consumption

• 23 W

Accessories

• Owner’s manual
• Power cord
• Damper pedal (capable of continuous detection)

Options

• Keyboard stand: KS-G8B
• Piano pedal: RPU-3
• Damper pedal: DP-10
• Pedal switch: DP-2
• Expression pedal: EV-5
• USB Flash drive (*)

Size and Weight

Width

1,412 mm
55-5/8 inches

Depth

367 mm
14-1/2 inches

Height

140 mm
5-9/16 inches

Weight

21.7 kg
47 lbs 14 oz
