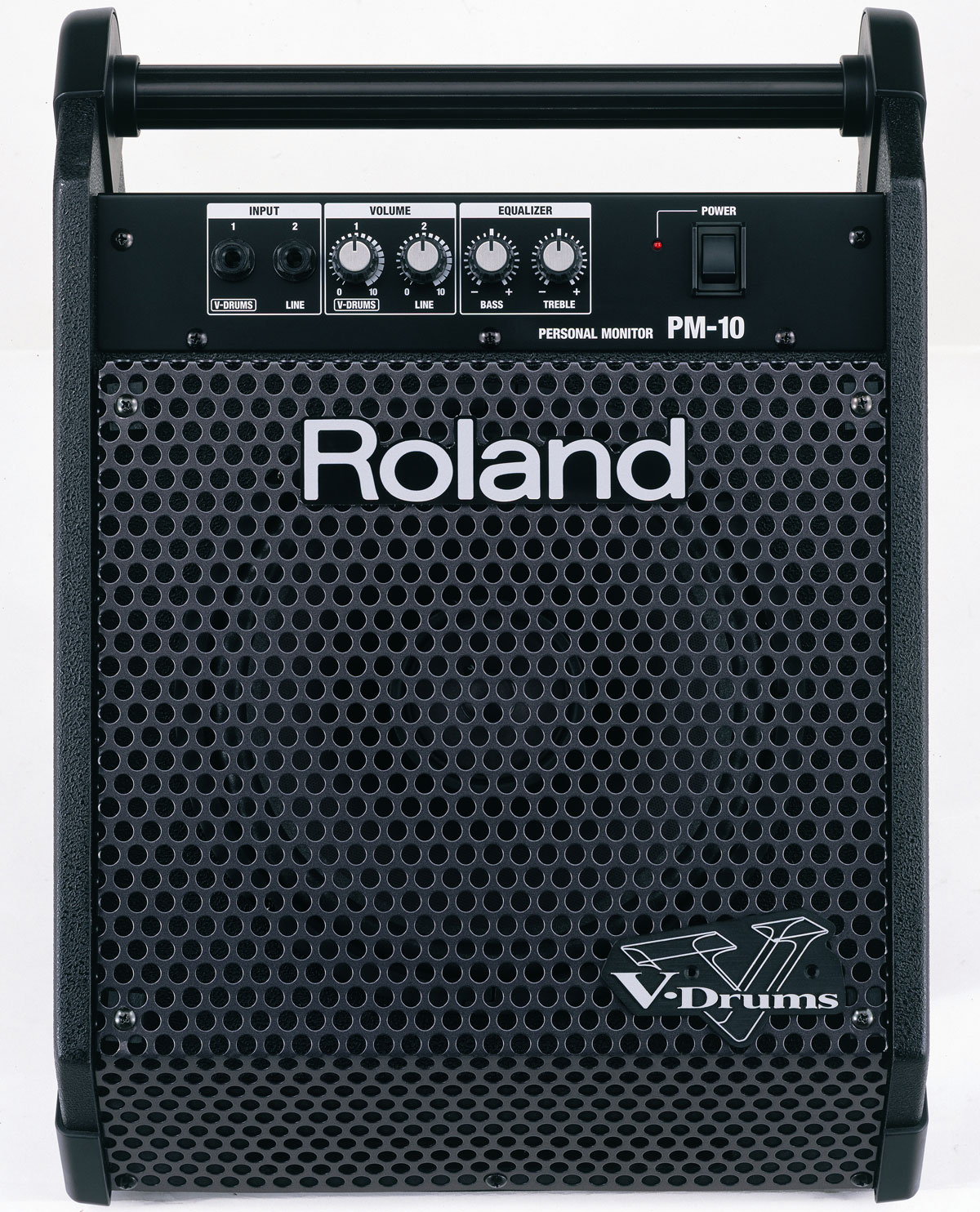

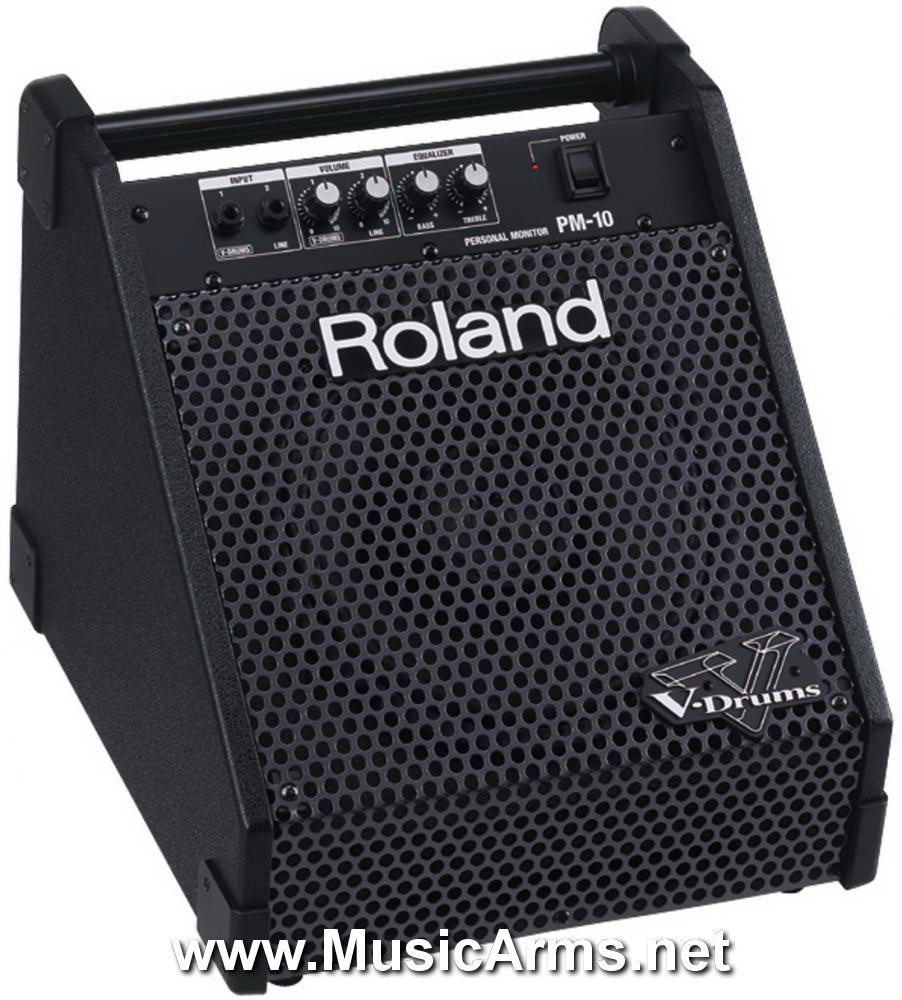

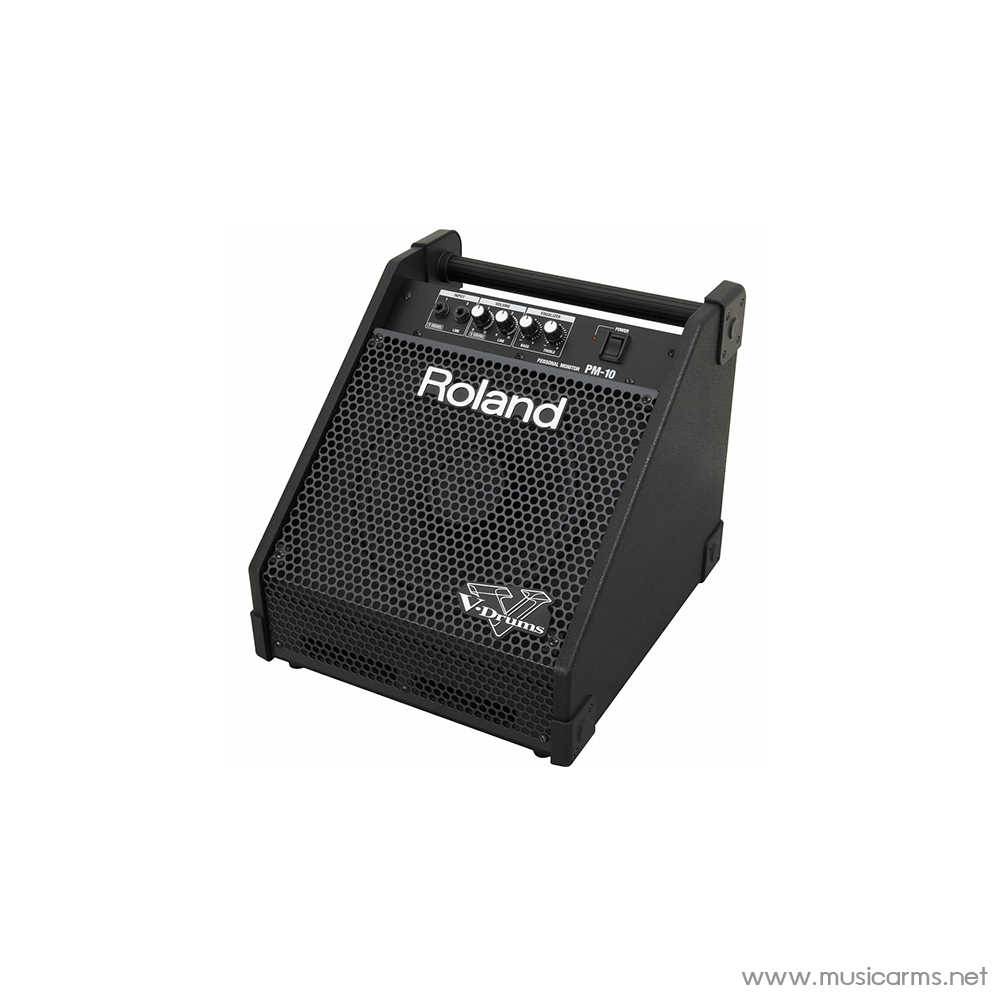

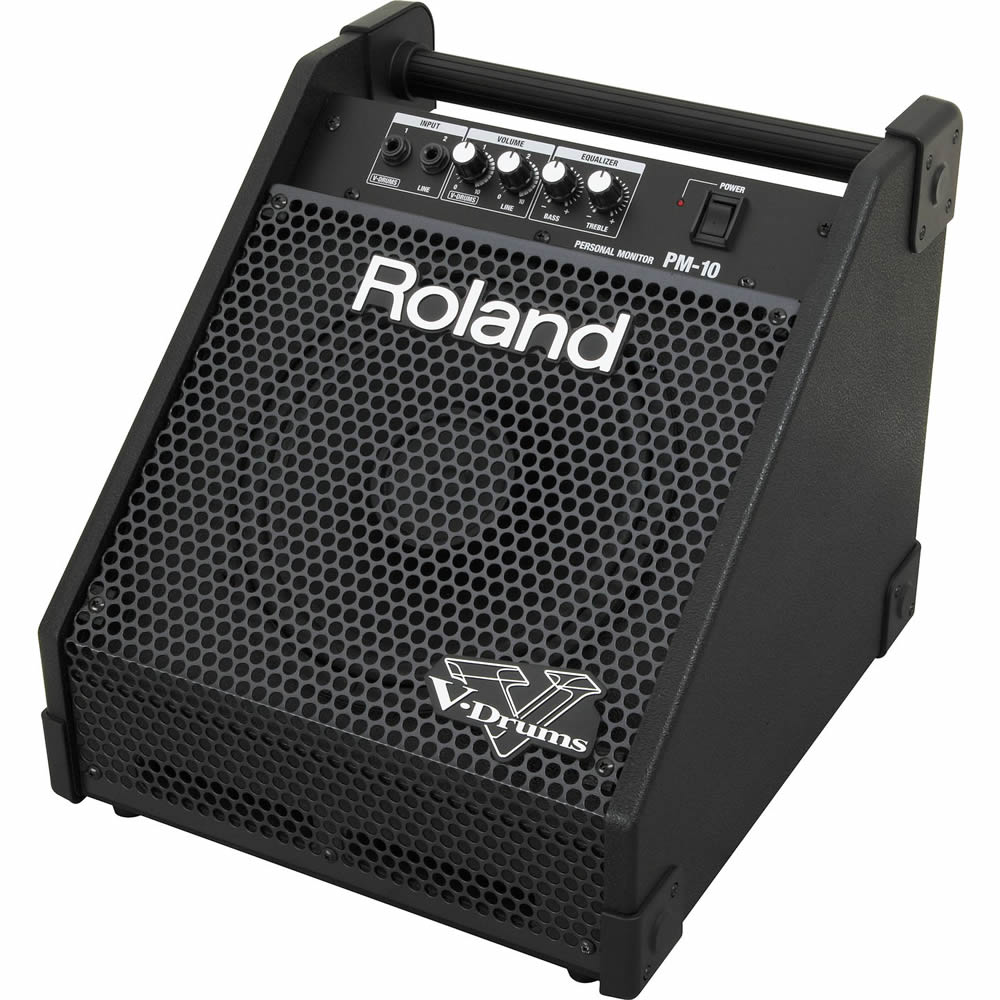

Roland – PM-10 Personal Monitor Amplifier

Designed as a portable companion for Roland’s V-Drums, the new PM-10 is equipped with a 30-watt amplifier and a 10″ 2-way coaxial speaker. Its compact design is perfect for small-sized drum kits, such as the TD-3Kit and the TD-6KV. Jam along with your favorite songs by connecting an external CD or MP3 player to the Line In jack. Balance the V-Drums and the external audio with the dedicated volume controls; adjust the tone with the built-in 2-band EQ.

Big sound in a small package; 30W, 10″ 2-way coaxial speaker
Designed specifically for electronic percussion
Dedicated EQ section; special V-Drums input
Large handle makes it easy to transport
Multiple inputs, plus mix input for incorporating other audio sources
Rated Power Output
30 W
Nominal Input Level/Input Impedance
V-DRUMS Input: 0 dBu / 20 kΩ
LINE Input: 0 dBu / 20 kΩ
Speakers
10 inch (250mm) Woofer + 3 inch (77mm) Tweeter (Coaxial, 2-way)
Enclosure
Bass-reflex type
Controls
V-DRUMS Volume Knob
LINE Volume Knob
BASS Knob
TREBLE Knob
POWER SW
Connectors
V-DRUMS Input Jack (Stereo 1/4 inch phone type)
LINE Input Jack (Stereo 1/4 inch phone type)
Power Supply
AC 117 V, AC220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption
36 W
Accessories
Owner’s Manual
Power Cord
Size and Weight
Width
364 mm
14-3/8 inches
Depth
396 mm
15-5/8 inches
Height
352 mm
13-7/8 inches
Weight
12.0 kg
26 lbs. 8 oz.
