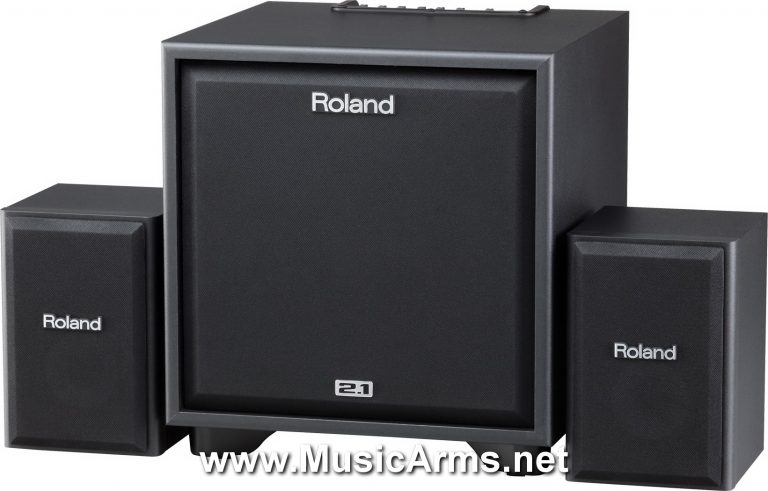

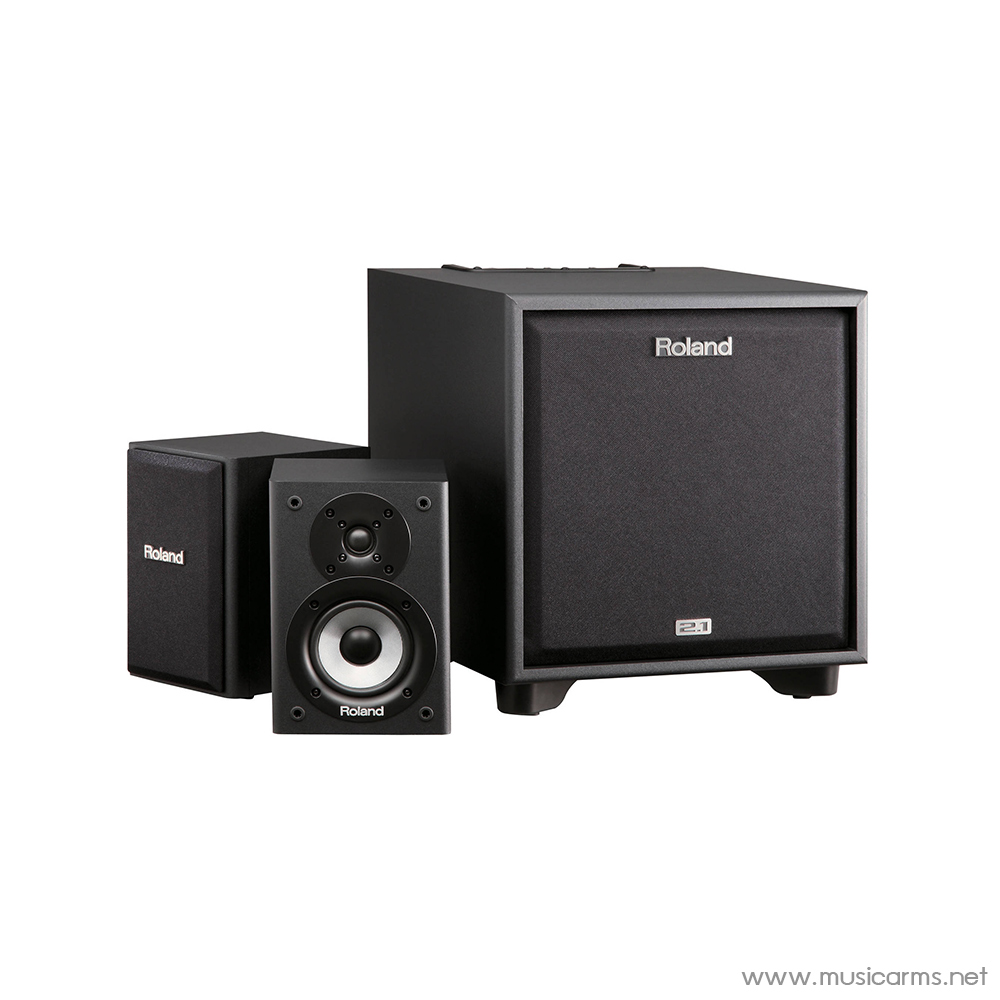

Roland – CM-220 CUBE Monitor

Today’s electronic musical instruments can deliver an extreme range of sound, from the deepest, thundering lows to ear-splitting highs. Roland is pleased to announce a new-breed nearfield monitoring system built specifically to handle the demands of modern synthesizers, electronic drums, media-production gear, and the like. The new CM-220 is a 2.1-channel system with integrated protection circuit that can take a full-frequency beating while providing fantastic sound, high performance, and CUBE reliability. Hear and feel your music to the fullest with the powerhouse CUBE.

2.1-channel system with high-quality sound and full frequency response
Custom-made speakers with protection circuit to handle input with wide dynamic range or continuous high levels (synthesizers, V-Drums, etc.)
Flexible connectivity to handle electronic musical instruments such as V-Drums, keyboards, and stage pianos, as well as media-production gear, audio players, and home entertainment systems
3-channel multimedia inputs, including digital, stereo miniature phone type, and RCA phono type
External mixer can be connected to the balanced input (XLR) for input expansion
200 W package with two 50 W satellites and a companion 100 W sub

SPECS

Rated Power Output
200 W (Main Unit 100 W + Satellite Speaker 50 W x 2)
Nominal Input Level (1 kHz)
CH 1 (INSTRUMENT) : -20 dBu
CH 2 (LINE) : -10 dBu
BALANCED INPUT : +4 dBu
Input Impedance
CH 1 (INSTRUMENT) : 10 k ohms
CH 2 (LINE) : 10 k ohms
BALANCED INPUT : 10 k ohms
Digital Input (CH 3)
Format : Conformity with IEC60958
Sample Rate : 32 kHz to 192 kHz (automatically) (de-emphasis: OFF)
Word Length : 24 bit
Speakers
Main Unit : 25 cm (10 inches)
Satellite Speaker : 10 cm (4 inches), 2 cm (3/4 inch) for each

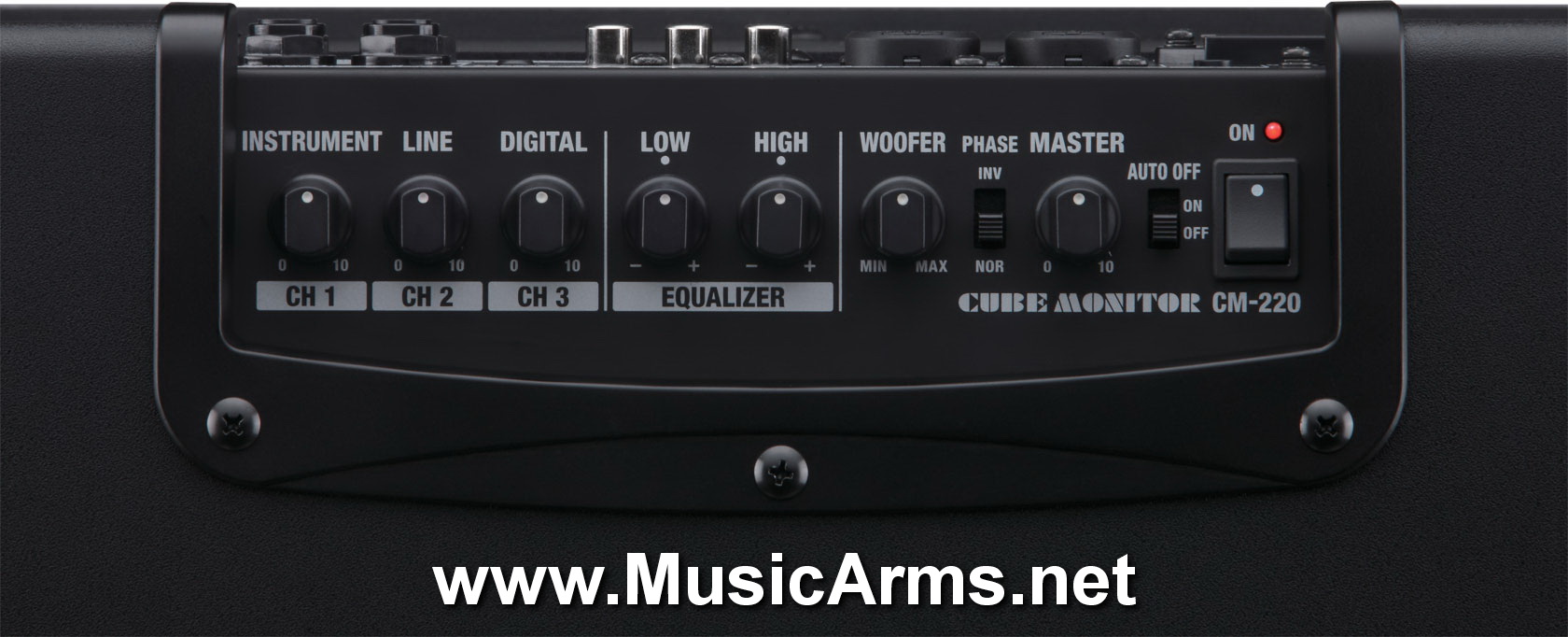

Controls
CH 1 [INSTRUMENT] volume knob
CH 2 [LINE] volume knob
CH 3 [DIGITAL] volume knob

WOOFER volume knob
PHASE switch

EQUALIZER [HIGH] knob, [LOW] knob
MASTER volume knob
AUTO OFF switch

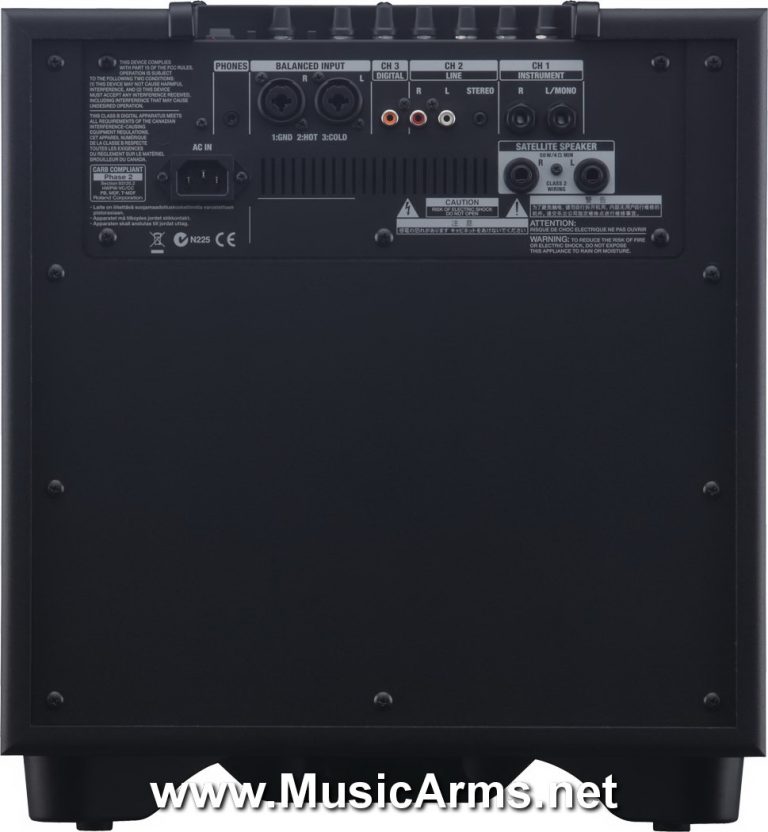

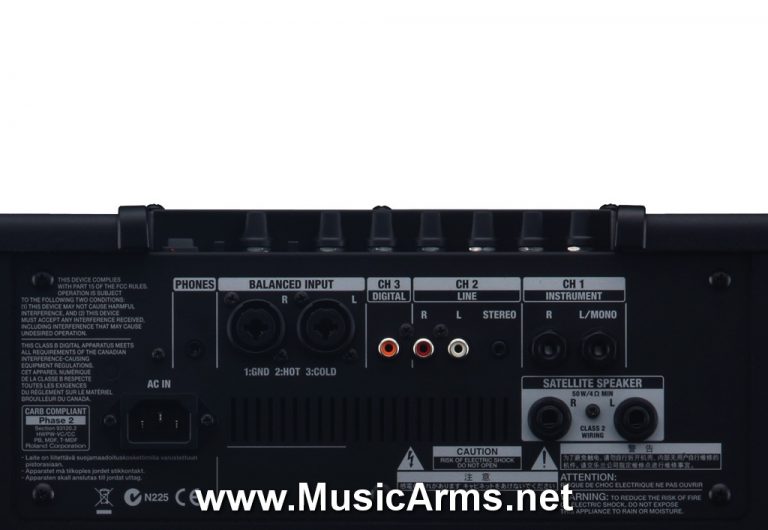

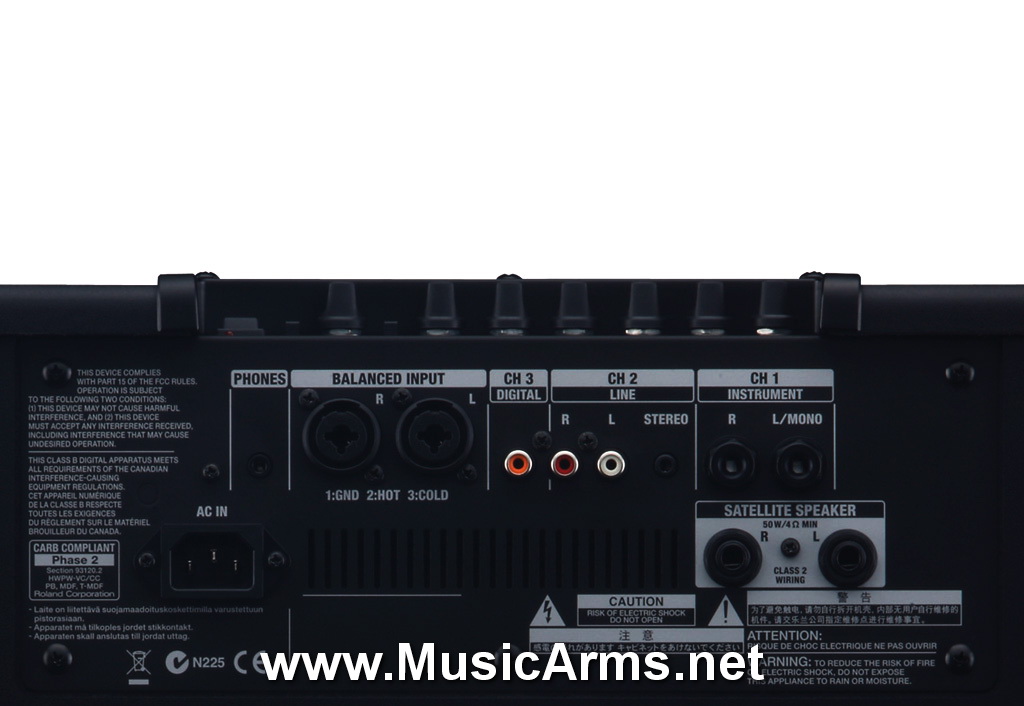

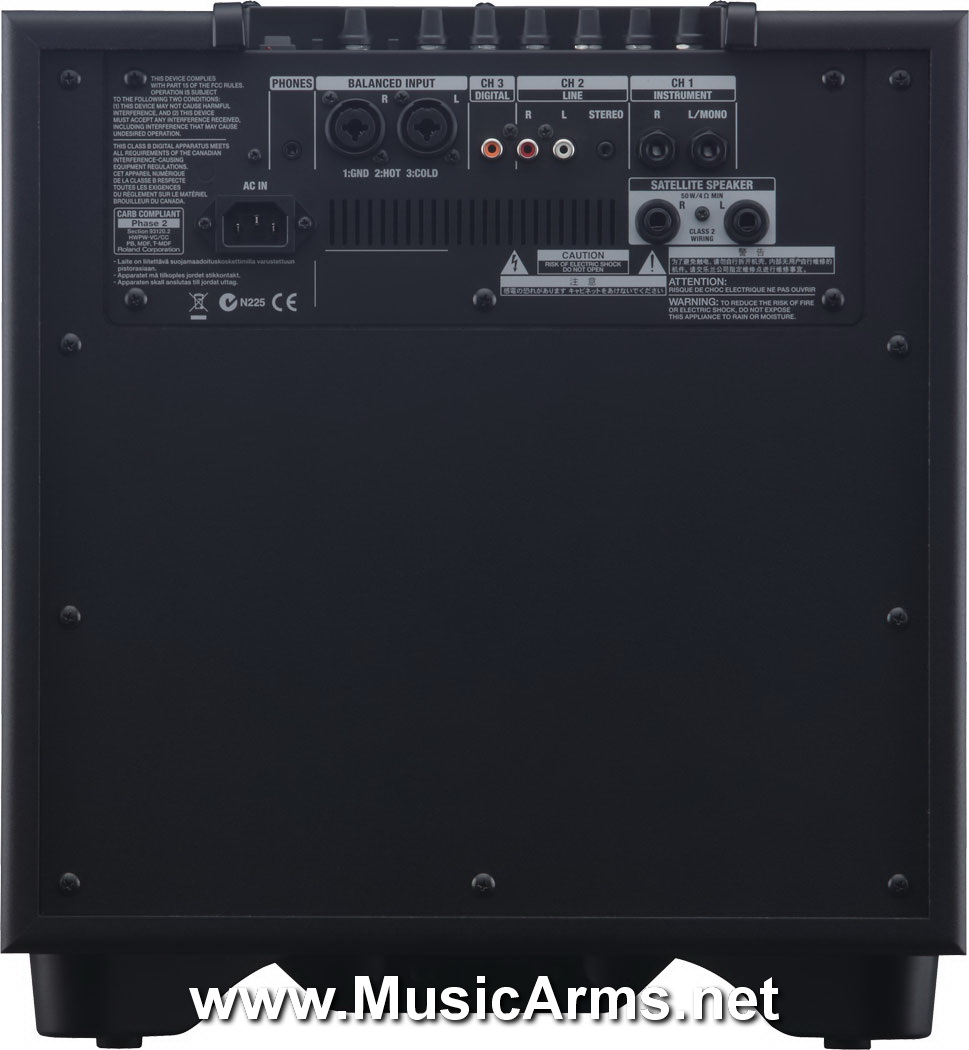

Connectors
CH 1 [INSTRUMENT] jacks (L/MONO, R) : 1/4-inch phone type
CH 2 [LINE] jacks (L, R, STEREO) : RCA phono type, stereo miniature phone type
CH 3 [DIGITAL] jack : coaxial type
BALANCED INPUT jacks (L, R) : (XLR, 1/4”TRS phone type)
PHONES jack : Stereo miniature phone type
SATELLITE SPEAKER jacks (L, R) : (only for dedicated Satellite Speakers)
AC IN jack
Power Consumption
67 W
Accessories
Power Cord, Speaker Cable (3.5 m) x 2, Owner’s Manual
Option (sold separately)
Monitor Speaker Stand : ST-CMS1
Size and Weight (Main Unit)
Width (W)
381 mm
15 inches
Depth (D)
376 mm
14-13/16 inches
Height (H)
413 mm
16-5/16 inches
Weight
18.8 kg
41 lbs. 8 oz.
Size and Weight (Satellite Speaker, for each)
Width (W)
162 mm
6-7/16 inches
Depth (D)
197 mm
7-13/16 inches
Height (H)
243 mm
9-5/8 inches
Weight
3.1 kg
6 lbs. 14 oz.
