Roland – CM-110 CUBE Monitor

Today’s electronic musical instruments can deliver an extreme range of sound, from the deepest, thundering lows to ear-splitting highs. Roland is pleased to announce a new-breed nearfield monitoring system built specifically to handle the demands of modern synthesizers, electronic drums, media-production gear, and the like. The new CM-110 is a 2.1-channel system with integrated protection circuit that can take a full-frequency beating while providing fantastic sound, high performance, and CUBE reliability. Hear and feel your music to the fullest with the powerhouse CUBE.

2.1-channel system with high-quality sound and full frequency response

Custom-made speakers with protection circuit to handle input with wide dynamic range or continuous high levels (synthesizers, V-Drums, etc.)
Flexible connectivity to handle electronic musical instruments such as V-Drums, keyboards, and stage pianos, as well as media-production gear, audio players, and home entertainment systems
3-channel multimedia inputs, including digital, stereo miniature phone type, and RCA phono type
External mixer can be connected to the balanced input (XLR) for input expansion

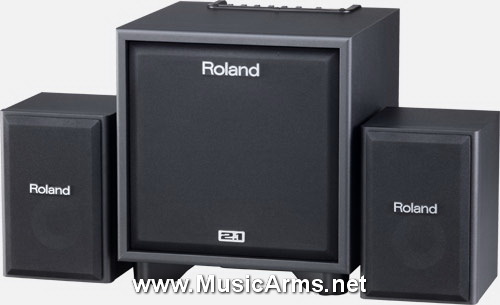

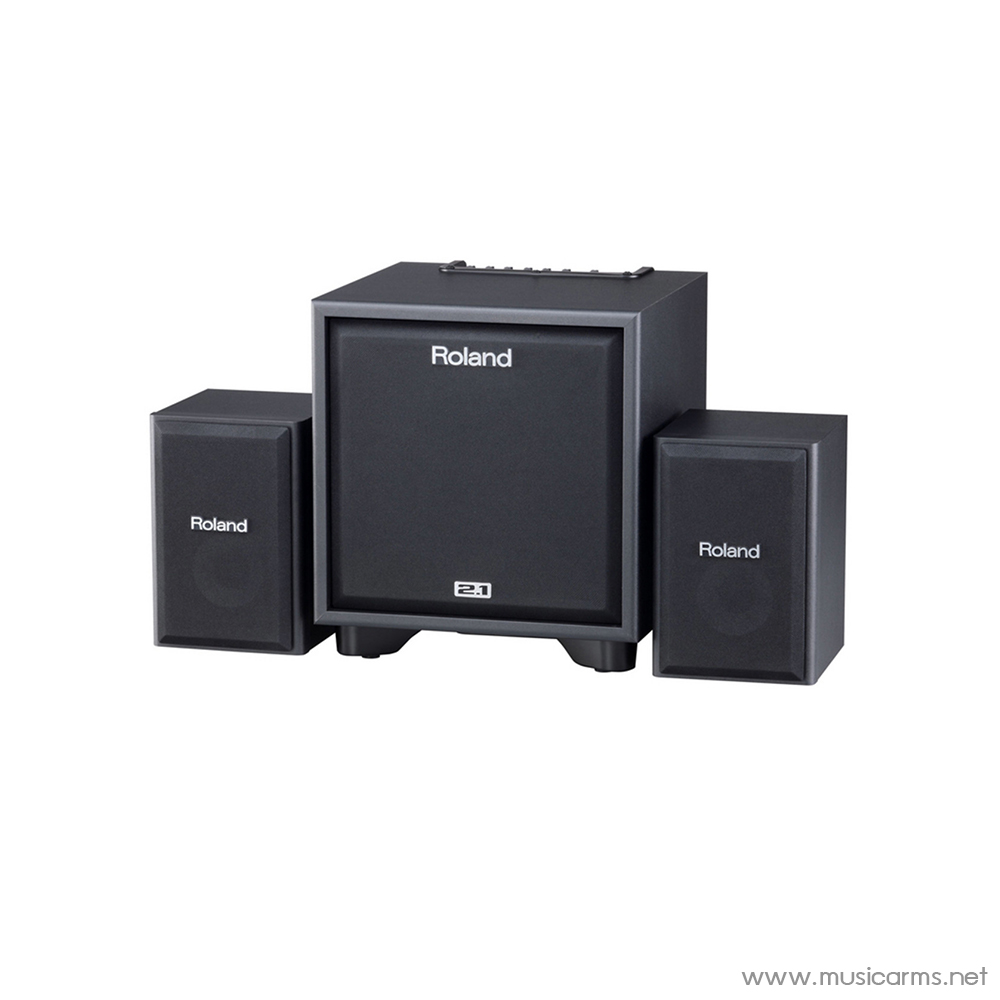

100 W package with two 25 W satellites and a companion 50 W sub

Rated Power Output
100 W (Main Unit 50 W + Satellite Speaker 25 W x 2)
Nominal Input Level (1 kHz)
CH 1 (INSTRUMENT): -20 dBu
CH 2 (LINE): -10 dBu
BALANCED INPUT: +4 dBu
Input Impedance
CH 1 (INSTRUMENT): 10 k ohms
CH 2 (LINE): 10 k ohms
BALANCED INPUT: 10 k ohms
Digital Input (CH 3)
Format: Conformity with IEC60958
Sample Rate: 32 kHz to 192 kHz (automatically) (de-emphasis: OFF)
Word Length: 24 bits
Speakers
Main Unit: 16 cm (6.5 inches)
Satellite Speaker: 10 cm (4 inches), 2 cm (3/4 inch) (for each)

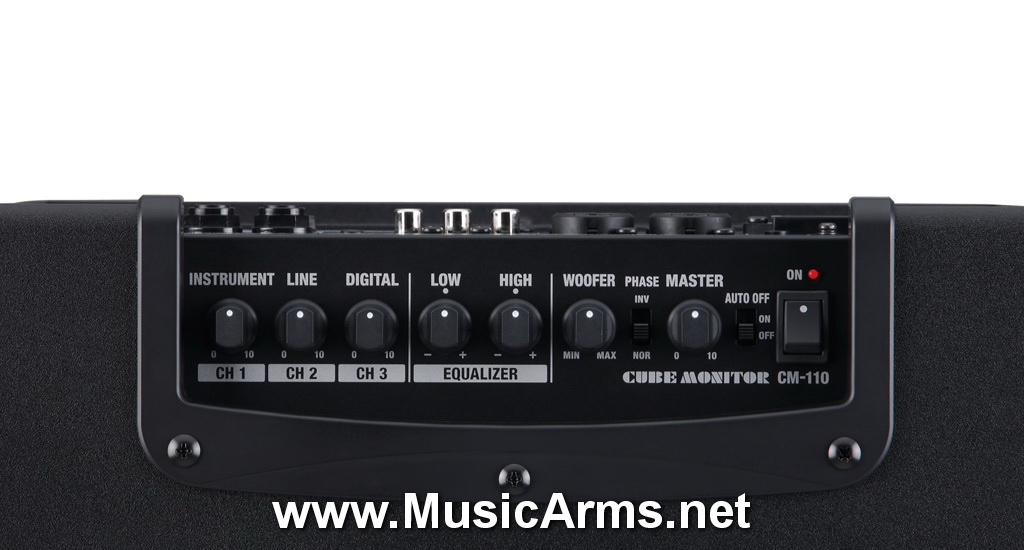

Controls
CH 1 [INSTRUMENT] volume knob
CH 2 [LINE] volume knob
CH 3 [DIGITAL] volume knob

WOOFER volume knob
PHASE switch

EQUALIZER [HIGH] knob, [LOW] knob
MASTER volume knob
AUTO OFF switch

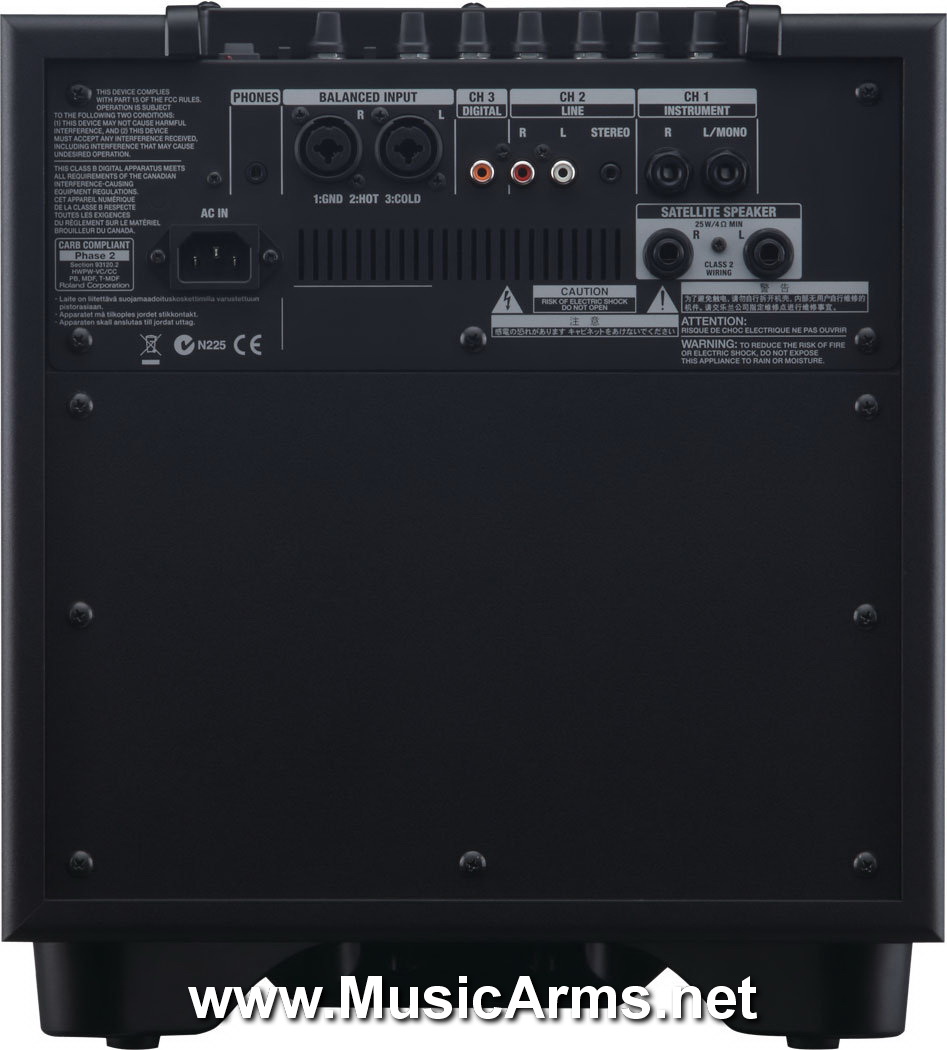

Connectors
CH 1 [INSTRUMENT] jacks (L/MONO, R): 1/4-inch phone type
CH 2 [LINE] jacks (L, R, STEREO): RCA phono type, stereo miniature phone type
CH 3 [DIGITAL] jack: coaxial type
BALANCED INPUT jacks (L, R): (XLR, 1/4”TRS phone type)
PHONES jack: Stereo miniature phone type
SATELLITE SPEAKER jacks (L, R): (only for dedicated Satellite Speakers)
AC IN jack
Power Consumption
47 W
Accessories
Power Cord, Speaker Cable (3.5 m) x 2, Owner’s Manual
Option (sold separately)
Monitor Speaker Stand: ST-CMS1
Size and Weight (Main Unit)
Width (W)
330 mm
13 inches
Depth (D)
327 mm
12-7/8 inches
Height (H)
368 mm
14-1/2 inches
Weight
13.3 kg
29 lbs. 6 oz.
Size and Weight (Satellite Speaker, for each)
Width (W)
162 mm
6-7/16 inches
Depth (D)
197 mm
7-13/16 inches
Height (H)
243 mm
9-5/8 inches
Weight
3.1 kg
6 lbs. 14 oz.
* 0 dBu = 0.775 Vrms

-ระบบคุณภาพเสียงสูและตอบสนองต่อความถี่เต็มรูปแบบ
-การเชื่อมต่อที่มความยืดหยุ่นในการจัดการแบ่งเสียงเครื่องดนตรีต่างๆสูง
-3 ช่อง อินพุทมัลติมีเดีย  including digital, stereo miniature phone typeและ RCA phono type
-สามารถต่อมิกซ์ผ่านช่อง XLR ได้
-100 วัตต์: 25วัตต์ สองตัว และ 50 วัตต์
