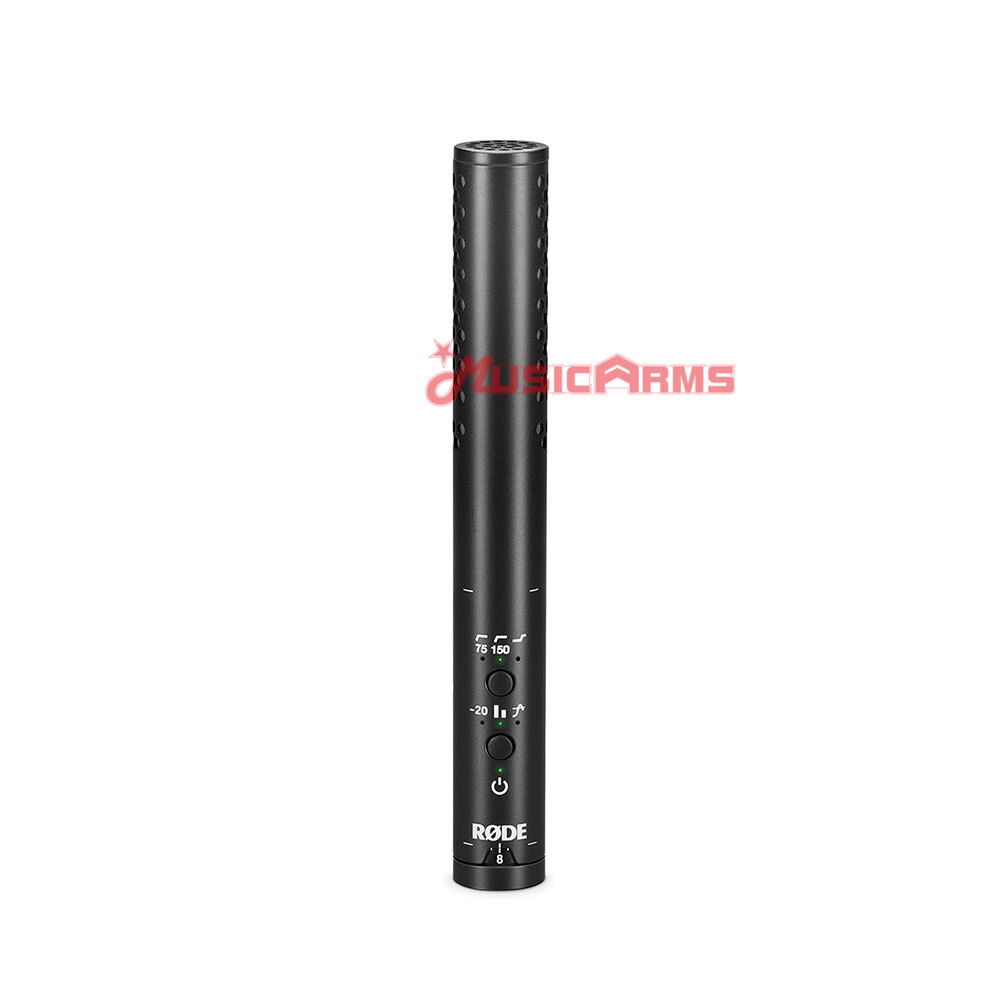

Rode VideoMic NTG Shotgun Microphone

• Revolutionary acoustic design, delivering unmatched acoustic transparency and a natural, uncoloured sound.
• Highly directional supercardioid polar pattern and very flat frequency response
• Unique infinitely variable gain control
• Auto-sensing 3.5mm output interacts seamlessly with both cameras and mobile devices
• Class-compliant USB-C output with headphone output for seamless audio monitoring
• Digital switching – controls high-pass filter, pad, high frequency boost, and safety channel
• dB peak warning light
• Internal rechargeable lithium-ion battery provides 30+ hours of recording, charges via USB-C

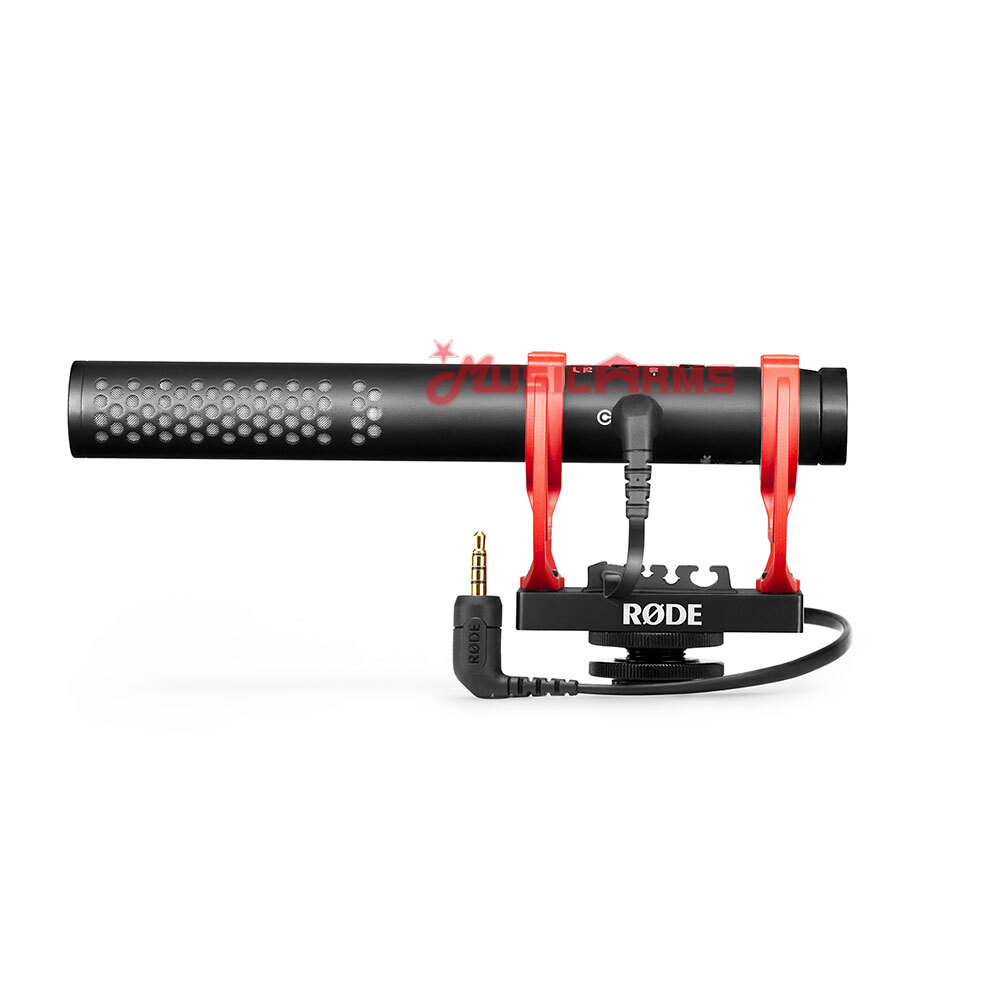

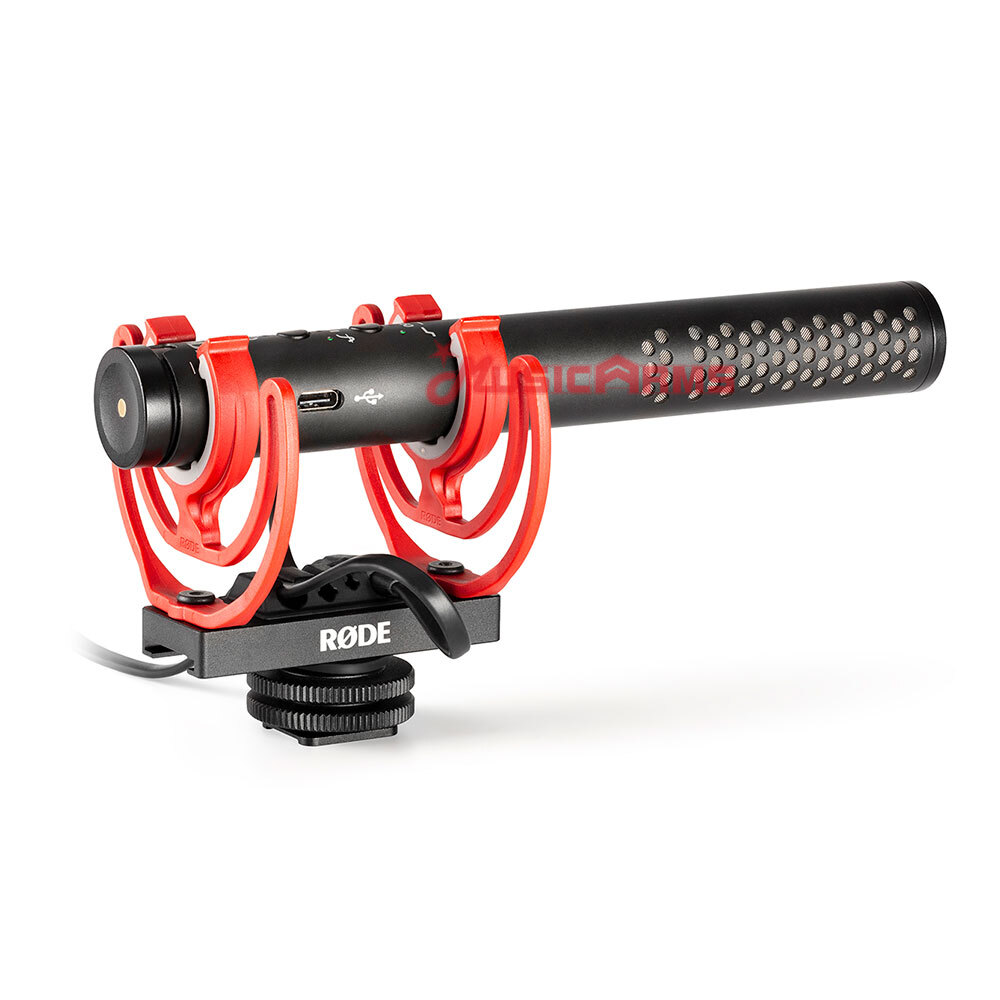

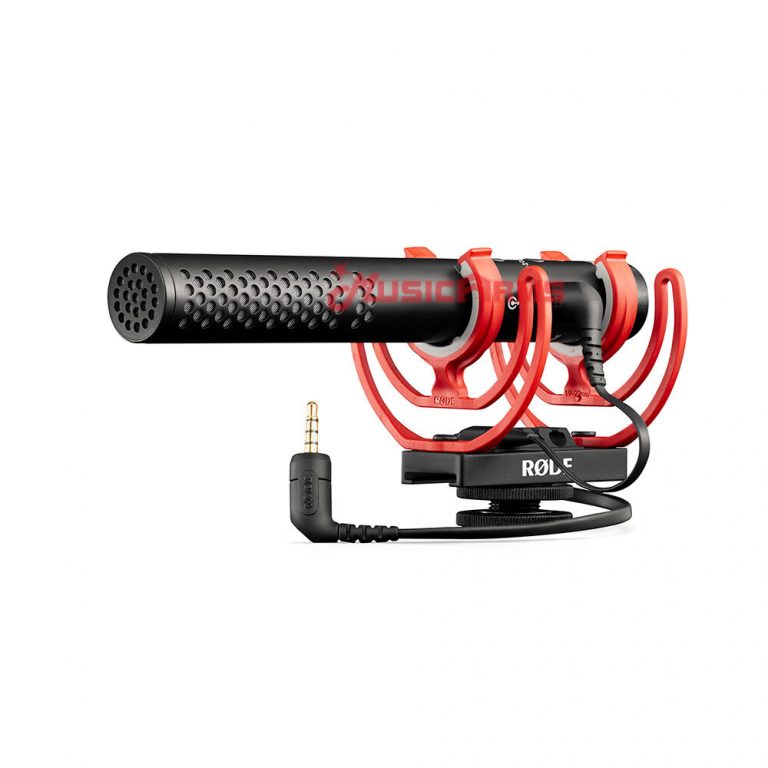

• High-quality Rycote® Lyre® shock mounting with cable management and a sliding rail to adjust mic placement on a camera cold shoe.
• Lightweight (94g) and rugged aerospace-grade aluminium construction

The VideoMic NTG is a broadcast-grade, feature-packed shotgun microphone optimised for on-camera use. It features the same revolutionary acoustic design as the NTG5 broadcast shotgun microphone, which delivers unmatched transparency and a natural, uncoloured sound. Add to this an incredibly flat frequency response, highly directional supercardioid polar pattern, and very low self-noise, and what you have is a compact on-camera microphone that contends with the world’s best shotgun mics.

As well as sounding outstanding, the VideoMic NTG is extremely flexible, with an array of tools and features to help you take on any recording situation. Digital switching gives you access to a high-pass filter, -20dB pad, high frequency boost, and safety channel, plus there is a unique infinitely variable gain control that allows you to precisely tailor the output as you need. Its auto-sensing 3.5mm output detects what device you are connected to (camera or mobile) and switches to accommodate – no more messing around with adaptor cables! There is also a handy new dB peak warning light, so you can always ensure your audio isn’t clipping.

The VideoMic NTG is so much more than just an on-camera mic. As well as pairing perfectly with DSLRs, compact cameras, and smartphones – either on-camera, as a boom mic, or on a pistol grip – it is also a fully-featured USB microphone that can be plugged into a computer, tablet, or smartphone. On top of this, the 3.5mm jack doubles as a headphone output for seamless monitoring of audio while using the USB output.

VIDEOMIC NTG SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS

• Acoustic Principle Pressure gradient electret condenser
• Polar Pattern Supercardioid
• Frequency Range 20Hz – 20kHz
• Frequency Response 35Hz – 18kHz ±3 dB
• Output Impedance 10Ω
• Signal to noise Ratio 79 dBA
• Dynamic Range 105dB SPL (A-weighted, as per IEC651)
• Equivalent Noise 15dB SPL (A-weighted, as per IEC651)
• Sensitivity -26 dB re 1V/Pa (50mV @ 94dB SPL) ± 1dB @ 1kHz
• Input SPL @ 1% THD 120dB SPL
• High Pass Filter Frequency 75Hz, 150Hz
• Battery Life 30+ hours
• Battery Capacity 350mAh
• Output Connection 3.5mm auto-sensing USB-C
• Bit Depth 24-bit
• Sample Rates 48kHz
• OS Requirements Mac OS 10.12
• Windows 10

MECHANICAL SPECIFICATIONS

• Weight (g) 94
• Dimensions Diameter: 21.6mm
• Length: 171mm

• หลักการอะคูสติก คอนเดนเซอร์ไล่ระดับแรงดันอิเล็กเตรต
• การรับเสียง Supercardioid
• ช่วงความถี่ 20Hz – 20kHz
• การตอบสนองความถี่ 35Hz – 18kHz ±3 dB
• อิมพีแดนซ์เอาต์พุต 10Ω
• อัตราส่วนสัญญาณต่อเสียงรบกวน 79 dBA
• ช่วงไดนามิก 105dB SPL (A-weighted ตาม IEC651)
• เสียงรบกวนเทียบเท่า 15dB SPL (A-weighted ตาม IEC651)
• ความไว -26 dB re 1V/Pa (50mV @ 94dB SPL) ± 1dB @ 1kHz
• อินพุต SPL @ 1% THD 120dB SPL
• ความถี่ฟิลเตอร์กรองความถี่สูง 75Hz, 150Hz
• อายุการใช้งานแบตเตอรี่ 30+ ชม
• ความจุแบตเตอรี่ 350mAh
• การเชื่อมต่อเอาต์พุต USB-C ตรวจจับอัตโนมัติ 3.5 มม
• ความลึกของบิต 24 บิต
• อัตราตัวอย่าง 48kHz
• ข้อกำหนดระบบปฏิบัติการ Mac OS 10.12
• วินโดวส์ 10
