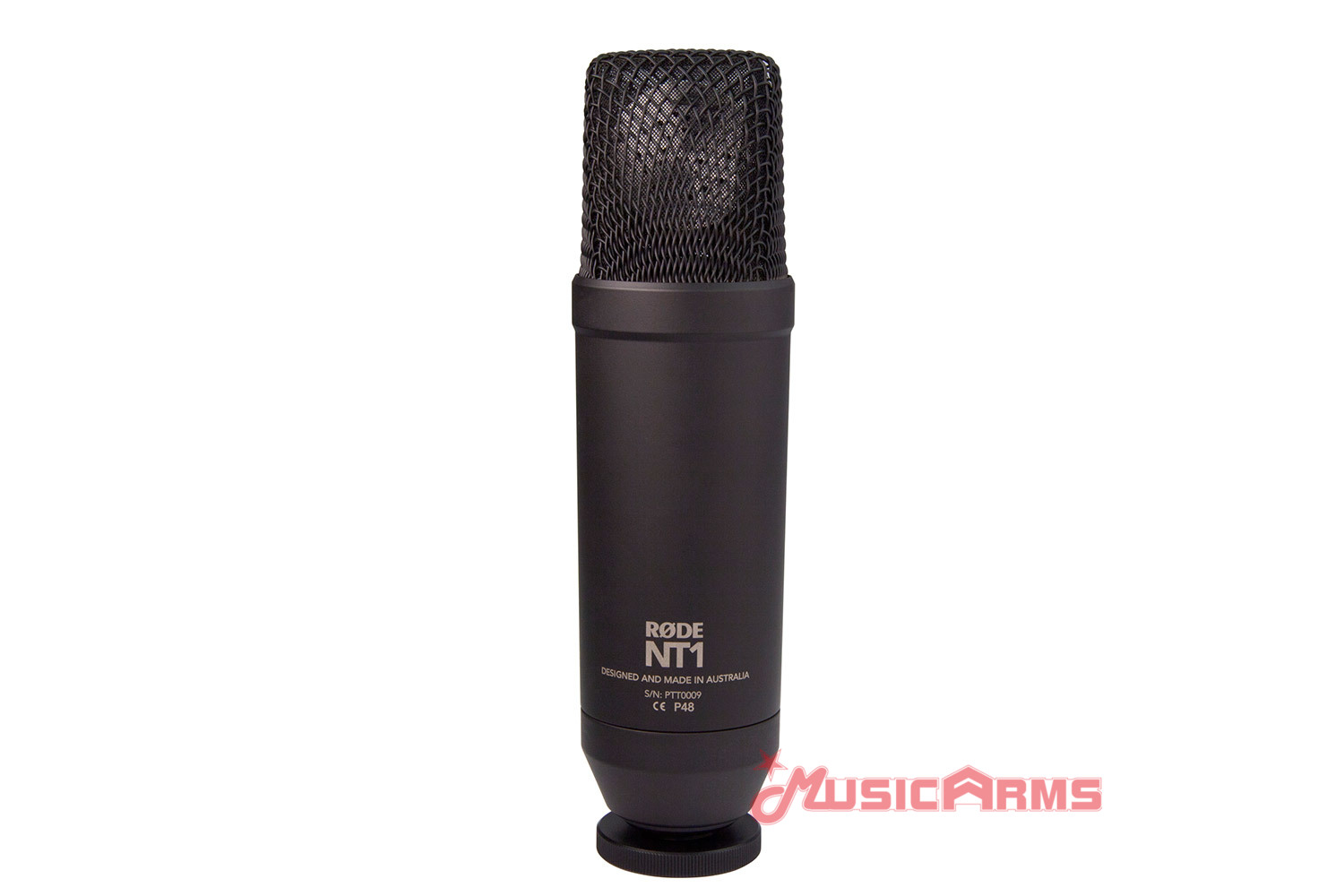

Rode NT1 Kit ไมโครโฟนคอนเดนเซอร์

• Large diaphragm 1” gold-sputtered capsule
• Cardioid polar pattern
• Internal capsule shock mounting system
• Ultra-low noise, self noise of only 4.5dB (A)
• State-of-the-art surface mount electronics
• 10 year extended warranty when you register your microphone

The NT1 Kit is a revolutionary new 1″ diaphragm condenser microphone from RØDE.

Although the body of the new NT1 closely resembles the NT1-A, the microphone has been completely redesigned from the ground up, with the only shared component being the mesh grille.

RØDE’s design engineers approached the NT1 Kit as a marriage of innovation and tradition, starting with the capsule which is a completely new design. Codenamed the HF6, it is the perfect example of RØDE’s fusion of artistic design approaches and cutting-edge manufacturing techniques, and features a sound signature reminiscent of the famous microphones of old while at the same time exhibiting extremely low noise.

It has been developed with a focus on detailed midrange response, coupled with silky smooth high frequencies, and warm, round, bass reproduction to make the NT1 Kit an absolute standout in its class.

In another world-first for RØDE, the transducer itself is suspended inside the microphone using Rycote’s industry-leading Lyre system, minimizing external vibrations at the capsule level. The capsule is then married to high-grade electronics that have been designed to provide the lowest noise level of any studio microphone available. The NT1 Kit is an incredibly quiet microphone, measuring only 4.5dBA of self-noise.

Its body is machined from 6061 aluminium and then nickel plated for resistance against corrosion. Finally it is coated in a durable, military-grade ceramic layer, using advanced electrostatic application techniques developed by RØDE to ensure an extremely hard wearing finish that is resistant to scratches or marks.

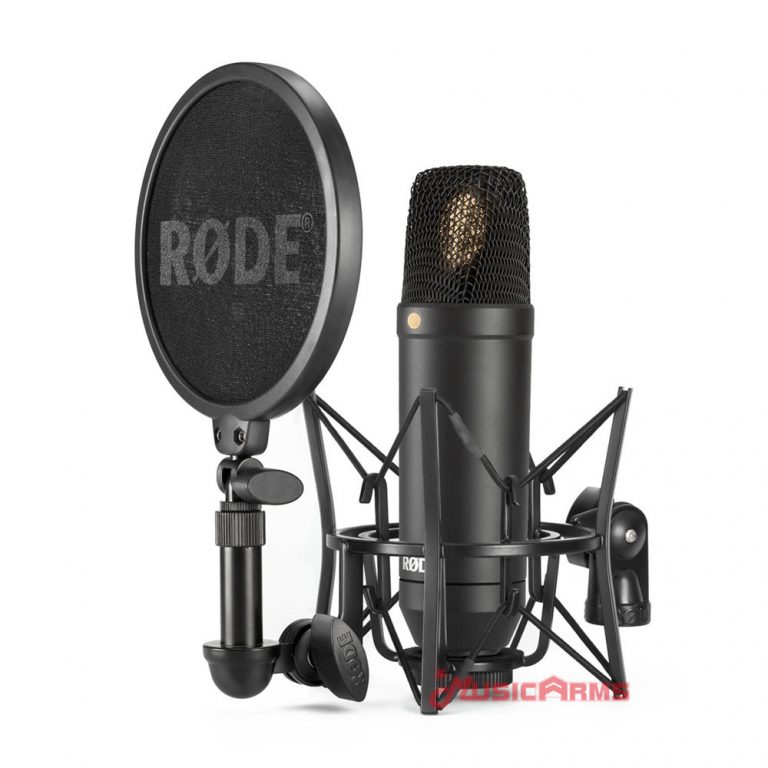

The NT1 Kit is supplied with the SM6, a high-quality suspension shockmount that provides isolation from external physical factors that may cause unwanted rumble and vibrations in the microphone. It includes a removable pop shield with two axes of adjustment and a telescopic arm for ultimate application versatility.

The NT1 Kit is designed and made in Australia, and is covered by RØDE’s industry-leading 10 year warranty.

NT1 Kit SPECIFICATIONS

• Acoustic Principle Pressure Gradient
• Active Electronics JFET impedance converter with bipolar output buffer
• Capsule 1.00″
• Polar Pattern Cardioid
• Address Type Side
• Frequency Range 20Hz – 20kHz
• Output Impedance 100Ω
• Maximum SPL 132dBSPL
• Maximum Output Level 8.0mV (@ 1kHz, 1% THD into 1KΩ load)
• Sensitivity -29.0dB re 1 Volt/Pascal (35.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• Equivalent Noise Level (A-weighted) 4dBA
• Power Options +24V phantom power+48V phantom power
• Weight 440.00g
• Dimensions 187.00mmH x 50.00mmW x 50.00mmD
• Output XLR Output

รายละเอียด Rode NT1 Kit

• หลักการอะคูสติก ไล่ระดับความดัน
• ตัวแปลงอิมพีแดนซ์ JFET ของ Active Electronics พร้อมบัฟเฟอร์เอาต์พุตแบบไบโพลาร์
• แคปซูล 1 นิ้ว
• รูปแบบรับเสียงาร์ดิออยด์แบบด้านข้าง
• ช่วงความถี่ 20Hz – 20kHz
• อิมพีแดนซ์เอาต์พุต 100Ω
• SPL สูงสุด 132dB
• ระดับเอาต์พุตสูงสุด 8.0mV (@ 1kHz, 1% THD ในการโหลด1KΩ)
• Sensitivity -29.0dB re 1 Volt/Pascal (35.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• ระดับเสียงเทียบเท่า (A-weighted) 4dBA
• ตัวเลือกพลังงาน +phantom power 24V + phantom power 48V
• น้ำหนัก 440 กรัม
• ขนาด 187 x 50 x 50 มม.
• เอาต์พุต XLR เอาต์พุต
