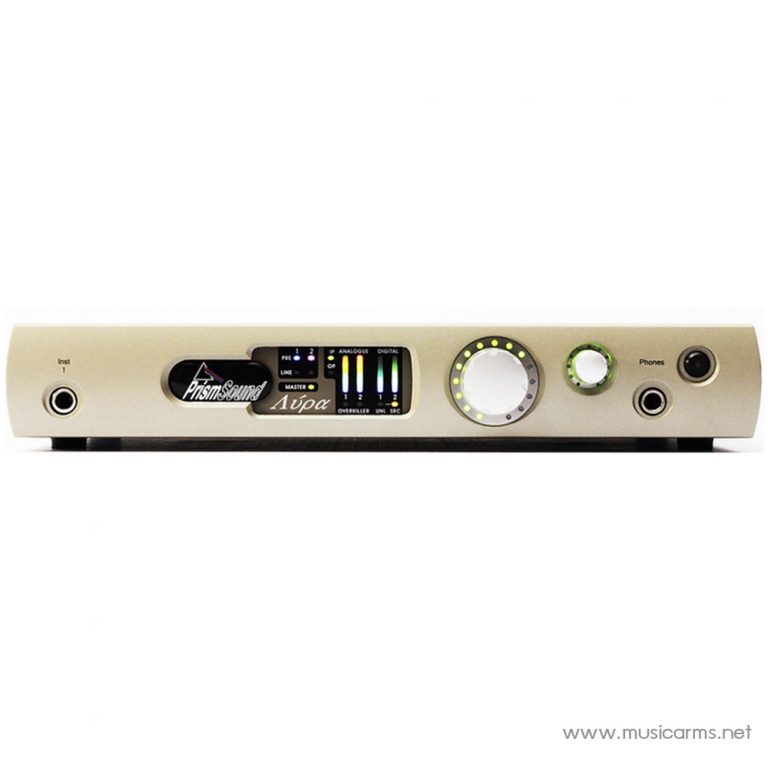

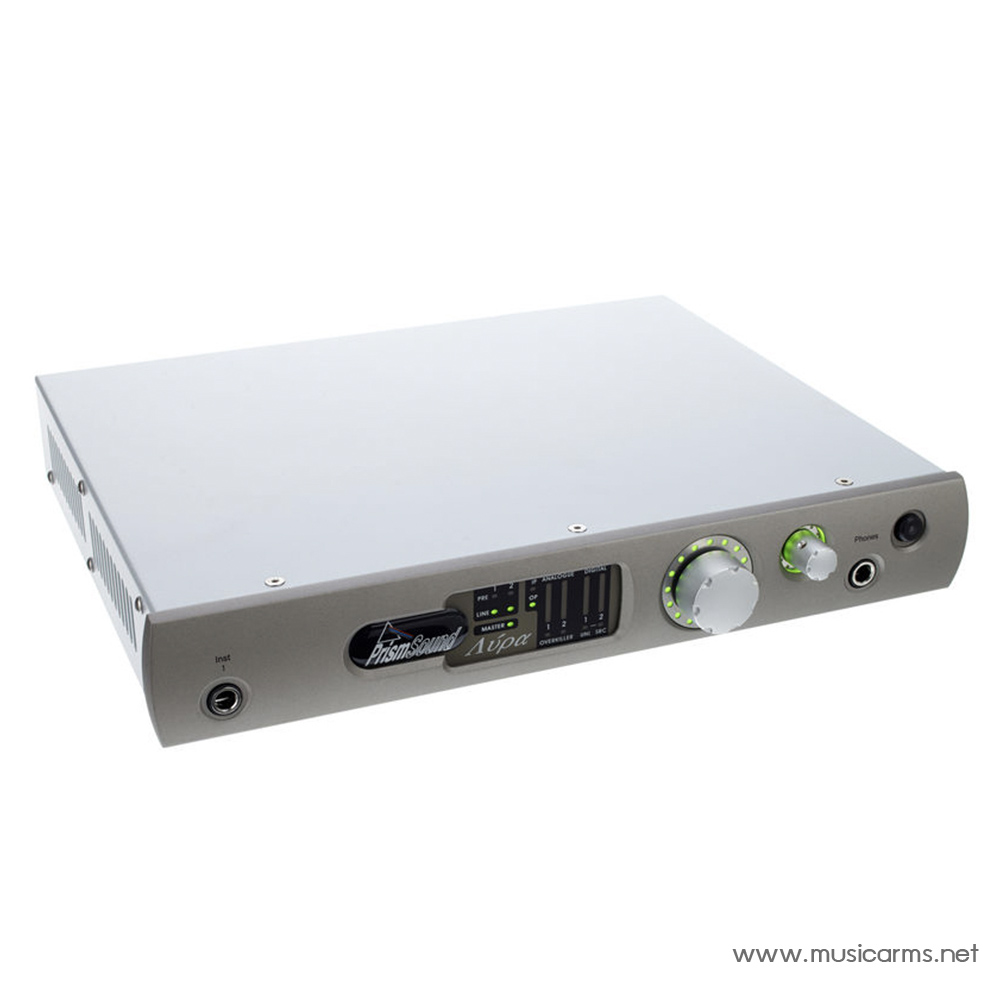

Prism Sound Lyra1

Based on the Orpheus’ audio path and clock circuitry, Lyra is ideal for those who don’t require a large I/O count, but do demand the highest quality and most transparent AD/DA available.

USB audio interface with two AD channels, two DA channels, one mic preamp, one front panel instrument input and independent stereo headphone DA

The Prism Sound Lyra 1 is a USB audio interface designed to deliver reliable precision and high-resolution audio I/O for musicians, vocalists, songwriters, and audio engineers in home, project, and mobile studios. Its stable clock allows operation at up to 24-bit / 192 kHz resolution with high jitter rejection. With latency as low as 0.08 ms, it is well suited for recording, overdubbing, and even send-and-return routing.

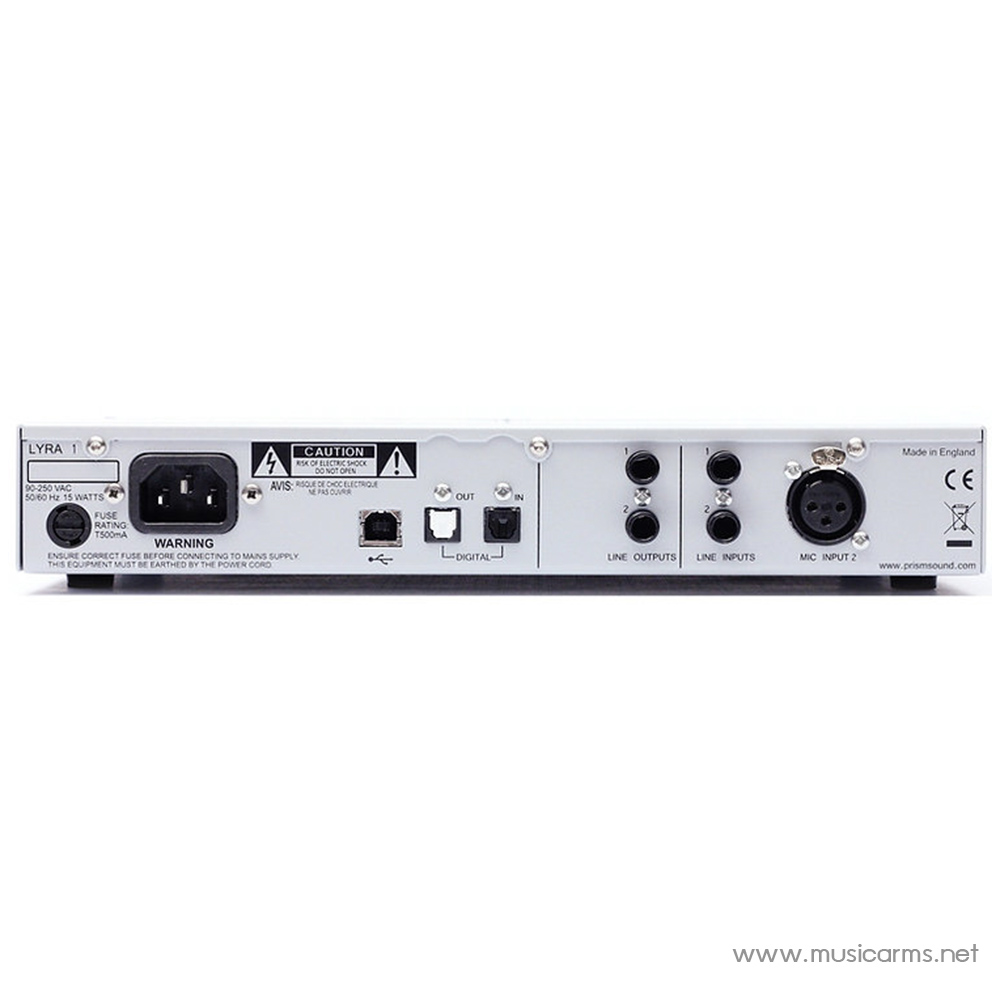

Line, instrument, or microphone sources can be connected via the stereo 1/4″ TRS inputs, 1/4″ instrument input, and XLR 3-pin input. Phantom power is selectable as are the input pads and built-in limiters. The stereo 1/4″ line outputs are ideal for connection to speakers while the front-panel 1/4″ jack offers dedicated level and mix controls for independent headphone monitoring. Additionally, TOSLINK optical I/O ports allow easy hook-up of S/PDIF digital equipment.

The Lyra 1 is compatible with Mac OS X and Windows systems via its Class-Compliant USB 2.0 connectivity. An IEC power cable and USB cable are included.

Features

• Class-Compliant USB 2.0 Interface
• Up to 24-Bit / 192 kHz Resolution
• 1 x XLR Input with Phantom Power
• 1 x 1/4″ Instrument Input
