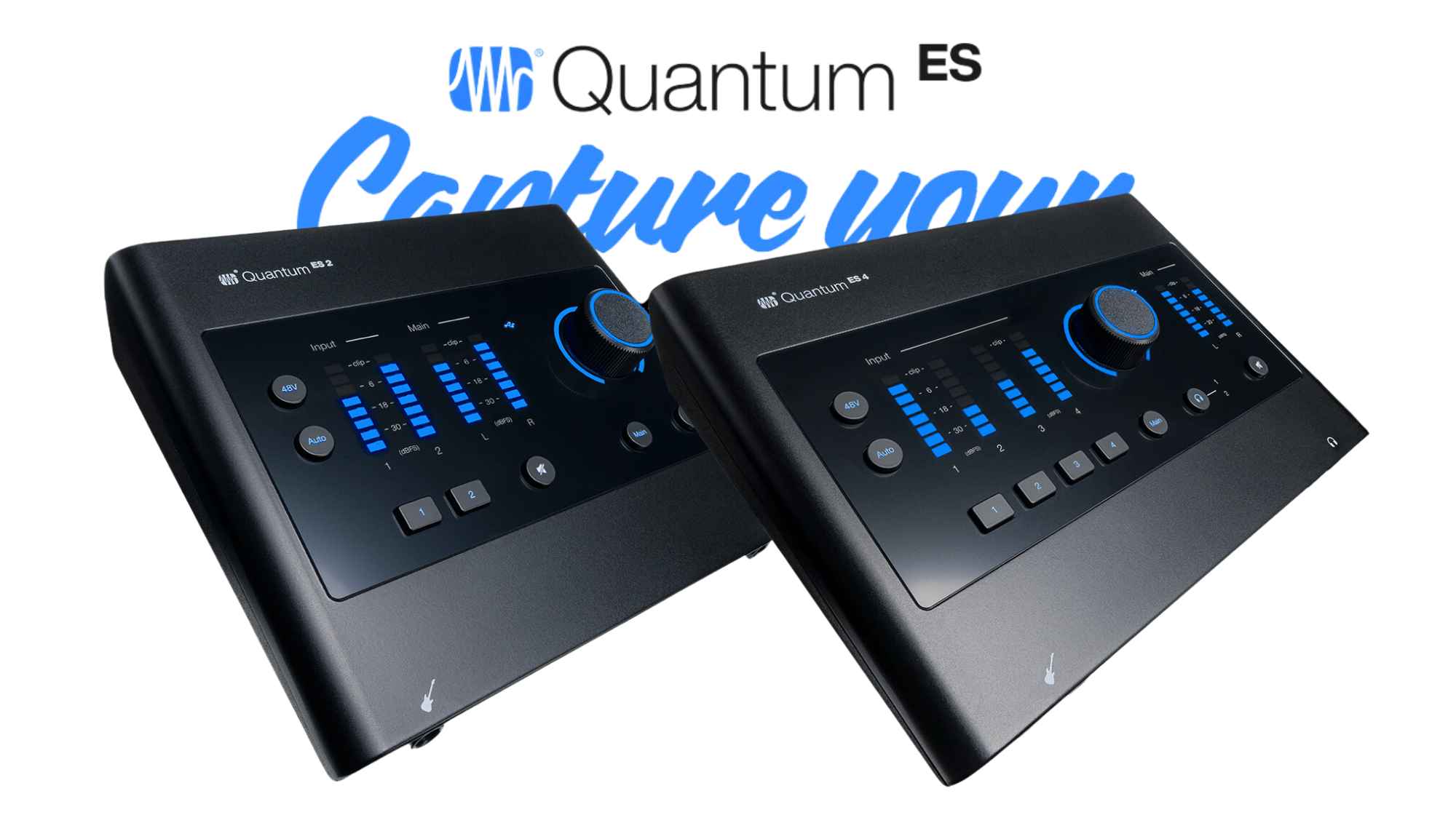

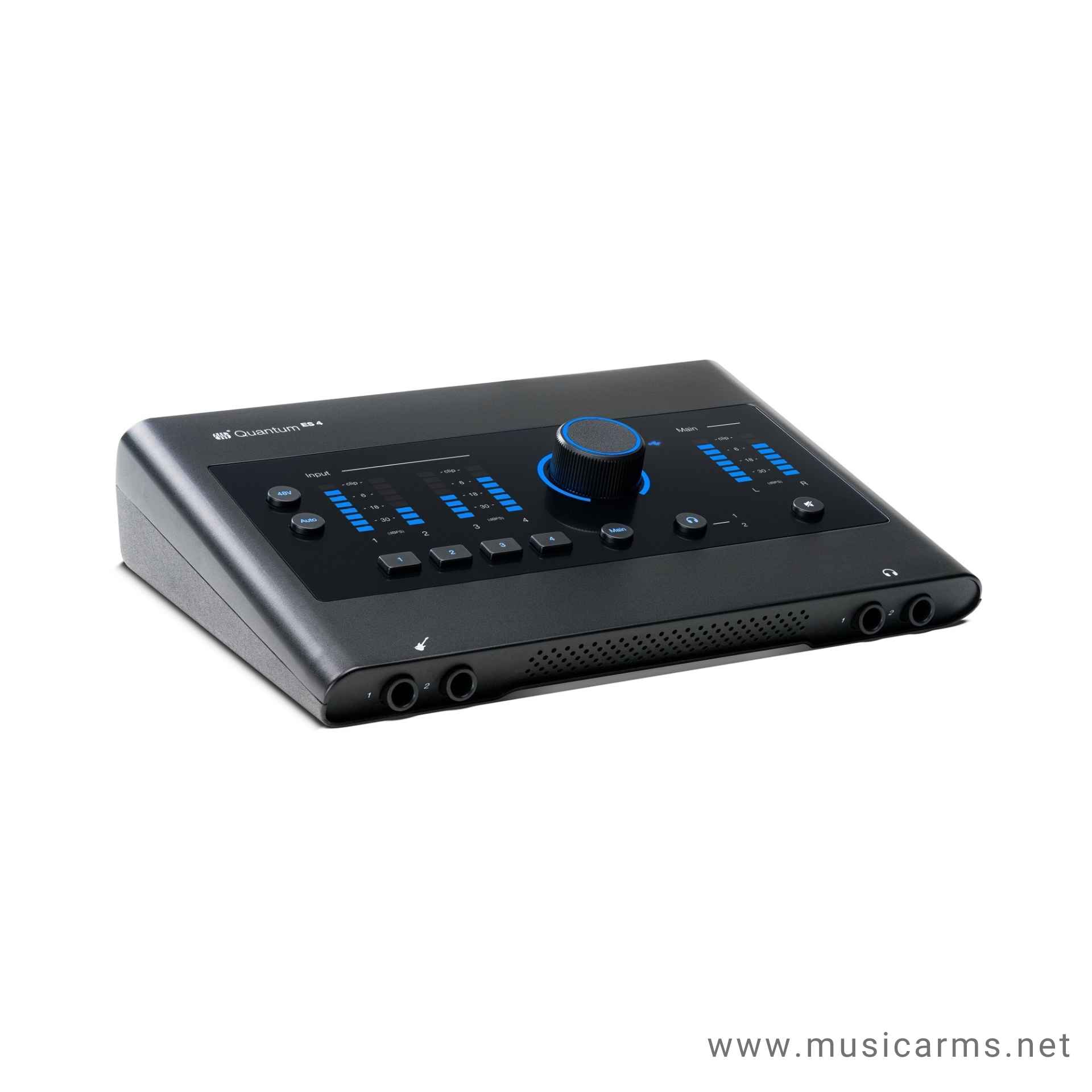

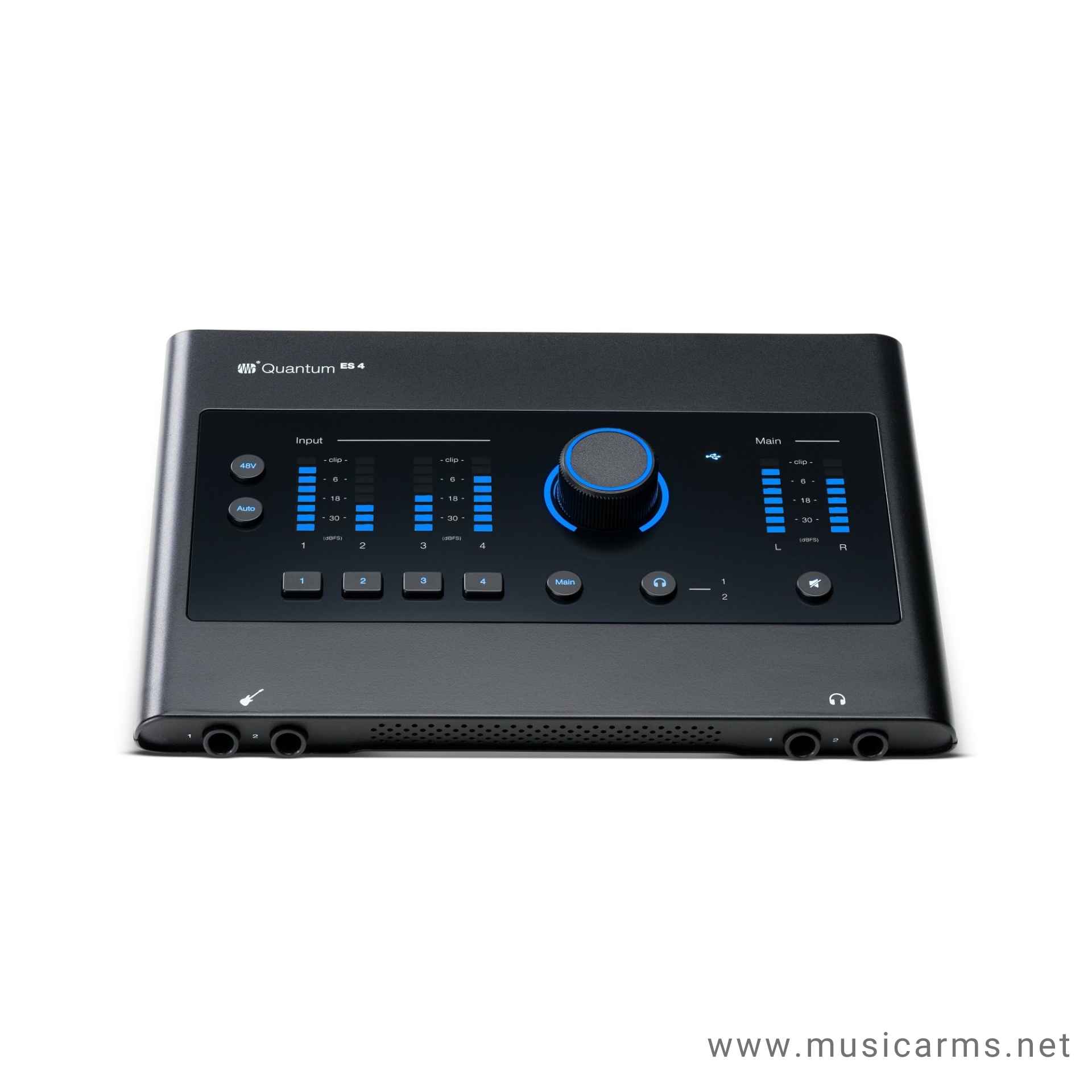

PreSonus Quantum ES 4 Audio Interface

Quantum ES 4 USB-C Audio Interface

4 x 4, 24-bit / 192 kHz Recording Interface with 6-Month Studio One+ Membership Included

Capture your creativity with the Quantum ES 4. The next generation of PreSonus audio interfaces, the Quantum ES 4 is the culmination of nearly 30 years of PreSonus expertise, providing the ultimate recording tool for musicians and content creators.

HIGH PERFORMANCE SIGNAL FLOW

Our custom low-latency driver provides exceptionally low signal lag when recording, and high-performance converters complete the front end to ensure that you sound your best throughout your entire signal chain.

ALL-NEW MAX-HD MIC PREAMPS

The Quantum ES 4 features four newly designed mic preamps with +75 dB of gain. Our high-definition MAX-HD preamps are transparent, low-noise, and digitally-controlled analog, making them ideally suited to today’s most popular microphones.

CO-DEVELOPED WITH FENDER®

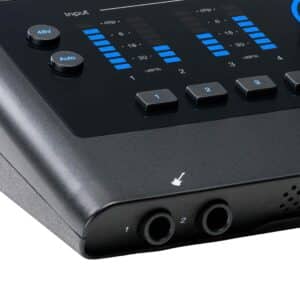

Built by the best ears in the business, guitarists and bassists will love the instrument input co-developed with Fender engineers – industry experts who designed them specifically for guitar and bass.

PROFESSIONAL RECORDING SOFTWARE INCLUDED

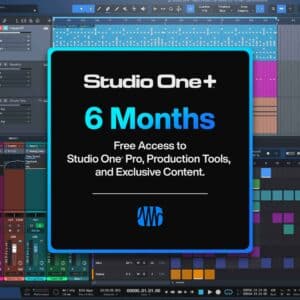

Leap into 6 months of Studio One+ with access to Studio One Professional Edition, add-ons, and more.

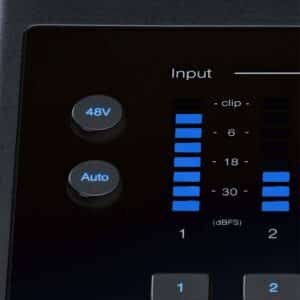

AUTO GAIN

An Auto Gain button sets the perfect gain level for your microphones and instruments, so you get the perfect take every time.

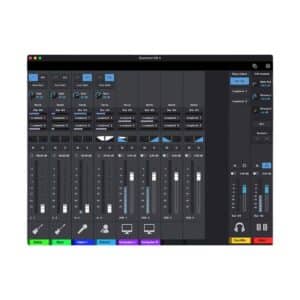

UNIVERSAL CONTROL APP

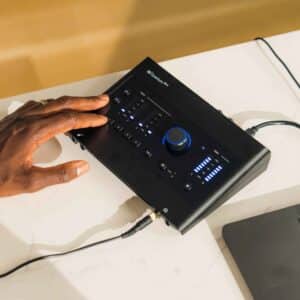

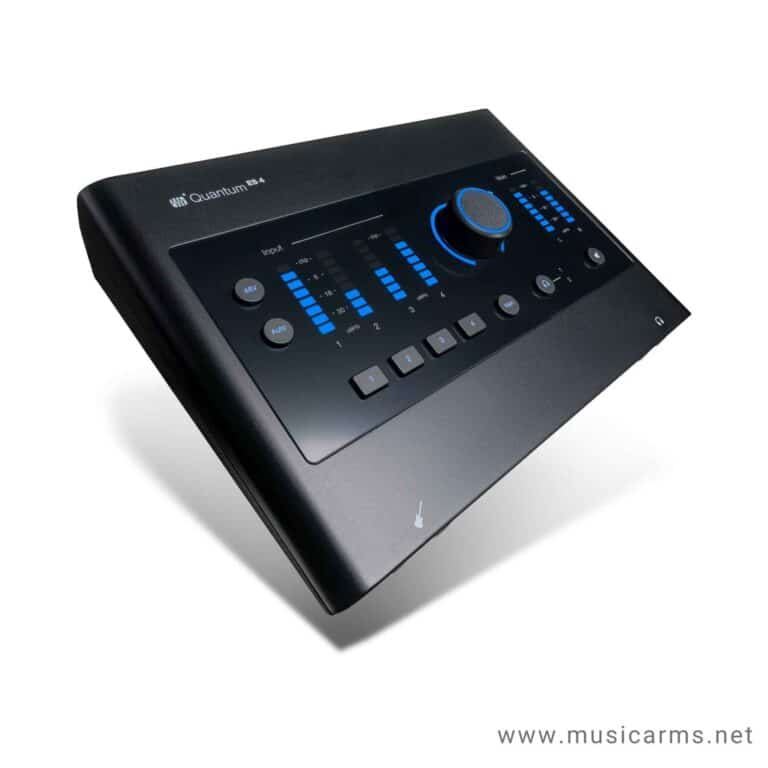

Quantum works on any mobile or desktop device, so you’re ready to record whenever inspiration strikes – whether on your phone, tablet, or in your home studio. Critical preamp functions like preamp gain, phantom power, and more can be controlled with the Quantum ES 4’s top panel, or right from Studio One and the Universal Control app, so you can dial in the perfect gain staging without looking away from your recording session.

Specification

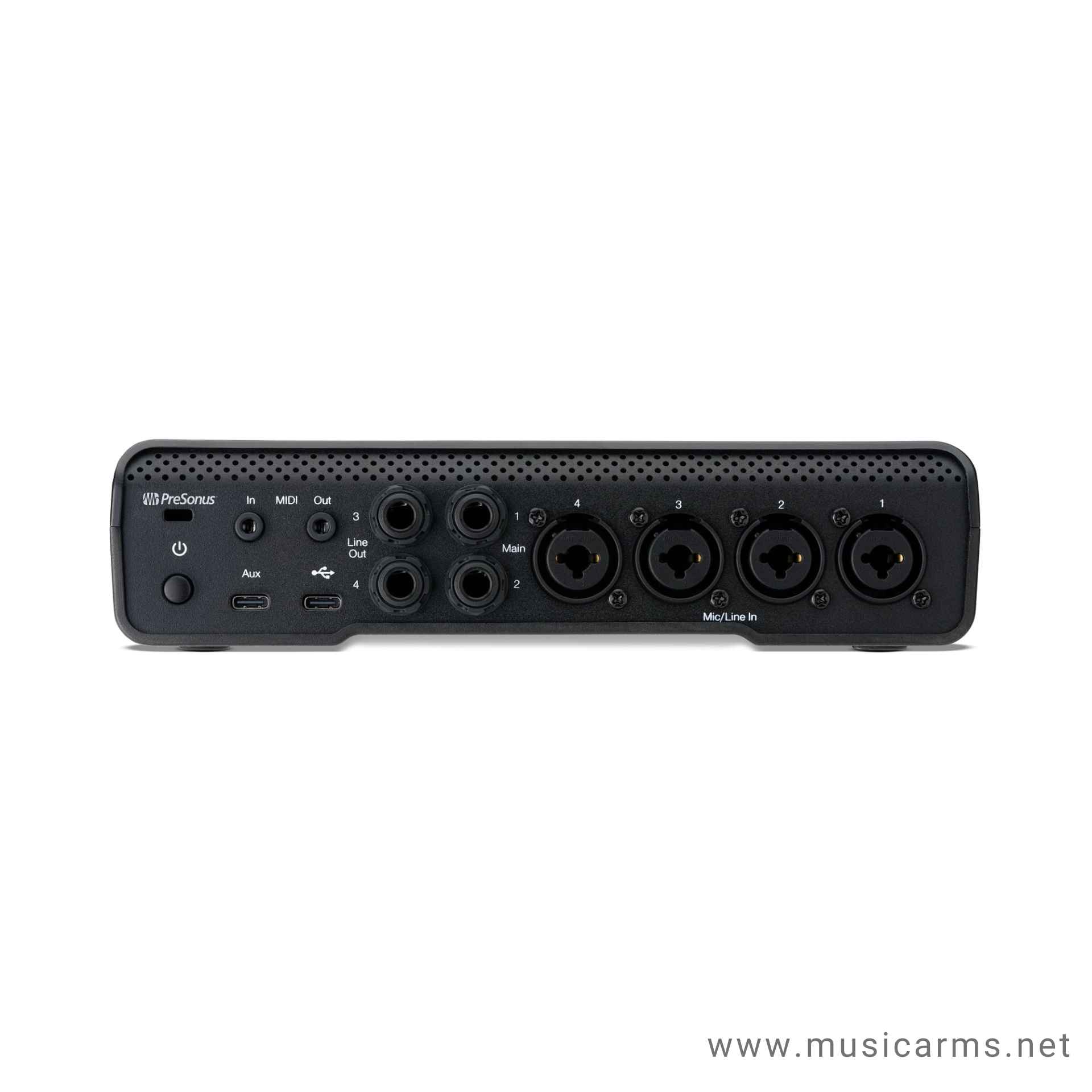

Controls And Connections

• Headphone Jack
  Two – 1/4″ TRS Female Stereo
• Connectivity
  USB-C®
• MIDI I/O
  3.5 mm Type-B

Microphone Preamp

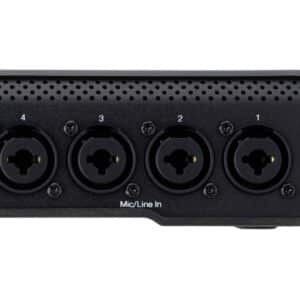

• Microphone Input Connection Type
  XLR Female (Combo), Balanced
• Total Harmonic Distortion
  0.001% (1 kHz, Minimum Gain)
• Gain Control Range
  75 dB
• Microphone Preamp Maximum Input Level
  +14 dBu (Balanced, Minimum Gain)
• Phantom Power
  +48 VDC
• Frequency Response
  20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
• Microphone Preamp Input Impedance
  1600 Ohms
• Dynamic Range
  113 dB (A-Weighted, Minimum Gain)
• Equivalent Input Noise
  -129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)

Instrument Inputs

• Instrument Inputs Impedance
  1M Ohms
• Instrument Inputs Maximum Level
  +15 dBu (Unbalanced, Minimum Gain)
• Gain Range
  75 dB
• Frequency Response
  20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
• Dynamic Range
  111 dB (A-Weighted, Minimum Gain)
• Total Harmonic Distortion
  0.002% (1 kHz, Minimum Gain)

Line Inputs

• Line Inputs Maximum Level
  +15 dBu (Balanced, Minimum Gain)
• Line Inputs Gain Range
  +/- 10 dB
• Line Inputs Frequency Response
  20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
• Line Inputs Dynamic Range
  114 dB (A-Weighted, Minimum Gain)
• Line Inputs Total Harmonic Distortion
  0.001% (1 kHz, Minimum Gain)
• Line Inputs Impedance
  10K Ohms

Main And Line Outputs

• Main And Line Outputs Maximum Level
  +15 dBu (Balanced)
• Main And Line Outputs Frequency Response
  20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
• Main And Line Outputs Total Harmonic Distortion
  0.001% (1 kHz, +4 dBu)
• Main And Line Outputs Dynamic Range
  117 dB (A-Weighted)
• Main And Line Outputs Output Impedance
  51 Ohms
• Line Outputs Connection Type
  1/4″ TRS Female

Headphone Outputs

• Headphone Outputs Maximum Output
  7.5 dBu (50 Ohms)
• Frequency Response
  20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
• Dynamic Range
  111 dB (A-Weighted)
• Total Harmonic Distortion
  0.02% (1 kHz)
• Headphone Outputs Impedance Working Range
  22 Ohms

Digital Audio

• Digital Audio Dynamic Range
  120 dB
• Digital Audio Bit Depth
  24-bit
• Supported Sample Rates
  44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Weights And Dimensions

• Height
  1.9″ (48.3 mm)
• Depth
  6.2″ (158 mm)
• Width
  8.4″ (213 mm)
• Weight
  1.8 lbs. (0.82 kg)

Accessories

Included Accessories

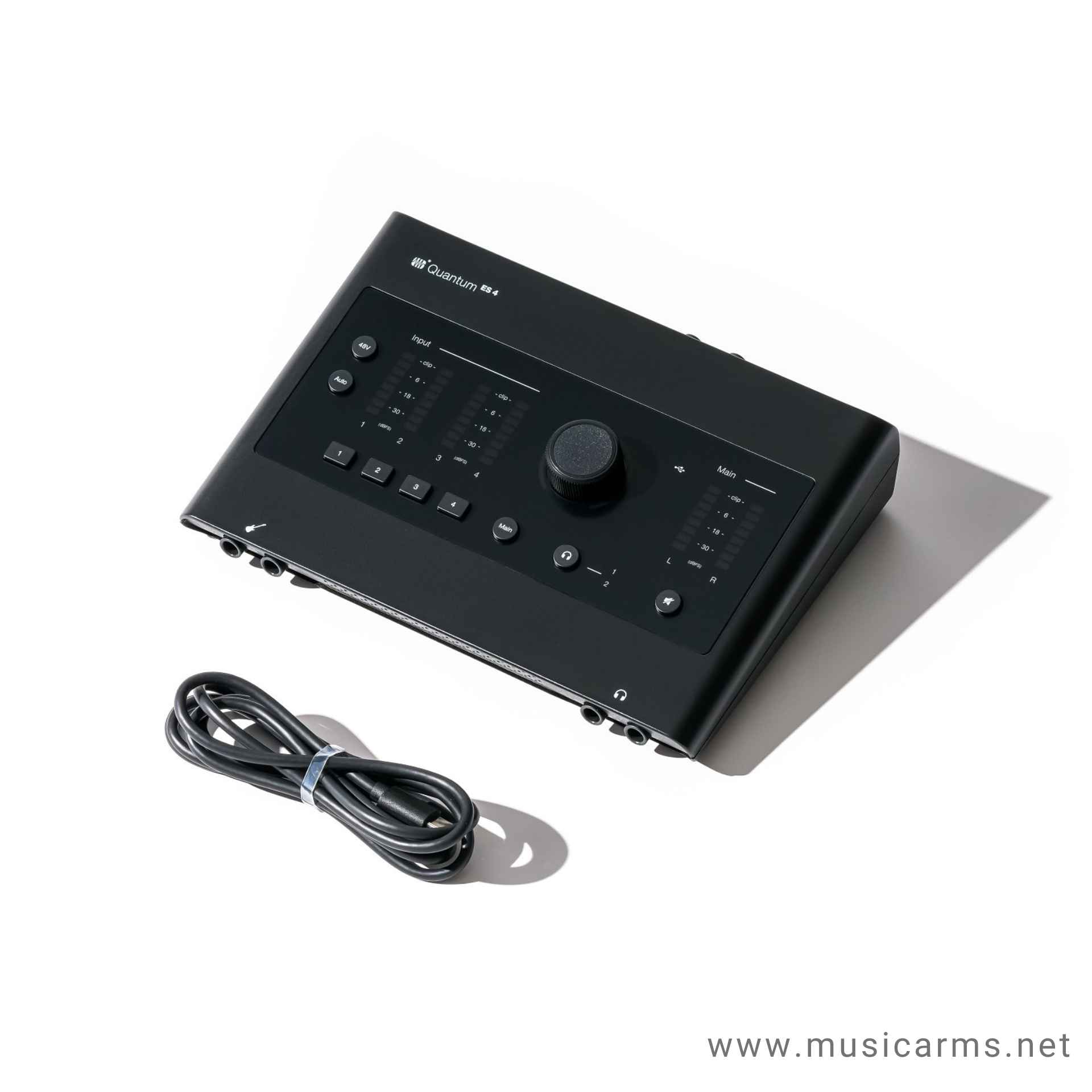

1.5M USB-C to USB-C cable
