PreSonus Quantum
ราคา : 37,900 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
Description

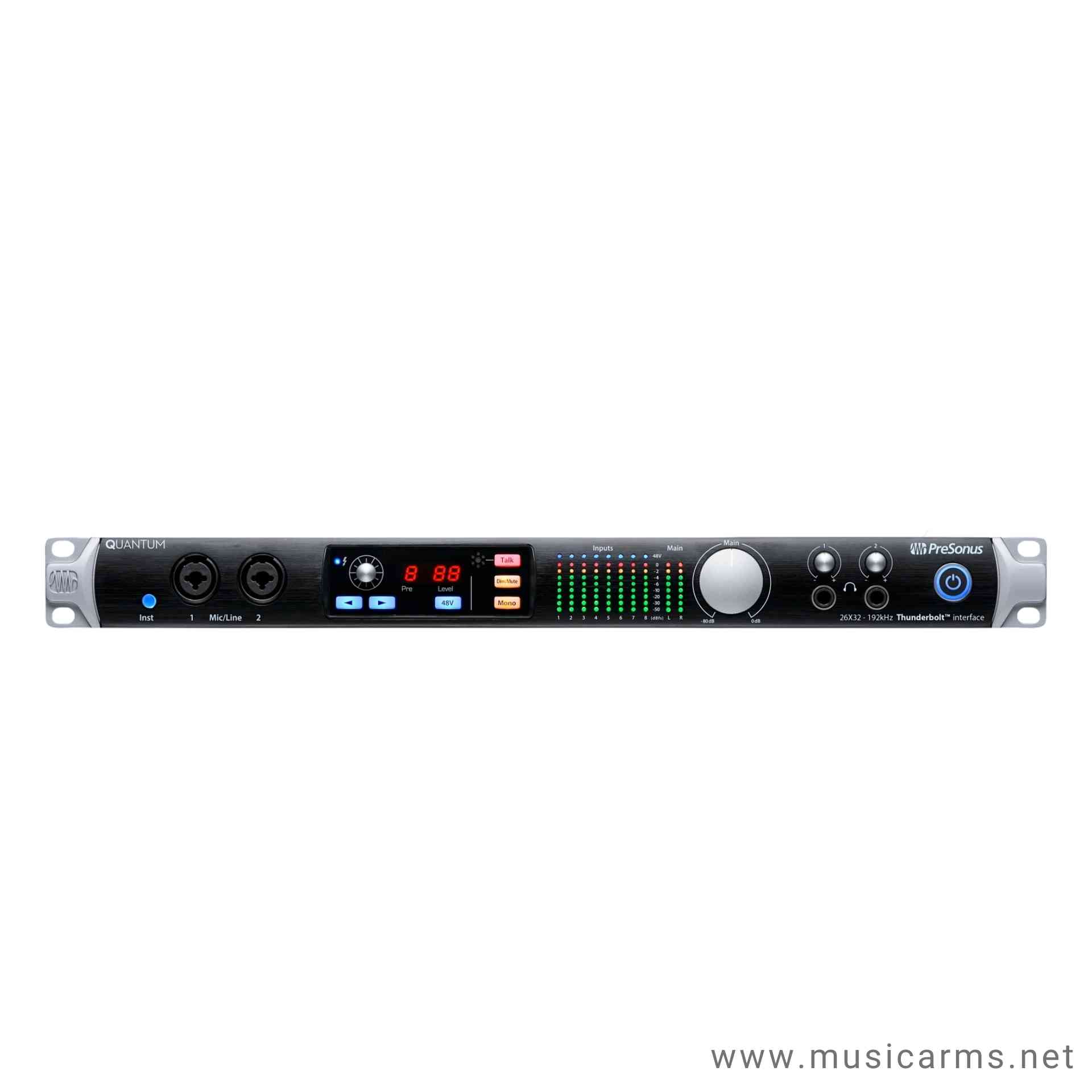

PreSonus Quantum
A great choice for a wide variety of recording environments, the 26×32-channel Quantum is PreSonus®’ fastest and best-sounding audio interface, taking advantage of the high-speed Thunderbolt™ bus and a no-frills, direct-to-DAW (no DSP added) signal path to achieve extremely low latency. Two combo mic/instrument/line inputs and 6 mic/line inputs with recallable XMAX preamps combine with cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range to deliver superb audio quality. For more I/O channels, simply stack up to 4 Quantum interfaces via Thunderbolt to create a monster 96×96 system. You also get MIDI and word clock I/O. Using the included Studio One Artist DAW or UC Surface control software, you can remote-control the preamps and many other features. To top it off, Quantum owners get the Studio Magic Plug-in Suite free and can upgrade to Studio One Professional for 50% off.
Features
- PreSonus®’ fastest and best-sounding audio interface
- Uses high-speed Thunderbolt™ bus
- 24-bit resolution and up to 192 kHz sampling rate (120 dB dynamic range)
- 26×32; expandable to 96×96 by stacking up to four Quantums via Thunderbolt
- 2 combo mic/instrument/line inputs and 6 mic/line inputs, with recallable XMAX preamps

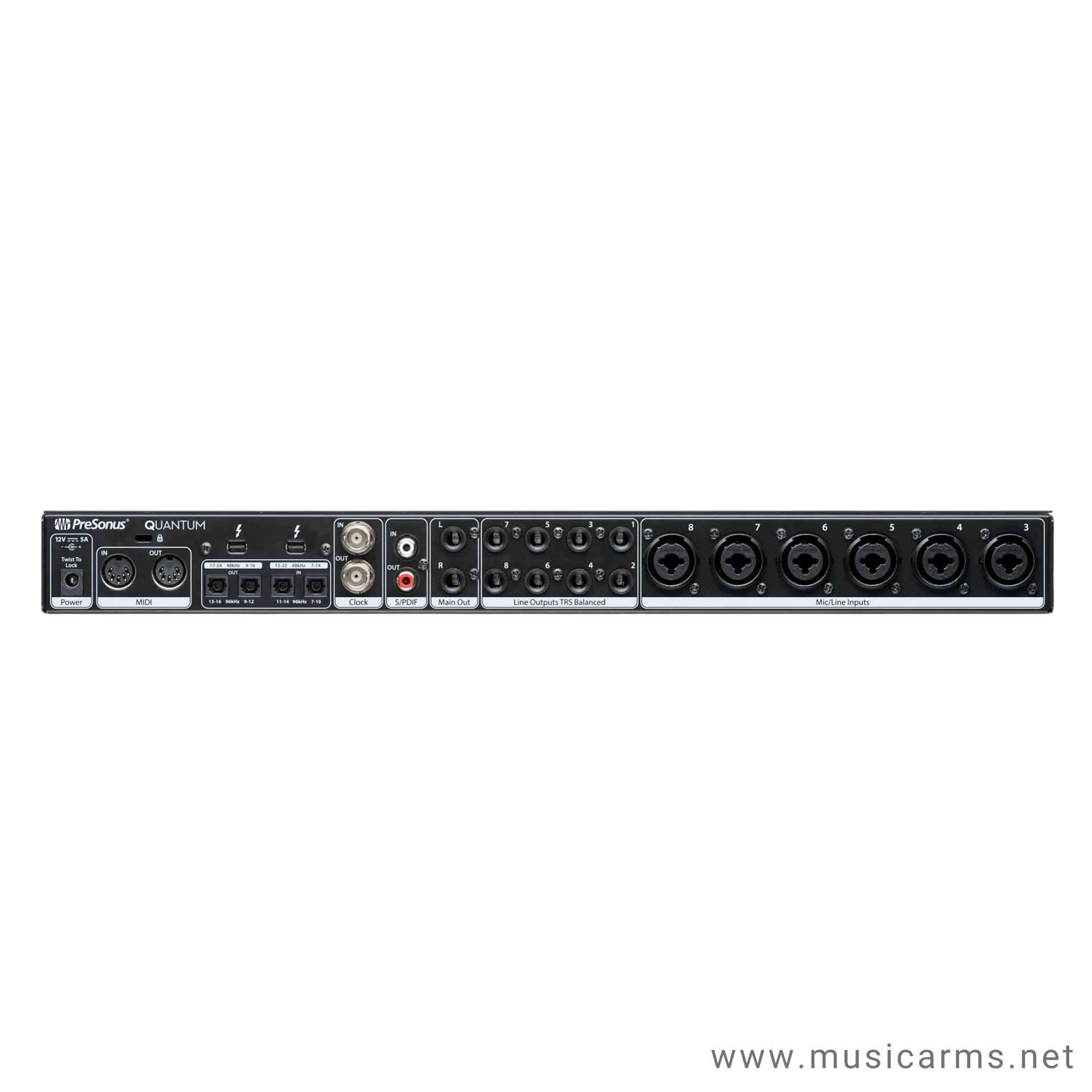

- Dual ADAT Optical, S/PDIF, MIDI, and BNC word clock I/O
- Studio One® Artist and Studio Magic Plug-in Suite included; upgrade to Studio One Professional for 50% off
Specification
Specification
Electronics
-
Voltage100-120V
-
Headphone Jack1/4” TRS Female, Stereo, Unbalanced
Microphone Preamp-
Total Harmonic Distortion< 0.005% (1 kHz, Minimum Gain)
-
Gain Control Range60 dB
-
Microphone Preamp Maximum Input Level+10 dBu (Balanced, Minimum Gain)
-
Phantom Power+48V (>8 mA per Input)
-
Frequency Response20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.22 dB, Unity Gain, 96 kHz)
-
Microphone Preamp Input Impedance1.6 kΩ
-
Dynamic Range> 110 dB (A-Weighted, Minimum Gain)
-
Equivalent Input Noise< -131 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
Line Inputs-
Line Inputs Maximum Level+ 18 dBu (Balanced, Minimum Gain)
-
Line Inputs Frequency Response20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.10 dB, Unity Gain, 96 kHz)
-
Line Inputs Dynamic Range> 118 dB (A-Weighted, Minimum Gain)
-
Line Inputs Total Harmonic Distortion< 0.005% (1 kHz, Minimum Gain)
-
Line Inputs Impedance10 kΩ
-
Main And Line Outputs Maximum Level+18 dBu (Balanced)
-
Main And Line Outputs Frequency Response20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.15 dB, Unity Gain, 96 kHz)
-
Main And Line Outputs Total Harmonic Distortion< 0.0035% (1 kHz, +4 dBu)
-
Main And Line Outputs Dynamic Range> 118 dB (A-Weighted)
-
Frequency Response20 Hz to 20 kHz, +/-0.5 dB
-
Dynamic Range> 110 dB (A-Weighted)
-
Total Harmonic Distortion< 0.03% (1 kHz)
-
Digital Audio Dynamic RangeADC Dynamic Range: 120 dB (A-Weighted), DAC Dynamic Range: 120 dB (A-Weighted)
-
Digital Audio Bit Depth24 bits
-
Supported Sample Rates44.1, 48, 88.2, 96, 176.4, 192 (kHz)
