PMC MB3S XBD-A ลำโพงมอนิเตอร์
ราคา : 2,640,000 บาท
ลูกค้าองค์กร/ใบเสนอราคา
E-mail: musicarmsproject@gmail.com
Description

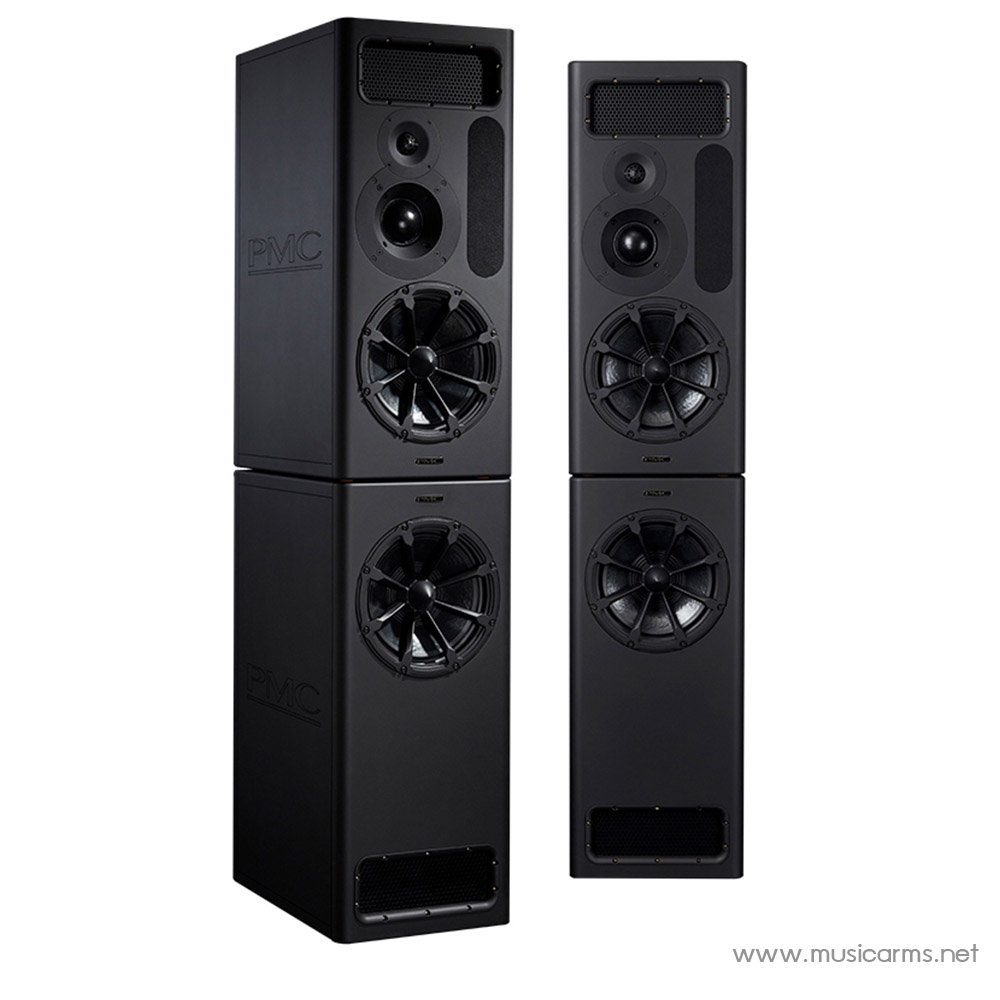

PMC MB3 XBD-A Dual 12 inch 3-way Active Reference Monitors
3-way Active Reference Monitor with Separate Subwoofer Cabinet, 3225W Triamplifaction, 2 x 12″ LF Drivers, 75mm MF Driver, 34mm HF Driver, ATL Technology, and Analog and Digital Inputs – Pair
World-class PMC Main Monitors for Larger Control Rooms
Arranged in a sleek column with a second cabinet dedicated to subwoofer duties, the PMC MB3 XBD-A system delivers world-class main monitor performance in larger control rooms. Featuring an additional 12-inch Radial bass driver, the dual-cabinet MB3 XBD-A improves on the dynamic performance of the MB3-A with 3dB more headroom below the bass crossover frequency, producing a maximum SPL of 129dB and allowing larger rooms to be driven with an even smoother frequency response. The dual XBD cabinets may be either soffit-mounted or freestanding, and can be positioned vertically or side-by-side for greater placement flexibility.
PMC MB3 XBD-A Dual 12″ 3-way Active Reference Monitor (Pair) Features:
- 3-way ATL active reference monitor with separate subwoofer cabinet
- Frequency response: 20Hz-25kHz
- Custom triamplifaction: 3225W (HF 275W, MF 550W, LF/LFX 2400W)
- Effective ATL length: 2 x 3 meters
- Maximum SPL: 129dB
- Crossover Frequency: 380Hz, 3.8kHz
- Bespoke PMC drivers
- Woofer: 2 x 12″ Radial
- Midrange: 75mm soft-dome
- Tweeter: 34mm soft-dome with acoustic radiator
- I/O: balanced analog input, digital AES3 input (24-bit/96kHz)
- Remote control: wired via RJ45, rotary volume -48.5dB to +15dB
- Dimensions: 68.5″ H x 15″ W x 21″ D
- Weight: 194 pounds
Specification
Specification
- Powered:Yes
- Power Configuration:Tri-amped
- LF Driver Size:2 x 12″ Woofer
- LF Driver Type:Radial Driver
- MF Driver Size:3″
- MF Driver Type:Soft-dome
- HF Driver Size:1.33″ Tweeter
- HF Driver Type:Soft-dome with Acoustic Radiator
- LF Driver Power Amp:2400W
- MF Driver Power Amp:550W
- HF Driver Power Amp:275W
- Total Power:3225W
- Frequency Response:20Hz-25kHz
- Crossover Frequency:3800Hz
- Maximum Peak SPL:129 dB SPL @ 1m
- Input Types:2 x Analog XLR (AES/EBU), 2 x Digital XLR (AES/EBU)
- Output Types:2 x Analog XLR Thru (AES/EBU), 2 x Digital XLR Thru (AES/EBU)
- Other I/O:2 x RJ45 (in/thru)
- Enclosure Type:Front ported
- Enclosure Material:Medite Resonance Damped Composite
- Height:68.5″
- Width:15″
- Depth:21″
- Weight:194 lbs.
