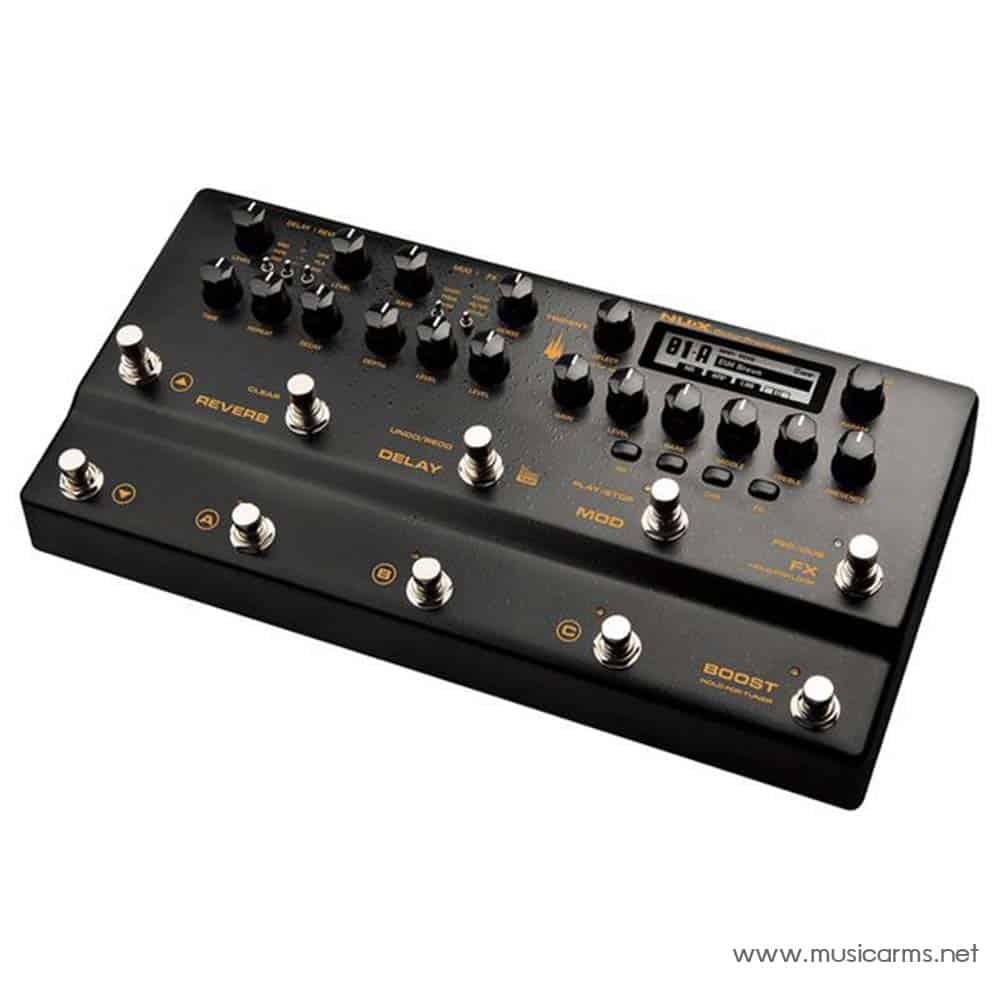

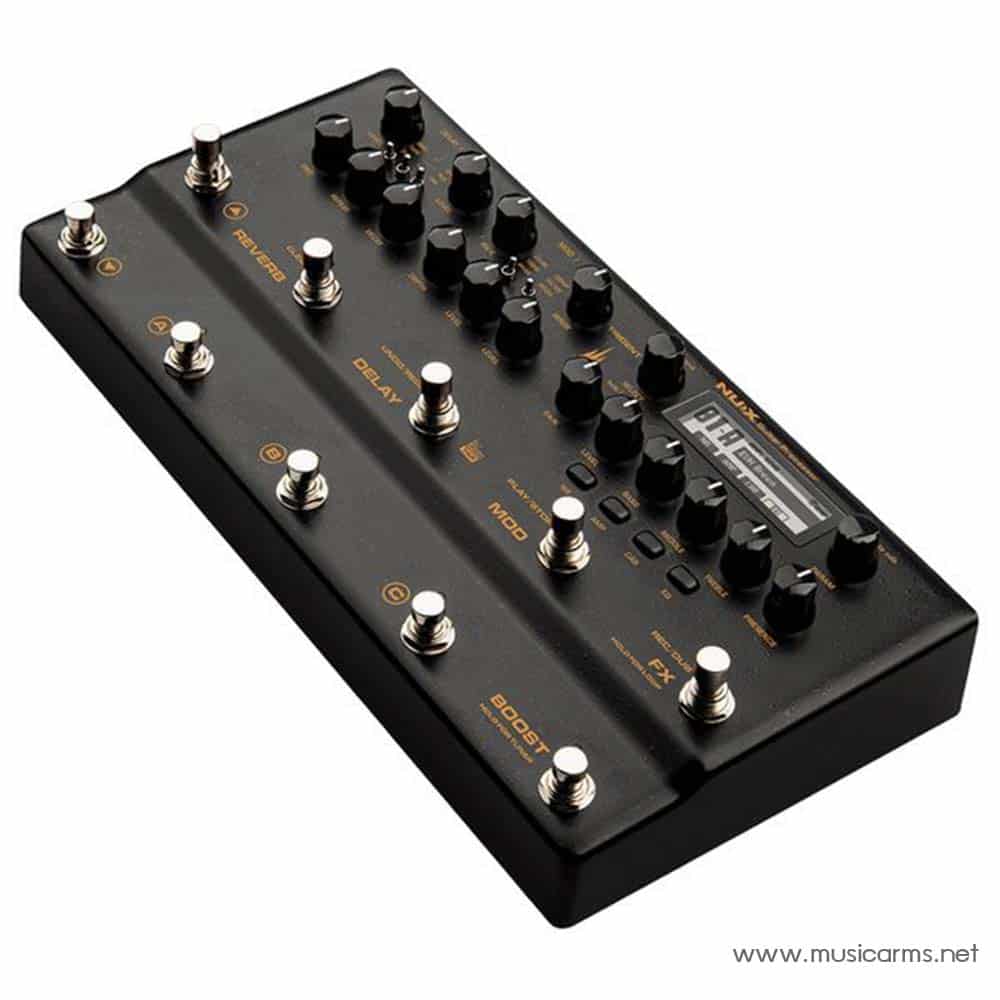

Nux Trident NME-5 มัลติเอฟเฟค

Nux Trident NME-5 Multi Effect

A Top Shelf Modeler for Live.

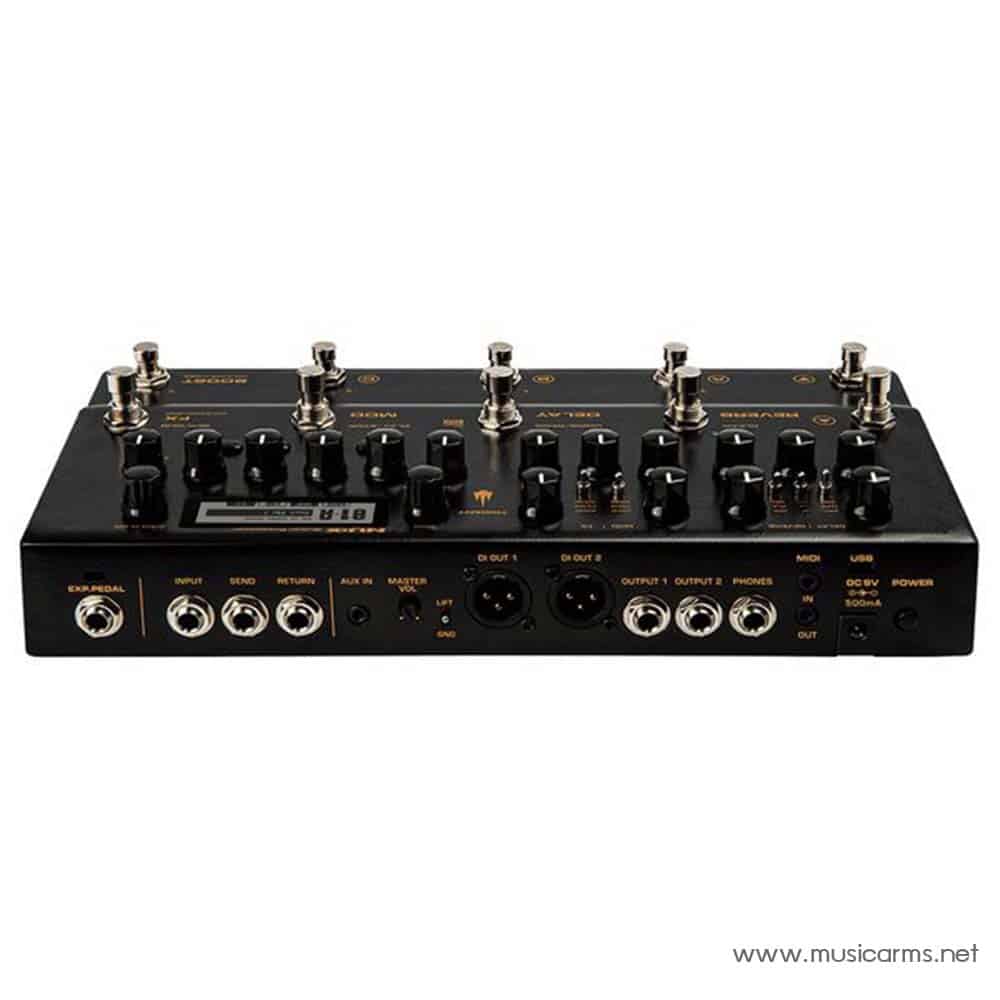

Perfect for live applications, the TRIDENT offers plenty of I/O options. The SEND/RETURN effect loop for external effects, 2 balanced XLR outputs to the PA system, PHONES output for monitoring, EXP. PEDAL input for adding an expression pedal, MASTER VOL pot, and MIDI IN / OUT.

Built like a tank.

The TRIDENT uses one-piece die-cast aluminum case, it’s solid, strong, build for live performance.

World-Class Amp Modeling.

The TRIDENT features our newly updated iconic TSAC-4K Amp Modeling (White-box Physical Modeling algorithm). The TSAC-4K Amp Modeling algorithm is twice as complex than previous versions. This led us to design a new hardware platform with 2 DSPs, one to handle all the effects, and the other to handle the amp modeling algorithm. Additionally, the TRIDENT uses premium A/D & D/A converters and analog circuits to achieve a clear sound with low noise levels.

The best IR loader

TRIDENT is the IR loader you want. 27 person IR cab at high resolution, 1024 samples, adjustable sound cab, 4 person microphones (3 positions each) in IR low cut/high cut/level adjustments and finally an expanded IR library in With an IR section and 32 additional channels, the Trident™ editor converts to IR formats on your PC or Mac.

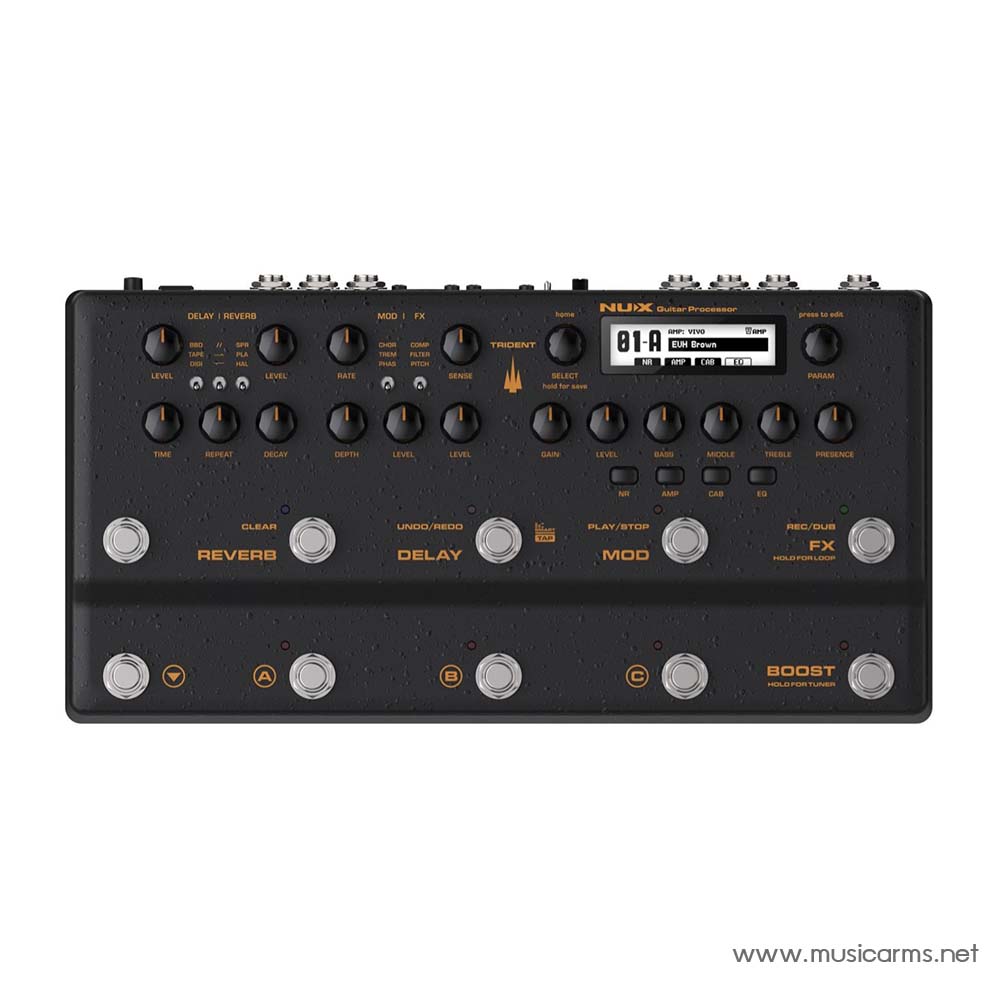

Intuitive control scheme

The TRIDENT’s knob, toggle switch and footswitch layout is similar to a stompbox. You can turn on/off the effect freely. SELECT & PARAM encoder with LCD display provides more detailed parameters, block order / status.

Powerful studio equipment

TRIDENT is also a powerful piece of studio equipment. It is the perfect USB-C audio interface for guitars. You can download Trident Editor™ from the product page to edit the patch. and set up USB routing to save your TRIDENT music to your favorite DAW. Or use it as a reamp to breathe new life into your previously recorded tracks. Warning!! To provide you with the best possible dynamic range of USB streaming, TRIDENT does not control the playback volume of your PC system. When using TRIDENT as a USB audio interface, be sure to adjust the PC playback volume from the Low” to the desired volume level. Take care of your ears.

Looper 30 seconds

TRIDENT has a 30-second phrase repeater, and you can adjust the repeater position to PRE or POST. In PRE, the recorded loop is clean and ready to be processed by TRIDENT amps and effects in POST. The saved files will be processed by TRIDENT.

• INPUT Impedance: 1M Ω
• AUX IN Impedance: 10kΩ
• RETURN Impedance: 100kΩ
• OUTPUT 1, OUTPUT 2, SEND Impedance: 1kΩ
• Phone Impedance: 47Ω
• Dynamic Range: 109dB
• Sampling Rate: 48kHz / 32 bit
• System Latency: 1ms
• Power: 9V DC (Negative Tip, included ACD-006A adaptor)

• เอฟเฟค 16 แบบ
• หน่วยความจำที่ตั้งไว้ล่วงหน้า: 32 ช่อง x 4 Preset
• ค่า Latency ต่ำมาก (เข้าออก 0.68 – 2.04ms)
• จูนเนอร์ที่แม่นยำในตัว
• ตัวแปลง AD/DA：ส่วนของไดรฟ์แบบอะนาล็อก
• ฟังก์ชั่น Kill Dry
• การจำลองตู้ลำโพง： IR Loader
• รองรับ MIDI： การใช้งาน MIDI เต็มรูปแบบ
• สามารถเชื่อมต่อแป้นเหยียบเป็นตัวควบคุมระดับเสียงก่อนส่วนดิจิตอล
• บูสต์：0dB – 20dB คลีนบูสต์
• สวิตช์ควบคุม: กำหนดให้เป็นคลีนบูสเตอร์, บายพาสส่วนไดรฟ์, Mod FX Control, Delay/Reverb Control
• จอแสดงผล: LED 7 ส่วน 3 ดิจิตอล
• ความแม่นยำในการสุ่มตัวอย่าง: 44.1kHz/32Bit
• ความแม่นยำในการประมวลผล：88.2kHz/32Bit THD+N
