NUX B-3MA

The distance range limit is 100-feet outdoor and the latency is less than 4 milliseconds. And the most important; the audio quality is 32-bit 48 kHz. The distance range is quite enough for any kind of place, you can walk 60 feet away from the receiver and the signal will flow with no latency or a break. That’s the recommended range of use. Long lasting built-in battery simply can be charged with USB cable which is included the package.

How to operate?

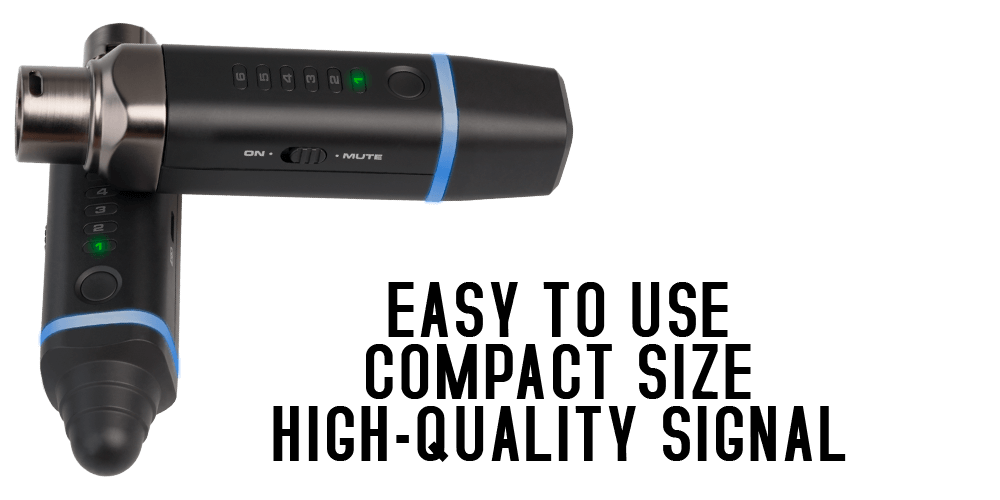

– Turn on the transmitter and the receiver
Channel 1 is the default pairing channel. If you want to use different channel, click the same channel number on both transmitter and receiver. When the blue status LED stop blinking, it’s all set.

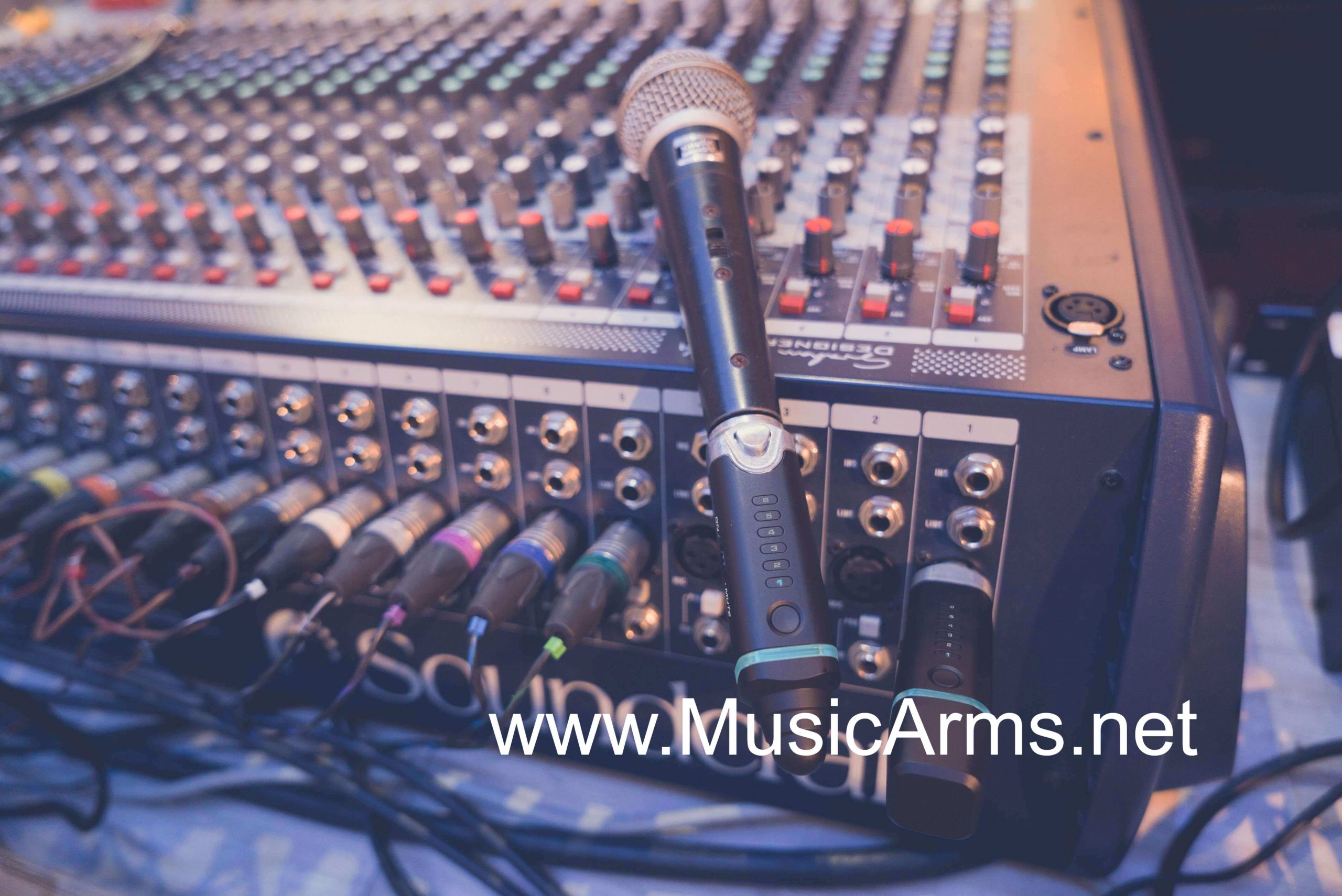

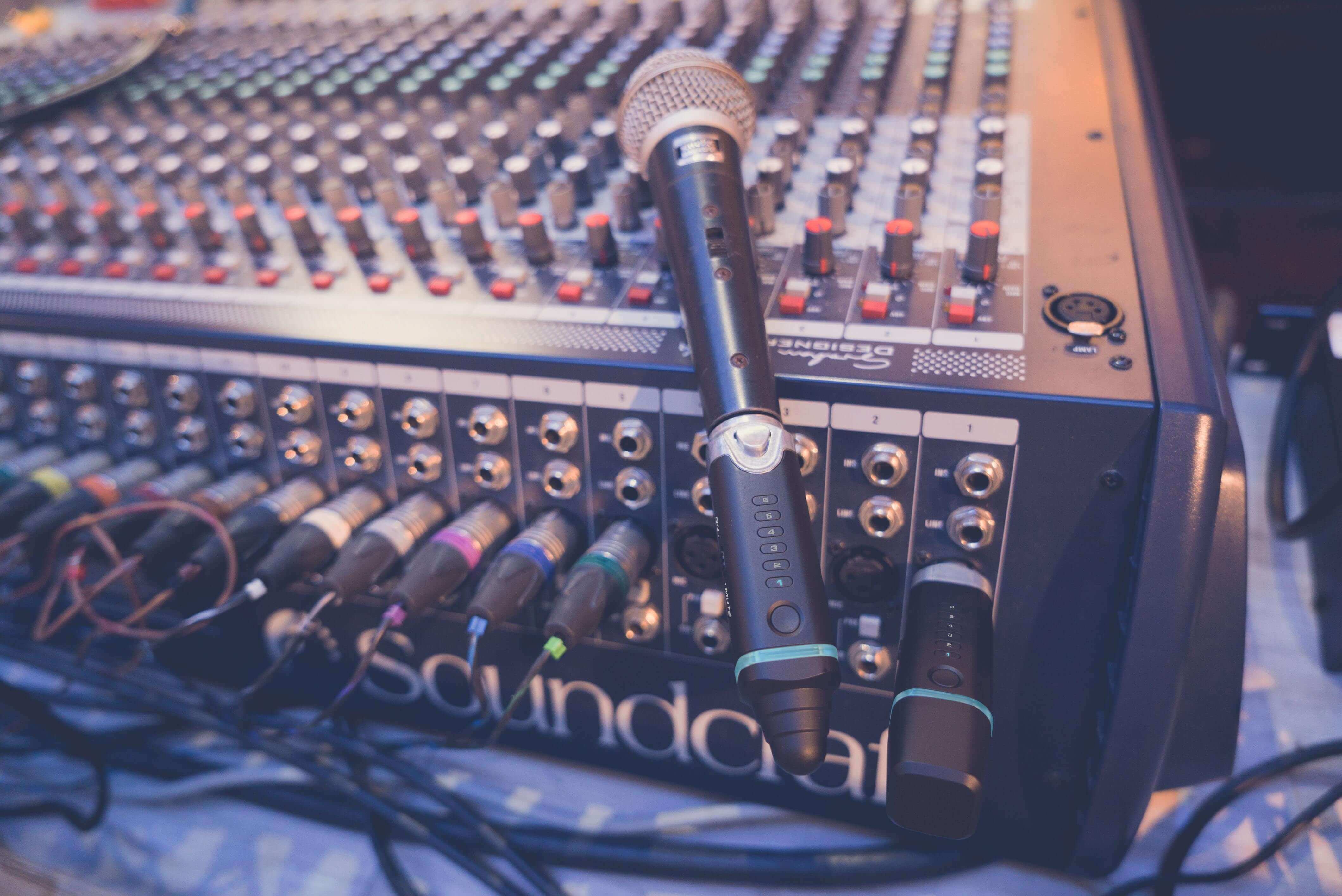

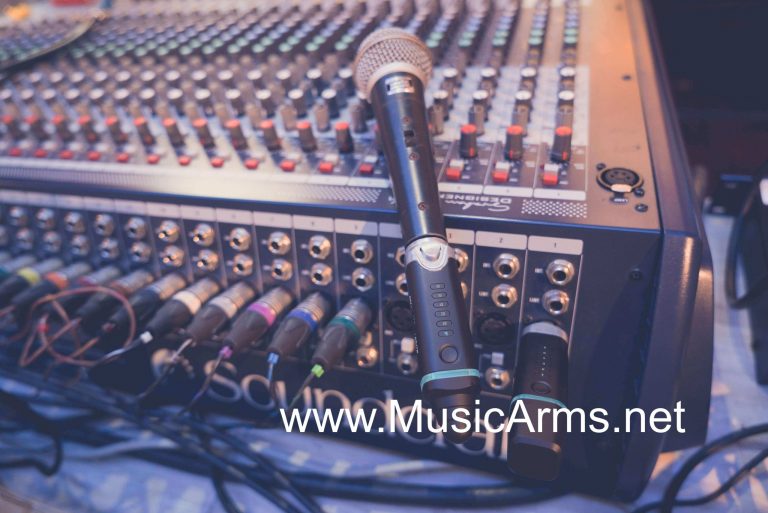

– Connect the transmitter to microphone and connect the receiver to a device you want to connect the microphone (amplifier, speaker, mixer, camera or mobile phone)

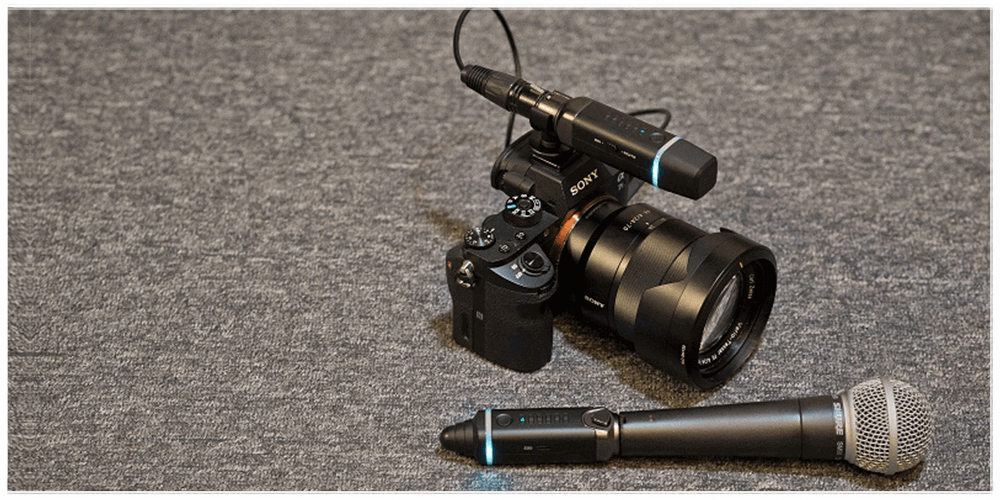

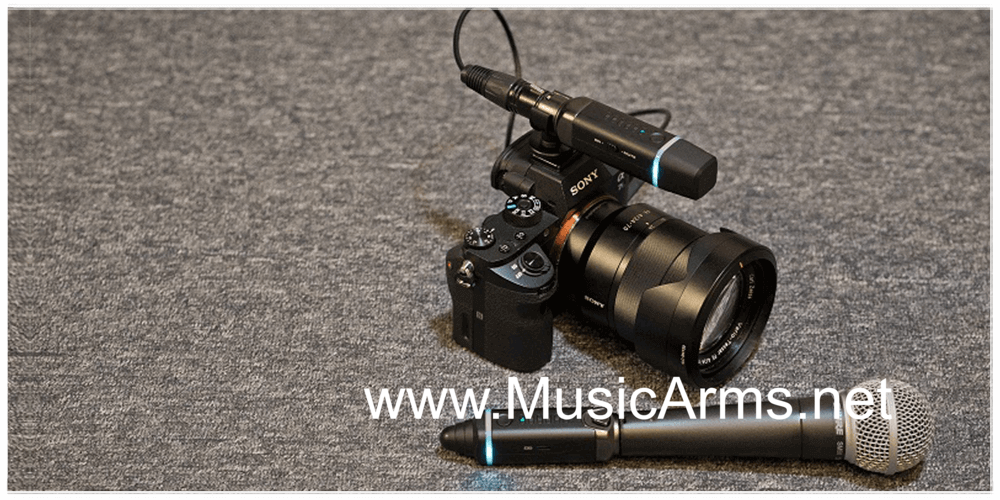

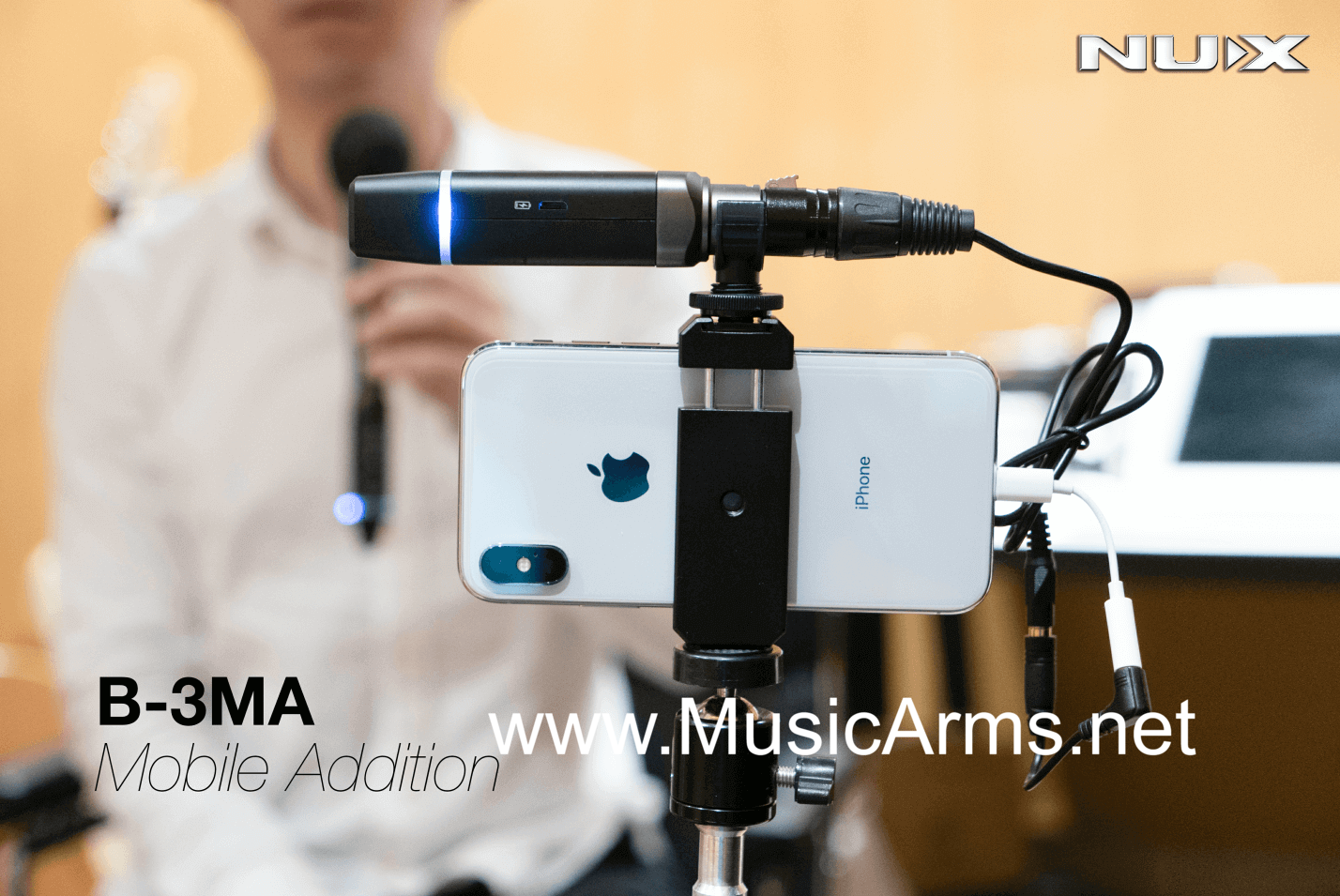

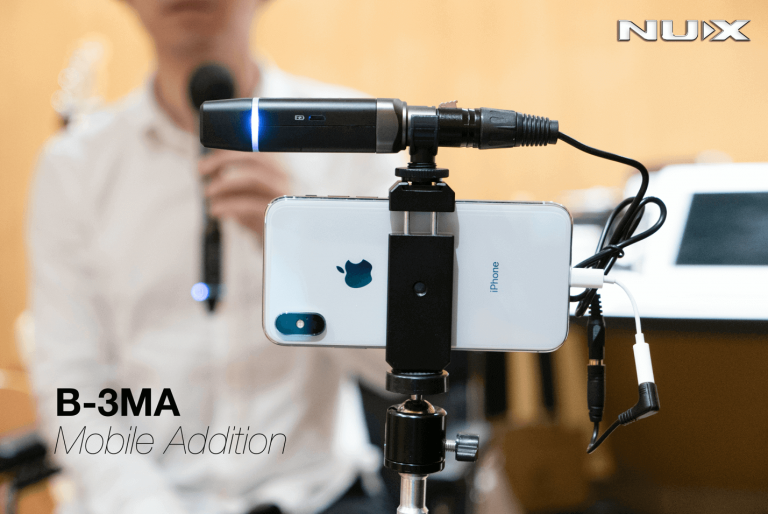

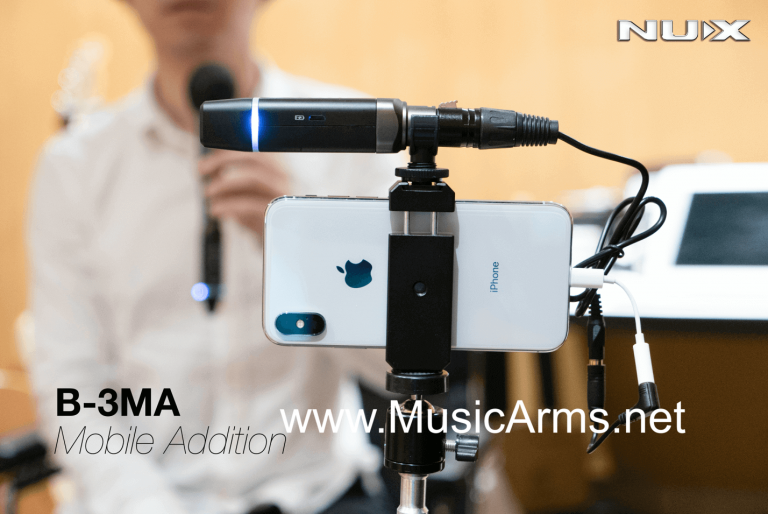

If you are using B3 to connect to a camera or a mobile phone, please use the converter cables.

– Pairing up and sound check
Please make sure the connected device is ON, and check the signal before you increase the volume.

– Battery check and charging
When you turn ON the B3 wireless system, channel numbers will start to flash. You can see how much power left from 1 to 6. You can use the Y USB cable (included the package) and connect to any computer or a 5V phone charger unit to charge it.

Constructive for video shooting and live stream

32-bit / 48KHz Hi-Resolution Sound Quality

6 Built-in switchable Channels

Super Low Latency：< 4ms

Range：> 100 feet line-0-site Outdoors.

Dynamic Range：108db

Operating Band：2.4GHz ISM Worlwide

THD + Noise：< 0.02% (1KHz@-10dbFS)

Battery life：5 Hours
