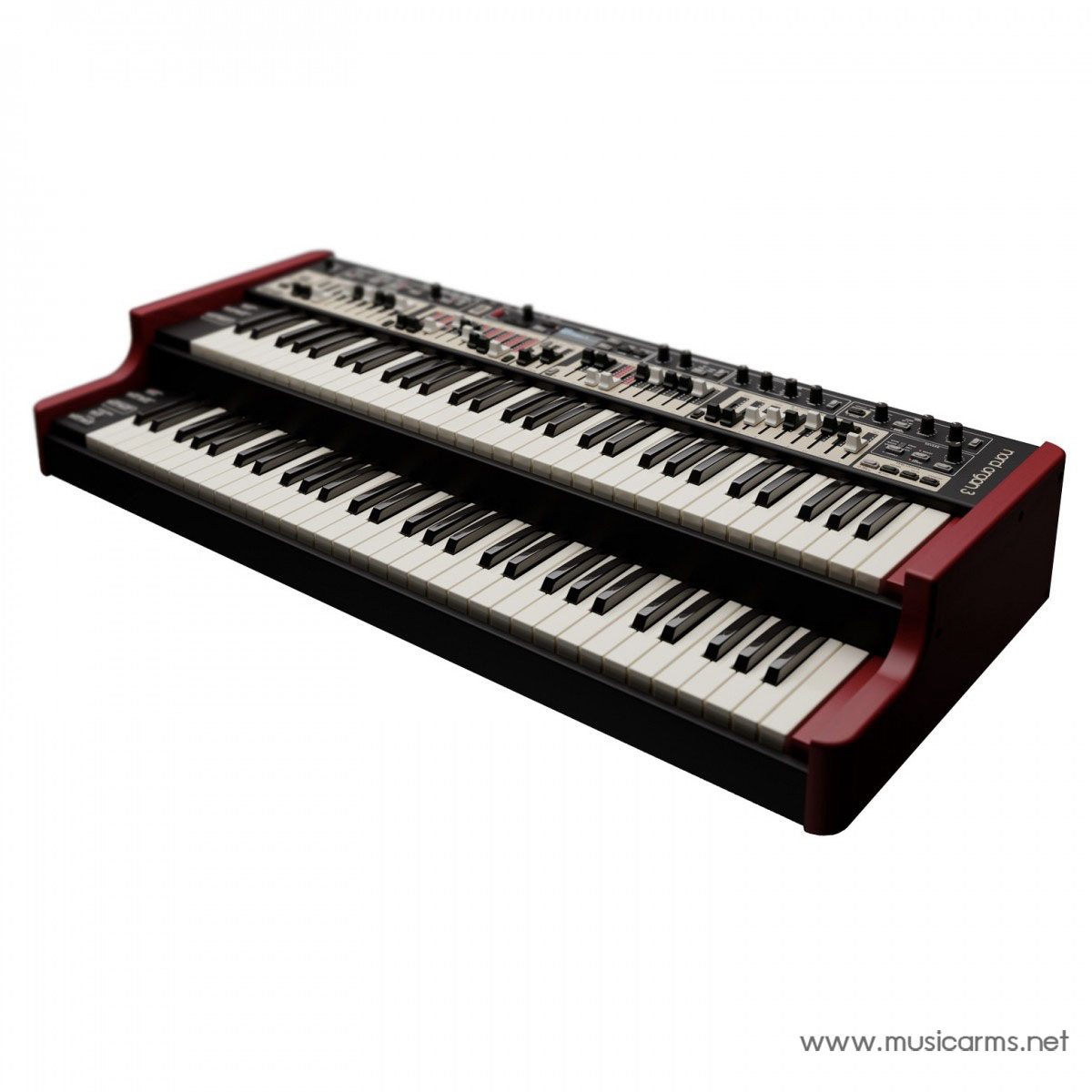

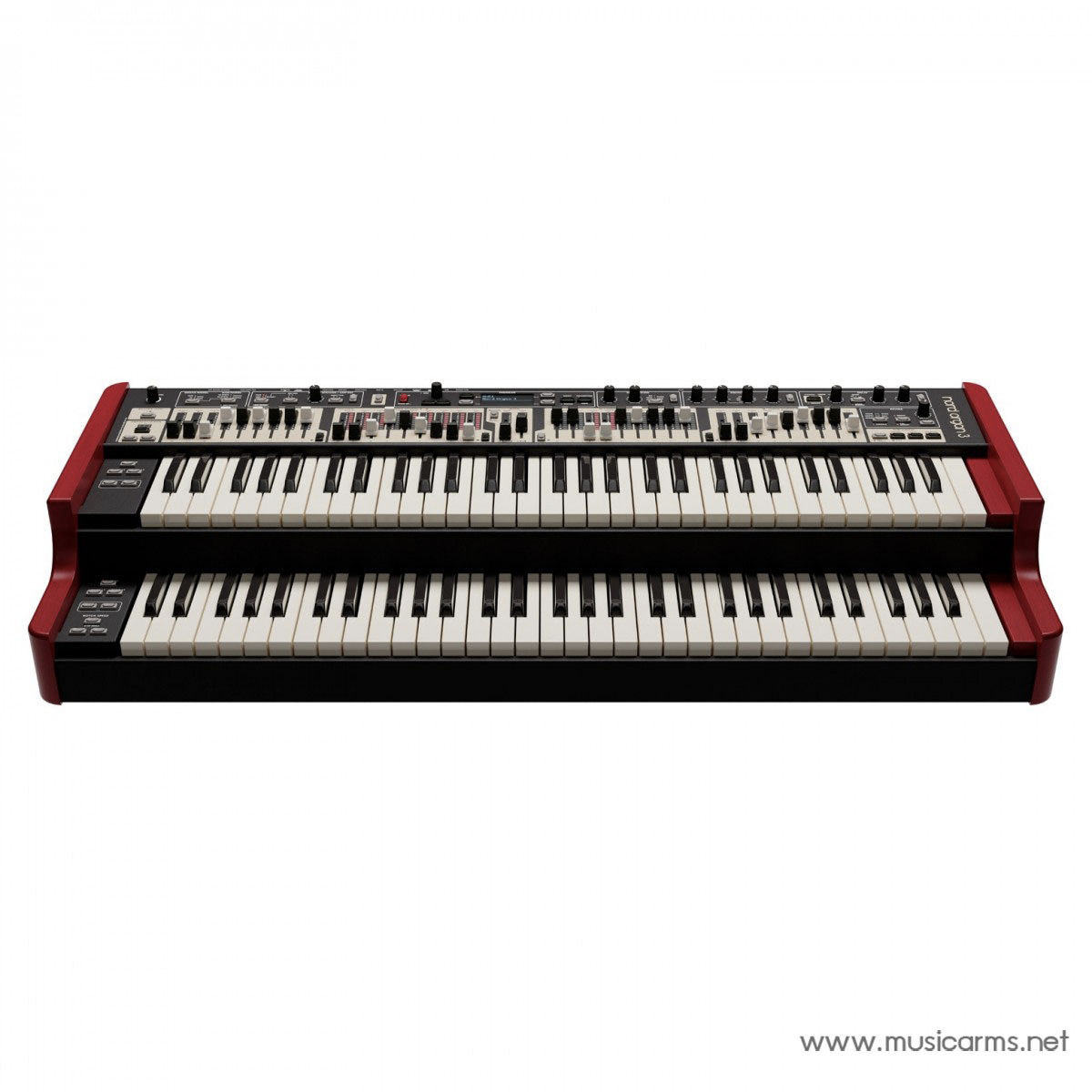

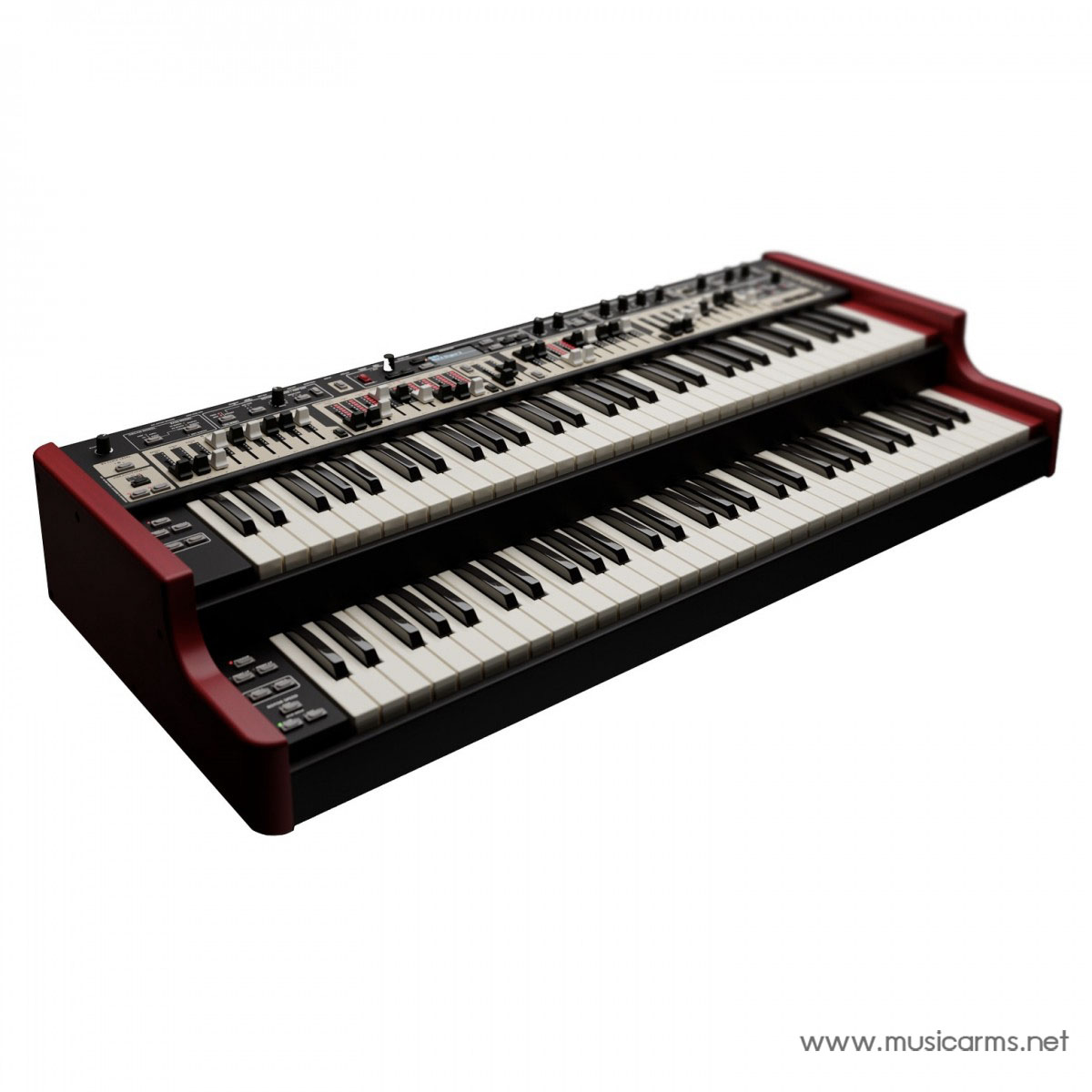

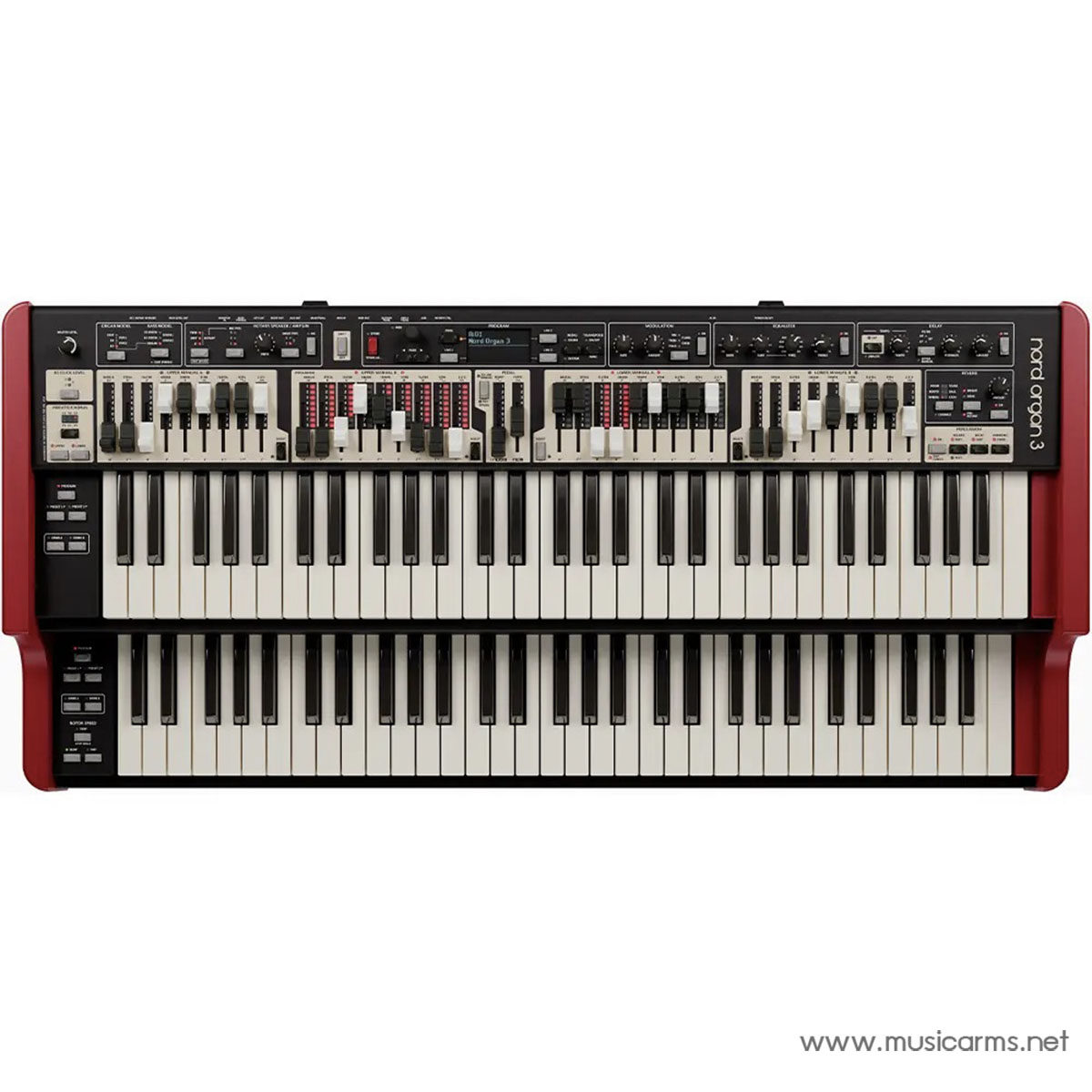

Nord Organ 3

• Master Level Control

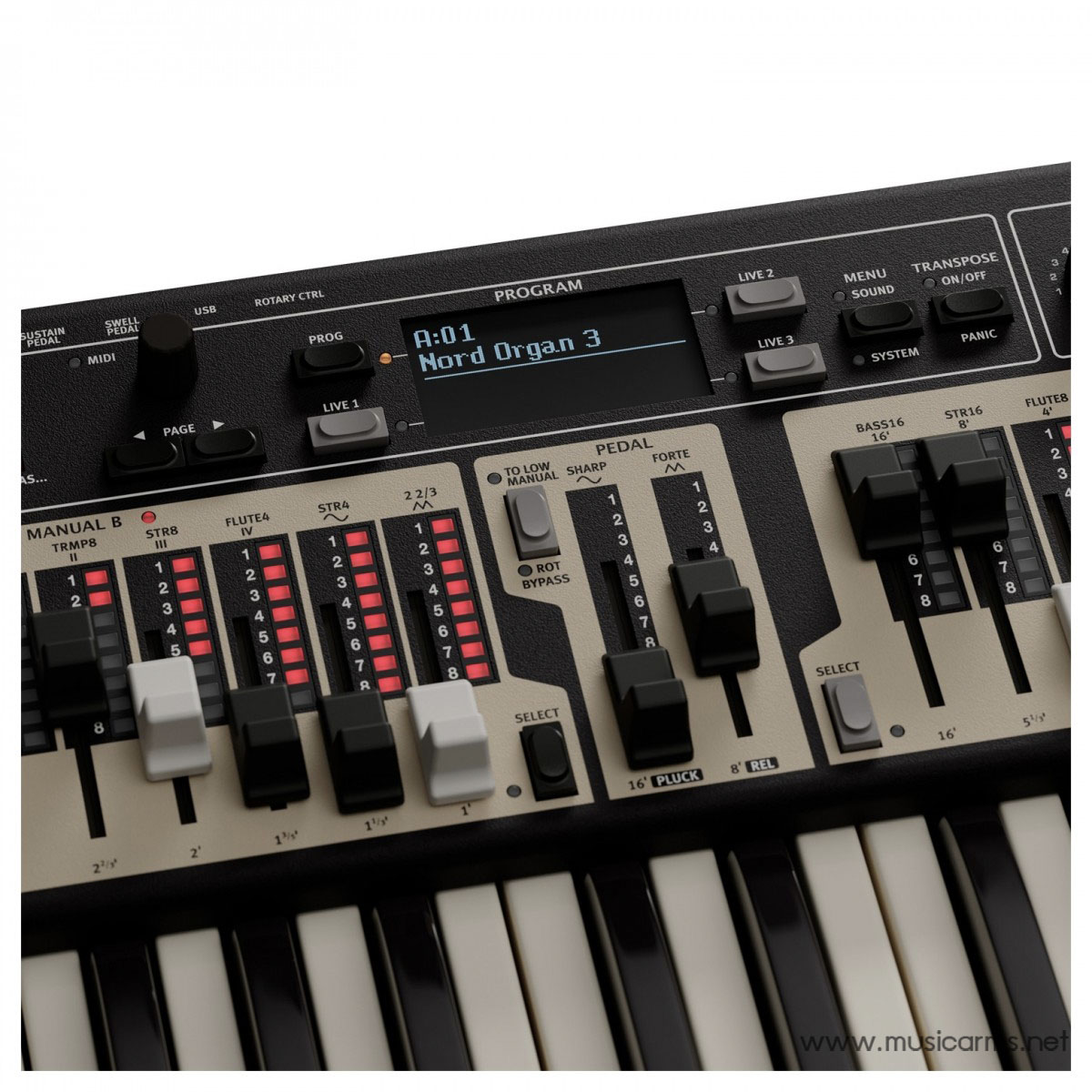

• OLED display
• Transpose button

• 2 Drawbar sets per manual
• 1 LED indicator set per manual
• Pedal drawbars
• Aux output for optional Bass/Pedal routing

• 400 Program locations
• 3 Live Programs
• 1 Program and 2 Preset buttons per manual
• Drawbar A and B selector buttons per manual

Organ section

• B3, Vox, Farfisa models with full polyphony
• 2 Pipe Organ models with full polyphony

• Organ Bass models: B3, Vox, Farfisa and Pipe
• Synth Bass models: B3 synth, Trek and Taurus

• Percussion Controls with Poly and DB9 Cancel options
• Vibrato/Chorus with B3 Deep mode

• Brand new Rotary Speaker emulation
• Multiple options for microphone placement

• 3 Drive Types and Drive amount control
• JC, Brit and Twin amp and speaker emulations

• Modulation: Phaser, Tremolo, Ring Mod, Flanger and Chorus with Rate and Amount controls
• 3-band Equalizer with sweepable middle band

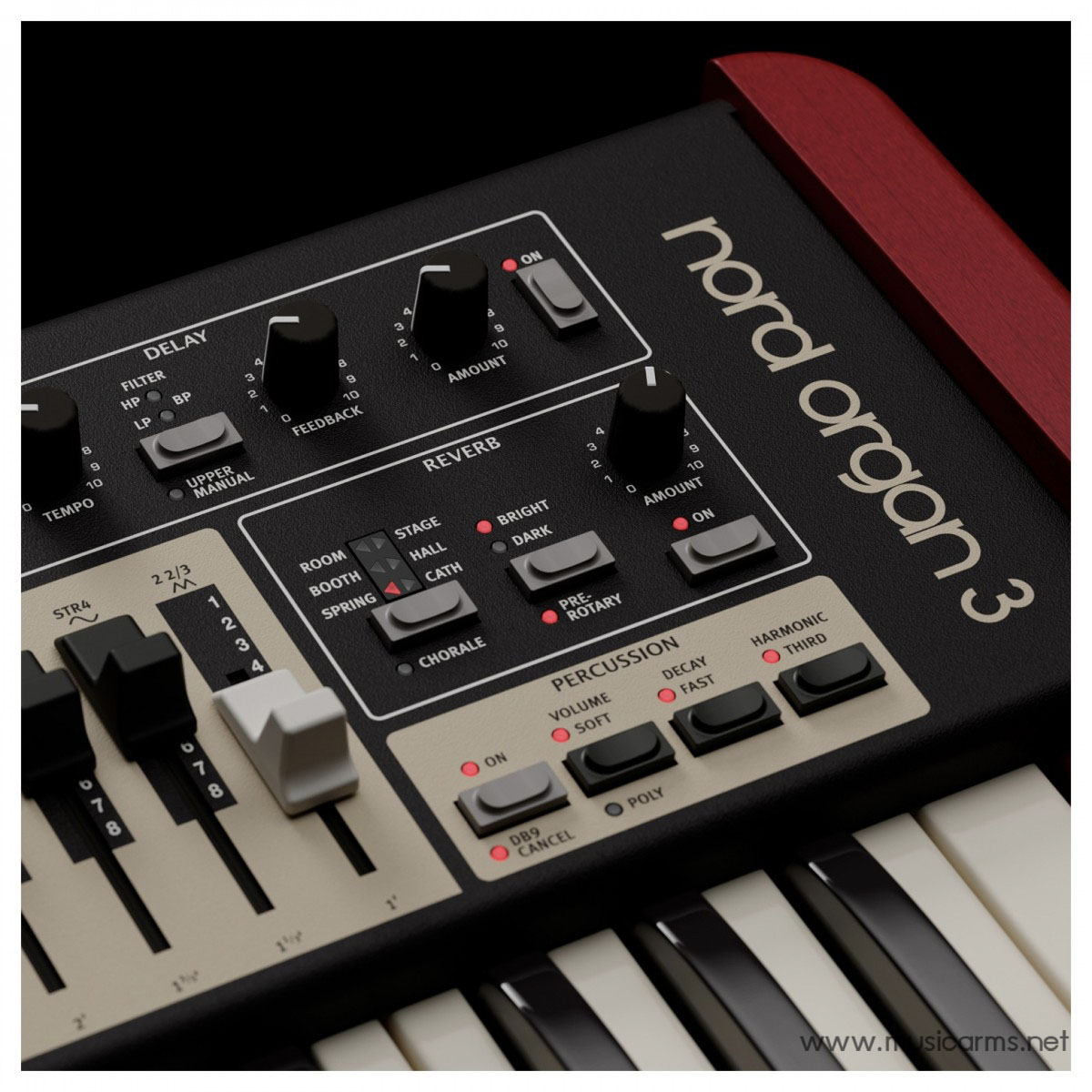

• Delay: Analog mode, LP/HP/BP Feedback filters, Feedback Amount, Dry/Wet control, Tempo control with Tap option, Upper Manual only mode

Reverb: Spring, Booth, Room, Stage, Hall, Cathedral, with Chorale, Bright/Dark, Pre-Rotary option and Amount control

• 2 x 61 Triple Sensor Semi Weighted Waterfall Keyboard

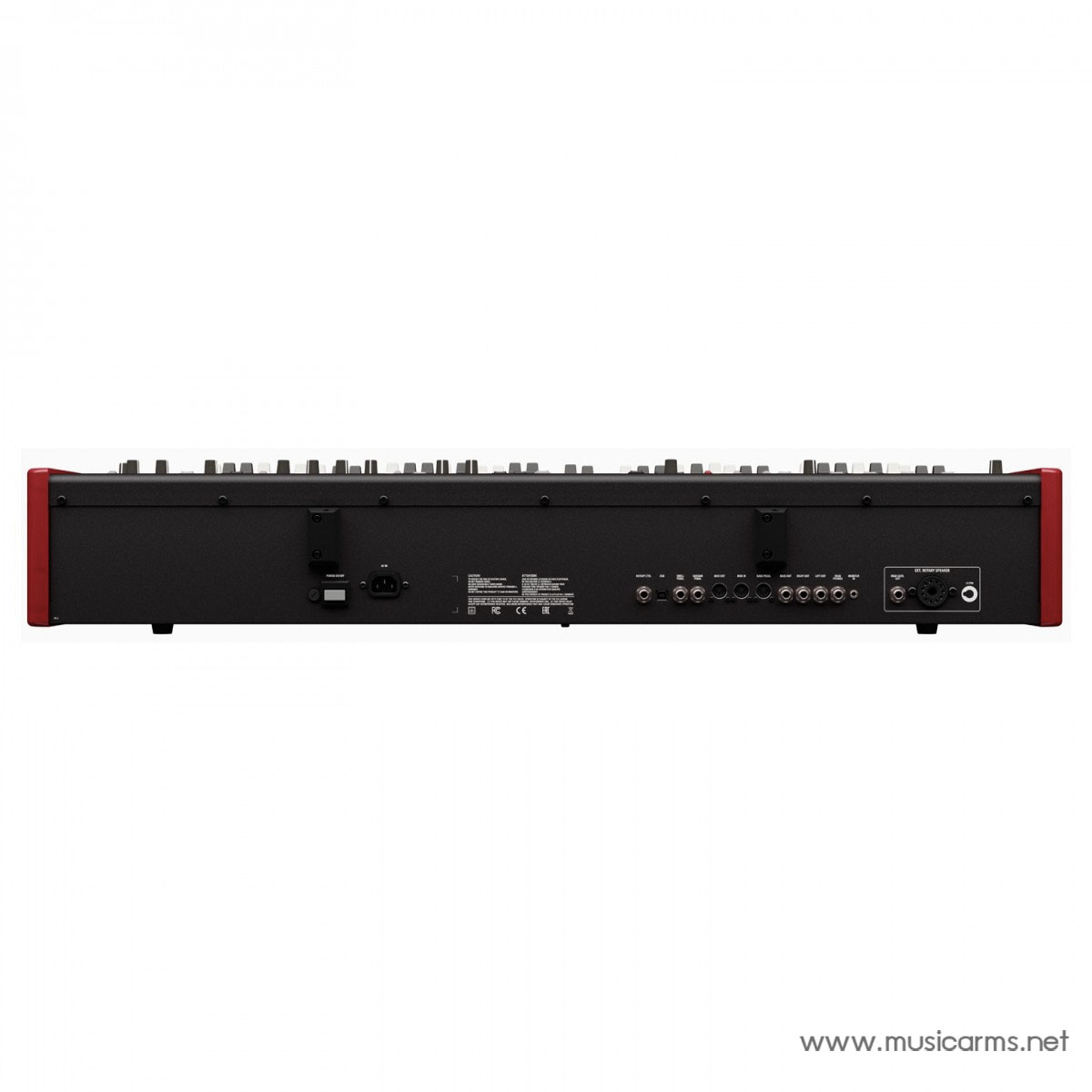

• Stereo Headphone Output – ¼”, 6,35 mm stereo jack
• 2 Line Level Audio Outputs, L & R – ¼”, 6,35 mm jacks, unbalanced
• 11-pin Leslie standard connector
• High Level Out ¼”, 6,35 mm jack
• Aux Out ¼”, 6,35 mm jack

• Monitor Input – 1/8″, 3,5 mm stereo jack
• Sustain Pedal Input – ¼”, 6,35 mm jack
• Rotor Control Input – ¼”, 6,35 mm jack, Half-Moon Switch or momentary pedal
• Swell Pedal Input – ¼”, 6,35 mm TRS stereo jack

• MIDI In – 5 pin DIN connector
• MIDI Out – 5 pin DIN connector
• Bass Pedal MIDI In – 5 pin DIN connector
• USB – type B connector
• IEC C14 power connector

985mm(38,8”) x 165mm (6,5”) x 446mm (17,6”)

17kg (37.5lbs)

• User Manual
• Power cord

• Nord Pedal Keys 25
• Nord Pedal Keys 27

• Half-Moon Switch
• Nord Organ Stand

• Nord Single Pedal 1
• Nord Single Pedal 2
• Nord Triple Pedal 1
