Morningstar Engineering MC-6 MK ll Midi Controller

30 BANKS OF 12 PRESETS

That’s 360 programmable slots. Plenty of space to store all the presets/functions you need.

SIMULTANEOUS MIDI CONTROL

Send up to 16 different MIDI messages with a single switch press. Control up to 16 different MIDI devices via 16 selectable MIDI channels.

NAMEABLE SWITCHES AND BANKS

All switches and banks can be named so you always know exactly what they do.

EXPRESSION PEDAL CONNECTIVITY

Connect up to 2 expression pedals for smooth continuous control over your desired effect parameters.

MIDI CLOCK

Sync all your time-based effects via tap tempo or pre-set tempo with the built-in MIDI Clock function on the MC6.

ACTION BASED CONTROL

Send different messages with the same switch depending on what action you perform on it – Press, Release, Double Tap, Long Press and more.

MIDI MESSAGE TYPES

Select from more than 20 MIDI message types and functions including PC, CC, Note, SysEx, MIDI Clock and many more.

USB CLASS COMPLIANT MIDI

Control any of your favourite DAWs and music software. Compatible with Windows, OSX and iOS.

SPECIFICATIONS

Enclosure Dimensions:
145mm x 95mm x 45mm

Power requirements (any of the following):
9-12V DC Center Negative
USB Power
MIDI Phantom Power via MIDI pins 6 & 7; 9-12V AC/DC
Recommended min current: 80mA at 9v

Hardware:
Anodized aluminium enclosure
6 x Soft Touch switches
24×2 character LCD

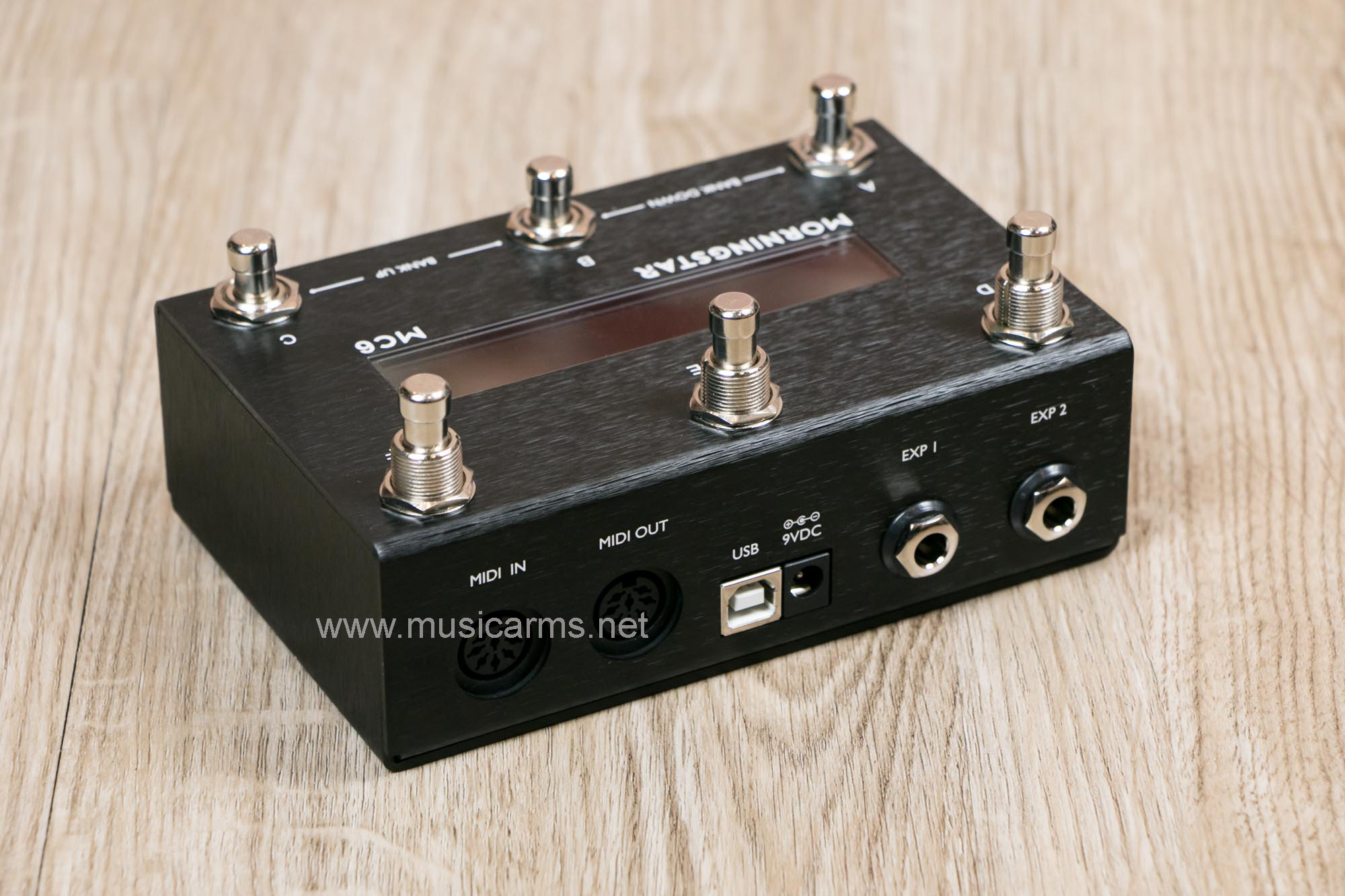

Connections:
1 x MIDI Out/Thru
1 x MIDI In
1 x USB Type B; Power and MIDI (class compliant)
2 x Expression Inputs (for expression pedals or external switches)

Box Contents:
1 x MC6 MKII Midi Controller
1 x 30cm USB Cable
