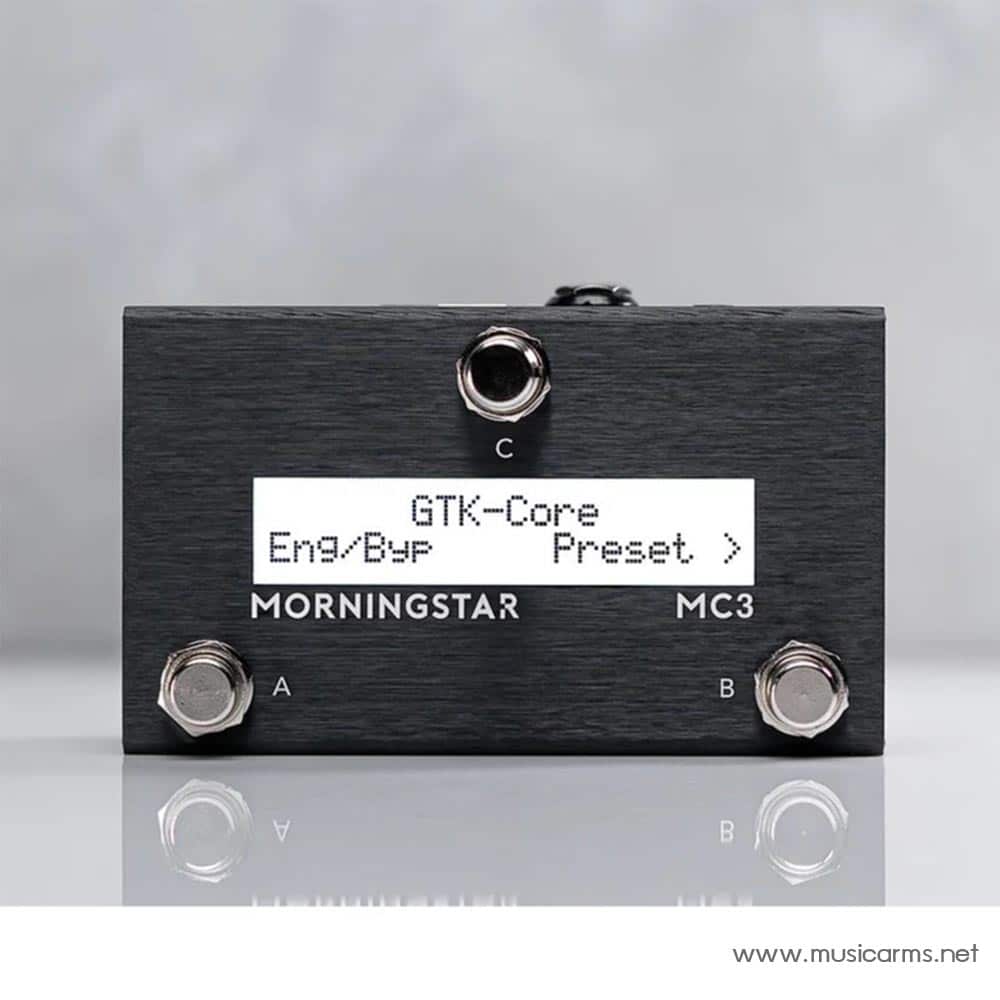

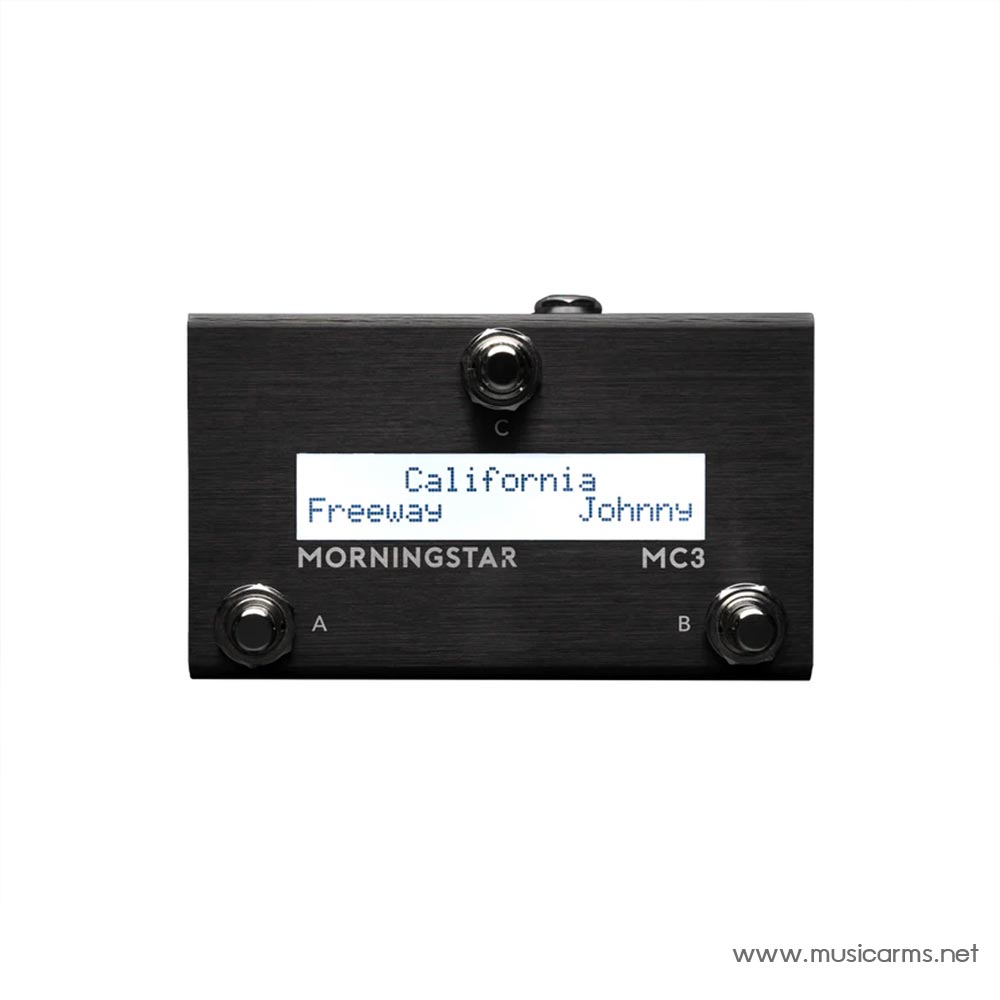

Morningstar Engineering MC-3 ฟุตสวิตซ์

The MC3 is a fully featured MIDI controller that fits on even the smallest of pedalboards. While size has been drastically reduced, no compromises were made in its design. The MC3 is an extremely compact, fully programmable MIDI controller, giving you control over all your MIDI-capable pedals or devices regardless of brand or model. Each switch can be programmed to send different messages based on what action you make, whether it is a single tap, double tap, release and more.

Features

30 Banks of 6 Presets
That’s 180 programmable slots.

Simultaneous MIDI Control
Send up to 16 different MIDI messages with a single switch press. Control up to 16 different MIDI devices via 16 unique selectable MIDI channels.

Name your Switches and Banks
All switches and banks can be named so you always know exactly what they do.

Expression Pedal Connectivity
Use an expression pedal for smooth continuous control over your desired effect parameters.

User-Definable MIDI Message Types
Select from more than 20 MIDI message types and functions including PC, CC, Note, SysEx, MIDI Clock and many more.

Built-in MIDI Clock
Sync all your time-based effects via tap tempo or pre-set tempo with the built-in MIDI Clock function on the MC3. Eliminates the need for a separate MIDI clock device.

Action-Based Control
Send different messages with the same switch depending on what action you perform on it – Press, Release, Double Tap, Long Press and more

USB Class Compliant MIDI
Control any of your favourite DAWs and music software. Compatible with Windows, OSX and iOS.

Desktop Editor
Downloadable or Chrome browser-accessible editor allows you to program and name your switches and banks quickly and easily.

Dimensions:

122 x 72 x 48 mm

​

Powered by any of the following:

9-12V DC center negative (min 80mA)

USB power

​

Hardware:

Anodized aluminium enclosure

Soft touch foot switches

20 x 2 character LCD display

​

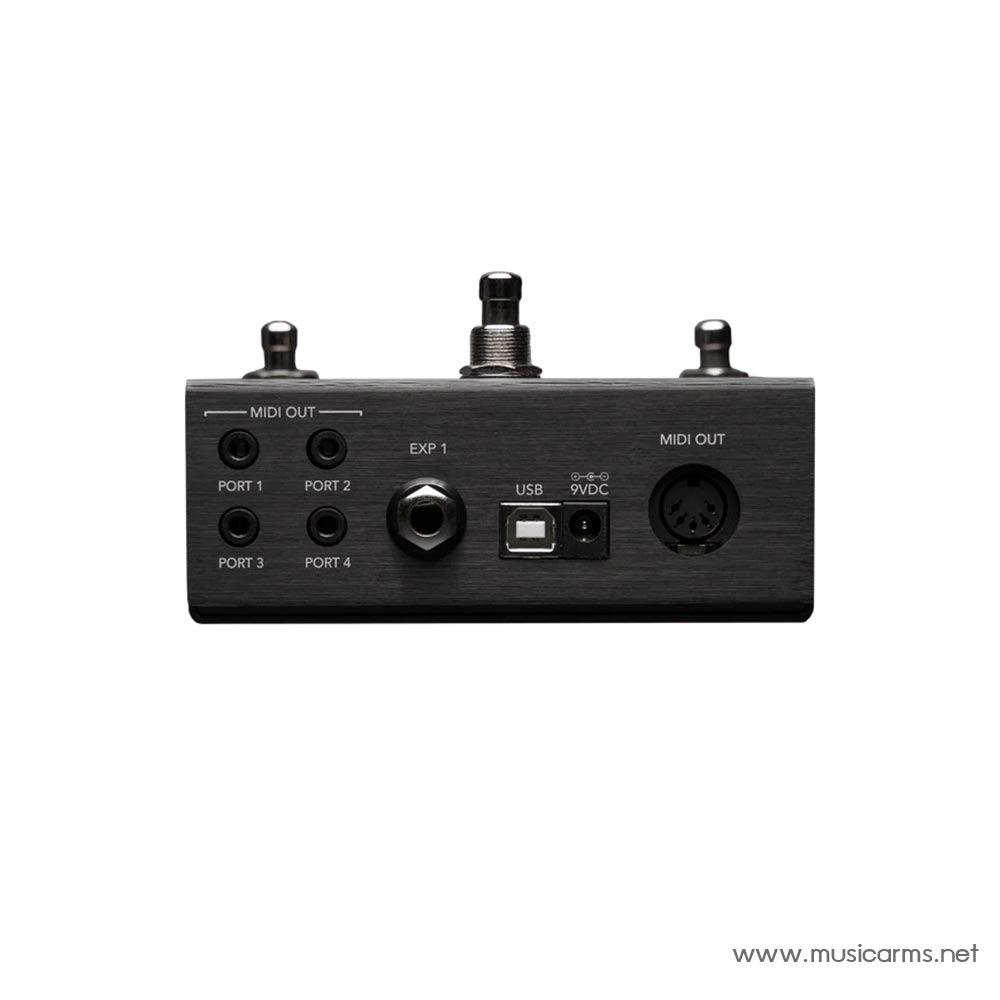

I/Os:

1 x 5-pin MIDI Out/Thru

1 x Class Compliant USB Type B (receives buss power, sends & receives MIDI)

1 x 1/4″ Omniports (expression pedal in, aux switch in or MIDI out)
4 x 3.5mm TRS MIDI Out (ports 3 & 4 are tip/ring switchable)
