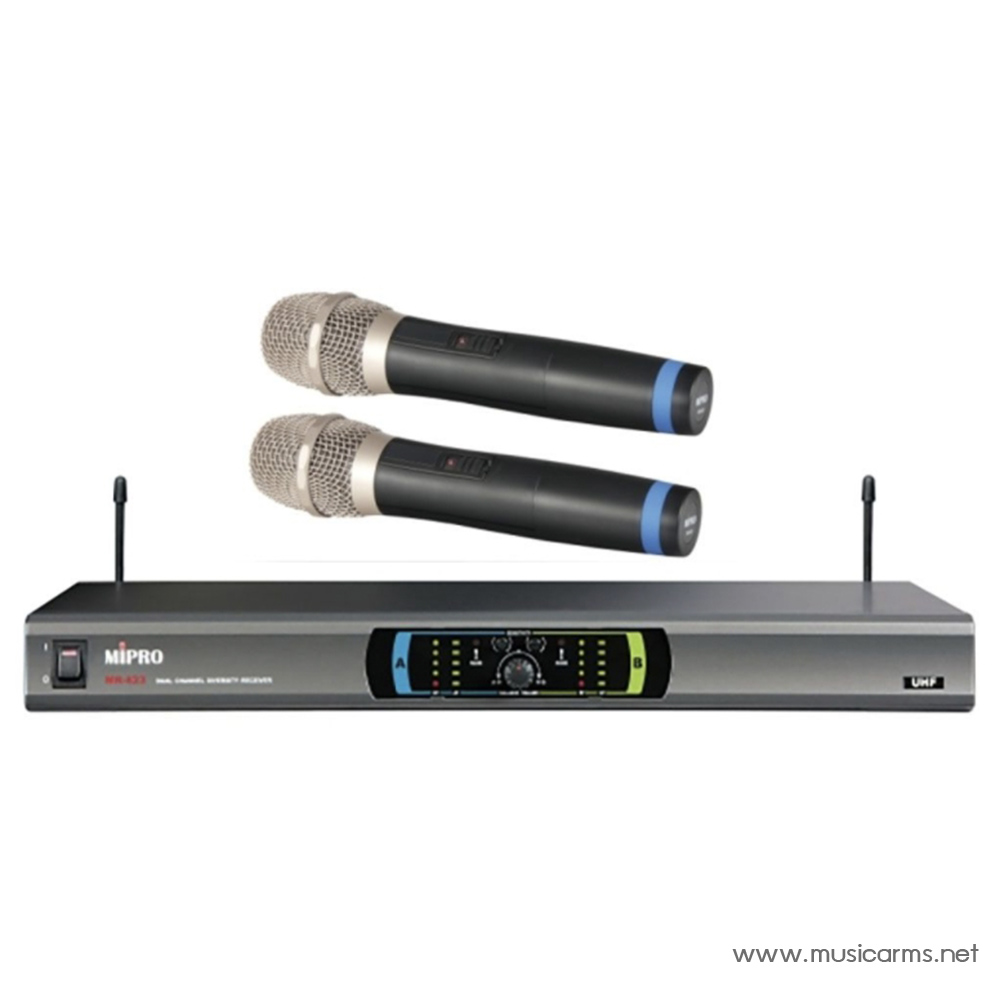

MIPRO MR-823/MH-80/MH-80

MIPRO MR-823MH-80MH-80

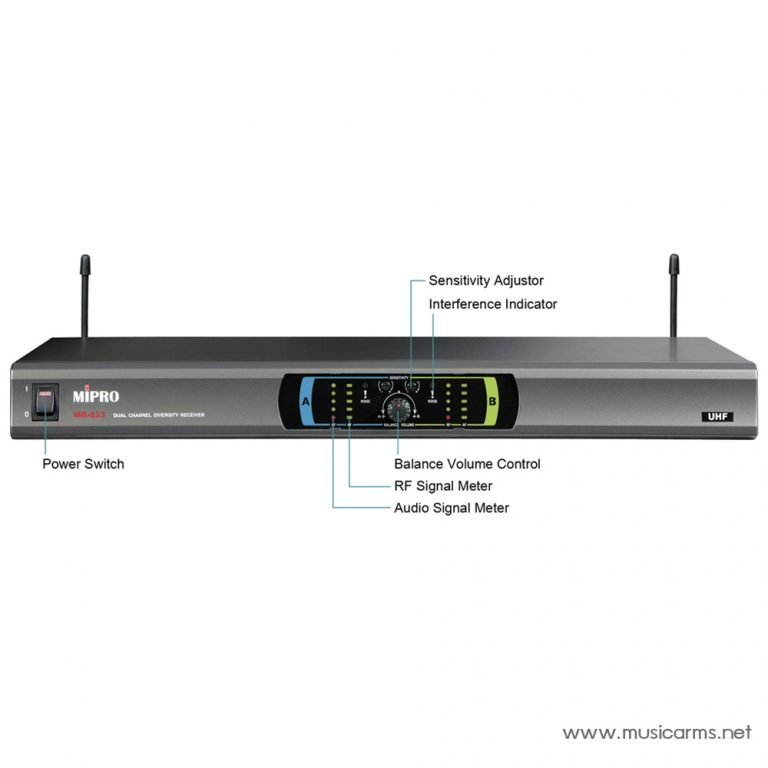

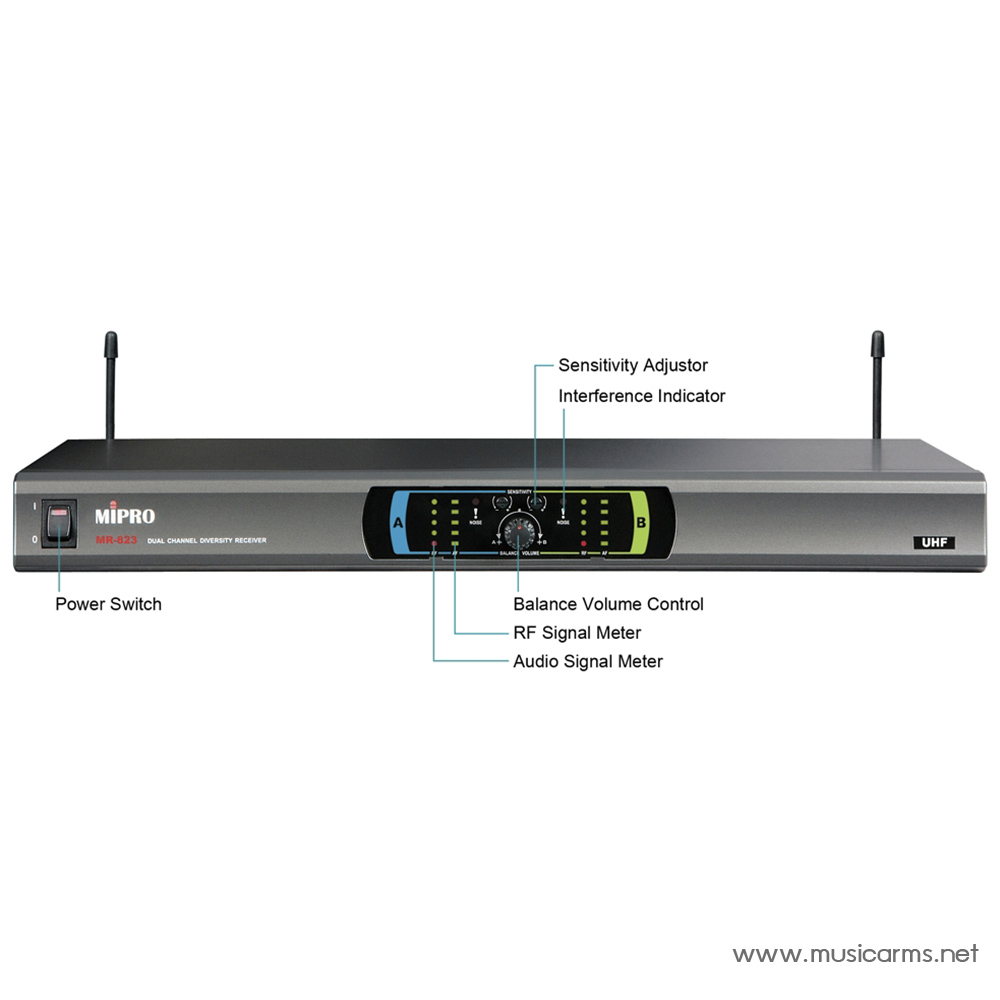

MR-823 Dual-Channel Diversity Receiver

• CPU diversity technology ensures stable signal quality and avoids signal drop-out.
• PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
• RF and audio level LED indicators.
• Adjustable ‘SQ’ for increased or decreased sensitivity level for increased reception range or interference management.
• Output level is accurately pre-adjusted to equal the microphone capsule sensitivity and ensures optimal performance.

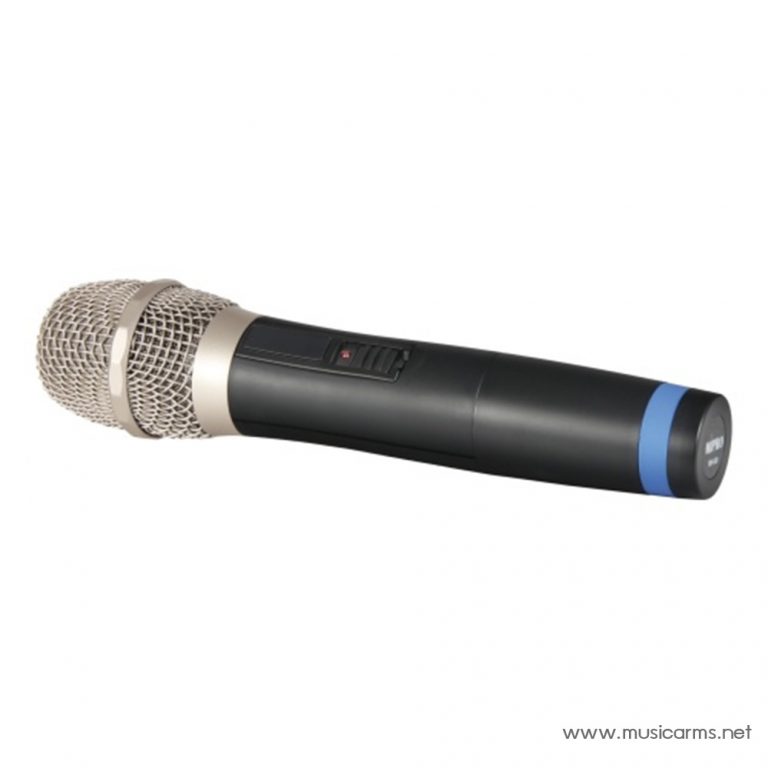

MH-80 Handheld Transmitter

• Fixed frequency with PLL synthesized technology ensures no need for frequency setup.
• Innovatively designed housing combines aesthetics and ergonomic style.
• Unique sturdy multi-layered steel grilles protect the capsule against impact, anti-roll and pop noise. Interior grille with fine metal mesh instead of sponge foam minimizes pop & breath noises and ensures transparent sound clarity.
• Patented, integrated grille and battery housing design enable fast and easy 2 AA battery installation and replacement.
• Sturdy housing with color-coded channel identification rings.
• Low-battery warning indicator also determines battery freshness.
• Patented lockable, silent on/off switch.
• Proprietary quality condenser capsule exhibits high fidelity, wide dynamic range, transparent sound quality, and withstands maximum SPL.
• Up to 24 hours of continuous operation with 2 AA alkaline batteries.

Specification

MR-823 Dual-Channel Diversity Receiver

• Chassis : EIA Standard 19 ” 1U metal chassis
• Frequency Range : UHF 480 ~ 934 MHz
• Oscillation Mode : PLL Synthesized fixed-frequency
• Receiving Mode : Diversity receiving
• Deviation : < ± 40 kHz
• S/N Ratio : > 106 dB(A)
• T.H.D. : < 0.5% @ 1 kHz
• Frequency Response : 50 Hz ~ 18 kHz
• Max. Output Level : 3-Level Switch: +10 dBV / 0 dBV / -6 dBV
• Sensitivity : 10 dBμV at S/N > 80 dB
• Squelch : “PiloTone & NoiseLock” dual-squelch circuit
• Power Supply : 12 ~ 15V DC, 1A
• Dimensions (W × H × D) : 420 × 44 × 204 mm / 17 × 1.7 × 8.0 “
• Net Weight : Approx. 1.7 kg / 3.7 lbs
• Note : Refer to actual product in the event of product discrepancy.
  Frequency range and maximum deviation comply with the regulations of different countries.

MH-80 Handheld Transmitter

• Housing : Rugged plastic housing
• Frequency Range : UHF 803.775/805.025 (country dependent)
• Oscillation Mode : PLL Synthesized fixed-frequency
• RF Output : Power 10 ~ 30 mW (country dependent)
• Spurious Emissions : < -55 dBc
• Max. Input Level : 140 dB SPL
• Display LED : indicator for power on/off and low battery status
• Battery Type : 2 × AA alkaline
• Max. Input Level : 140 SPL
• Operating Time : Min. 17 hours
• Mic Capsule Module : Condenser or Dynamic options
• Dimensions : (Ø × L) 51 × 234 mm / 2 × 9.2 “
• Net Weight Approx. 199 g / 7 oz
• Note Refer to actual product in the event of product discrepancy.
• Frequency range and maximum deviation comply with the regulations of different countries.
