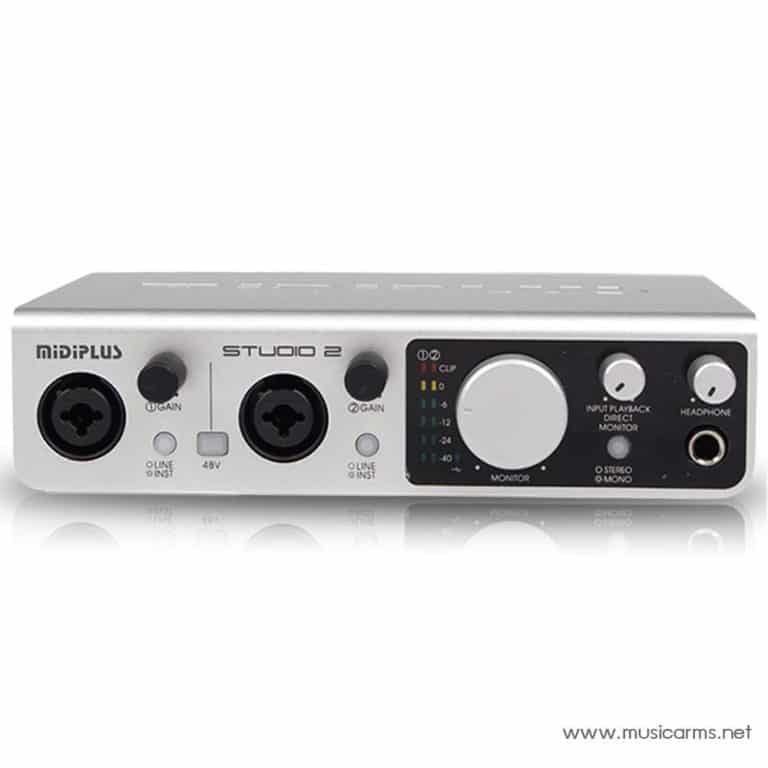

Midiplus Studio 2 Pro OTG Audio Interface

Newly designed the circuit module to improve the product’s ability to work stably in poor power supply environments.

It adopts the high-precision standard of 24bit/192KHz, optimizes the 48V phantom power supply capability under limited USB power, and uses some non-standard capacitors.

The compatibility is stronger when the microphone is used, and the algorithms for MIC IN, LINE IN, instrument input, signal-to-noise ratio and dynamic ability are optimized.

For MIC input, the dynamic range reaches 107dB (A weighting), and the gain range: -9dB to +47dB, the maximum input level is +9dBu, the overall sound quality and recording quality of analog signals are improved, and a 4.82 kernel version of the driver is also introduced.

Supports Mac and PC systems, compatible with USB2.0 and 3.0, and stable ASIO ultra-low latency capability, and overall performance is improved.

In addition, it is especially for the output of headphones. The driving voltage is increased by 10V, the dynamic response performance is improved, and the driving force of the headphone interface is improved as a whole, whether it is professional return listening or HIFI appreciation.

• 24bit/ 192kHz high resolution AD/DA conversion.
• Two XLR/ TRS combo inputs with high-quality microphone preamplifier.
• Two(left & right) 1/4″(6.35mm) TRS balanced output interfaces.
• One 1/4″ (6.35mm) stereo headphone interface with separate volume control knob.
• With instrument/ line switches, stereo/ mono switch.
• Supports direct monitor control and main output level control.
• High speed USB 2.0 , 3.0 bus powered, with 48V phantom power switch.
• Compatible with Mac and Windows systems.
