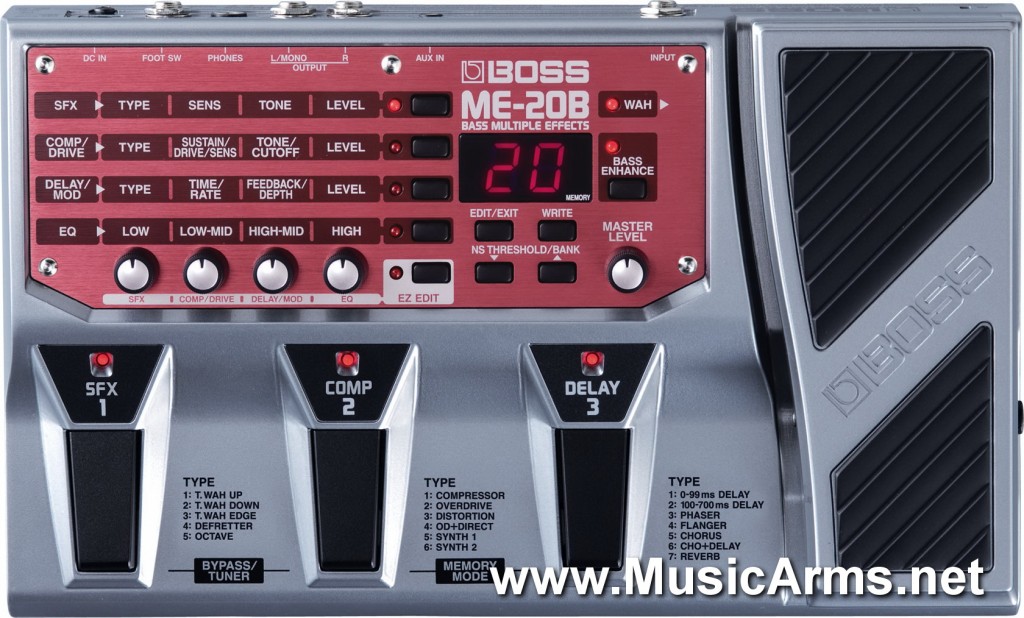

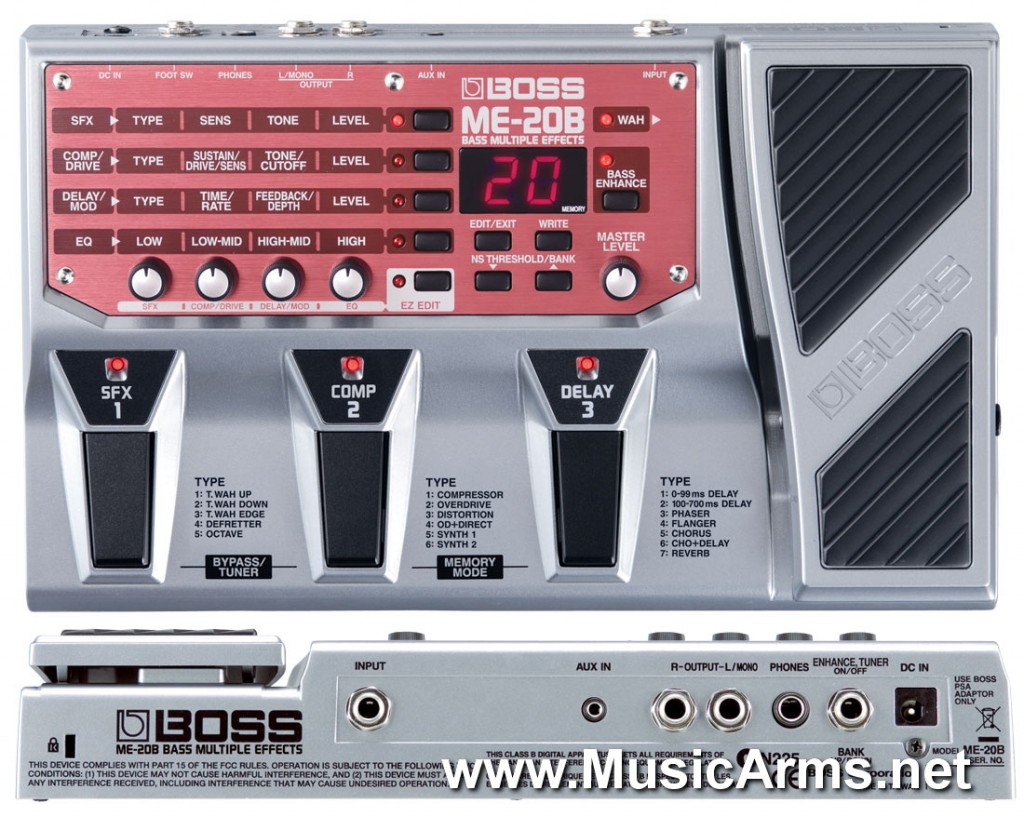

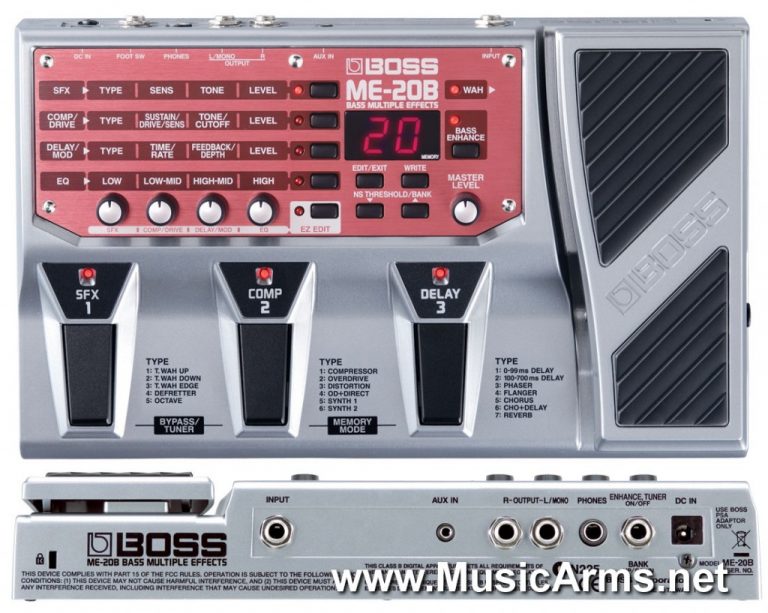

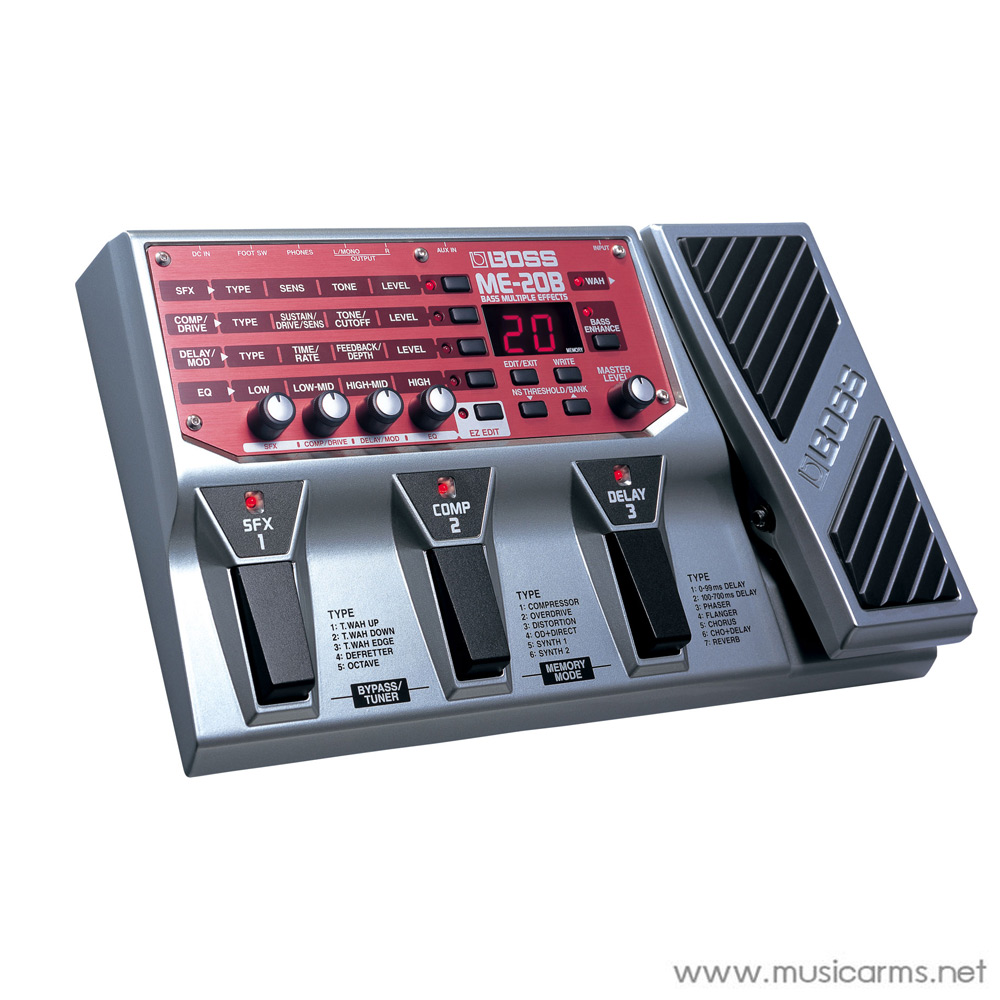

Boss ME-20B Multiple Effects

ME-20B: Bass Multiple Effects

PERFORMANCE-BASED EFFECTS FOR BASS

AD Conversion
24-bit + AF method (*)
DA Conversion
24-bit
Sampling Frequency
44. kHz
Patches
30 (user)
Nominal Input Level
INPUT: -0 dBu, AUX IN: -8 dBu
Input Impedance
INPUT: M ohm, AUX IN: 22 k ohms
Nominal Output Level
-0 dBu
Output Impedance
2 k ohms
Display
7 segments, 2 characters LED
Controls
SFX/ pedal, COMP/2 pedal, DELAY/3 pedal, Expression pedal

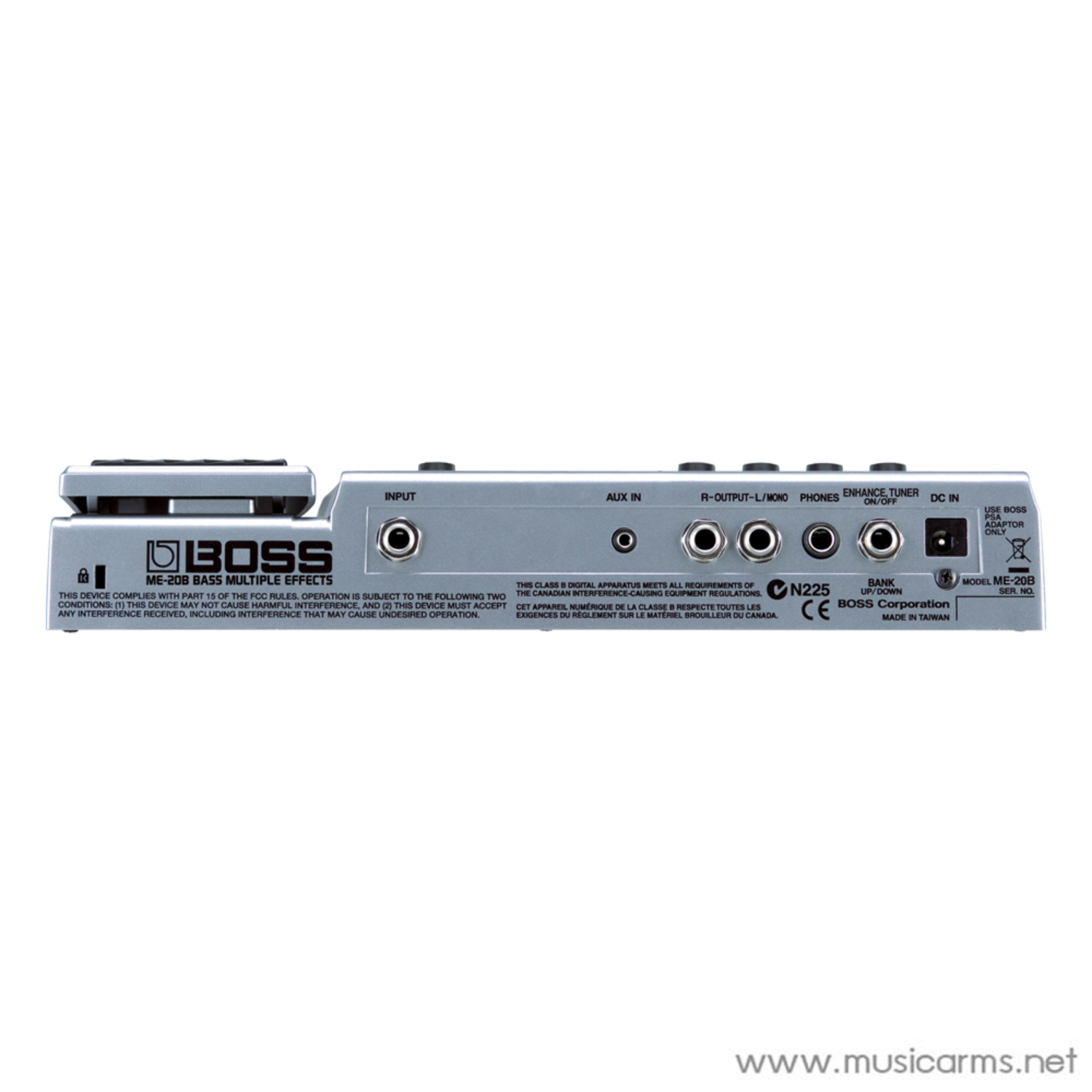

Connectors
INPUT jack (/4 inch phone type), AUX IN jack (Stereo miniature phone type), OUTPUT jacks L/MONO, R (/4 inch phone type), PHONES jack (Stereo /4 inch phone type), FOOT SW jack (/4 inch TRS phone type), AC Adaptor jack
Power Supply
DC 9 V: Dry battery LR6/R6 (AA) type x 6, AC Adaptor (PSA series: Optional)
Current Draw
90 mA * Expected battery life under continuous use: Alkaline: 3 hours, Carbon: 3.5 hours (These figures will vary depending on the actual conditions of use.)
Accessories
Owner’s Manual, Dry battery LR6 (AA) type (alkaline) x 6, Roland Service (Information Sheet)
Options
AC Adaptor: PSA series, Footswitch: FS-6, FS-5U, Connection Cable: Roland PCS-3 (Stereo /4 inch phone plug – /4 inch phone plug x 2)
Size and Weight
Width
294 mm
-5/8 inches
Depth
79 mm
7-/6 inches
Height
54 mm
2-/8 inches
Weight
.6 kg
3 lbs. 9 oz.
(*) AF method (Adaptive Focus method) This is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters
*The specifications are subject to change without notice.
