Marshall JMD501 แอมป์กีตาร์ไฟฟ้า

To create the incredible sounds of the award winning JMD:1 we partnered up with audio software experts Softube, utilising their groundbreaking, patented Natural Harmonics Technology. The JMD:1 took two years of intense R&D to come to fruition.

JDM:1 wasn’t a general modelling amp. The only amp tones that were emulated were Marshall; 16 very different sounding, programmable preamp options taken from the Marshall historic model library. For example: Clean 3 was based on the JMP-1, Overdrive 11 was based on a Bluesbreaker pedal plugged into a JCM800, and Lead 15 was based on a Bluesbreaker pedal, plugged into a DSL100.

General modelling amps had been around for the best part of a decade and were ten-a-penny. These units were popular at the lower end of the price spectrum and hearing one actually used as a professional touring rig or on an album was rare. Enter the JDM:1 Series; professional amplifiers that combined fabulous versatility and digital FX, with stunning Marshall tone.

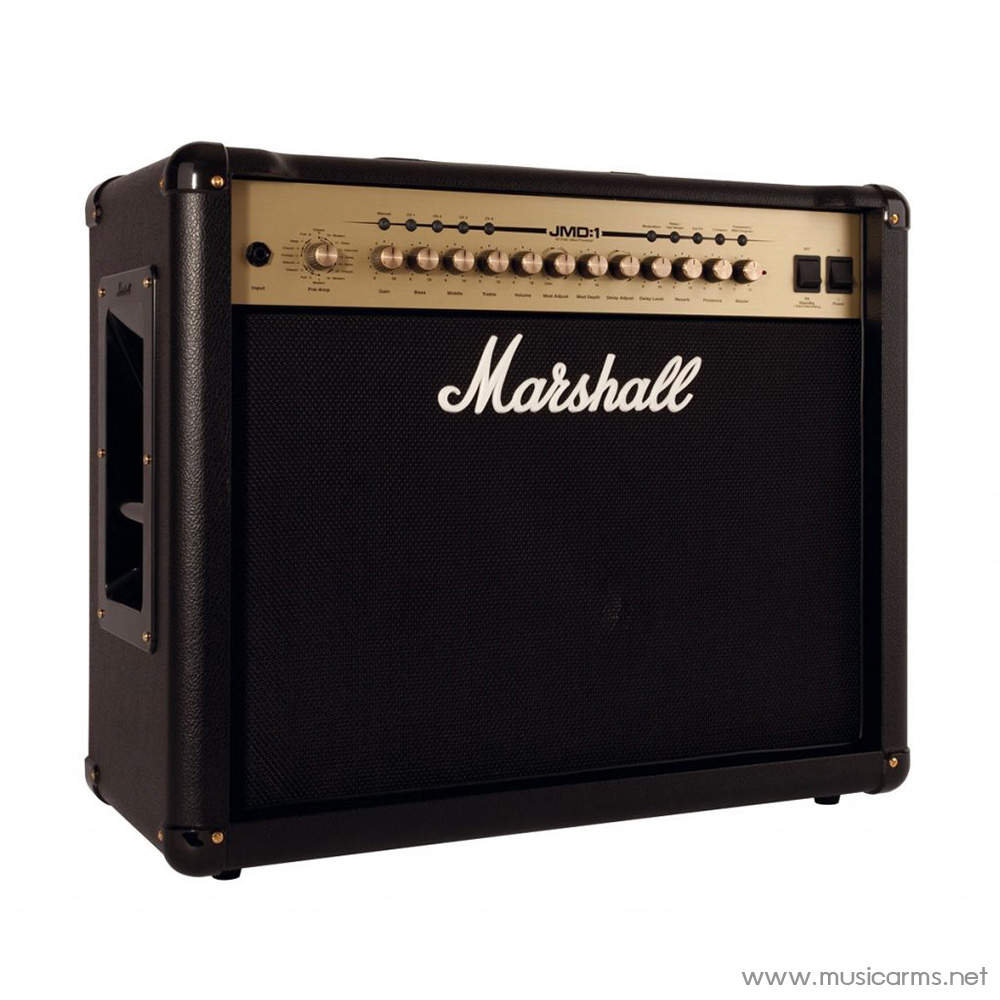

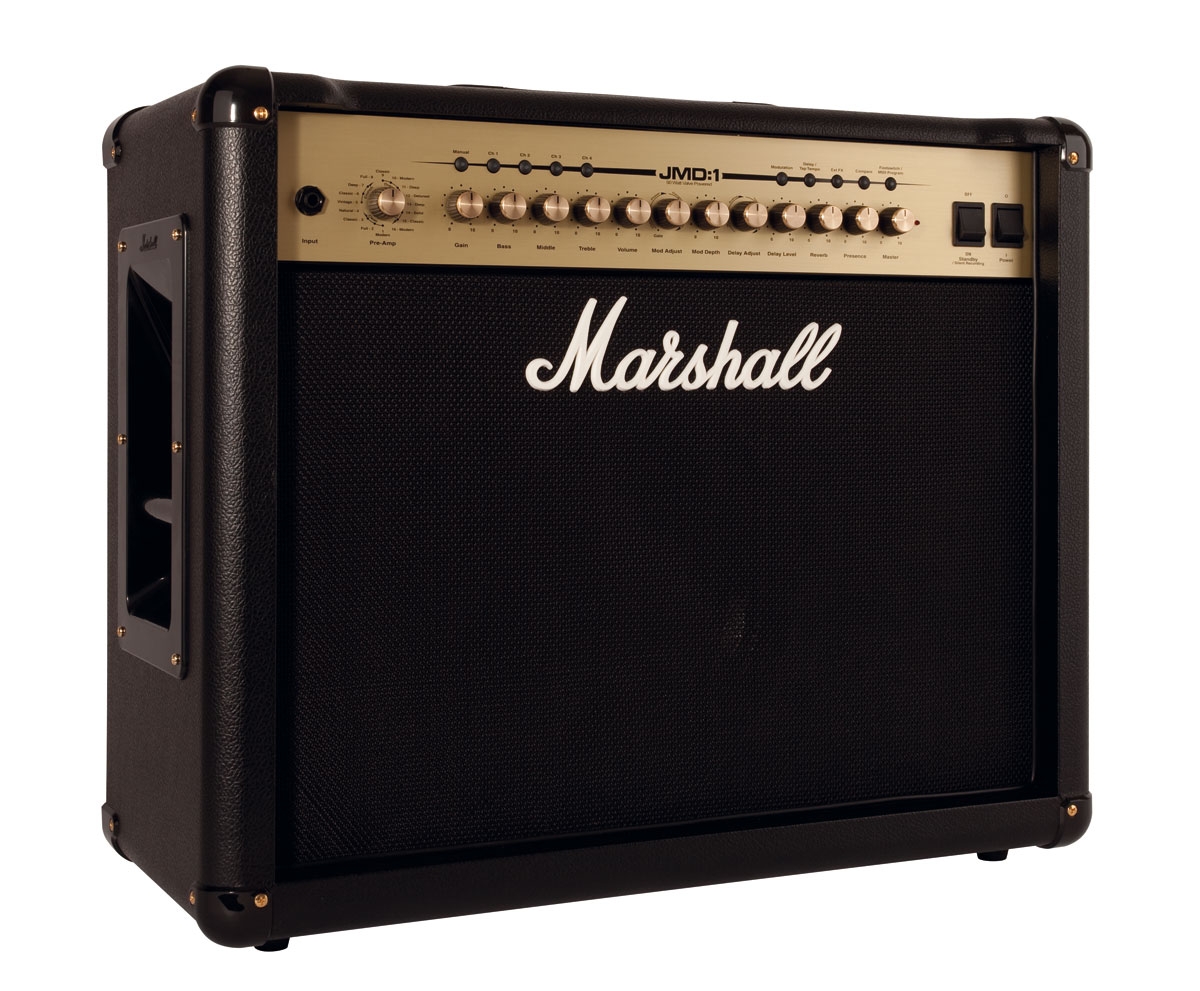

The JMD501 was a 50 Watt 1 x 12″ combo with four channels, a single ECC83 preamp valve, two EL34s in the power stage, and studio quality digital FX, which included: chorus, phaser, flanger, tremolo; a highly responsive noise gate; analogue, tape, hi-fi and multi delays, reverb, with 16 different preamp options and 128 memory locations.

• Power rating: 50W
• Preamp: Digital Natural Harmonic Technology
• Poweramp tubes: 2 x EL34
• Preamp topologies: 16
• Modulation effects: Chorus, Phaser, Flanger, Tremolo
• Delay effects: Hi-Fi Analogue, Tape, Multi
• Tap tempo control
• Reverb: Independent custom voiced
• Midi Control: Midi in, Midi Thru
• Stompware controller: supplied
• Emulated line out: XLR
• Headphone out: 1/4″ jack
• Line in: 1/4″ jack
• Preamp: 1/4″ jack
• Effects loop: Serial / Parallel -10dBV/+4dB with mix control
• Speaker output: 1×16 Ω, 1×8 Ω, 2x 16 Ω
