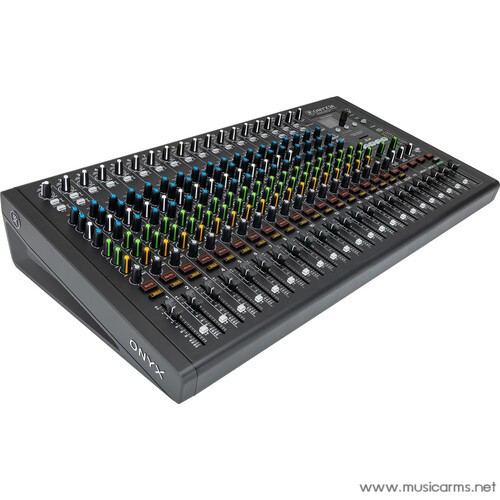

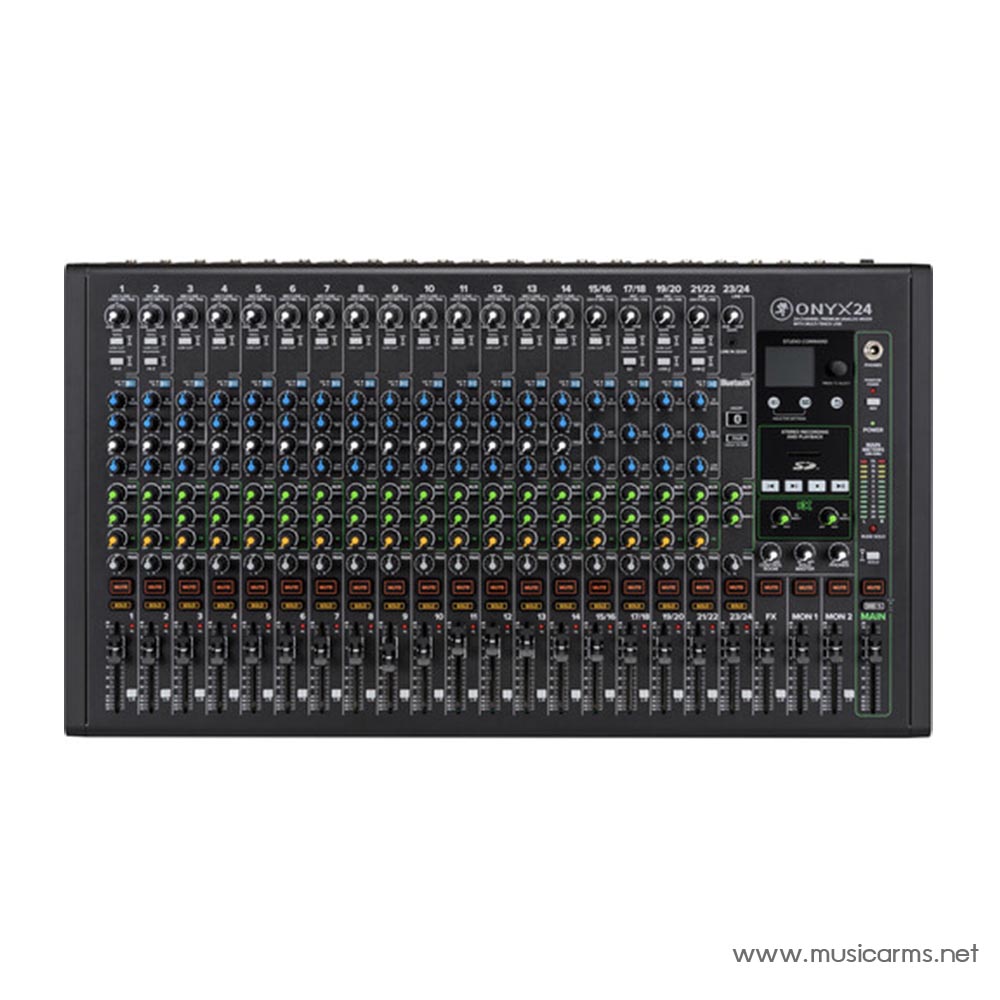

Mackie Onyx 24 Analog Mixer

Professional-grade Mixer for the Studio and Stage

When it comes to world-class quality and versatility, the Mackie Onyx24 24-channel Analog Mixer with Multi-track USB is the perfect go-to board for all your live sound and recording needs. Compact enough for both home use and the traveling engineer, the Onyx24 combines 24-bit/96kHz multitrack recording with high-gain preamps and a low-noise design to meet the uncompromising demands of professionals everywhere. With its British-style sound, Mackie’s timeless Perkins EQ is a favorite among many Sweetwater engineers, and the studio-grade effects sound stellar when used with any mix. Top it off with a full-color display and easy navigation, and you get a formidable analog mixer capable of capturing audio with impeccable quality.

Mixer:

• Number of Analog Input Channels: 24 (14 Mono / 5 Stereo)
• Number of Mic Preamps: 18
• Analog Output Channels: 2 x Stereo Master Output, 2 x Stereo Control Room/Monitor Output, 2 x Mono Aux Send Output, 1 x Mono FX Send Output, 1 x Stereo Headphone Output
• Mix Routing: 1 x Stereo Main Mix per Mono Input Channel, Stereo Input Channel, Aux Bus/Subgroup
• Faders: 19 x 2.4″ / 60 mm Channel Fader, 1 x 2.4″ / 60 mm FX Fader, 2 x 2.4″ / 60 mm Bus/Subgroup Fader, 1 x 2.4″ / 60 mm Master Fader
• Main Meter:: 2 x 12-Segment LED
• Meter Range: -30 dB to +20 dB Peak/Clip

Signal Processing:

• Gain/Trim Range: +60 dB
• Input Pad: None
• Input Polarity: None
• Dynamic Processing: None
• Sidechain Filters: None
• EQ: 3-Band Semi-Parametric (Mono Channels), 3-Band Shelving/Notch/Peak (Stereo Channels)
• EQ Parameters: Mono Channels: High: ±15 dB at 12 kHz, Mid: ±15 dB at 100 Hz to 8 kHz, Low: ±15 dB at 80 Hz
• Stereo Channels: High: ±15 dB at 12 kHz, Mid: ±15 dB at 2.5 kHz, Low: ±15 dB at 80 Hz
• Filters Input Channels: 1 x High-Pass: 100 Hz, Solo/Mute: Solo per Input Channel
• Mute per Input Channel, Bus, FX Bus, Master
• Channel Output/Source Monitoring: None
• Internal Effects: None

Digital Audio:

• Sample Rates: 96 kHz
• DSP: None
• Word Clock Input: None

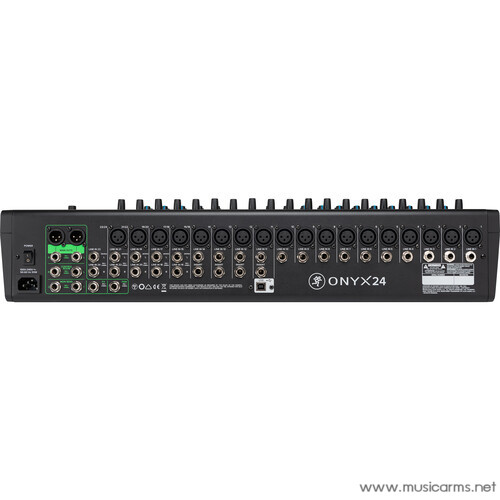

Connectivity:

• Analog Inputs: 18 x XLR 3-Pin Balanced Mic Input, 14 x 1/4″ TRS Balanced/Unbalanced Line Input, 4 x 1/4″ TRS Unbalanced Line Insert, 2 x 1/4″ TRS Balanced/Unbalanced Hi-Z Input, 10 x 1/4″ TRS, Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs), 1 x 1/4″ TRS Footswitch Input
• Analog Outputs: 2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair), 2 x 1/4″ TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair), 2 x 1/4″ TRS Balanced/Unbalanced Stereo Monitor Output (1 Stereo Pair), 2 x 1/4″ TRS Balanced/Unbalanced Mono Aux/Monitor Output, 1 x 1/4″ TRS Balanced/Unbalanced FX Send
• Phantom Power: +48 V (Applied to All Inputs)
• USB: 1 x USB Type-B (Audio Playback, Host Connection, Recording)
• Wireless Connectivity: Bluetooth

Recording:

• Max Multitrack Recording: 24 Tracks
• Media Support: SD

Compatibility

• OS Compatibility: Not Specified by Manufacturer

Power

• AC Power Connector: 1 x IEC Input
• Power Consumption: 55 W

Physical

• Rack Mountable: No
• Dimensions: 25.2 x 14 x 4.5″ / 640.1 x 355.6 x 114.3 mm
• Weight: 21.5 lb / 9.8 kg
• Warranty: 1-year all inclusive, nontransferable
